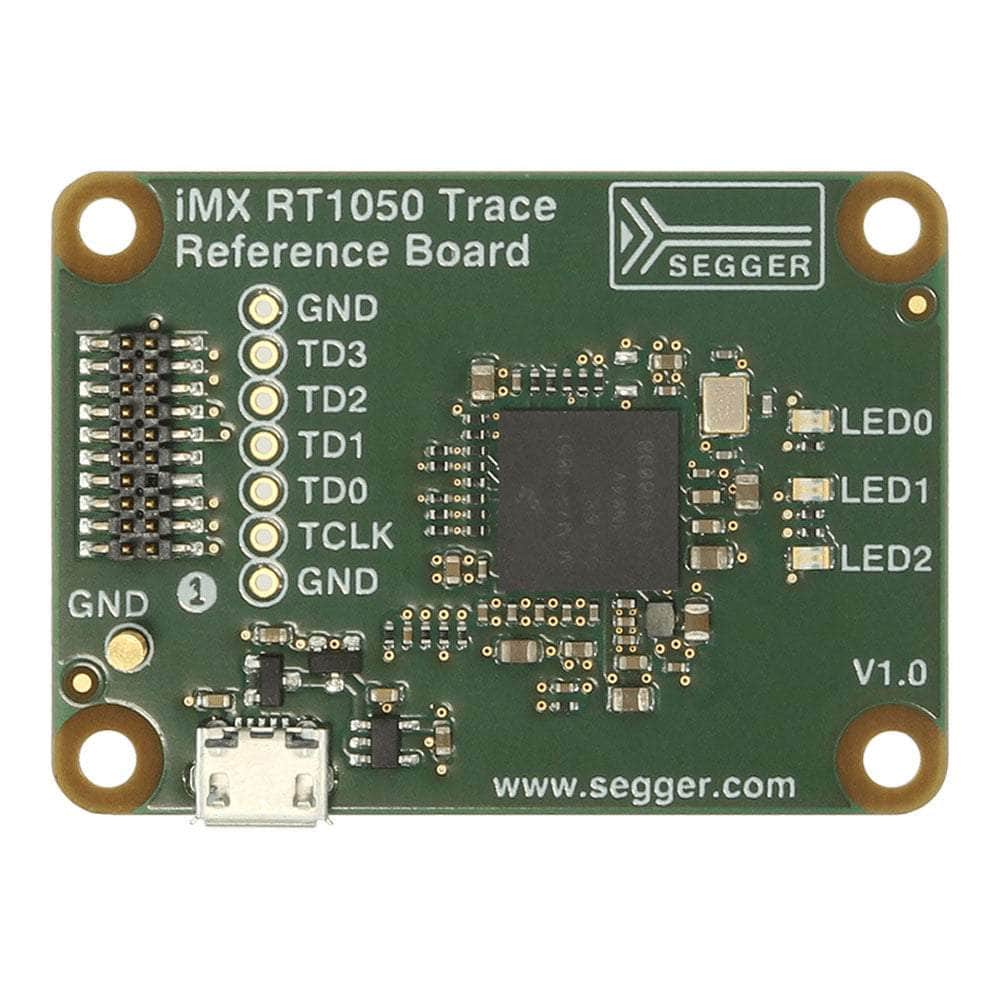

SEGGER NXP iMX RT1050 Trace Reference Board

SEGGER NXP iMX RT1050 Trace Reference Board

The SEGGER iMX RT1050 Trace Reference Board is a simple hardware with an ARM Cortex-M7 based microcontroller, that supports the Embedded Trace Macrocell (ETM).

SKU: 6.68.19

Regular price
£240.00 exc VAT
£288.00 inc VAT
Regular price Sale price
£240.00 exc VAT
£288.00 inc VAT
Sale Sold out
Shipping calculated at checkout.
If no stock is shown above, order now and we'll dispatch within 5 working days.

Payment methods

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Bank transfer
View full details

Key Features

MCU: NXP iMX RT1050
Based on thge ARM Cortex-M7 Core
External debug header with trace pins
Test points for trace signals
Supports the Embedded Trace Macrocell (ETM)

Overview

The iMX RT1050 Trace Reference Board is an ETM trace target built on the NXP iMX RT1051/52, an ARM Cortex-M7 microcontroller running at up to 600 MHz with 4-bit trace. It connects over SWD, takes its power from the SEGGER J-Trace PRO through the trace header, and comes with an example project that runs out of the box. Use it to set up streaming trace, live code coverage and profiling.

The SEGGER iMX RT1050 Trace Reference Board (part number 6.68.19) is an ETM trace target built on the NXP iMX RT1051/52, an ARM Cortex-M7 microcontroller with a maximum CPU clock of 600 MHz, 4-bit trace reaching a maximum trace bandwidth of 1056 Mbps and a trace port clock of 264 MHz. It connects over SWD, takes its power from SEGGER J-Trace PRO through the trace header, and comes with an example project that runs out of the box. Use it to set up streaming trace, live code coverage and profiling on the iMX RT1050 before your own hardware is ready, or as a reference for trace signal quality.

Streaming Trace on the NXP iMX RT1050 with J-Trace PRO

SEGGER introduced the board to demonstrate streaming trace, live code coverage and profiling on the NXP iMX RT1050, and states its prime purpose as quickly setting up a reference project for instruction tracing, live code coverage and profiling. All trace signals on the board are optimised for signal quality, so it gives a known-good result to compare against when trace on a custom iMX RT design is unreliable.

Trace Header, Test Points and Target Power

The external debug header carries the trace pins. SEGGER's 19-pin JTAG/SWD and trace connector assigns VTref, SWDIO/TMS, SWCLK/TCK, SWO/TDO, TDI, nRESET, TRACECLK and TRACEDATA[0] to [3]; pins 3, 5, 15, 17 and 19 are GND and pin 9 is left open. J-Trace PRO can supply 5V to the target on pins 11 and 13, so the board needs no separate power cable: run power on perm in J-Link Commander, then connect the board, and the green Target power LED on the probe lights. All trace signals are also brought out as test points for oscilloscope measurements, and three LEDs are free for use in trace demo applications.

Example Project and Software

SEGGER's trace reference board overview links the example project for this board, Tracing on NXP iMX RT1050, from its Knowledge Base, and states that each board comes with an example project that runs out of the box. Check that article for the current project download and software requirements before you start; SEGGER's minimum J-Link and Ozone versions differ between its other two boards.

Specifications

Part number 6.68.19
Microcontroller NXP iMX RT1051/52 (iMX RT1050)
Core ARM Cortex-M7
Max. CPU clock 600 MHz
Trace Embedded Trace Macrocell (ETM), 4-bit trace port
Max. trace bandwidth 1056 Mbps (4-bit trace)
Trace port clock 264 MHz (actual trace clock is half the TPIU frequency, sampled on both edges)
Debug interface SWD
Debug connector External debug header with trace pins (19-pin JTAG/SWD and trace)
Target power 5V from J-Trace PRO on pins 11 and 13
Test points All trace signals
LEDs 3, for demo applications

What's Included

SEGGER publishes no box list for this board, so the order is for the iMX RT1050 Trace Reference Board itself. The example project is a free download from SEGGER's Knowledge Base.

Limitations

  • No trace probe is included. SEGGER designed the board for J-Trace PRO, which captures the trace and powers the board.
  • SEGGER lists SWD as the debug interface for this board; JTAG and SWO are listed only for the STM32H7 and Cortex-M boards.
  • SEGGER says the board can be used with other ARM emulators that share the same pinout, but at your own risk.
  • SEGGER publishes no dimensions or weight for the board.

Trace Reference Boards Compared

Model Microcontroller Max. CPU clock Max. trace bandwidth (4-bit) Debug interfaces Price ex VAT
iMX RT1050 Trace Reference Board (this product) NXP iMX RT1051/52, Cortex-M7 600 MHz 1056 Mbps SWD £240
STM32H7 Trace Reference Board ST STM32H743, Cortex-M7 400 MHz 1064 Mbps JTAG, SWD, SWO £240
Cortex-M Trace Reference Board ST STM32F407, Cortex-M4F 168 MHz 672 Mbps JTAG, SWD, SWO £19
J-Trace PRO Cortex-M Streaming trace probe that powers and traces these boards £1,515

Typical Applications

Setting up streaming trace and live code coverage on an iMX RT1050 while custom boards are still in layout. Demonstrating instruction trace and profiling on a 600 MHz Cortex-M7 at a design review or training course. Measuring the trace clock and data lines at the test points as a reference when a trace connector on your own iMX RT board misbehaves.

The board suits firmware engineers working on NXP iMX RT parts and hardware engineers checking trace routing.

Order the iMX RT1050 Trace Reference Board for £240 ex VAT, or ask us for a formal quotation. See the full range in our SEGGER debug probes collection.

Last reviewed 16/11/2026.

Sources (5 manufacturer pages)
General
Part number6.68.19
MicrocontrollerNXP iMX RT1051/52 (iMX RT1050)
Test pointsAll trace signals
LEDs3, for demo applications
Host and Target Interface
Debug interfaceSWD
Debug connectorExternal debug header with trace pins (19-pin JTAG/SWD and trace)
Performance
Max. CPU clock600 MHz
TraceEmbedded Trace Macrocell (ETM), 4-bit trace port
Max. trace bandwidth1056 Mbps (4-bit trace)
Trace port clock264 MHz (actual trace clock is half the TPIU frequency, sampled on both edges)
Power
Target power5V from J-Trace PRO on pins 11 and 13
Software and Compatibility
CoreARM Cortex-M7
Ordering information
Part number (SKU)6.68.19
ManufacturerSEGGER Microcontroller GmbH
EAN5055383699216
Warranty12 months
Shipping weight0.02 kg
  • 1 × SEGGER NXP iMX RT1050 Trace Reference Board

Contact us to confirm the full contents of the box.

Engineer Q&A

Questions and Answers

3 questions
  • Which Debug Interface Does the iMX RT1050 Trace Reference Board Use?

    SWD. SEGGER's overview lists SWD as the debug interface for this board, with trace over the 4-bit trace port on the same header.

    Answered by John LeggUpdated 16 Nov 2026
  • Do I Need a J-Trace PRO to Use This Board?

    For streaming ETM trace, yes. SEGGER designed the board for J-Trace PRO, which supplies 5V to the board and captures the trace. SEGGER says other ARM emulators with the same pinout can be used at your own risk.

    Answered by John LeggUpdated 16 Nov 2026
  • How Does It Differ From the STM32H7 Trace Reference Board?

    Both use Cortex-M7 cores. The iMX RT1050 board has a 600 MHz maximum CPU clock and uses SWD; the STM32H7 board has a 400 MHz maximum CPU clock and offers JTAG, SWD and SWO. Choose the one that matches the silicon in your own design.

    Answered by John LeggUpdated 16 Nov 2026
