PT100 3-wire temperature probe
PT100 3-wire temperature probe
SKU: MIKROE-2885
Couldn't load pickup availability
Overview

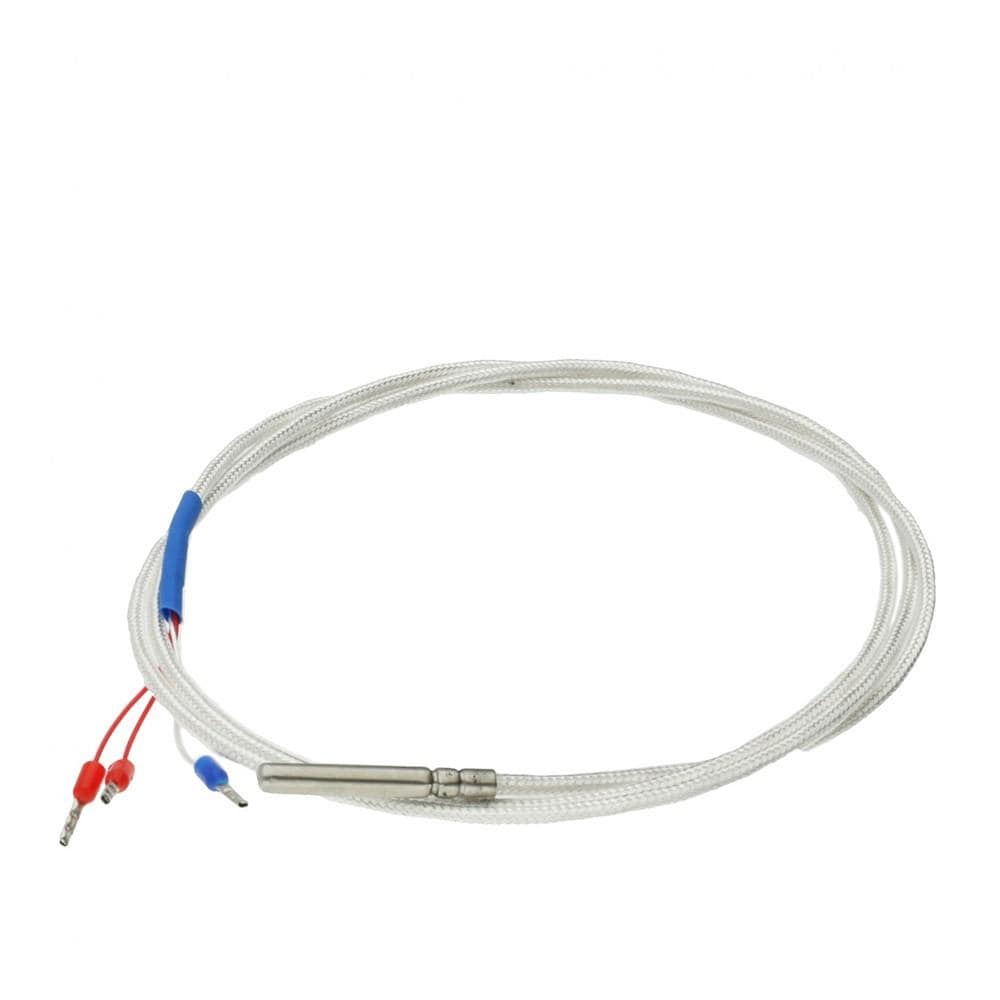

The PT100 3-wire Temperature Probe is a type of RTD platinum probe used to measure temperatures up to 250°C. This type of probe can be used with RTD Click Board™.
RTD sensors are basically thermosensitive resistors ' materials that change the resistance depending on their temperature. In this case, the resistor is a small strip of platinum with a resistance of 100' at 0°C - that is why it is called PT100.
The PT100 3-wire Temperature Probe is a type of RTD platinum probe used to measure temperatures up to 250°C. This type of probe can be used with RTD Click Board™.
RTD sensors are basically thermosensitive resistive materials that change the resistance depending on their temperature. In this case, the resistor is a small strip of platinum with a resistance of 100 at 0°C - that is why it is called PT100.
- Temperature: max. 250⁰ Celsius
- 3-Wire
- Length: 1m (100cm, 3.37 inches)
- Grade: 2B
- Tolerance: 0.5
Why use an RTD type of Sensor?
• A wide temperature range
• Precision and accuracy
• Long-term stability
For many years, these type of sensors have been used in industrial and laboratory conditions since they are considered to be more accurate and stable than most NTC/PTC thermistors. Also, platinum is an excellent choice since they are very stable and reusable, and are resistant to corrosion or oxidation.
| Physical | |
|---|---|
| Length | 1m (100cm, 3.37 inches) |
| Compliance | |
| Country of origin | Serbia |
| RoHS | Compliant |
| Additional specifications | |
| Temperature | max. 250⁰ Celsius; 3-Wire |
| Grade | 2B |
| Tolerance | 0.5 |
| Ordering information | |
| Part number (SKU) | MIKROE-2885 |
| Manufacturer | Mikroelektronika d.o.o. |
| EAN | 8606018711963 |
| Warranty | 12 months |
| Shipping weight | 0.035 kg |
-
1 ×
PT100 3-wire temperature probe
Contact us to confirm the full contents of the box.
