Picotest

Picotest P2103A Differential TDR Probe for High-Speed Signal Integrity Analysis

Picotest P2103A Differential TDR Probe for High-Speed Signal Integrity Analysis
High-Speed Differential Signal Integrity Analysis

SKU: P2103A

£3,054.30 inc VAT
£2,545.30 exc VAT
£3,054.30 inc VAT
£2,545.30 exc VAT
Sale Sold out
Shipping calculated at checkout.
If no stock is shown above, order now and we'll dispatch within 7 working days.
View full details
  • Picotest P2103A Differential TDR Probe for High-Speed Signal Integrity Analysis
  • Picotest P2103A Differential TDR Probe for High-Speed Signal Integrity Analysis, view 2
  • Picotest P2103A Differential TDR Probe for High-Speed Signal Integrity Analysis, view 3
  • Picotest P2103A Differential TDR Probe for High-Speed Signal Integrity Analysis, view 4

Key Features

High Bandwidth
Versatile Compatibility
Fixed Pitch Options
Low Inductance
Repeatable Measurements
Ergonomic Design
Multiple Probe Use

Overview

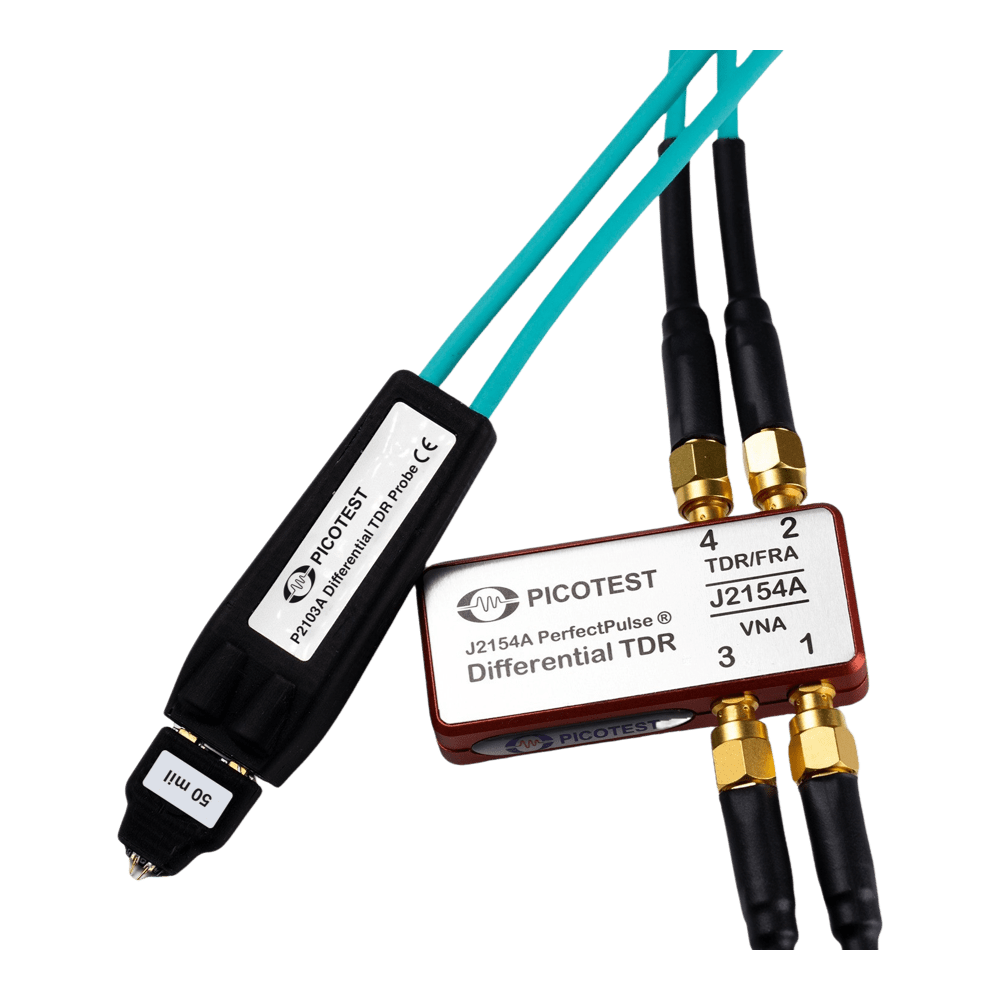

Discover unparalleled precision with the Picotest P2103A Differential TDR Probe, the essential tool for engineers focusing on high-speed differential electrical channels. This differential transmission line 'browser' probe is designed to characterise differential pairs effectively through Time Domain Reflectometry (TDR/TDT) applications.

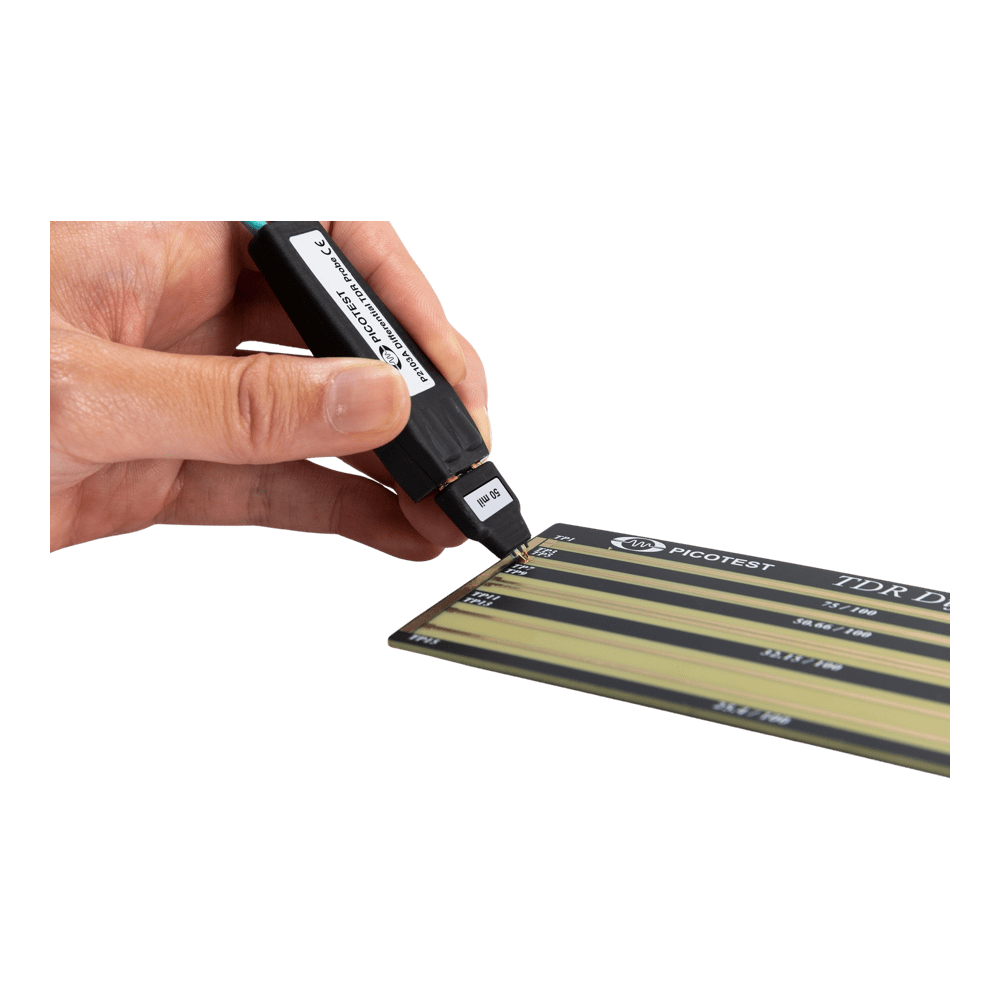

The P2103A boasts a remarkable 6GHz bandwidth (uncorrected) and features spring-loaded pins for easy placement, ensuring quick and accurate measurements. The probe's ergonomic design facilitates handheld use, providing visibility and comfort during testing.

Downloads

Datasheets

User Manuals

Ordering information
Part number (SKU)P2103A
ManufacturerPicoTest Corp
EAN5055383602469
Warranty12 months
Shipping weight0.5 kg

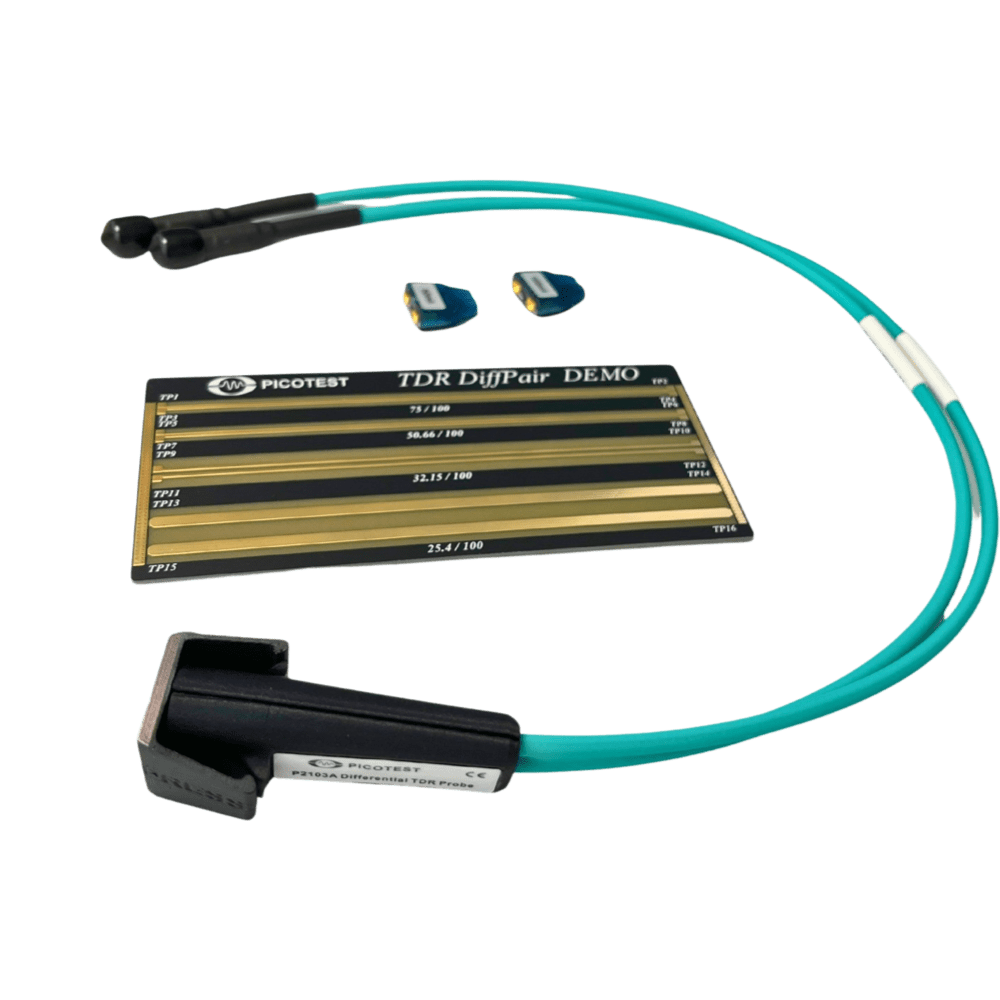

  • 1 ×P2103A differential TDR probe with 50 and 100 mil pitch tips
  • 2 ×0.5m SMA-Mini SMP PDN Cable

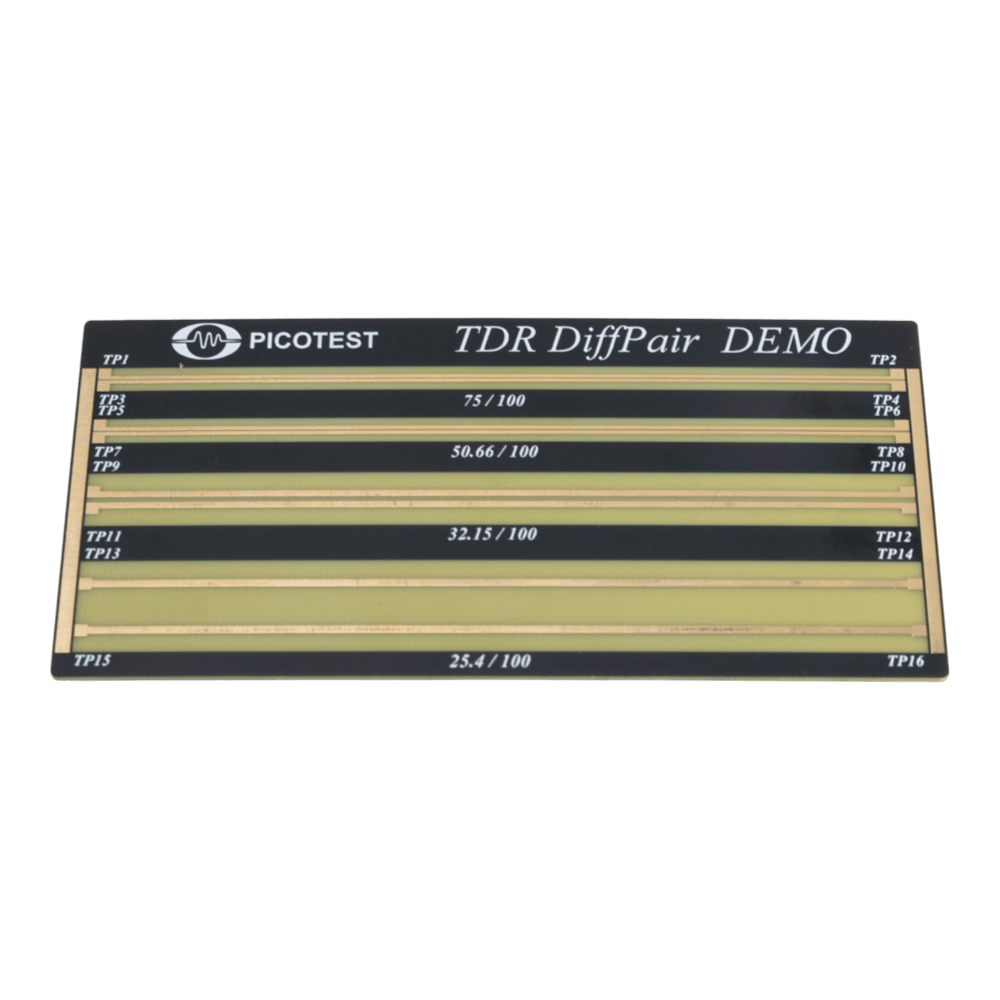

  • 1 ×TDR diff pair demo board
