OSCIUM Wi-Spy Lucid Wi-Fi 7 Spectrum Analyser | 2.4GHz, 5GHz and 6 GHz Bands

OSCIUM Wi-Spy Lucid Wi-Fi 7 Spectrum Analyser | 2.4GHz, 5GHz and 6 GHz Bands

Tri-band spectrum analyser with Wi-Fi 7 support for RF interference detection across the 2.4 GHz, 5 GHz and 6 GHz bands

SKU: OSC2567-1

Regular price
£895.00 exc VAT
£1,074.00 inc VAT
Regular price Sale price
£895.00 exc VAT
£1,074.00 inc VAT
Sale Sold out
Shipping calculated at checkout.
If no stock is shown above, order now and we'll dispatch within 3 working days.

Payment methods

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Bank transfer
View full details

Key Features

Tri-Band RF Coverage (2.4/5/6GHz)
Professional-Grade Sensitivity (-95dBm to -5dBm)
High-Resolution Frequency Analysis (25kHz)
Rapid 2.5x Faster Sweep Speeds
Multi-Platform Software Compatibility
Ultra-Compact Professional Design (57g)
Wi-Fi 7 Ready Architecture

Overview

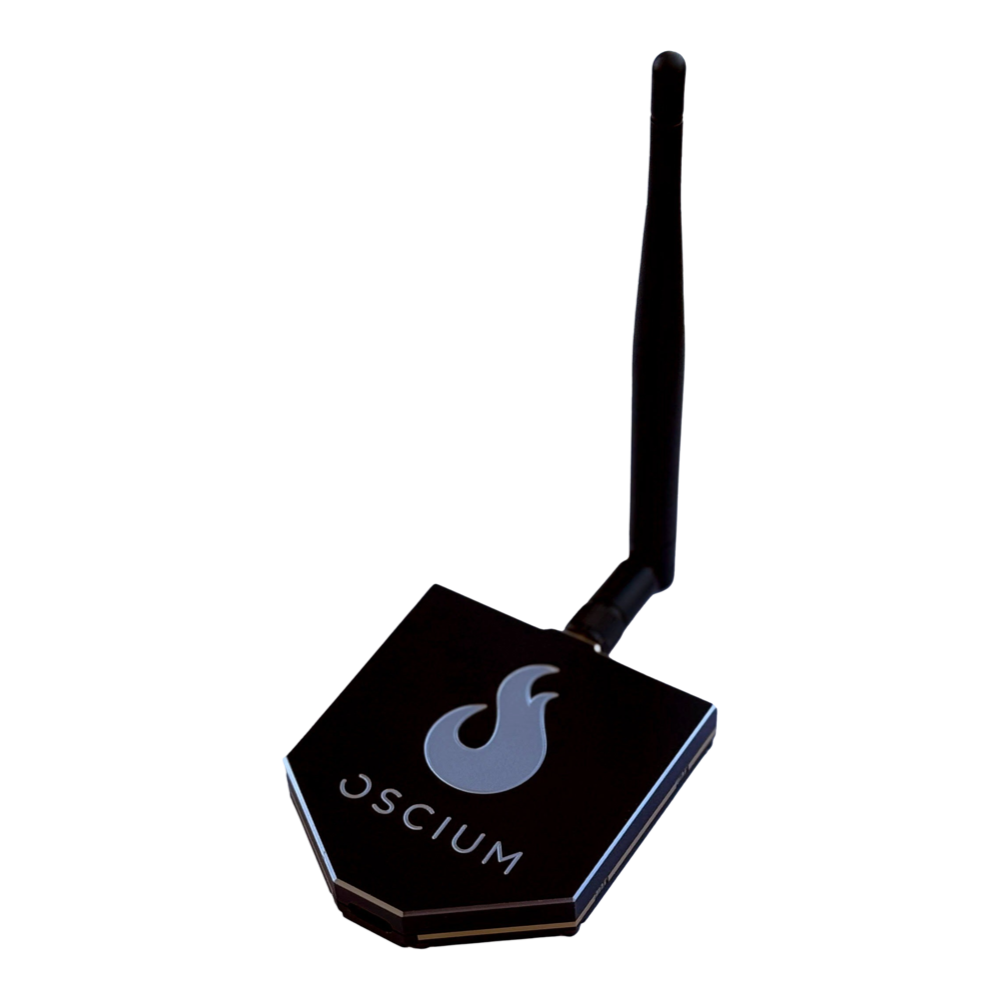

The Oscium Wi-Spy Lucid Wi-Fi 7 Spectrum Analyser is a USB-C tri-band spectrum analyser for wireless engineers working on 2.4 GHz, 5 GHz and 6 GHz networks, Wi-Fi 7 included.

Key Technical Capabilities

Hardware range 2.2 to 7.25 GHz with 25 kHz frequency resolution. Amplitude range -95 dBm to -5 dBm at 0.5 dB resolution, so it shows Wi-Fi and non-Wi-Fi transmitters alike: Bluetooth, microwave ovens, baby monitors and 802.15.4 sensors.

Software

Works with Chanalyzer (Windows), the free Chanalyzer Lite (Windows and macOS), WiFi Explorer Pro and TamoGraph Site Survey. The supplied tri-band omnidirectional antenna fits an RP-SMA port, so a directional antenna can replace it.

In the Field

Weighs 57 g (0.125 lb) and measures 2.375 x 2.625 x 0.5 in. Sweeps 2.5x faster than the previous Wi-Spy generation. For hardware, Chanalyzer and the Device Finder antenna together, see the Spectrum Bundle.

Wi-Fi and Non-Wi-Fi Interference

Shows 802.11 traffic and non-802.11 transmitters on one display, from 2.2 to 7.25 GHz.

Wi-Fi 6E and Wi-Fi 7 Deployment

Covers the full 6 GHz band (5.925 to 7.125 GHz) for channel planning before 6E and Wi-Fi 7 access points go in.

Field Portability

57 g, USB-C powered, ruggedised carry case; runs from a laptop with Chanalyzer or Chanalyzer Lite.

The OSCIUM Wi-Spy Lucid (OSC2567-1) is a USB-C tri-band Wi-Fi 7 spectrum analyser covering 2.2 GHz to 7.25 GHz, which takes in the 2.4 GHz, 5 GHz and full 6 GHz (5.925 to 7.125 GHz) bands. It resolves 25 kHz frequency steps over an amplitude range of -95 dBm to -5 dBm and runs with Chanalyzer on Windows and the free Chanalyzer Lite on macOS. Wireless engineers use Wi-Spy Lucid to find interference at Layer 1 during pre-deployment surveys, 6 GHz channel planning and post-install troubleshooting.

Who It Is For

Checking 5.925 to 7.125 GHz occupancy before deploying Wi-Fi 6E or Wi-Fi 7 access points. Tracing non-802.11 interference in the 2.4 GHz band, including 802.15.4 (ZigBee) traffic, using the Chanalyzer channel guides. Recording an intermittent fault overnight in Chanalyzer and producing a Report Builder report for the client.

Wi-Spy Lucid suits WLAN survey engineers, network support teams handling throughput complaints, and RF test engineers checking coexistence on 2.4, 5 and 6 GHz products.

Tri-Band Wi-Fi 7 Spectrum Analyser From 2.2 GHz to 7.25 GHz

Wi-Spy Lucid visualises RF activity across 2.4 to 2.5 GHz, 5.145 to 5.860 GHz and 5.925 to 7.125 GHz: the bands used by Wi-Fi 7, Wi-Fi 6/6E and legacy 2.4 GHz and 5 GHz equipment. Filter bandwidth runs from 58 kHz to 812 kHz. Oscium states that Lucid sweeps 2.5x faster than the previous Wi-Spy generation, so short bursts are more likely to land on the trace.

Layer 1 Visibility a Wi-Fi Scanner Cannot Give You

A Wi-Fi scanner such as inSSIDer only sees Wi-Fi networks. As a Wi-Fi 7 spectrum analyser, Lucid sees the raw RF environment, showing 802.11 and non-802.11 transmitters on the same display. That matters when throughput drops and no neighbouring SSID explains it. In Chanalyzer 5, Wi-Fi scan data from the laptop's own wireless adapter is overlaid on the Wi-Spy spectrum data, so channel occupancy and interference can be read together.

Chanalyzer Software and Wi-Fi 7 Support

Chanalyzer Lite is free for Windows and macOS (10.14 Mojave and newer). It gives frequency cursors, Wi-Fi channel overlays and channel guides for 802.11b, 802.11g, 802.11n 20 MHz (2.4 GHz only) and 802.15.4 (ZigBee). The full Chanalyzer runs on Windows 8 and newer and adds recording, playback and Report Builder. Wi-Fi 7 (802.11be) support needs Chanalyzer 5.15 or later. Lucid also works with partner tools: Hamina, WiFi Explorer Pro from Intuitibits and TamoGraph Site Survey from Tamos.

Specifications

Frequency range 2.2 GHz to 7.25 GHz
Wi-Fi bands visualised 2.4 to 2.5 GHz, 5.145 to 5.860 GHz, 5.925 to 7.125 GHz
Frequency resolution 25 kHz
Amplitude range -95 dBm to -5 dBm
Filter bandwidth 58 kHz to 812 kHz
Amplitude resolution 0.5 dB
Default Chanalyzer sweep time 200 ms (2.4 GHz), 400 ms (5 GHz), 600 ms (6 GHz); range, resolution and bandwidth configurable
Chanalyzer resolution 390 kHz (2.4 GHz), 1.396 MHz (5.8 GHz), 1.786 MHz (6E)
Host interface USB-C
Antenna port RP-SMA
Supplied antenna Tri-band omnidirectional
Dimensions 2.375 x 2.625 x 0.5 in (60 x 67 x 13 mm)
Weight 0.125 lb (57 g)
Host software Chanalyzer (Windows 8 and newer), Chanalyzer Lite (Windows, macOS 10.14 and newer)

Limitations

  • The full Chanalyzer licence is not in the box contents. Chanalyzer Lite covers live viewing; recording, playback and Report Builder need the paid version, which is Windows only.
  • iPhone and iPad use is only possible with the Oscium Nomad and a Hamina Onsite licence.
  • The supplied antenna is omnidirectional. To physically locate a source, fit a directional antenna to the RP-SMA port, such as Oscium's tri-band Device Finder antenna (OSC2100) (6 dBi).
  • No sub-GHz coverage. For 755 to 928 MHz IoT bands, choose the WiPry 790x.

Compare Oscium Spectrum Analysers

All current Oscium spectrum analysers we stock:

Model Frequency coverage Price
Wi-Spy Lucid (OSC2567-1) 2.2 GHz to 7.25 GHz, tri-band £895
WiPry 790x 755 MHz to 928 MHz £528
Spectrum Bundle (SPB-2025) Tri-band RF analysis bundle, see its page for contents £1,495

What's Included

  • Wi-Spy Lucid spectrum analyser
  • Tri-band omnidirectional antenna
  • USB-C to USB-C cable
  • USB-A to USB-C cable

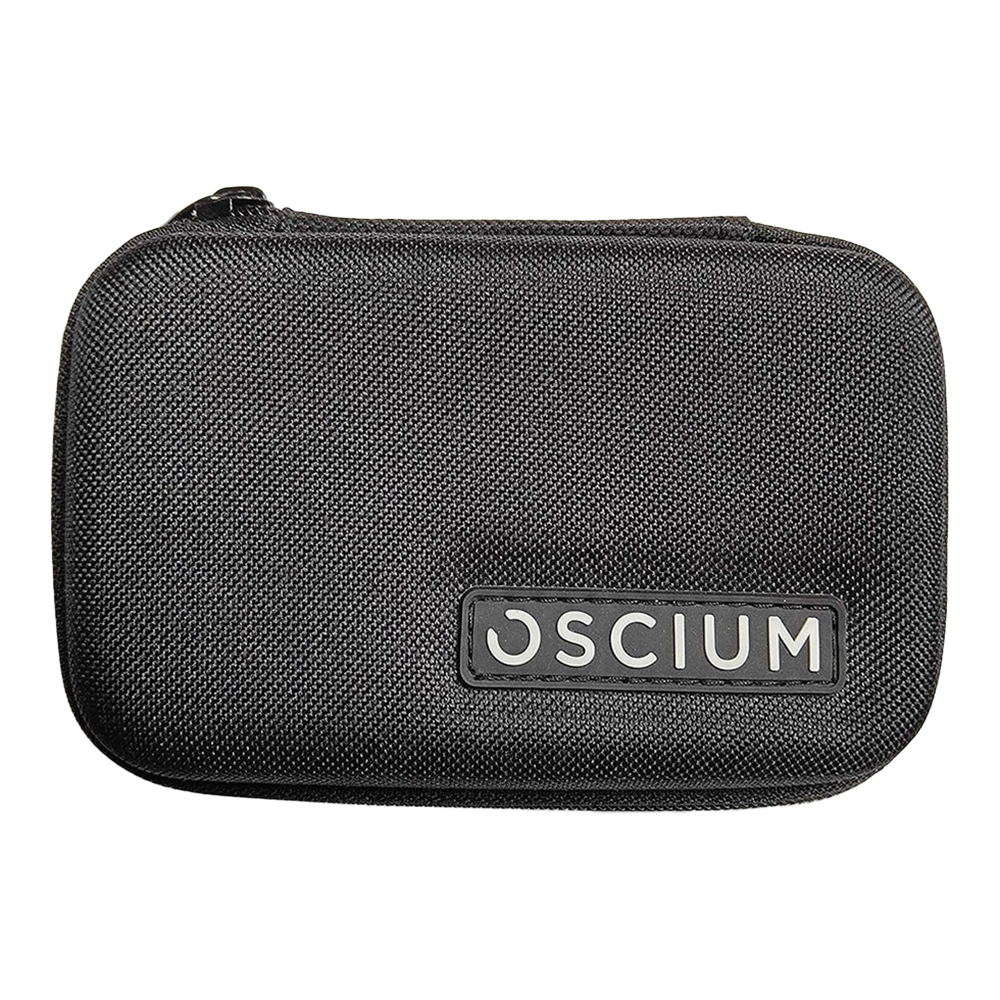

  • Ruggedised carry case

Order the Wi-Spy Lucid at £895 ex VAT. For a formal quotation or a check on Chanalyzer licensing for your team, contact Debug Store, supplying test equipment to engineers for 55+ years.

Frequently Asked Questions

Does the Wi-Spy Lucid Support Wi-Fi 7?

Yes. Lucid covers the full 6 GHz band (5.925 to 7.125 GHz) used by Wi-Fi 6E and Wi-Fi 7, and Chanalyzer supports Wi-Fi 7 from version 5.15 with a Wi-Spy Lucid.

Answered by John Legg, Director, Debug Store

Which Software Do I Need to Use the Wi-Spy Lucid?

Free Chanalyzer Lite runs on Windows and macOS 10.14 and newer for live viewing. The paid Chanalyzer runs on Windows 8 and newer and adds recording, playback and Report Builder.

Answered by John Legg, Director, Debug Store

Can I Use the Wi-Spy Lucid with an iPhone or iPad?

Only with the Oscium Nomad and a Hamina Onsite licence, which together unlock iOS support. Otherwise Lucid connects by USB-C to a Windows or macOS computer.

Answered by John Legg, Director, Debug Store

Can I Fit a Directional Antenna to Find an Interference Source?

Yes. The antenna port is RP-SMA. Oscium's Device Finder is a tri-band (2.4, 5 and 6 GHz) directional antenna with 6 dBi gain and an RP-SMA connector.

Answered by John Legg, Director, Debug Store

Last reviewed: 30/10/2026

Sources (4 manufacturer pages)
Ordering information
Part number (SKU)OSC2567-1
ManufacturerOscium
EAN5055383603763
Warranty12 months
Shipping weight1.0 kg
  • 1 ×Wi-Spy Lucid spectrum analyser
  • 1 ×Tri-band antenna
  • 1 ×USB-C to USB-C cable
  • 1 ×USB-A to USB-C cable
  • 1 ×Ruggedised carry case
Engineer Q&A

Questions and Answers

7 questions
  • What Is the 6 GHz Band and Why Is Ofcom's Approval of It Significant?

    Ofcom has opened the lower part of the 6 GHz band (5925-6425 MHz) to licence-exempt use. That lets Wi-Fi 6E expand into new spectrum, giving faster and more reliable wireless connections. Oscium's own pages refer to the US (FCC) approval; the UK allocation is Ofcom's.

    Answered by John LeggUpdated 13 Oct 2026
  • What Is Wi-Spy Lucid?

    Wi-Spy Lucid gives you visibility of all three Wi-Fi bands: 2.4 GHz, 5 GHz and 6 GHz (Wi-Fi 6/6E). It helps you pinpoint the source of interference and optimise wireless performance, however complex your environment.

    Answered by John LeggUpdated 13 Oct 2026
  • What Are the Three Wi-Fi Bands?

    The three Wi-Fi bands are 2.4 GHz, 5 GHz and 6 GHz.

    Answered by John LeggUpdated 13 Oct 2026
  • What Devices Operate Within the Wi-Fi Bands?

    Wi-Fi operates in the 2.4 GHz, 5 GHz and 6 GHz bands. Other electronic devices use these bands too, such as baby monitors, cordless phones, garage door openers and microwave ovens.

    Answered by John LeggUpdated 13 Oct 2026
  • How Does Wi-Fi Interference Occur?

    Wi-Fi interference occurs when several electronic devices operate in the same frequency range, disrupting signals and lowering connection speeds.

    Answered by John LeggUpdated 13 Oct 2026
  • How Can Wi-Spy Lucid Help with Wi-Fi Interference?

    Wi-Spy Lucid helps you pinpoint the source of Wi-Fi interference, however complex your environment. It identifies devices operating in the same frequency range and gives you the information to optimise your Wi-Fi network.

    Answered by John LeggUpdated 13 Oct 2026
  • Can Devices in Nearby Buildings or Residences Cause Wi-Fi Interference?

    Yes, especially in the 2.4 GHz band, which can reach the length of a football field. Wi-Spy Lucid helps you pinpoint the source of the interference and optimise your Wi-Fi network.

    Answered by John LeggUpdated 13 Oct 2026
