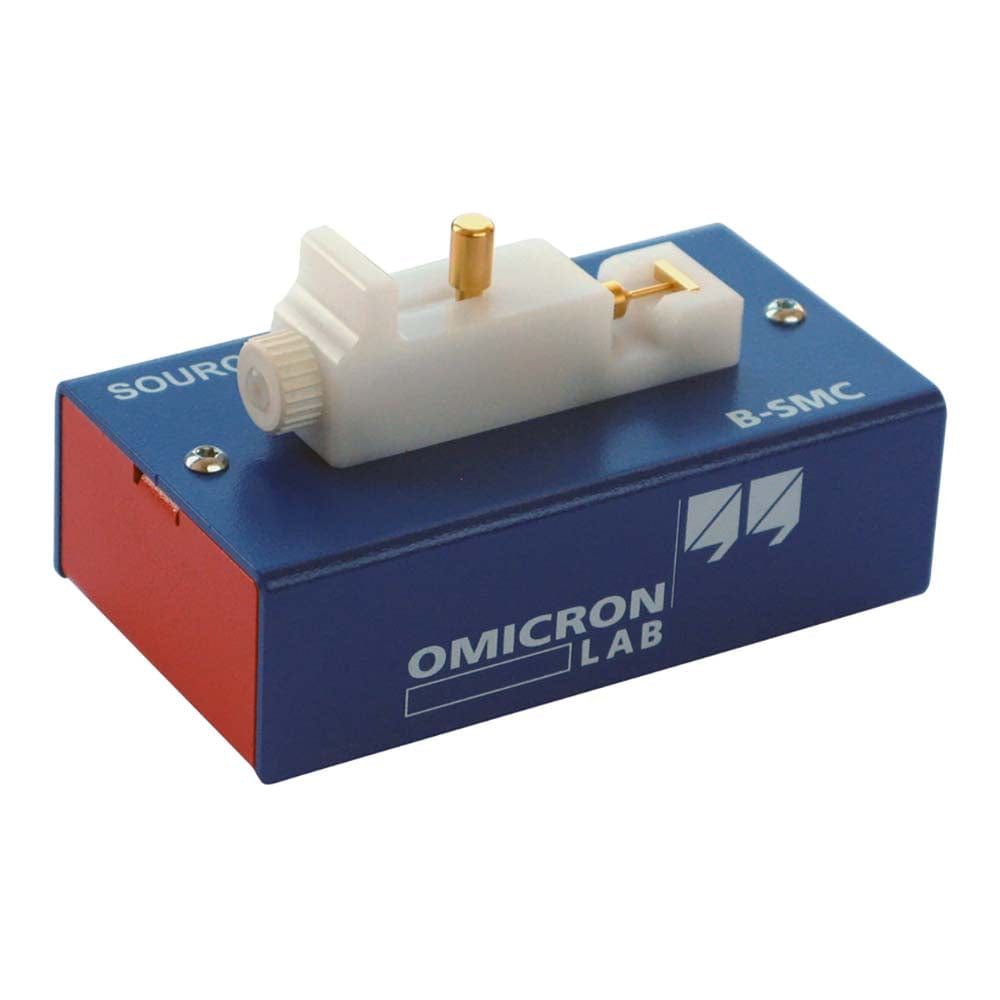

OMICRON Lab B-SMC - Impedance Test Fixture for SM Components

OMICRON Lab B-SMC - Impedance Test Fixture for SM Components

Impedance test fixture for surface-mount components that turns a Bode 100 into an LCR meter, 1 Hz to 50 MHz, 20 mΩ to 600 kΩ.

SKU: P0005759

Regular price
£650.00 exc VAT
£780.00 inc VAT
Regular price Sale price
£650.00 exc VAT
£780.00 inc VAT
Sale Sold out
Shipping calculated at checkout.
Check Availability before Ordering

Payment methods

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Bank transfer
View full details

Overview

The OMICRON Lab B-SMC is an impedance test fixture that turns a Bode 100 into an LCR meter or impedance analyser for surface-mount components. Usable range 1 Hz to 50 MHz, recommended impedance range 20 mΩ to 600 kΩ, gold-plated needle electrode with around 0.5 mΩ contact resistance, parts up to 9.5 mm long and 7.5 mm wide. Six 0603 100 Ω ±0.1% load calibration resistors are included. For leaded parts, OMICRON Lab offers the B-WIC.

The OMICRON Lab B-SMC is an impedance test fixture for surface-mount components that turns a Bode 100 into an LCR meter or impedance analyser, usable from 1 Hz to 50 MHz over a recommended impedance range of 20 mΩ to 600 kΩ. A gold-plated needle electrode, set by a knurled nut, clamps SMD parts up to 9.5 mm long and 7.5 mm wide against a gold-plated pad, with a contact resistance of around 0.5 mΩ. Hardware and power electronics engineers use it for RLC-Q measurement of chip resistors, capacitors and inductors across frequency.

SMD Impedance Measurement From 1 Hz to 50 MHz

OMICRON Lab specifies a usable frequency range of 1 Hz to 50 MHz and recommends the fixture for impedances from 20 mΩ to 600 kΩ. Inside is a resistive measurement bridge with a voltage divider and a current shunt: CH1 receives a signal proportional to the DUT voltage and CH2 a signal proportional to the DUT current. The Bode Analyzer Suite runs it in the Impedance Adapter measurement mode.

Needle Electrode for Surface-Mount Parts up to 9.5 x 7.5 mm

The DUT sits on the electrode pad under the centre needle electrode, and the knurled nut sets the needle-to-pad distance to match the part. The largest DUT the B-SMC takes is 9.5 mm long and 7.5 mm wide. Gold plating brings contact resistance down to around 0.5 mΩ, so clean the needle and pad before Short calibration and low-value measurements.

Impedance Test Fixture Setup and Calibration with the Bode 100

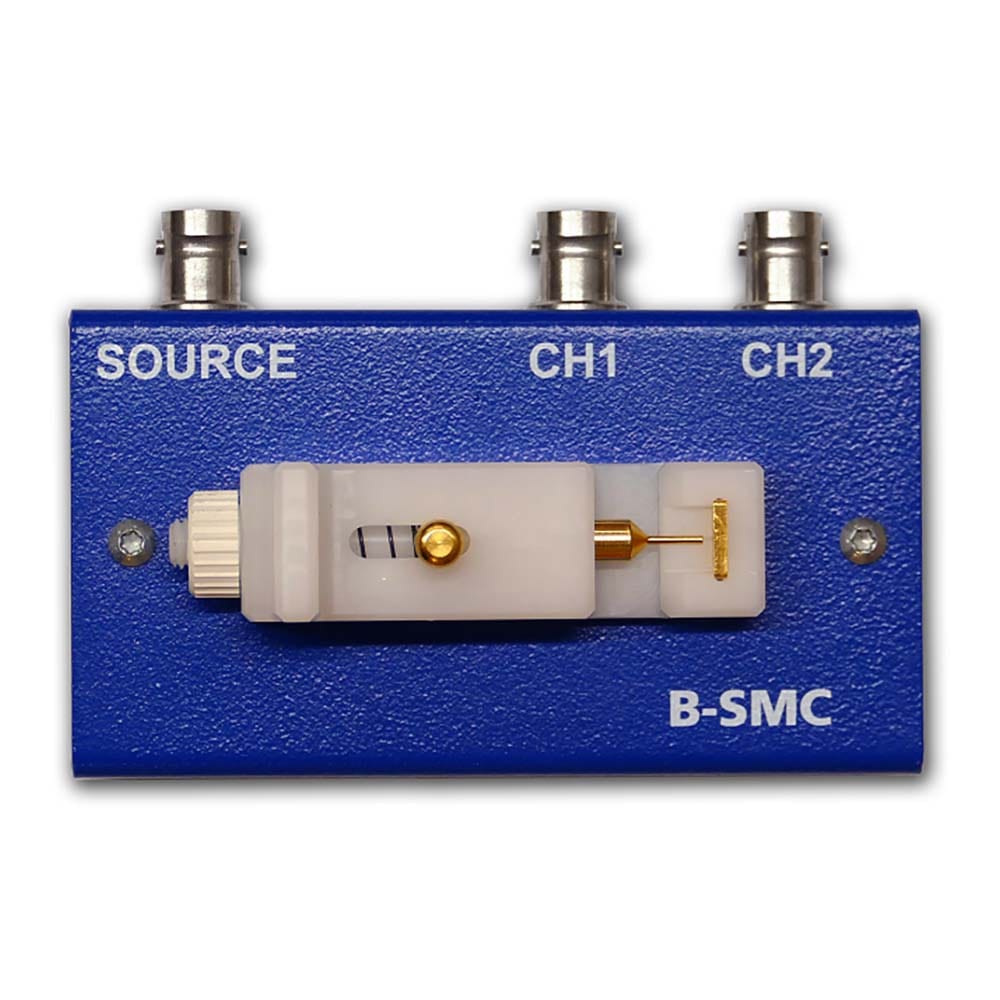

Three BNC sockets connect the fixture to the Bode 100: SOURCE from the analyser output, CH1 and CH2 to the matching inputs. Open, Short and Load calibration is required before measuring. For Open, set the needle-to-pad gap to the DUT size so stray capacitance is compensated. For Short, loosen the knurled nut until the needle touches the electrode. For Load, place a 100 Ω resistor between needle and electrode; six 0603 load resistors (100 Ω ±0.1%, 15 ppm/°C) are supplied for this. OMICRON Lab characterised typical relative accuracy against an Agilent E4980A precision LCR meter at 10 Hz receiver bandwidth, and publishes the chart in the B-WIC and B-SMC user manual.

Specifications

Usable frequency range 1 Hz to 50 MHz
Recommended impedance range 20 mΩ to 600 kΩ
Measurement principle Resistive bridge (voltage divider and current shunt), CH1 voltage, CH2 current
Connectors BNC sockets: SOURCE, CH1, CH2 (outer conductor connected to housing)
DUT contacts Gold-plated needle electrode and pad with spring mechanics
Contact resistance Approx. 0.5 mΩ
Max. DUT size 9.5 mm length, 7.5 mm width
Load calibration resistors 0603, 100 Ω ±0.1%, 15 ppm/°C (6 pcs. supplied)
Dimensions 100.5 x 68.2 x 55.5 mm (including connectors)
Weight 0.13 kg
Operating temperature +5 °C to +40 °C
Storage temperature -35 °C to +60 °C
Relative humidity 20% to 80%, non-condensing
Safety SELV device (IEC 60950), protection class III
Compliance CE, RoHS

Limitations

  • The analyser is not included. OMICRON Lab states the B-SMC is to be used only in conjunction with the Bode 100. Its B-SMC documentation does not cover the Bode 500, so ask us before ordering for a Bode 500 setup.
  • Do not apply external voltages or currents. No DC bias rating is published.
  • OMICRON Lab publishes a typical relative accuracy chart, not a guaranteed accuracy figure, and states the accuracy rating can change without notice.
  • For leaded parts, choose the B-WIC, which takes wires up to 1.8 mm in diameter.

Impedance Test Fixture Comparison

Feature B-SMC B-WIC
Component type Surface-mount Wired (through-hole)
DUT limits Up to 9.5 mm long, 7.5 mm wide Wire diameter up to 1.8 mm, spacing min. 3 mm
Usable frequency range 1 Hz to 50 MHz 1 Hz to 50 MHz
Recommended impedance range 20 mΩ to 600 kΩ 20 mΩ to 600 kΩ
Calibration items supplied 6 x 0603 load resistors, 100 Ω ±0.1% B-CAL calibration board (1 pc.)
Weight 0.13 kg 0.16 kg
Price £650 £650

Typical Applications

Capacitance and ESR of MLCCs and other chip capacitors, using the 20 mΩ low end of the recommended range. Inductance and Q of SMD power inductors swept up to 50 MHz. Impedance against frequency of chip resistors and ferrite beads, to see where parasitic inductance or capacitance takes over.

The B-SMC suits engineers who already own a Bode 100 and need repeatable impedance measurements on surface-mount passives without building a test board.

What's Included

  • B-SMC impedance test fixture
  • Load calibration resistors, 100 Ω ±0.1%, size 0603 (6 pcs.)

The OMICRON Lab B-SMC is £650 ex VAT. If you also need the analyser, contact us for a formal quotation covering the Bode 100 and fixture. See all vector network analyser accessories in our range.

Frequently Asked Questions

Does the B-SMC Work with the Bode 500?

OMICRON Lab's B-SMC documentation names only the Bode 100, and the user manual says to use the fixture only in conjunction with the Bode 100. The Bode 500 also has N-type connectors where the B-SMC uses BNC. Contact us before ordering if your analyser is a Bode 500.

Answered by John Legg, Director, Debug Store

Does the B-SMC Use the B-CAL-3 Calibration Board?

No. The B-CAL-3 is the calibration element for the B-WIC. The B-SMC calibrates Short by closing the needle onto the electrode and Load with a 100 Ω resistor between needle and electrode. Six 0603 resistors (100 Ω ±0.1%) ship with the fixture, and OMICRON Lab recommends a precision thin-film 100 Ω resistor with low temperature coefficient for best accuracy.

Answered by John Legg, Director, Debug Store

What Is the Largest SMD Part the B-SMC Can Hold?

9.5 mm long and 7.5 mm wide. The needle electrode sits in the centre, so position the part under it and set the gap with the knurled nut.

Answered by John Legg, Director, Debug Store

Last reviewed: 18 November 2026

Sources (2 manufacturer pages)
Ordering information
Part number (SKU)P0005759
ManufacturerOMICRON-Lab
EAN5055383623235
Warranty12 months
Shipping weight0.13 kg
  • 1 ×B-SMC fixture
  • 6 ×Load calibration resistors, 100 Ω ±0.1%, 0603
