micro:bit Click Board™ Adapter
micro:bit Click Board™ Adapter
SKU: MIKROE-2994
Couldn't load pickup availability
Overview

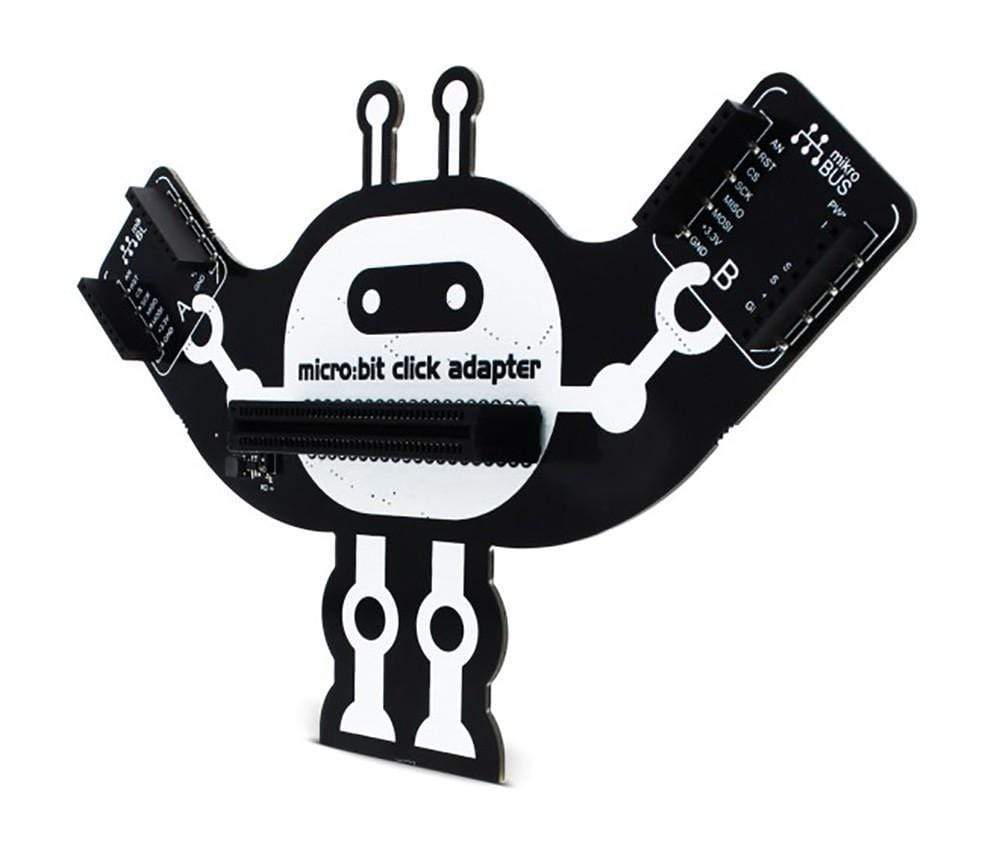

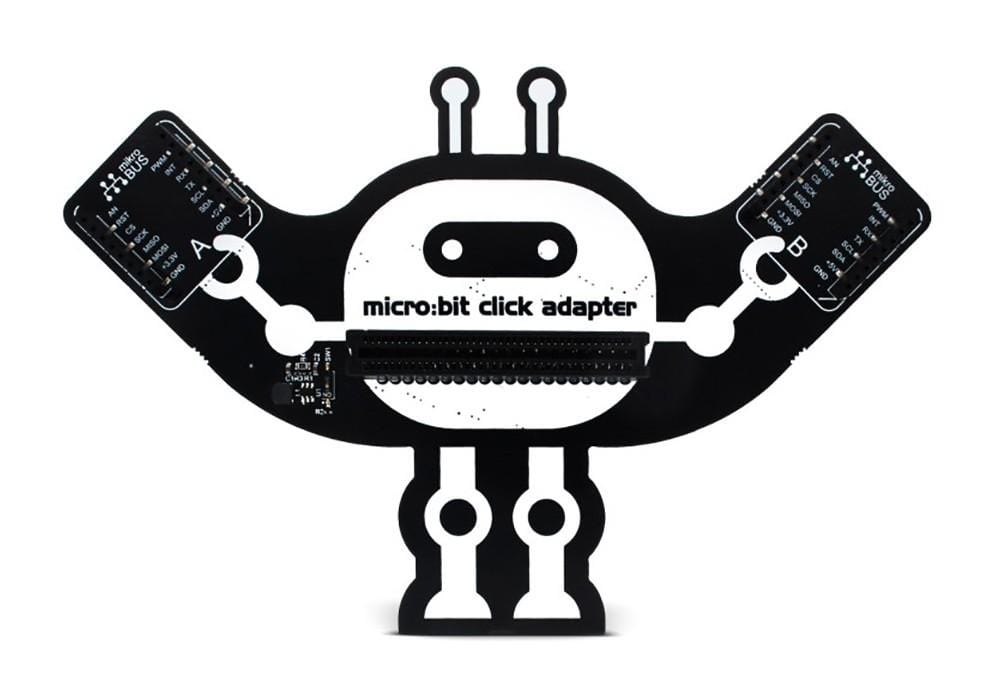

The micro:bit Click Board™ Adapter comes equipped with two proprietary mikroBUS sockets, allowing all the Click Board™ devices to be interfaced with the micro:bit with no effort at all. It is enough to place the small standard add-on board of your choice on the top of the mikroBUS socket - and Click Board™ it in. That is why this small add-on board is called Click Board™ - it just Click Boards™!
The micro:bit Click Adapter comes comes equipped with two proprietary mikroBUS™ sockets, allowing all the Click board™ devices to be interfaced with the micro:bit with no efforts at all. It is enough to place the small standardized add-on board of your choice on the top of the mikroBUS™ socket - and click it in. That is why this small add-on board is called Click board™ - it just clicks!
The mikroBUS™ standard is founded and maintained by MikroElektronika company, allowing all the various Click boards™ to perfectly fit in, without any compatibility issues. Besides the 3.3V available from the micro:bit itself, the micro:bit Click adapter offers an additional 5V power supply (switchable through the onboard switch), required by some of the Click boards™. This allows interfacing with an extended range of different devices. More information about the mikroBUS™ standard can be found on the official mikroBUS™ page.
Power Your Inventions

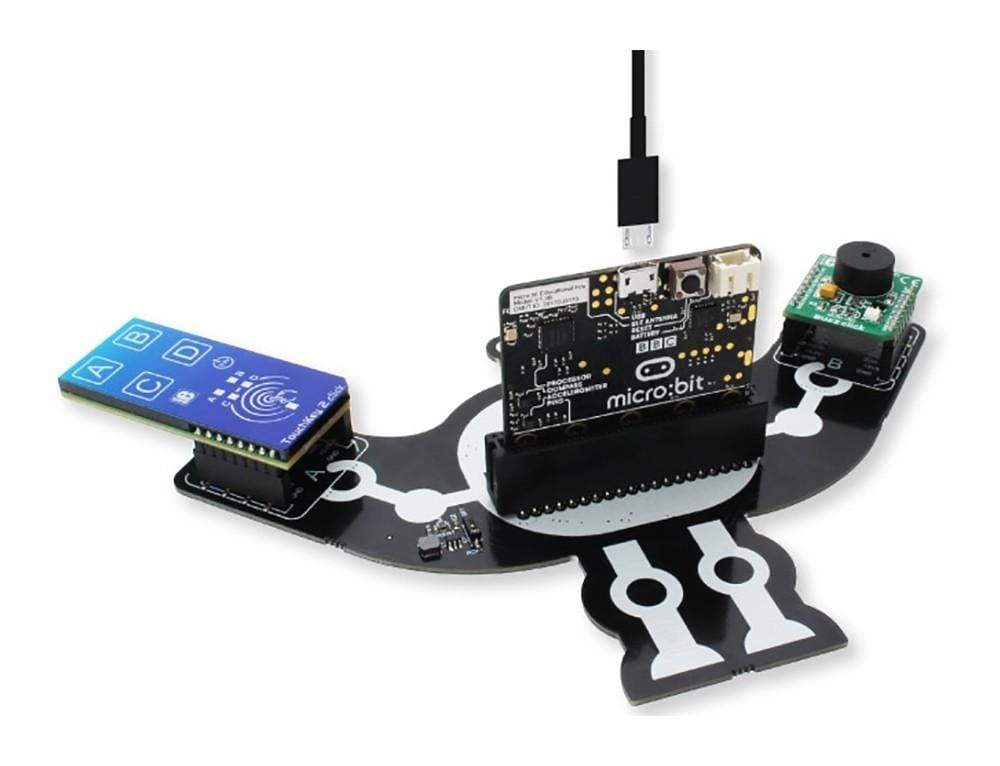

The micro:bit Click Adapter is powered from the micro:bit itself. An 80pin edge connector allows easy installation to the micro:bit board. Due to the micro:bit symmetrical design, there is no wrong way of connecting. It can be plugged into the connector both ways, keeping it simple.

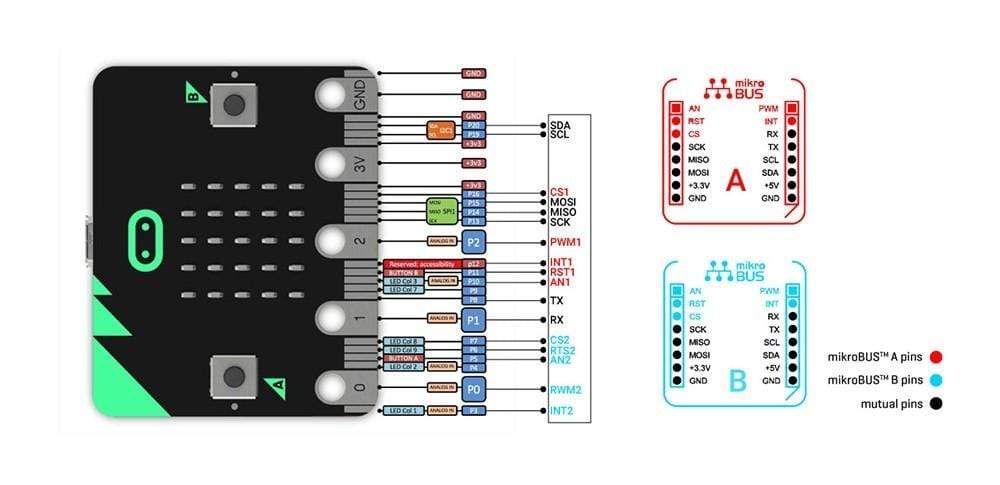

MIKROBUS™ PINOUT
SPECIFICATION TABLE
| Type | Adapter |
| Applications | Adding Click board functionalities to the micro:bit |
| On-board modules | Two mikroBUS™ sockets, 80pin edge connector for the micro:bit board |
| Interface | Analog,I2C,PWM,SPI,UART |
| Compatibility | micro:bit,mikroBUS |
| Input Voltage | 3.3V,5V |
| Overview | |
|---|---|
| Category | Adapter |
| Applications | Adding Click board functionalities to the micro:bit |
| Key components | |
| On-board modules | Two mikroBUS™ sockets, 80pin edge connector for the micro:bit board |
| Interfaces | |
| Interface | SPI, UART, Analog, I2C, PWM |
| Compatibility | micro:bit, mikroBUS™ |
| Electrical | |
| Input voltage | 3.3V,5V |
| Compliance | |
| Country of origin | Serbia |
| RoHS | Compliant |
| Ordering information | |
| Part number (SKU) | MIKROE-2994 |
| Manufacturer | Mikroelektronika d.o.o. |
| EAN | 8606018712847 |
| Warranty | 12 months |
| Shipping weight | 0.045 kg |
-
1 ×
micro:bit Click Board™ Adapter
Contact us to confirm the full contents of the box.
