Temp&Hum Click Example
Video notes
Temp&Hum Click uses ST's HTS221 temperature and relative humidity sensor over I2C. MikroE shows the board running its example code.
Mikroelektronika d.o.o.
Temp&Hum Click Board™
Temp&Hum Click Board™
SKU: MIKROE-1971
Regular price
£19.00
exc VAT
£22.80
inc VAT
Regular price
Sale price
Unit price
per
£19.00
exc VAT
£22.80
inc VAT
Shipping calculated at checkout.
If no stock shown above, check availability
Payment methods
- Bank transfer
Couldn't load pickup availability
Overview

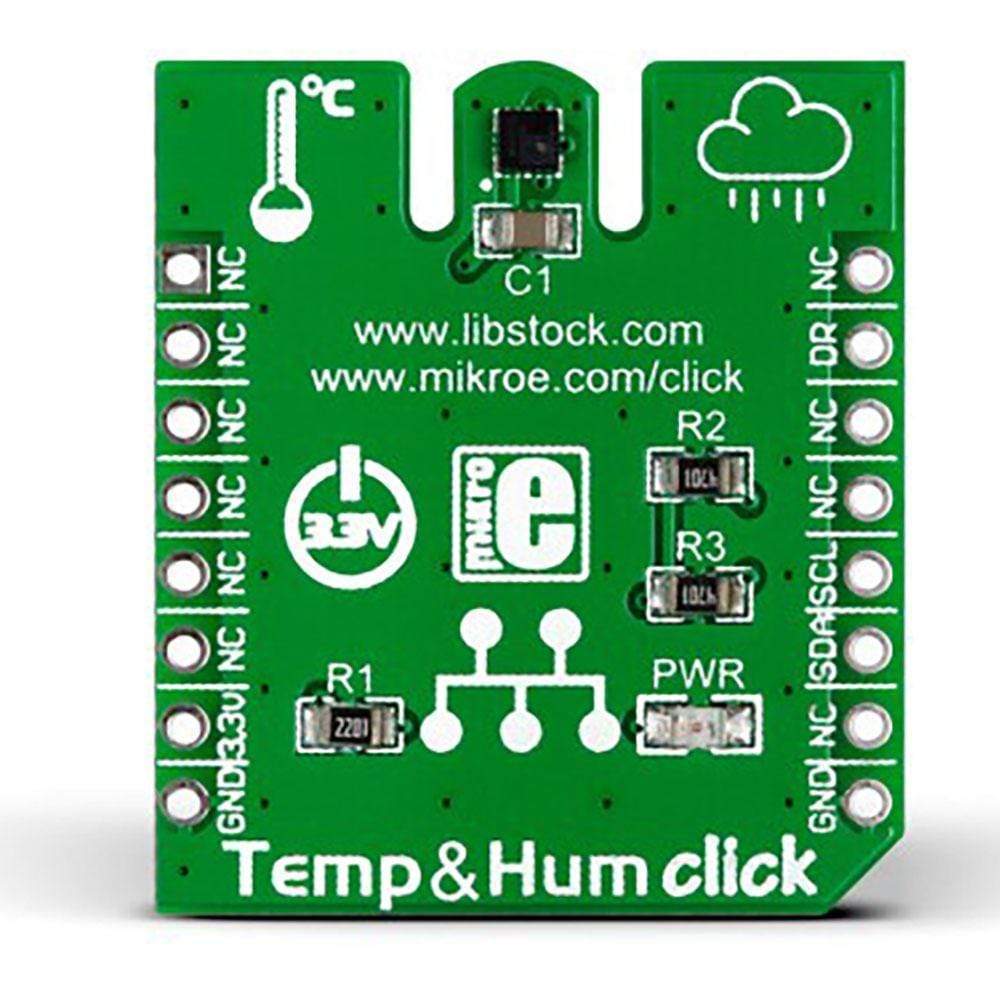

The Temp&Hum Click Board™ carries ST's HTS221 temperature and relative humidity sensor. Its temperature measurement accuracy is ±1°C within a 0-60°C range.
Videos
Videos are hosted on YouTube and load only when you press play.
The Temp&Hum Click Board™ carries STs HTS221 temperature and relative humidity sensor. Its temperature measurement accuracy is ±1°C within a 0-60°C range. The precision is increased to ±0.5°C in a narrower range from 15 to 40°C. The highly sensitive relative humidity measurement range is from 0 to 100% with ±6% accuracy (or ±4.5 in 20-80% range) The measurements are outputted in a 16-bit resolution through the mikroBUS I2C interface. The board uses a 3.3V power supply.
| Overview | |
|---|---|
| Category | Temperature & humidity |
| Applications | AC units, humidifiers, wearable devices… |
| Key components | |
| On-board modules | ST’s HTS221 temperature and relative humidity sensor |
| Interfaces | |
| Interface | GPIO, I2C |
| Compatibility | mikroBUS™ |
| Electrical | |
| Input voltage | 3.3V or 5V |
| Physical | |
| Click board size | S (28.6 x 25.4 mm) |
| Compliance | |
| Country of origin | Serbia |
| RoHS | Compliant |
| Additional specifications | |
| High relative humidity sensitivity | 0.004% rH. 0-60°C temperature range (with ±1°C accuracy). 0-100% relative humidity range (±4.5% rH accuracy in 20-80% range) |
| Ordering information | |
| Part number (SKU) | MIKROE-1971 |
| Manufacturer | Mikroelektronika d.o.o. |
| EAN | 8606015076874 |
| Warranty | 12 months |
| Shipping weight | 0.024 kg |
-
1 ×
Temp&Hum Click Board™
Contact us to confirm the full contents of the box.
