DAC 2 Click carries the LTC2601CDD 16-bit DAC, controlled over SPI, with screw terminals for the output. MikroE shows the board running its example code.
Mikroelektronika d.o.o.
DAC 2 Click Board™
DAC 2 Click Board™
16-bit Digital to Analog Converter
SKU: MIKROE-1918
Regular price
£27.60
inc VAT
£23.00
exc VAT
Regular price
£23.00 GBP
Sale price
Unit price
per
£27.60
inc VAT
£23.00
exc VAT
Shipping calculated at checkout.
If no stock shown above, check availability
Couldn't load pickup availability
Overview

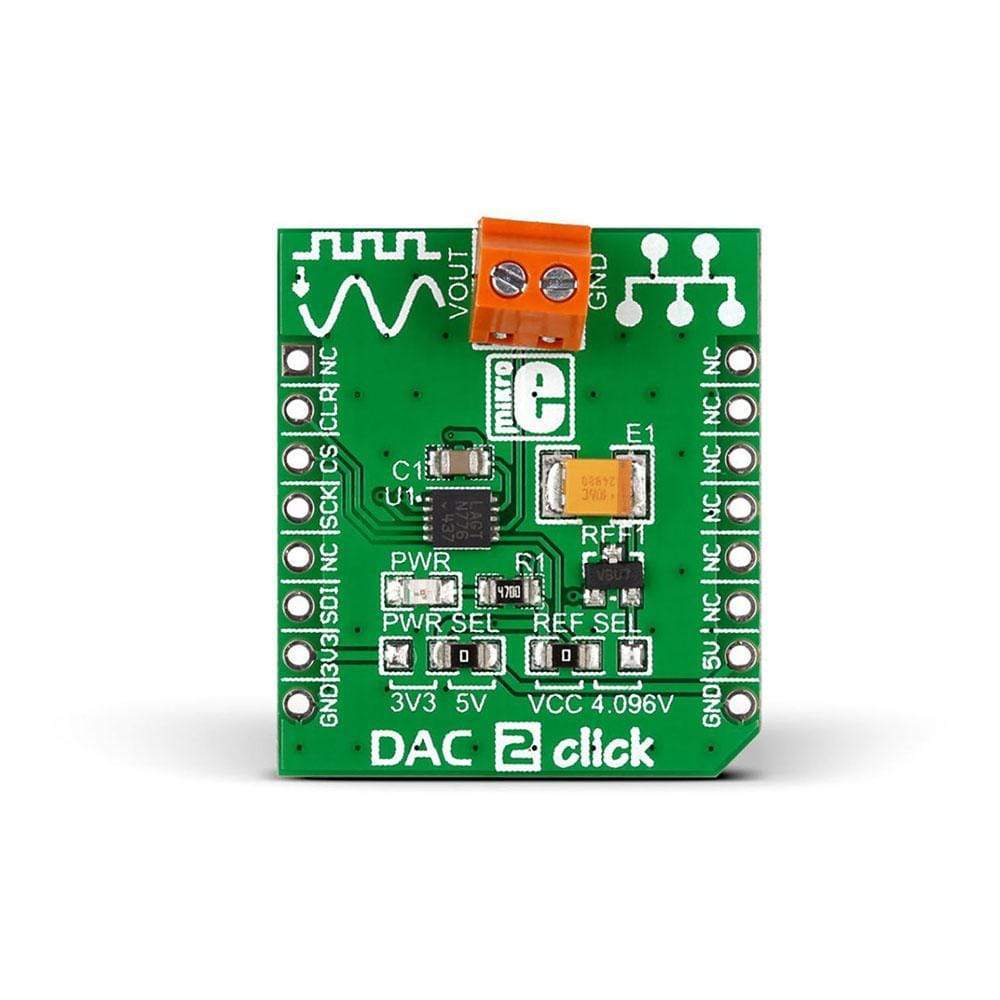

The DAC 2 Click Board™ is based on the LTC2601CDD, a 16-bit digital-to-analogue converter, along with voltage output screw terminals. The chip has high rail-to-rail output drives (15mA, Min) and double-buffered data latches.
Videos
Videos are hosted on YouTube and load only when you press play.
The DAC 2 Click Board™ carries LTC2601CDD, a 16-bit digital-to-analog converter, along with voltage output screw terminals. The chip has high rail-to-rail output drives (±15mA, Min) and double-buffered data latches.
Fast SPI Interface
The Click Board™ communicates with the target MCU through the mikroBUS SPI interface with clock rates up to 50MHz. Additionally, the CLR pin, in place of default mikroBUS RST pin, clears all the registers.
Power Supply
The board uses either a 3.3V or 5V power supply. You can also set the reference voltage either to VCC or 4.096V.
| Overview | |
|---|---|
| Category | DAC |
| Applications | Device provides very high accuracy and low noise performance, and is suitable for consumer and industrial applications, such as mobile communications. Process Control and Industrial Automation n Instrumentation, Automatic Test Equipment |
| Key components | |
| On-board modules | LTC2601CDD 16-bit digital-to-analog converter |
| Features | |
| Key features | High rail-to-rail output drives (±15mA, Min). Double buffered data latches |
| Interfaces | |
| Interface | SPI, GPIO |
| Compatibility | mikroBUS™ |
| Electrical | |
| Input voltage | 3.3V or 5V |
| Physical | |
| Click board size | S (28.6 x 25.4 mm) |
| Compliance | |
| Country of origin | Serbia |
| RoHS | Compliant |
| Ordering information | |
| Part number (SKU) | MIKROE-1918 |
| Manufacturer | Mikroelektronika d.o.o. |
| EAN | 8606015076911 |
| Warranty | 12 months |
| Shipping weight | 0.025 kg |
-
