Artistic Licence

Artistic Licence DMX-Breakout Module

Artistic Licence DMX-Breakout Module

Connects to DMX Signals for Debugging

SKU: DMX-Break

Regular price
£193.81 exc VAT
£232.57 inc VAT
Regular price Sale price
£193.81 exc VAT
£232.57 inc VAT
Sale Sold out
Shipping calculated at checkout.
If no stock is shown above, order now and we'll dispatch within 3 working days.

Payment methods

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Bank transfer
View full details

Overview

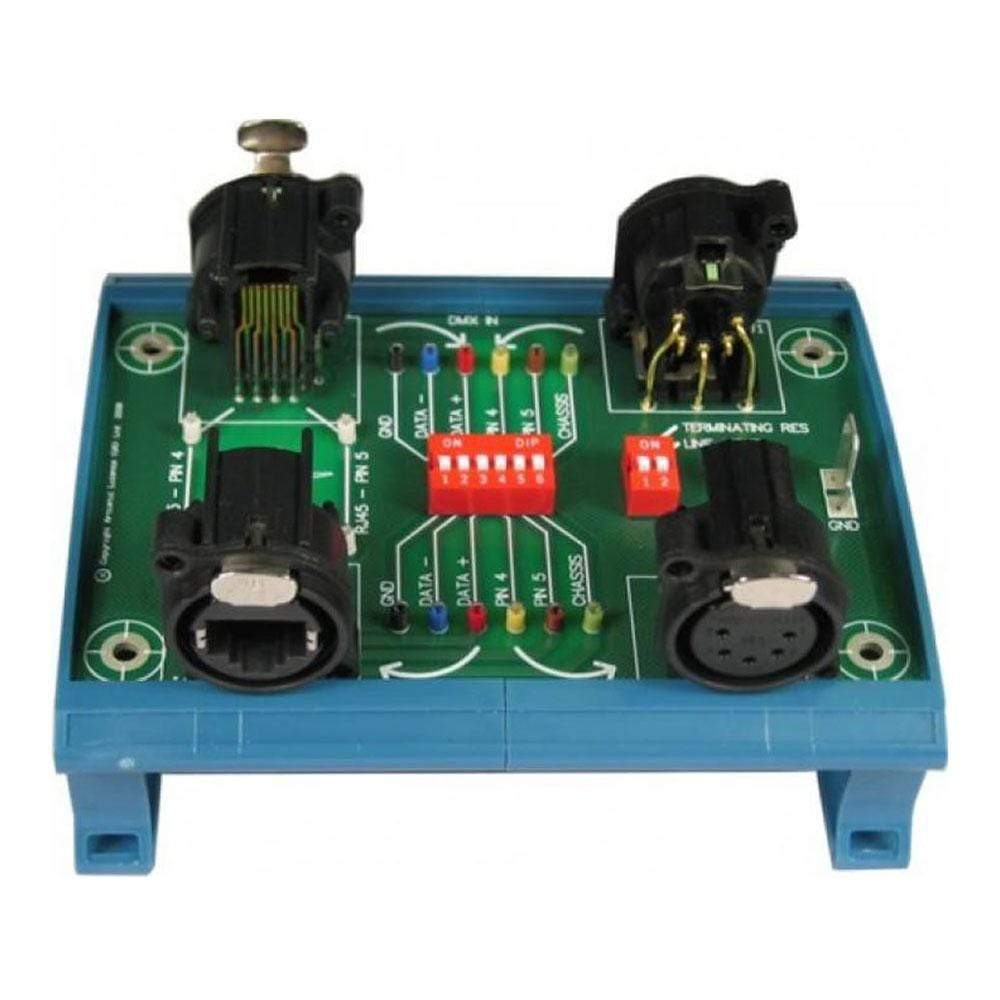

The DMX-Break is a 'Break-Out Box' for DMX512. It is primarily intended for engineers and allows the pins of the DMX512 XLR connector to be individually isolated. It also provides a switched termination, a data activity light and can also be used to convert from XLR to RJ45.

Every tool box should have a DMX-Break.

Monitoring Points

Multiple Scope and Meter monitoring points are provided which simplifies the tasks such as checking end of line termination and measuring common mode voltage.

The test points also provide a simple way of connecting the ZeroPlus LAP-C logic analyser range. The LAP-C includes a protocol decoder for DMX512, which provides a convenient way for the design engineer to verify DMX512 bus timing and packet decoding.

The product is supplied with a DIN Rail adapter. This can be retained to provide protection to the module or removed if not required.

Ordering information
Part number (SKU)DMX-Break
ManufacturerArtistic Licence
EAN5055383680788
Warranty12 months
  • 1 × Artistic Licence DMX-Breakout Module

Contact us to confirm the full contents of the box.
