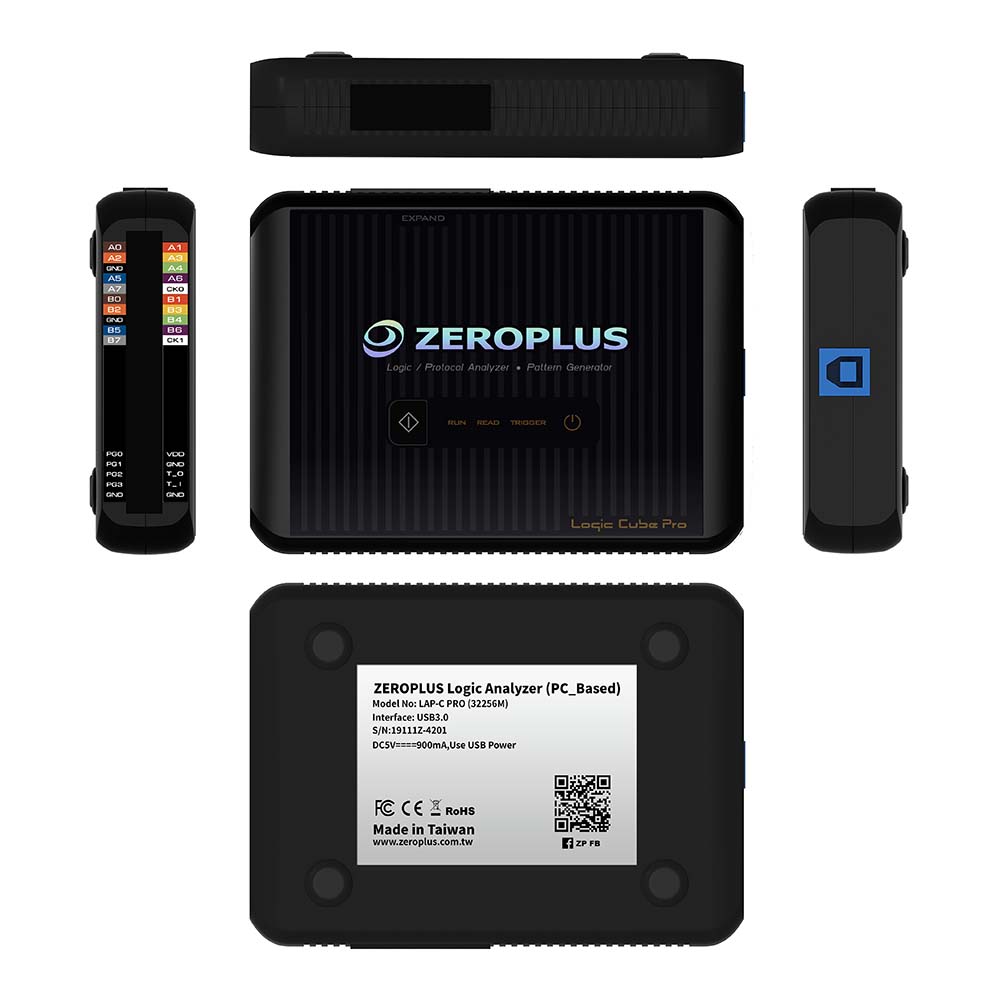

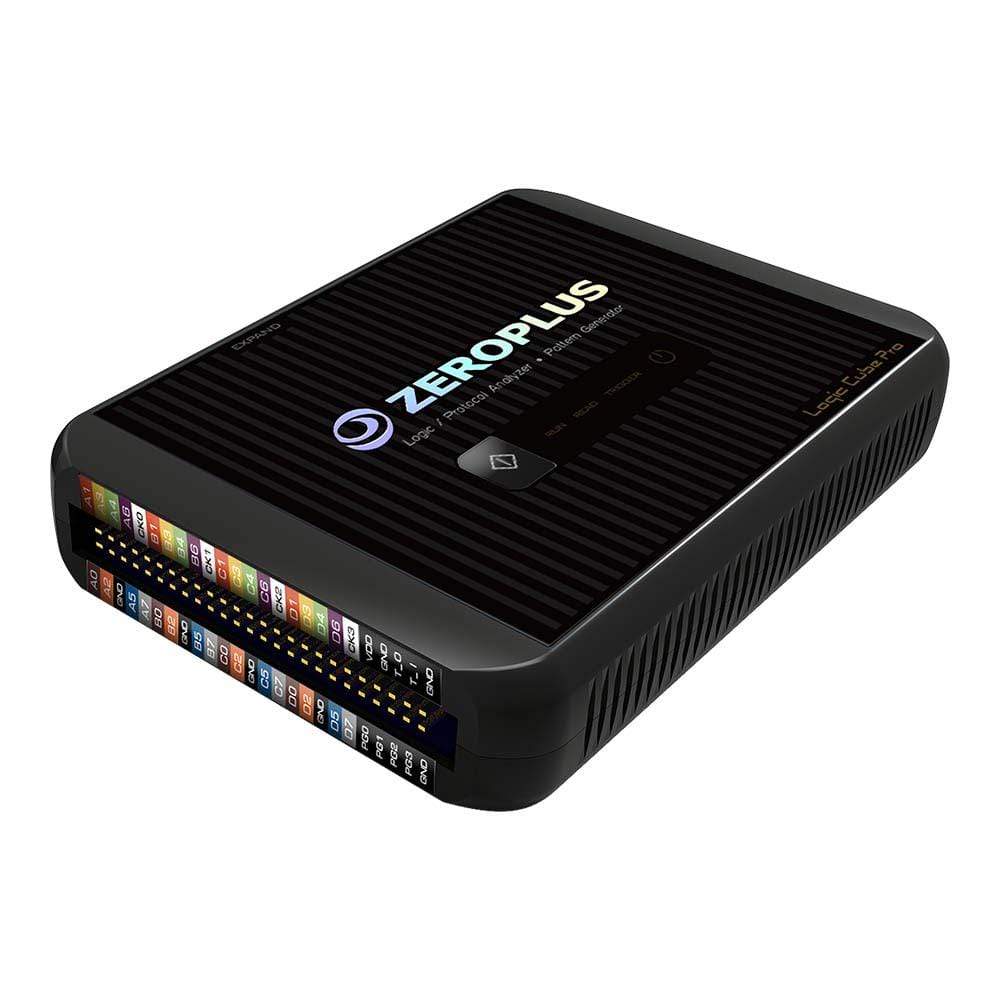

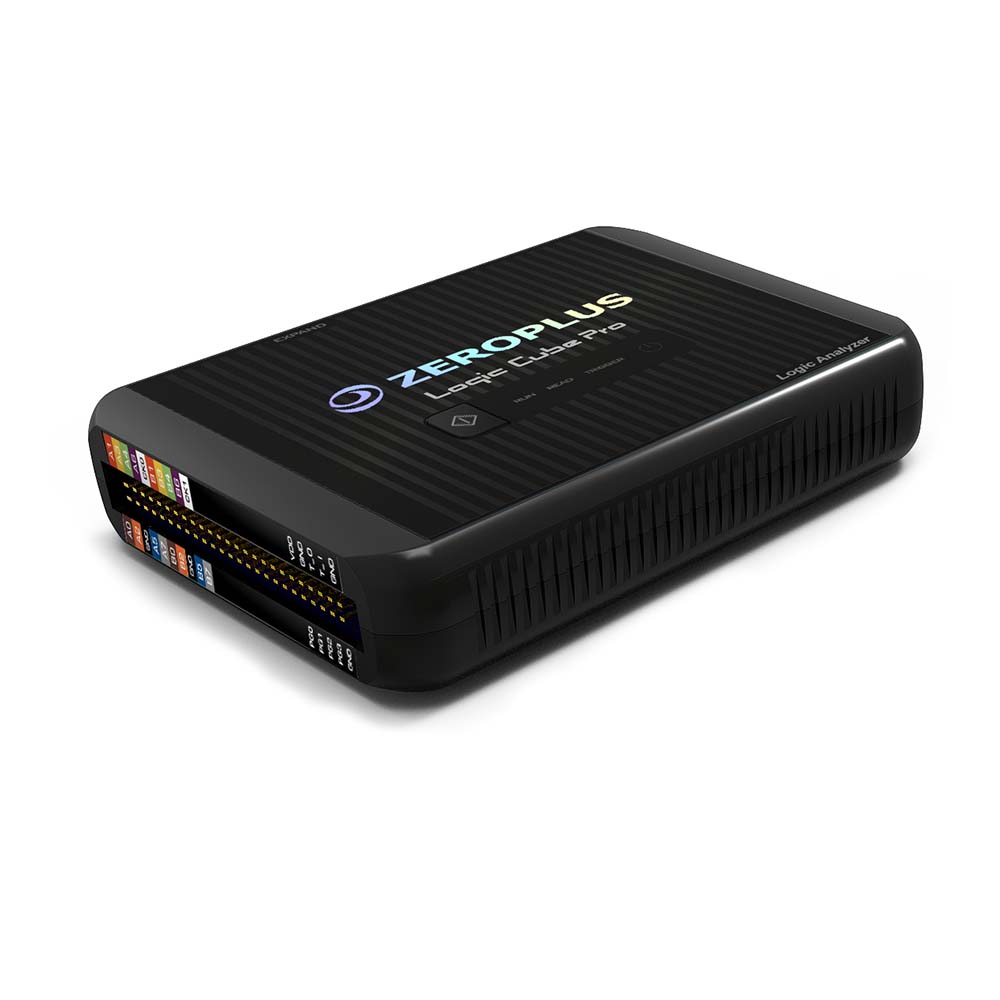

ZeroPlus LAP-C Pro Series Logic Analyser
ZeroPlus LAP-C Pro Series Logic Analyser
SKU: TT-LAP-C Pro-16064M
Couldn't load pickup availability
Key Features
Overview
Advanced Logic Analysis for Professional Engineers
The ZeroPlus LAP-C Pro series represents the pinnacle of PC-based logic analysis technology, offering exceptional performance with sampling rates up to 2GHz and memory depths reaching 256Mb per channel. This professional-grade logic analyser delivers comprehensive protocol analysis capabilities with over 130 built-in decoders, making it an indispensable tool for embedded system development and digital circuit debugging.
Available in four configurations - the 16-channel LAP-C Pro 16064M and 32-channel models (32064M, 32128M, and 32256M) - the series accommodates diverse engineering requirements. The 32-channel variants provide expandable memory architecture, supporting up to 32 channels at 64-256Mb per channel, or channel folding to achieve 1Gb per channel for extended capture sessions.
Superior Debugging Capabilities
Engineers benefit from the integrated Pattern Generator supporting I2C, SPI, UART, and CAN protocols, enabling comprehensive stimulus-response testing scenarios. The analyser's USB 3.0 interface ensures high-speed data transfer whilst supporting continuous streaming to PC storage for unlimited capture duration - a significant advantage over competitors' fixed memory solutions.
The LAP-C Pro distinguishes itself through advanced triggering capabilities, mixed-signal stacking support, and Windows-based software that provides intuitive waveform analysis, packet list views, and protocol-specific debugging tools. For engineers requiring robust protocol analysis with exceptional memory depth and sampling performance, the LAP-C Pro series delivers unmatched value in the professional logic analyser market.
Why Engineers Choose The ZeroPlus LAP-C Pro Series Logic Analyser
Exceptional Memory Depth
Comprehensive Protocol Support
Unlimited Capture Duration
| General Information | |
|---|---|
Part Number (SKU) |
TT-LAP-C Pro-16064M
|
Manufacturer |
|
| Physical and Mechanical | |
Weight |
1.0 kg
|
| Other | |
Warranty |
|
HS Code Customs Tariff code
|
|
EAN |
5055383622276
|
Frequently Asked Questions
Have a Question?
-
How does the LAP-C Pro's pricing compare to premium logic analysers?
The LAP-C Pro series offers exceptional value compared to Keysight and Tektronix premium analysers costing £20,000+. With comparable channel counts, sampling rates, and protocol capabilities, the LAP-C Pro delivers professional functionality at a fraction of traditional bench instrument costs.
-
What probe options are included with the LAP-C Pro?
Each unit includes comprehensive probe sets with flying lead connections, 8-pin and 16-pin probe adapters, clip-on hooks, and test accessories. Professional-grade probes feature impedance matching networks for accurate high-frequency signal capture, unlike simple wire probes in budget analysers.
-
Is the LAP-C Pro software compatible with Windows 11?
Yes, the ZP-Logic software supports Windows 11, 10, 8.1, and 7 (32/64-bit). Regular quarterly software updates ensure continued compatibility and feature enhancements. The Windows-only requirement may limit Linux users compared to cross-platform alternatives like Sigrok-compatible devices.
-
What trigger options are available on the LAP-C Pro?
The analyser supports pattern, edge, pulse width, interval timing, and external triggers across all channels. Advanced triggering includes state machine conditions, BUS-specific triggers, and trigger counting up to 65,535 events. These capabilities exceed basic edge triggering found in entry-level competitors.
-
How does the LAP-C Pro compare to Saleae Logic analysers?
The LAP-C Pro offers superior protocol decoding capabilities with 130+ decoders versus Saleae's limited selection. Whilst Saleae excels at long streaming captures, the LAP-C Pro provides better protocol trace readability and file comparison features essential for protocol development work.
-
What pattern generation capabilities does the LAP-C Pro offer?
The integrated pattern generator supports I2C, SPI, UART, and CAN protocols with user-definable digital patterns. This enables stimulus-response testing scenarios and device verification during development, functionality not available in basic logic analysers.
-
Can the LAP-C Pro perform unlimited duration captures?
Yes, the USB 3.0 interface enables continuous streaming to PC storage, allowing captures limited only by available disk space. This streaming capability provides significant advantages over fixed-memory analysers from Keysight and Tektronix that stop capturing when internal memory fills.
-
What memory depth options are available in the LAP-C Pro series?
The series offers 64Mb, 128Mb, and 256Mb per channel configurations. With channel folding, memory can be concentrated to achieve up to 1Gb per channel. The 32256M model provides 8Gb total memory, significantly exceeding typical competitor offerings of 16-64Mb per channel.
-
How many protocol decoders are included with the LAP-C Pro?
The LAP-C Pro includes over 130 built-in protocol decoders covering I2C, SPI, UART, CAN, USB, Ethernet, HDMI, PCIe and many specialist protocols. All decoders are included without additional licensing fees, unlike premium competitors requiring expensive protocol packages.
-
What sampling rates does the ZeroPlus LAP-C Pro support?
The LAP-C Pro offers internal timing mode sampling up to 2GHz and external state mode sampling up to 250MHz. The 16-channel model provides 1GHz maximum timing mode sampling. These specifications enable accurate capture of high-speed digital signals in modern embedded systems.
