Aaronia Site Survey Bundle — Portable RF Spectrum Monitoring Kit
Aaronia Site Survey Bundle — Portable RF Spectrum Monitoring Kit
Couldn't load pickup availability
Key Features
Overview

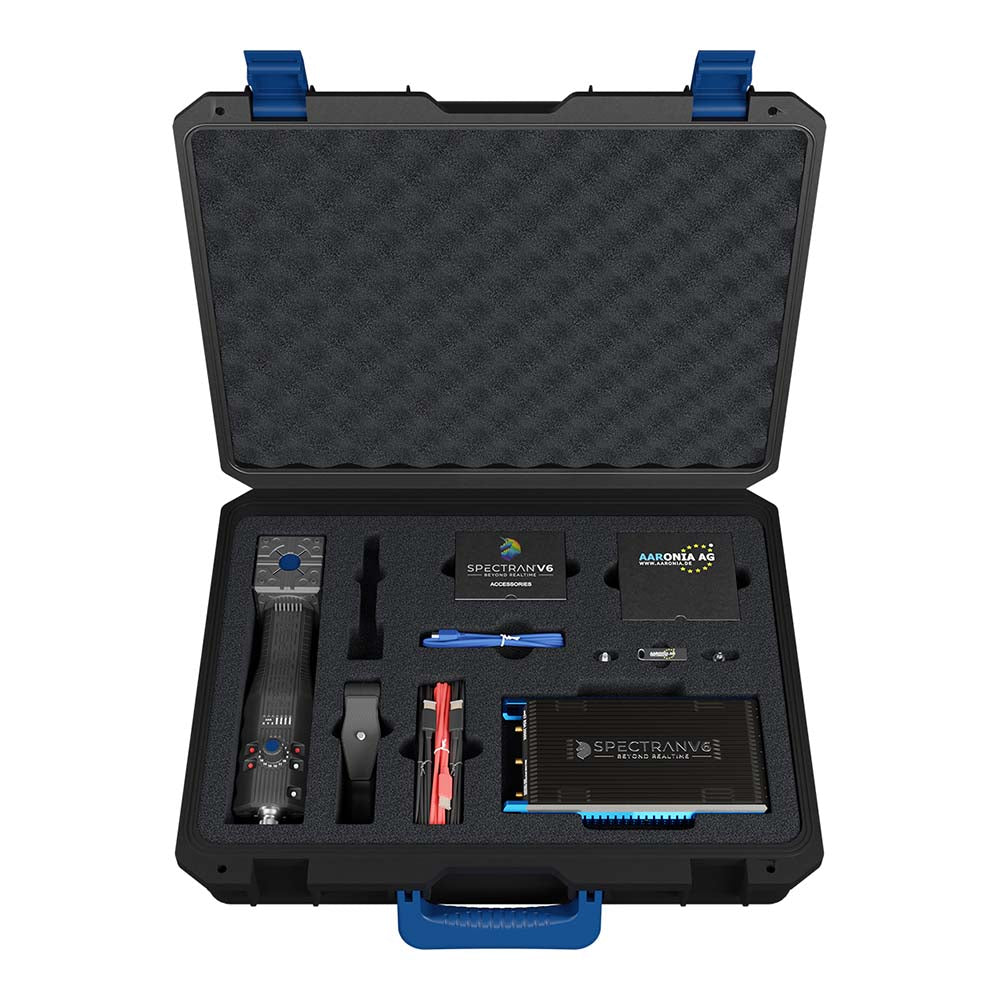

The Aaronia Site Survey Bundle is a portable RF spectrum monitoring kit designed for on-site interference hunting, coverage verification and pre-deployment checks. Each bundle pairs an Aaronia SPECTRAN V6 PLUS real-time spectrum analyser with the IsoLOG 3D Mobile PRO isotropic handheld antenna, supplied with accessories in a rugged case.
Three variants are available: Bundle 1 (10 MHz–3 GHz), Bundle 2 (10 MHz–6 GHz) and Bundle 3 (10 MHz–8 GHz), each offering 80 MHz real-time bandwidth. The V6 PLUS provides fast real-time capture, while the IsoLOG 3D Mobile PRO enables rapid 3D (X/Y/Z) field measurements with built-in pre-amps. RTSA-Suite PRO software is included for visualisation, triggering and logging. A GPS puck and pistol-grip mini-tripod support geotagged surveys and comfortable handheld use.
Choose this bundle if you need a proven, ready-to-go field kit that reduces setup time and captures transient RF events reliably. For related items, see the SPECTRAN V6 RSA250X, the higher-range SPECTRAN V6 RSA2000X and the IsoLOG 3D Mobile PRO antenna on Debug Store.
| General Information | |
|---|---|
Part Number (SKU) |
104/008
|
Manufacturer |
|
| Physical and Mechanical | |
Weight |
10.0 kg
|
| Other | |
Warranty |
|
HS Code Customs Tariff code
|
|
EAN |
5055383699018
|
Frequently Asked Questions
Have a Question?
-
What software is included and what analysis can I perform?
RTSA-Suite PRO is included for real-time visualisation, triggering, logging and I/Q record/replay. Engineers can build block-based workflows, run multi-receiver views, apply histograms/3D waterfalls, and automate captures—ideal for repeatable surveys and compliance evidence.
-
How do I choose between the 3 GHz, 6 GHz and 8 GHz variants?
Match the variant to your bands of interest. 3 GHz covers most sub-3 GHz cellular/IoT/ISM work; 6 GHz captures Wi-Fi 6E and many modern radios; 8 GHz adds further headroom for aerospace/defence and specialised industrial links. The antenna and analyser are matched for best performance in each option.
-
Does the kit support GPS tagging and heat-mapping?
Yes. With a supported GPS receiver, RTSA-Suite PRO can geotag measurements and export data for mapping/heat-map workflows, helping you correlate spectrum events with location during walk- or drive-tests.
-
What makes the kit unique versus other real-time spectrum analysis solutions?
Its combination of a true handheld 3D isotropic antenna with built-in pre-amps, a high-speed USB real-time analyser and an extensible software toolbox is unusual. The result is rapid “plug-and-measure” surveys with minimal setup, strong transient capture and clear 3D field awareness for root-cause analysis.
-
How does the Aaronia Site Survey Kit compare with more expensive handheld platforms?
Versus premium integrated handhelds such as Keysight FieldFox, Anritsu Field Master Pro or Rohde & Schwarz PR200, the Aaronia kit offers a distinctive 3D isotropic handheld antenna as standard, a lightweight USB analyser form factor and powerful PC-based RTSA-Suite PRO visualisation. Engineers gain flexible laptop workflows (multiview, I/Q record/replay, automation) while carrying less mass in the field.
-
Can the kit capture intermittent or bursty interference reliably?
Yes. Real-time spectrum analysis with up to 80 MHz RTBW allows continuous, gapless processing across the selected span, so brief emitters (e.g., switching supplies, protocol beacons, intermittent radios) are detected and logged instead of being missed by swept modes.
-
What frequency ranges and real-time bandwidths are available?
Choose the bundle to 3 GHz, 6 GHz or 8 GHz. The SPECTRAN V6 PLUS in the kit delivers up to 80 MHz real-time bandwidth (RTBW) for gapless capture of short-lived signals; higher RTBW options exist within the wider V6 PLUS family for specialist needs.
-
How does the IsoLOG 3D Mobile PRO improve site surveys?
IsoLOG 3D Mobile PRO is an isotropic (3-axis) handheld antenna with internal pre-amps. It captures X/Y/Z field components without constantly re-orienting the antenna, speeding up walk-tests and reducing measurement bias in dynamic environments.
-
What does the Aaronia Site Survey Kit include?
The kit combines a SPECTRAN V6 PLUS USB real-time spectrum analyser, an IsoLOG 3D Mobile PRO handheld isotropic antenna (choose 3/6/8 GHz variants), RTSA-Suite PRO analysis software and field accessories in a rugged transport case—providing a ready-to-deploy survey workflow.
-
What is the Aaronia Site Survey Kit and who is it for?
The Aaronia Site Survey Kit is a portable RF spectrum monitoring package built around the SPECTRAN V6 PLUS real-time spectrum analyser and the IsoLOG 3D Mobile PRO isotropic antenna. It is designed for professional electronic design engineers who need to verify spectrum use, hunt interference and validate wireless coverage during site surveys and pre-deployment tests.
