Name: Maynuo M-131 TTL to RS-232C Adapter
Brand: Maynuo Electronic Co Ltd
SKU: M-131
Price: 45.0 GBP
Availability: InStock

Maynuo Electronic Co. Ltd

More about Maynuo Electronic Co. Ltd

Maynuo Electronic Co., Ltd. is a professional manufacturer specializing in programmable DC electronic loads and power supplies. Based in China, the company develops and produces a range of test and measurement equipment, including high-power loads, mobile communications DC sources, and test systems for applications like solar battery testing. Their product lineup includes the M97XX series programmable DC electronic loads.

Maynuo electronic loads: programmable DC load testing

Maynuo makes programmable DC electronic loads (the M97 and M98 series) and programmable DC power supplies (the M88 series). An electronic load sinks current from a battery, charger, power supply or LED driver in a controlled way, so you can measure capacity, regulation and transient response without a bank of resistors. Maynuo loads run from 150 W to 6,000 W in the range we stock, hold current, voltage, resistance or power, and are controlled from the front panel or a PC over serial interfaces.

How a Maynuo electronic load tests a battery

A Maynuo electronic load tests a battery by discharging it at a constant current until the voltage reaches a cut-off you set. In the M97 series the load runs in constant current (CC) mode, stops automatically when the battery voltage falls to the programmed threshold, and reports the capacity, up to 999 Ah. The Maynuo M9712 and Maynuo M9811 both include battery and short-circuit test functions.

Battery discharge test: constant current drawn from the battery until the voltage reaches the cut-off.

Load modes: CC, CV, CR, CW and combined modes

Maynuo M97 and M98 loads have six operating modes: constant current (CC), constant voltage (CV), constant resistance (CR), constant power (CW), and the combined CC+CV and CR+CV modes. In CC the load draws a set current whatever the input voltage; in CV it draws what it must to hold the source at a set voltage; in CR the current is proportional to the input voltage; in CW the product of voltage and current stays fixed. The combined modes add a voltage limit to CC or CR, which protects a source from a current surge. A soft-start setting from 1 ms to 1,000 ms controls how quickly the load takes up current when it is switched on.

Dynamic (transient) testing

Dynamic mode switches the load between two current levels to show how a power supply or converter responds to a changing load. The M97 series offers continuous, pulse and trigger dynamic modes: continuous repeats the two-level cycle, pulse runs a single pulse, and trigger switches between the levels on an external trigger signal. Maynuo specifies a dynamic frequency of 0 to 25 kHz and a current rise speed of 2.5 A/us as the basic figure, with 5 A/us listed for the higher-power M9715 to M9718 loads. Rising-edge and falling-edge dynamic testing are both supported.

Continuous dynamic mode: the load alternates between two current levels, with a set dwell at each.

Short-circuit, protection and remote sense

The M97 and M98 loads include a short-circuit test mode, which simulates a short circuit to check how a power supply's protection responds, and standard over-current, over-voltage, over-power, over-temperature and reverse-polarity protection. Remote voltage compensation (remote sense) lets the load measure the voltage at the source terminals rather than at the load end of the leads, which matters for low-voltage, high-current sources. The loads also provide external trigger connections and a current waveform monitoring terminal.

Maynuo loads and power supplies at a glance

Model	Type	Power	Voltage and current
Maynuo M9711	DC electronic load	150 W	0 to 150 V, 0 to 30 A
Maynuo M9712	DC electronic load	300 W	0 to 150 V, 0 to 30 A
Maynuo M9713	DC electronic load	600 W	0 to 150 V, 0 to 120 A
Maynuo M9714	DC electronic load	1,200 W	0 to 150 V, 0 to 240 A
Maynuo M9715	DC electronic load	1,800 W	0 to 150 V, 0 to 240 A
Maynuo M9716	DC electronic load	2,400 W	0 to 150 V, 0 to 240 A
Maynuo M9716E	DC electronic load	3,000 W	0 to 150 V, 0 to 480 A
Maynuo M9717	DC electronic load	3,600 W	0 to 150 V, 0 to 240 A
Maynuo M9718	DC electronic load	6,000 W	0 to 150 V, 0 to 240 A
Maynuo M9811	DC electronic load with LED mode	200 W	0 to 150 V, 0 to 30 A
Maynuo M9812	DC electronic load with LED mode	300 W	0 to 150 V, 0 to 30 A
Maynuo M9812B	DC electronic load with LED mode	300 W	0 to 500 V, 0 to 15 A
M8811, M8812, M8813	Programmable DC power supply	150 W	0 to 30 V / 5 A, 0 to 75 V / 2 A, 0 to 150 V / 1 A
M8851, M8852, M8853	Programmable DC power supply	360 W to 600 W	0 to 6 V / 60 A, 0 to 30 V / 20 A, 0 to 75 V / 8 A
M8871, M8872, M8873, M8874	Programmable DC power supply	900 W to 1,125 W	0 to 15 V / 60 A, 0 to 30 V / 35 A, 0 to 75 V / 15 A, 0 to 100 V / 11 A

Maynuo also makes loads up to 200 kW and 500 V versions of the M97 series; see the product pages for the models currently listed.

Specifications and interfaces

Accuracy: basic accuracy of 0.03% on the M97 series, with readback resolution to 0.1 mV and 0.01 mA.
Auto test: up to 8 sets of 50 steps each, with four comparison types (current, voltage, power, resistance) and delay times of 0.1 s to 25.5 s, run from the PC software.
Interfaces: RS-232, RS-485 and USB serial interfaces, with optically isolated versions available; GPIB is listed on some models. The M-131, M-132 and M-133 adapters connect Maynuo loads and power supplies to a PC.
Protocol: the M97 series communicates using the Modbus protocol over its serial port, not SCPI text commands.
Display: high-luminance VFD with two lines and four channels; an intelligent fan system speeds up with temperature.
Rack mounting: the Maynuo M-151 is a 19 inch rack mounting kit for Maynuo loads.

Programmable power supplies: the M88 series

The Maynuo M88 series are single-output programmable DC power supplies from 150 W to 1,125 W, with constant-voltage and constant-current output and automatic crossover. The Maynuo M8811 has an output rise time under 10 ms. They are programmed and read back over the digital interface, so pair one with an M97 load to check regulation and efficiency of a converter. Ratings across the family run from 6 V at 60 A to 150 V at 1 A.

Software

Maynuo provides Windows monitoring software for the M97/M98 and M88 series, with test step editing and Excel report output, and a LabVIEW driver for the M97/M98 series. A multi-channel solar cell test software is also offered.

Typical applications

Battery capacity and discharge testing in CC mode with a Maynuo M9712 or Maynuo M9714
Production test of chargers, switching and linear power supplies
Testing LED drivers in LED mode with a Maynuo M9812 or Maynuo M9811
Transient response and short-circuit protection checks on converters
Powering a design under test from a Maynuo M8852 or Maynuo M8871 programmable supply
Solar cell, fuel cell and automotive electronics testing

Frequently asked questions

What are CC, CV, CR and CW on a Maynuo electronic load?

They are the four basic load modes: constant current, constant voltage, constant resistance and constant power (Maynuo writes constant power as CW). The M97 and M98 loads also offer combined CC+CV and CR+CV modes, which limit the current while the load holds a set voltage. The Maynuo M9712 is a typical example.

Can a Maynuo load test battery capacity?

Yes. In battery test mode the load discharges at a set constant current until the battery voltage falls to a cut-off you set, then stops and records the capacity, up to 999 Ah. The Maynuo M9712 and the Maynuo M9811 both include this function.

Which Maynuo electronic load should I choose?

Choose by voltage, current and power. The Maynuo M9711 and Maynuo M9712 cover 150 W and 300 W at up to 150 V and 30 A, the Maynuo M9713 and Maynuo M9714 reach 120 A and 240 A, and the Maynuo M9718 handles 6,000 W. The Maynuo M9812B is the 500 V option at 300 W. Ask our engineers if your source is close to a limit.

What is the LED mode on the M9811 and M9812?

LED mode is a load setting for testing LED power drivers. Maynuo describes it as giving a steady reading and as able to simulate the capacitance that makes some LED drivers sensitive to the load. It is available on the Maynuo M9811, Maynuo M9812 and Maynuo M9812B.

How do I control a Maynuo load or power supply from a PC?

Use the RS-232, RS-485 or USB serial interface with the Maynuo PC monitoring software, or write your own control code: the M97 series communicates using the Modbus protocol. The Maynuo M-131 TTL to RS-232C adapter, Maynuo M-132 RS-485 adapter and Maynuo M-133 USB adapter connect Maynuo electronic loads and power supplies to a PC.

Can I rack-mount a Maynuo electronic load?

Maynuo offers a 19 inch rack mounting kit for its electronic loads, and the Maynuo M-151 is the version we stock. Check the product page for the models it fits.

Source: Maynuo Electronic Co., Ltd product documentation. Need help choosing a model? Ask our engineers.

Maynuo M-131 TTL to RS-232C Adapter

Maynuo M-131 TTL to RS-232C Adapter

Vendor:
Maynuo Electronic Co Ltd

No reviews

Regular price
£54.00 inc VAT

£45.00 exc VAT

£45.00 GBP exc tax

Regular price Sale price
£54.00 inc VAT

£45.00 exc VAT

£45.00 GBP exc tax

Unit price per
Maynuo M-132 RS-485 Adapter

Maynuo M-132 RS-485 Adapter

Vendor:
Maynuo Electronic Co Ltd

No reviews

Regular price
£60.00 inc VAT

£50.00 exc VAT

£50.00 GBP exc tax

Regular price Sale price
£60.00 inc VAT

£50.00 exc VAT

£50.00 GBP exc tax

Unit price per
Maynuo M-133 USB Adapter

Maynuo M-133 USB Adapter

Vendor:
Maynuo Electronic Co Ltd

No reviews

Regular price
£62.40 inc VAT

£52.00 exc VAT

£52.00 GBP exc tax

Regular price Sale price
£62.40 inc VAT

£52.00 exc VAT

£52.00 GBP exc tax

Unit price per
Maynuo M-151 19" Rack Mounting Kit

Maynuo M-151 19" Rack Mounting Kit

Vendor:
Maynuo Electronic Co Ltd

No reviews

Regular price
£126.00 inc VAT

£105.00 exc VAT

£105.00 GBP exc tax

Regular price Sale price
£126.00 inc VAT

£105.00 exc VAT

£105.00 GBP exc tax

Unit price per
Maynuo M8811 Programmable 0-30V, 0-5A Power Supply

Maynuo M8811 Programmable 0-30V, 0-5A Power Supply

Vendor:
Maynuo Electronic Co Ltd

No reviews

Regular price
£690.00 inc VAT

£575.00 exc VAT

£575.00 GBP exc tax

Regular price Sale price
£690.00 inc VAT

£575.00 exc VAT

£575.00 GBP exc tax

Unit price per
Maynuo M8812 Programmable 0-75V, 0-2A Power Supply

Maynuo M8812 Programmable 0-75V, 0-2A Power Supply

Vendor:
Maynuo Electronic Co Ltd

No reviews

Regular price
£750.00 inc VAT

£625.00 exc VAT

£625.00 GBP exc tax

Regular price Sale price
£750.00 inc VAT

£625.00 exc VAT

£625.00 GBP exc tax

Unit price per
Maynuo M8813 Programmable 0-150V, 0-1A Power Supply

Maynuo M8813 Programmable 0-150V, 0-1A Power Supply

Vendor:
Maynuo Electronic Co Ltd

No reviews

Regular price
£834.00 inc VAT

£695.00 exc VAT

£695.00 GBP exc tax

Regular price Sale price
£834.00 inc VAT

£695.00 exc VAT

£695.00 GBP exc tax

Unit price per
Maynuo M8851 Programmable 0-6V, 0-60A Power Supply

Maynuo M8851 Programmable 0-6V, 0-60A Power Supply

Vendor:
Maynuo Electronic Co Ltd

No reviews

Regular price
£1,350.00 inc VAT

£1,125.00 exc VAT

£1,125.00 GBP exc tax

Regular price Sale price
£1,350.00 inc VAT

£1,125.00 exc VAT

£1,125.00 GBP exc tax

Unit price per
Maynuo M8852 Programmable 0-30V, 0-20A Power Supply

Maynuo M8852 Programmable 0-30V, 0-20A Power Supply

Vendor:
Maynuo Electronic Co Ltd

No reviews

Regular price
£1,350.00 inc VAT

£1,125.00 exc VAT

£1,125.00 GBP exc tax

Regular price Sale price
£1,350.00 inc VAT

£1,125.00 exc VAT

£1,125.00 GBP exc tax

Unit price per
Maynuo M8853 Programmable 0-75V, 0-8A Power Supply

Maynuo M8853 Programmable 0-75V, 0-8A Power Supply

Vendor:
Maynuo Electronic Co Ltd

No reviews

Regular price
£1,470.00 inc VAT

£1,225.00 exc VAT

£1,225.00 GBP exc tax

Regular price Sale price
£1,470.00 inc VAT

£1,225.00 exc VAT

£1,225.00 GBP exc tax

Unit price per
Maynuo M8871 Programmable 0-15V, 0-60A Power Supply

Maynuo M8871 Programmable 0-15V, 0-60A Power Supply

Vendor:
Maynuo Electronic Co Ltd

No reviews

Regular price
£2,640.00 inc VAT

£2,200.00 exc VAT

£2,200.00 GBP exc tax

Regular price Sale price
£2,640.00 inc VAT

£2,200.00 exc VAT

£2,200.00 GBP exc tax

Unit price per
Maynuo M8872 Programmable 0-30V, 0-35A Power Supply

Maynuo M8872 Programmable 0-30V, 0-35A Power Supply

Vendor:
Maynuo Electronic Co Ltd

No reviews

Regular price
£2,760.00 inc VAT

£2,300.00 exc VAT

£2,300.00 GBP exc tax

Regular price Sale price
£2,760.00 inc VAT

£2,300.00 exc VAT

£2,300.00 GBP exc tax

Unit price per
Maynuo M8873 Programmable 0-75V, 0-15A Power Supply

Maynuo M8873 Programmable 0-75V, 0-15A Power Supply

Vendor:
Maynuo Electronic Co Ltd

No reviews

Regular price
£2,850.00 inc VAT

£2,375.00 exc VAT

£2,375.00 GBP exc tax

Regular price Sale price
£2,850.00 inc VAT

£2,375.00 exc VAT

£2,375.00 GBP exc tax

Unit price per
Maynuo M8874 Programmable 0-100V, 0-11A Power Supply

Maynuo M8874 Programmable 0-100V, 0-11A Power Supply

Vendor:
Maynuo Electronic Co Ltd

No reviews

Regular price
£2,940.00 inc VAT

£2,450.00 exc VAT

£2,450.00 GBP exc tax

Regular price Sale price
£2,940.00 inc VAT

£2,450.00 exc VAT

£2,450.00 GBP exc tax

Unit price per

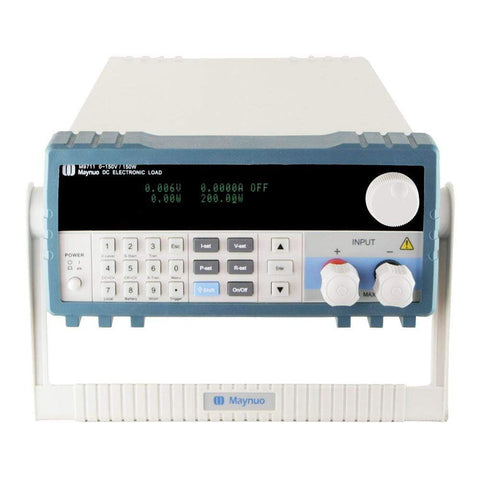

Maynuo M9711 DC 150W, 0-30A, 0-150V Electronic Load
