The Maynuo M8871 is a 900W, 0-15V, 0-60A Programmable power supply. M88 series power supplies are high performance single-output programmable DC power supplies with a communication interface, possessing the character of fast rise speed.
FAQs

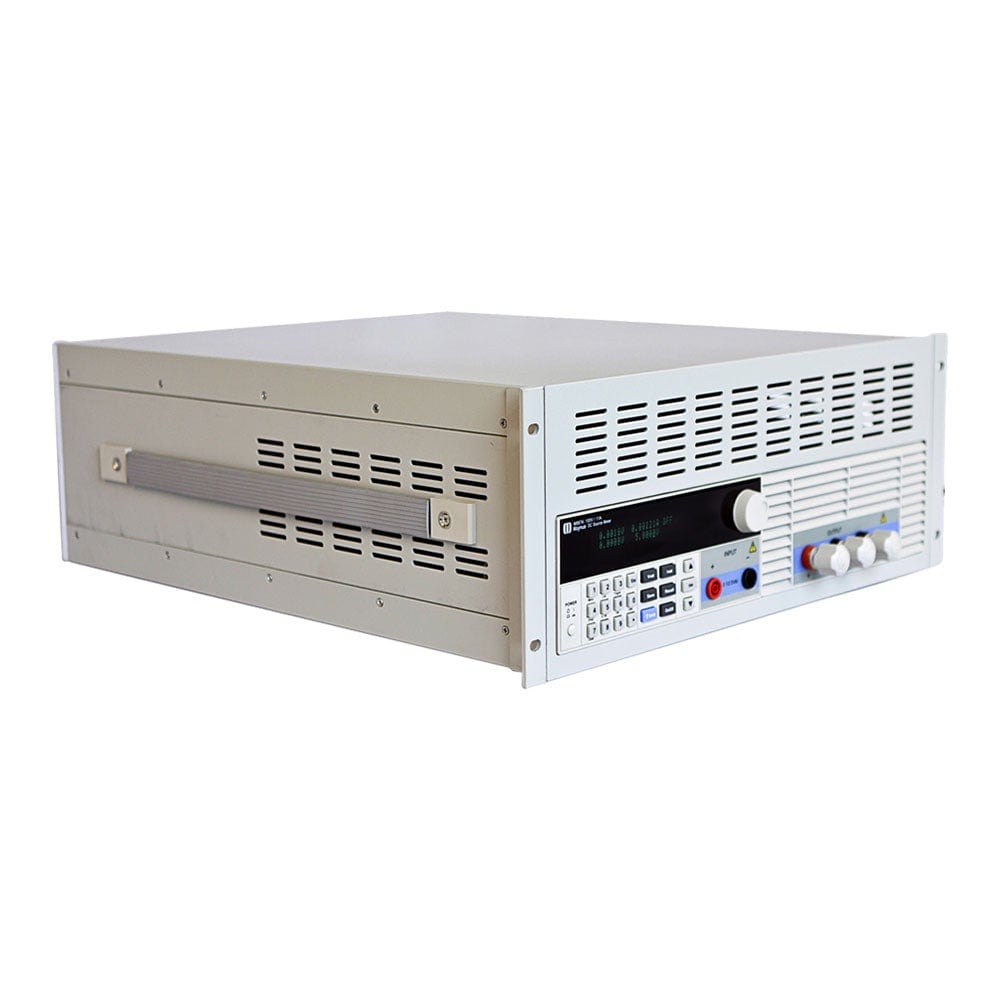

Maynuo M8871 Programmable 0-15V, 0-60A Power Supply
Frequently Asked Questions
Product Description
Product Description
Features
- Low ripple and low noise
- High resolution and accuracy (0.1mV/0.01mA)
- Built-in high-accuracy 5 1/2 voltmeter and milliohmmeter
- Supporting high-accuracy and dynamic programming output
- High-luminance VFD screen with two lines& four channels display
- Intelligent fan system fan will be automatically initiated according to the temperature
- Supporting remote voltage compensation and multi-data storage
- Supporting external trigger input and output
- Power-on-self-test, software calibration and standard rack mount
- Using standard SCPI protocol
- Communication mode: RS232/RS485/USB
Application
Laboratory testing, power electronics production line testing and other automatic testing systems, etc. Functioning as voltmeter and milliohmmeter.
M88 series power supplies are high performance single-output programmable DC power supply with a communication interface, possessing the character of fast rise speed (The rise time of the M8811 power supply can be less than 10ms and that of M8851 can be less than 20ms). The combination of bench-top and system features in these power supplies provides versatile solutions for your design and test requirements. The M88 series can not only be programmed through the keyboard on the panel but also function as a voltmeter and milliohm meter, which will bring great convenience to the users. As a regeneration product of an ordinary programmable power supply, the M88 series power supply is more cost-effective.
