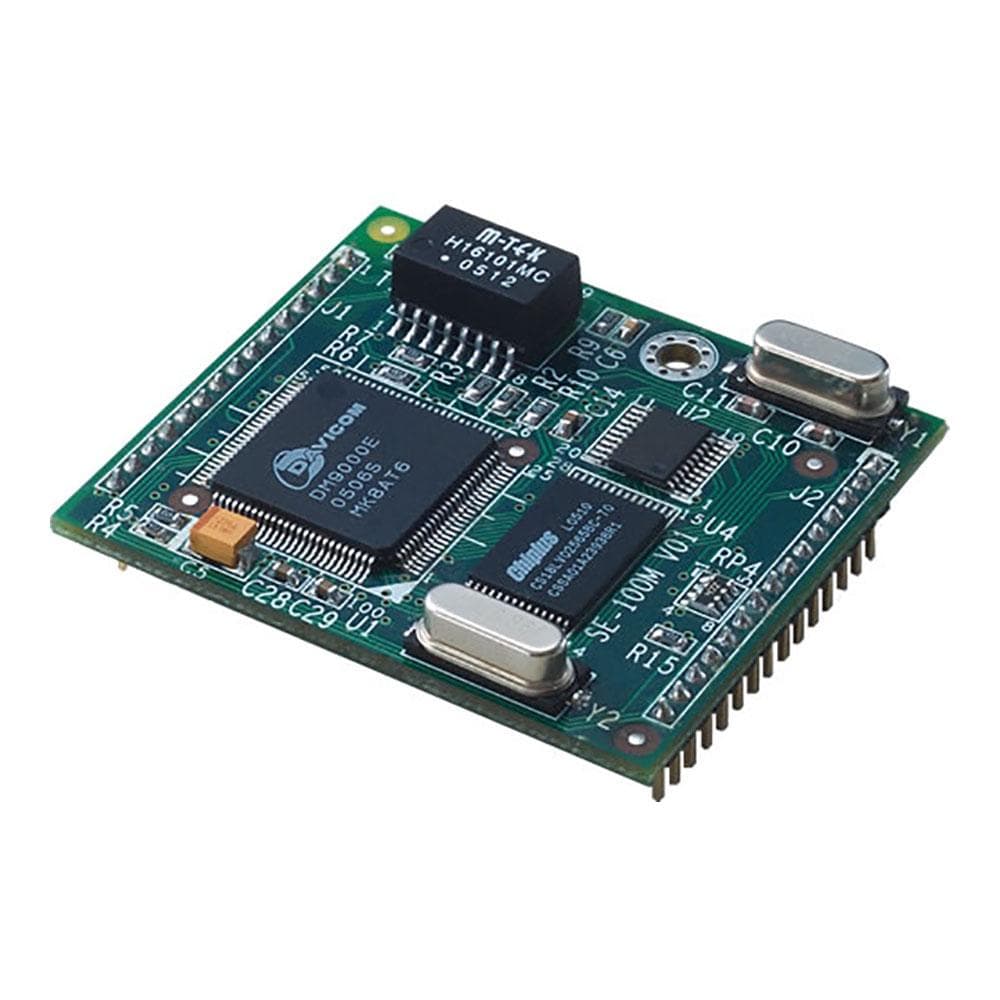

Artila WE-200M Serial to Ethernet Module
Artila WE-200M Serial to Ethernet Module
Couldn't load pickup availability
Overview
The Artila WE-200M is a mini-mighty Serial-to-Ethernet embedded module which adds network and Web server function for legacy RS-232C/RS-422/RS-485 devices.
The WE-200M provides a transparent data channel between serial device and the TCP/IP network, so that the serial device can be accessed by using standard TCP/IP protocols. The WE-200M can behave as a TCP server, a TCP client or an UDP node on a Ethernet network to fulfil versatile application requirements. User Web Space The WE-200M features Artilas unique Web@Module technology to enable RS-232/ 422/485 serial devices to be monitored and controlled through standard Web browsers, anywhere, anytime, without the need to install dedicated application software. 64KB is available for user web space. Users can compose web pages and develop Java applets with preferred tools, then use Artilas Windows utility to transfer these files to the web server of the WE-200M through LAN/WAN. Programmable Digital I/O Besides, the WE-200M also provides 6 TTL plus 3 CMOS digital I/Os. A pre-defined ASCII command set is provided for users to control these I/Os through LAN/WAN.
