Overview

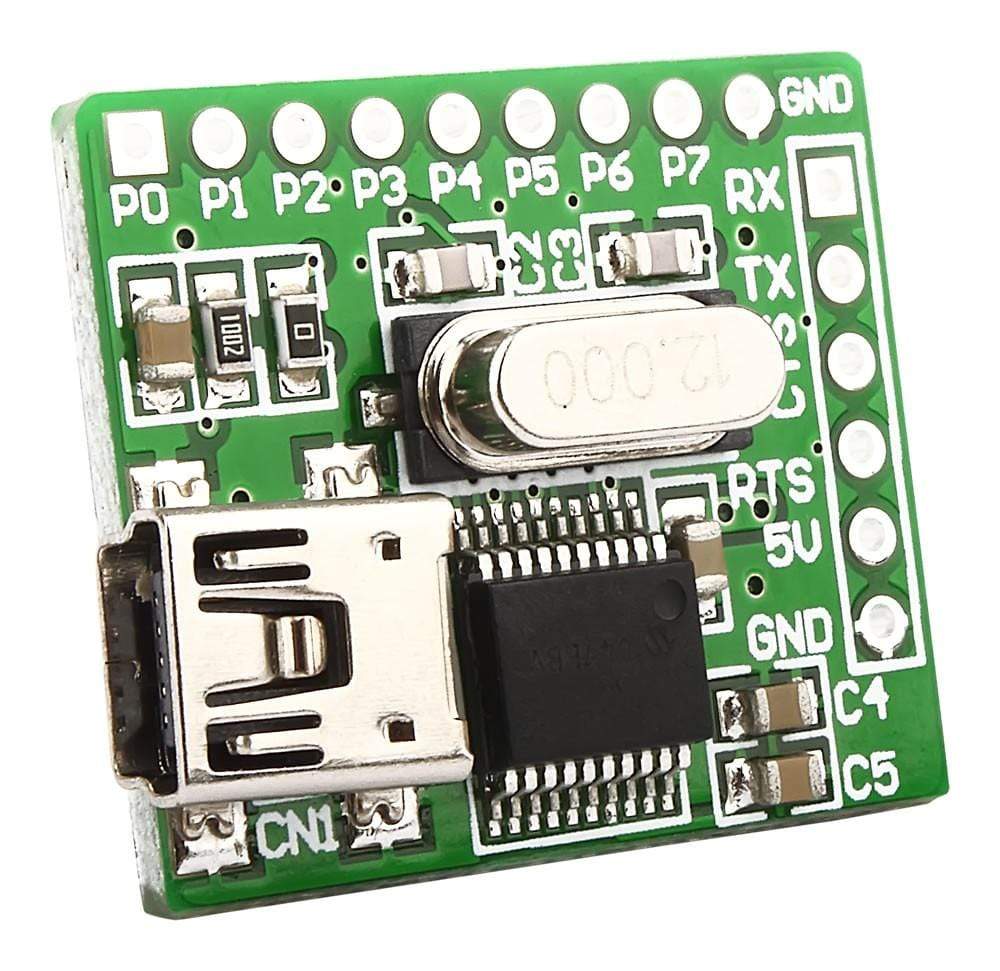

Enable USB connectivity for prototype devices that have a UART interface with the new USB UART 2 Board. The board employs a USB-to-UART serial converter MCP2200, which enables user to add communication to the prototype device in a very economical way. The board comes with integrated USB termination resistors, which reduces the number of external components in the prototype device. It also comes with a mini-USB connector that supports full-speed USB. The fast and easy USB UART 2 Board allows data transfer through UART communication interface. It is designed to operate using a 5V power supply only. This USB-UART solution is designed with a small footprint and compact design. It has connection pads for all available pins.
IC/Module: MCP2200 USB-to-UART Serial Converter.
MCP2200 is a USB-to-UART serial converter that allows USB connectivity for prototype devices with UART interface. Designed for low-power consumption, MCP2200 has 256 bytes of integrated user EEPROM and eight GPIO pins.It also has a USB protocol controller, which is full-speed USB 2.0 compliant.
EEPROM Module.
The on-board EEPROM module is a 256-byte array of non-volatile memory. The memory cells for data EEPROM are capable of enduring thousands of erase/write cycles, up to 100K for EEPROM. It allows for data retention without refresh for more than 40 years. The memory locations are retrieved for read/write operations through USB host commands.
UART Interface.
USB UART 2 Board uses the UART (Universal Asynchronous Receiver/Transmitter) interface and supports baud rates of 300-1000k. It has hardware flow control and UART signal polarity option. It has eight general purpose I/O pins.
| Overview | |
|---|---|
| Applications | USB UART 2 Board is used in RS232 communication with modems, printers, PC applications, and various devices that use UART communication protocol |
| Product type | USB |
| Key components | |
| On-board modules | USB-to-UART serial converter MCP2200 |
| Features | |
| Key features | USB support, standard 8-bit configurable I/O port. Connection pads for all available pins. |
| Key benefits | Small footprint, compact design. USB-UART solution at popular price |
| Interfaces | |
| Interface | UART |
| Compatibility | Breadboard (PROTO) |
| Electrical | |
| Power supply | 5V (via USB) |
| Compliance | |
| Country of origin | Serbia |
| RoHS | Compliant |
| Ordering information | |
| Part number (SKU) | MIKROE-549 |
| Manufacturer | Mikroelektronika d.o.o. |
| EAN | 8606015072609 |
| Warranty | 12 months |
| Shipping weight | 0.025 kg |
-
