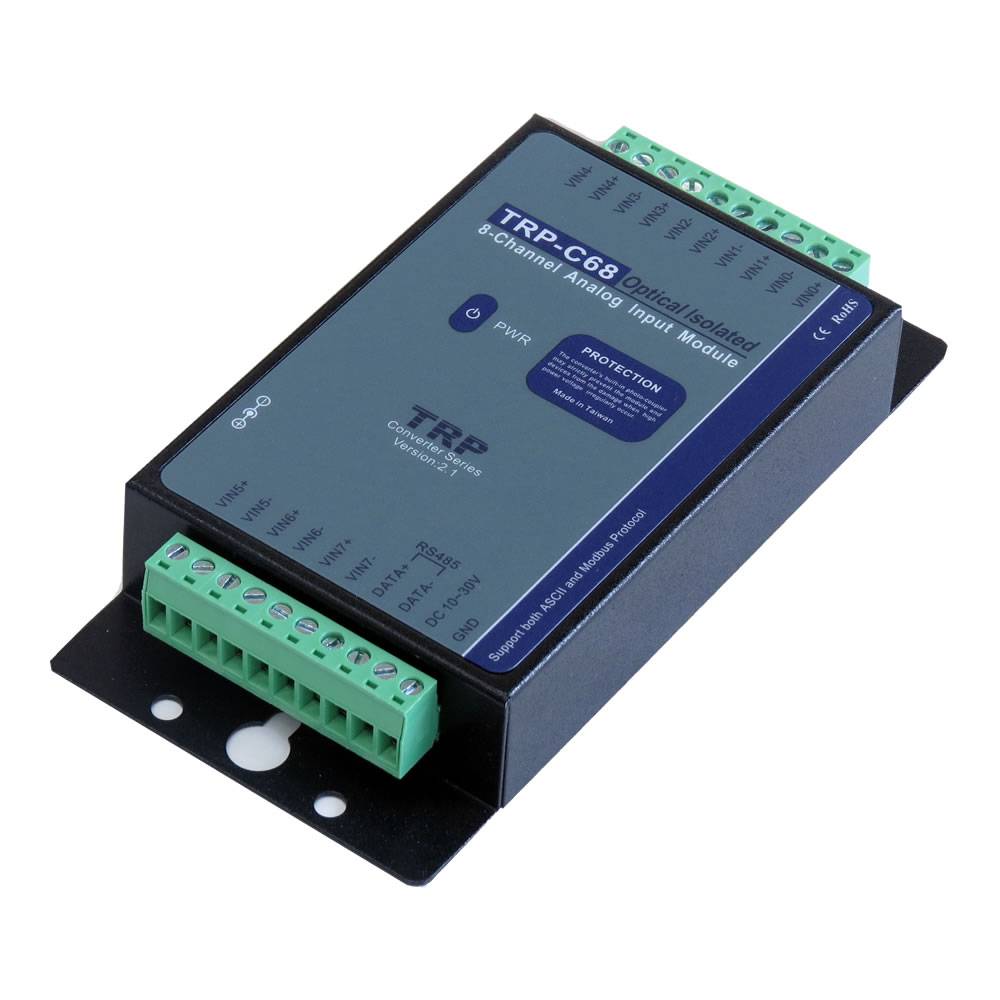

Trycom TRP-C68 Isolated 8-Ch AIO RS-485 Converter

Trycom TRP-C68 Isolated 8-Ch AIO RS-485 Converter

SKU: TRP-C68

Regular price
£198.00 exc VAT
£237.60 inc VAT
Regular price Sale price
£198.00 exc VAT
£237.60 inc VAT
Sale Sold out
Shipping calculated at checkout.
If no stock is shown above, order now and we'll dispatch within 10 working days.

Payment methods

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Bank transfer
View full details

Overview

TRP-C68 Ver:2.1, an 8-channel Analog to Digital Converter (ADC), takes an analog input signal and converts the input into a digital output signal. It accepts analog input-a voltage or a current-and supports the sample rate in “Normal” or “Fast” mode. All channels feature screw terminals for convenient connection, All analog inputs are provided with isolation and surge protection to protect the module against high voltage spikes, as well as ground potential differences. TRP-C68 support both ASCII and Modbus protocol, with a full set of command, dual watch-dog, and auto reset function the module can be remote controlled by PC in ASCII or Modbus RTU protocol. TRP-C68 version 2.1 has Built-in resistances to facilitate the user to select current or voltage mode.

Downloads

User Manuals

  • Trycom TRP-C68 User Manual PDF955 KB · 2.1 · Aug 2015
    Details
  • Resolution :16 bit

  • Sample rate: 24 BIT Normal mode: 10 sample / sec.

16 BIT Fast Mode: 60 sample / sec.

  • Bandwidth: Normal Mode: 15.72Hz.

Fast Mode:/78.72Hz.

Zero drift: 0.03uV/C .

Span drift:25 ppm/C .

  • Accuracy: Normal 0.1 or better.

Fast: 0.5 or better.

  • Analog Input range: Voltage:±10V,±5V,±2.5V,±1.25V,±650mV..

Current: +/-20mA. CMRR:92 db min/50/60Hz

  • Analog input over voltage protection:+/- 48V .

  • RS-485 connector: Industrial plug-in screw terminal.

  • Communication Interface: RS485,2 wires.

  • RS485 Transmission distance : 4000ft . ( 1200M ).

  • LED indicator: Power and Communication.

  • Speed: From 1.2K to 115.2Kbps.

  • Power consumption:1.2 Watt.

  • Power requirement: DC input from +10 to 30 V.

  • Operating Temperature: -10 to 60℃ .

  • Storage Temperature: -20 to 60℃.

  • Humidity: 10-90% Non-condensing.

  • Dimension: 151mm X 75mm X 26mm .

  • Weight: 398g .

Ordering information
Part number (SKU)TRP-C68
ManufacturerTrycom Technology Co Ltd
EAN5055383605347
Warranty3 years limited
  • 1 × Trycom TRP-C68 Isolated 8-Ch AIO RS-485 Converter

Contact us to confirm the full contents of the box.
