Mikroelektronika d.o.o.

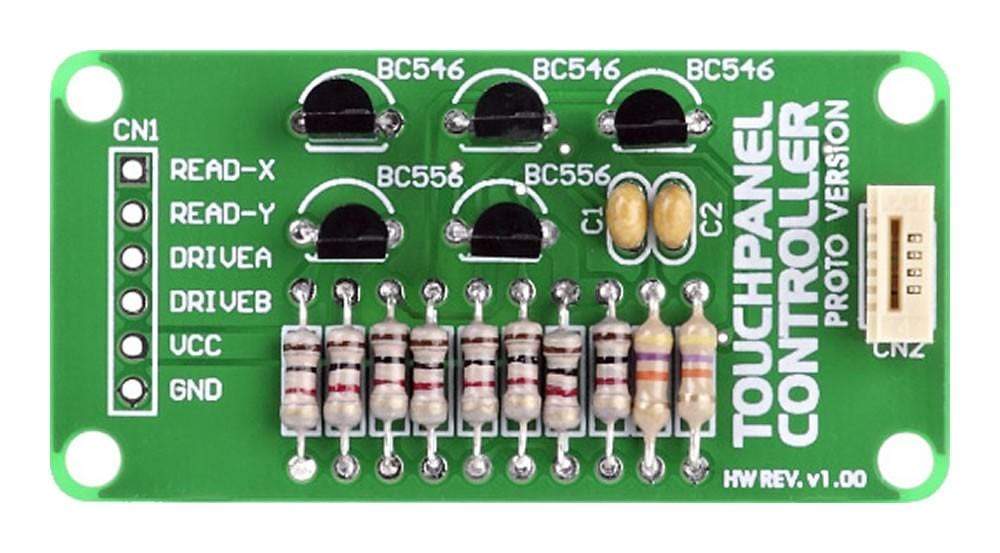

TouchPanel Controller PROTO Board

TouchPanel Controller PROTO Board

SKU: MIKROE-317

Regular price
£16.80 exc VAT
£20.16 inc VAT
Regular price Sale price
£16.80 exc VAT
£20.16 inc VAT
Sale Sold out
Shipping calculated at checkout.
If no stock shown above, check availability

Payment methods

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Bank transfer
View full details

Overview

The TouchPanel Controller PROTO Board enables you to connect your prototype device to a Touch Panel. There is also a Touch Panel controller with a connector provided on the board.

Resistive Touch-Screen Concept

A resistive touch screen is fabricated with two transparent, flexible sheets coated with a conductive material stacked on top of each other, separated by an air gap. When pressure is applied by a finger or a stylus on the screen, the top layer makes contact with the lower layer. When a voltage is applied across one of the layers, a voltage divider is created. The coordinates of a touch can be found by applying a voltage across one layer in the Y-direction and reading the voltage created by the voltage divider to find the Y-coordinate, and then applying a voltage across the other layer in the X-direction and reading the voltage generated by the voltage divider to find the X-coordinate.

Board Connections

Using a 1x6 connector CN1, the TouchPanel Controller PROTO can be connected to a port of the development system. On the other hand, the connection between a touch panel and the TouchPanel Controller PROTO is established using the connector CN2.

Overview
ApplicationsThis board allows you add touch panel input to your prototype device
Product typeTouch Panel (resistive)
Key components
On-board modules4-wire resistive analog touch panel controller
Features
Key featuresMounting holes allow easy intergration in your final device
Key benefitsBoard is clearly marked, and easy to interface
Interfaces
CompatibilityBreadboard (PROTO)
Electrical
Power supply5V
Compliance
Country of originSerbia
RoHSCompliant
Ordering information
Part number (SKU)MIKROE-317
ManufacturerMikroelektronika d.o.o.
EAN8606015072470
Warranty12 months
Shipping weight0.008 kg
  • 1 × TouchPanel Controller PROTO Board

Contact us to confirm the full contents of the box.
