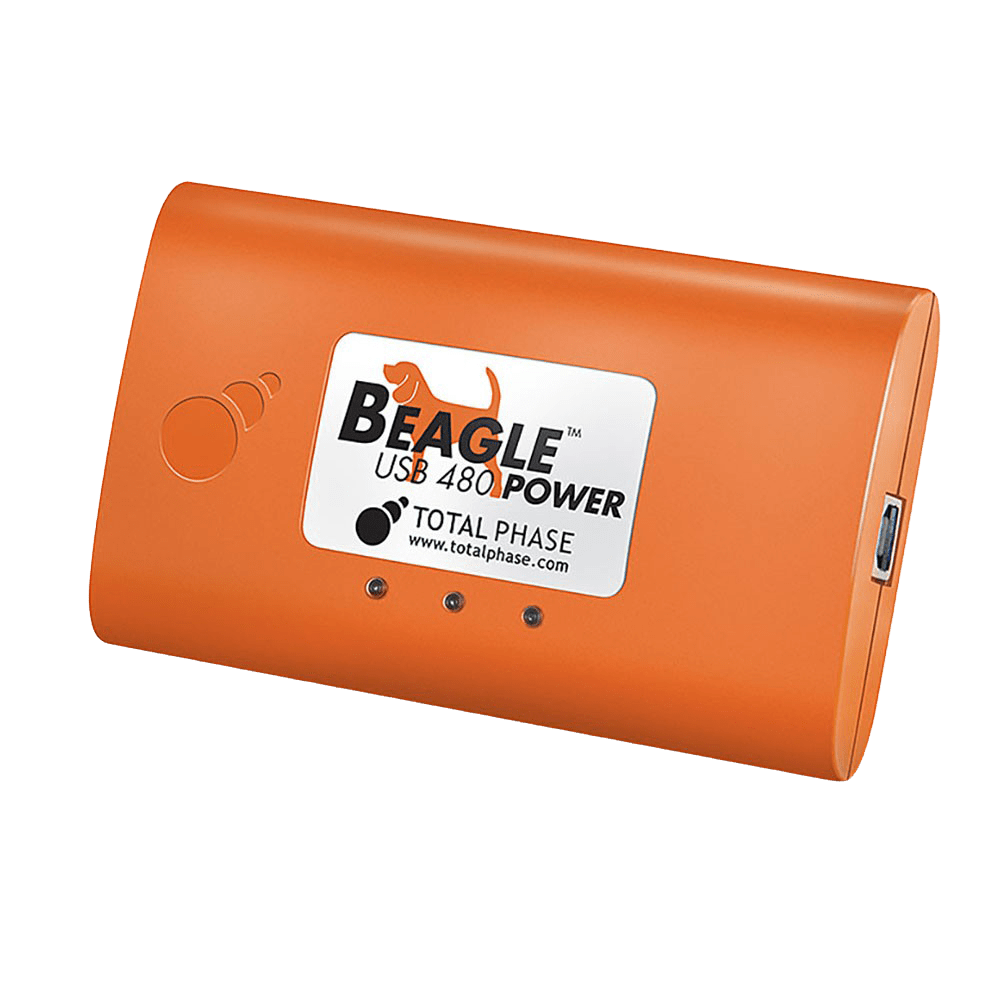

Total Phase Beagle USB 480 Power - Ultimate

Total Phase Beagle USB 480 Power - Ultimate

USB 2.0 Protocol and Power Analyser

SKU: TP323610

Regular price
£2,680.00 exc VAT
£3,216.00 inc VAT
Regular price Sale price
£2,680.00 exc VAT
£3,216.00 inc VAT
Sale Sold out
Shipping calculated at checkout.
If no stock is shown above, order now and we'll dispatch within 5 working days.

Payment methods

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Bank transfer
View full details

Key Features

with VBUS Voltage and Current Measurement
Helps work out Power Consumption of the Target based on its State
Affordable
Essential for Characterising Low-Power USB-Powered Devices

Overview

As USB devices continue to grow in number and complexity, developers need their monitoring and analysis tools to keep pace. The Beagle™ USB 480 Power Protocol Analyzer enables your competitive edge with its unique, powerful features and a price that is a fraction of competing equipment.

The Beagle USB 480 Power Protocol Analyzer – Ultimate Edition enables VBUS current and voltage measurement within our industry-leading Data Center software. The enhanced USB 2.0 advanced triggering, extra-large hardware buffer, and one-click correlation of voltage and current measurement to protocol-level activity ensures that engineers can take advantage of our unique real-time data analysis and display, enabling them to easily debug the functionality of their embedded systems while also optimizing the power profile of their applications.


Videos

Monitor VBUS Current and Voltage with Beagle USB 480 Power Protocol Analyzer

Total Phase · 3:11 · 2018

Video notes

The Beagle USB 480 Power analyser captures VBUS current and voltage alongside USB traffic. Here it monitors a USB flash drive and host PC, lining up the power measurements with the data on the bus.

Videos are hosted on YouTube and load only when you press play.

Current/Voltage Monitor

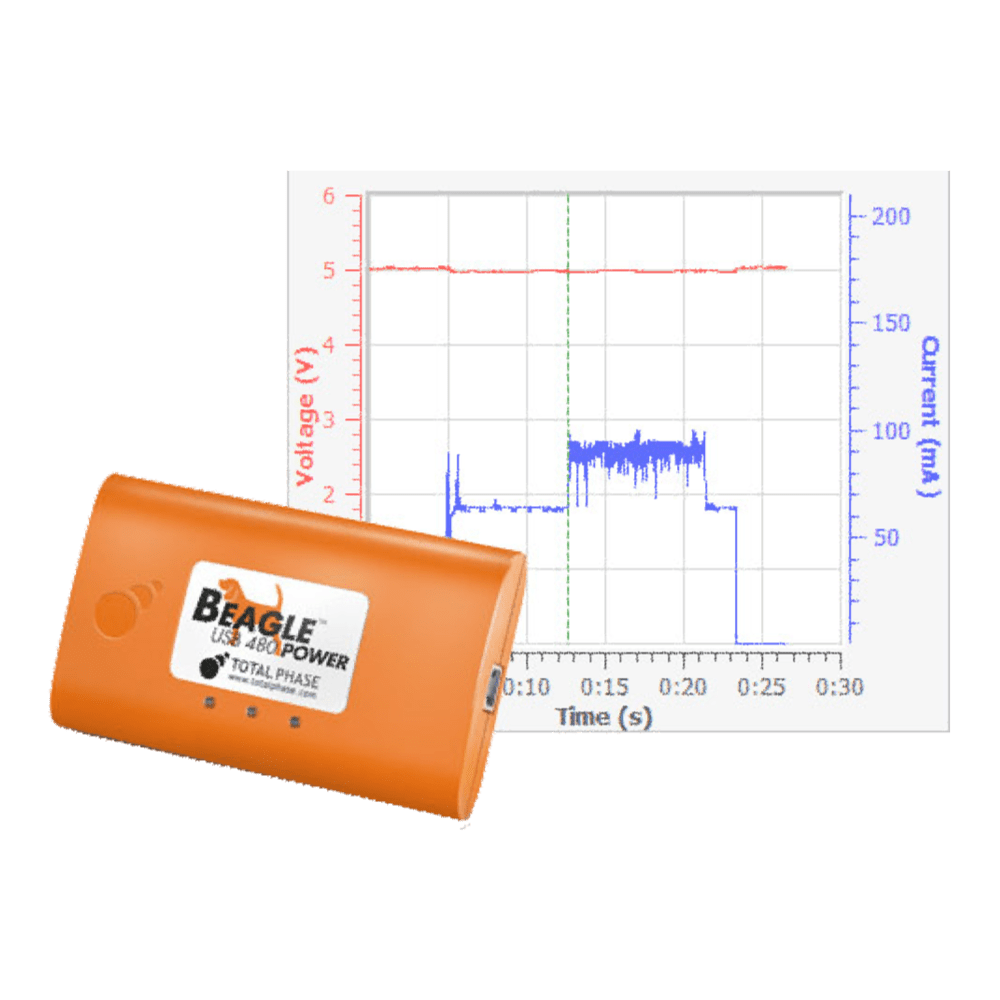

  • Real-time graphing of VBUS current and voltage values
  • Interactive and bi-directional correlation of current/voltage values with USB data

USB 2.0 Advanced Triggers

  • Create state-based and flexible trigger conditions based on data patterns, packet types, error types, events, and other criteria
  • Hardware packet filtering
  • Up to eight independent states and six matches per state for USB 2.0 captures
  • Digital inputs and outputs to synchronize with oscilloscopes or logic analyzers

High Performance Hardware Buffer

  • 256 MB capacity
  • Large circular buffer

Real-Time Non-Intrusive Monitoring

  • Real-time data analysis and display
  • Automatic bus speed detection
  • Low/Full/High-Speed USB 2.0
  • Capture traces to >25 GB

Real-Time USB Class-Level Decoding

  • HID, Audio, Video, Still Image, Printer
  • Mass Storage, Hub
  • Network, Mobile, CDC

Quality

  • CE, RoHS
  • 2-year warranty from Debug Store
  • Manufacturing: ISO 9001, ISO 13485, AS9100C, ITAR
Ordering information
Part number (SKU)TP323610
ManufacturerTotal Phase, Inc
EAN5055383690886
Warranty2 years
Shipping weight1.0 kg
  • 1 × Total Phase Beagle USB 480 Power - Ultimate

Contact us to confirm the full contents of the box.

Total Phase Beagle USB 480 Power - Ultimate compared with Total Phase Beagle USB 480 Analyser , Total Phase Beagle USB 5000 v2 SuperSpeed Ultimate Edition and Total Phase Beagle USB 12 Analyser on 8 specifications.

Specifications of Total Phase Beagle USB 480 Power - Ultimate compared with Total Phase Beagle USB 480 Analyser , Total Phase Beagle USB 5000 v2 SuperSpeed Ultimate Edition and Total Phase Beagle USB 12 Analyser
SpecificationThis product Total Phase Beagle USB 480 Power - UltimateTP323610In stock Total Phase Beagle USB 480 AnalyserTP320510Available to order Total Phase Beagle USB 5000 v2 SuperSpeed Ultimate EditionTP322610Available to order Total Phase Beagle USB 12 AnalyserTP320221In stock
USB speeds captured Low (1.5 Mbps) / Full (12 Mbps) / High (480 Mbps)Low (1.5 Mbps) / Full (12 Mbps) / High (480 Mbps)Low / Full / High / SuperSpeed (5 Gbps)Low (1.5 Mbps) / Full (12 Mbps)
On-board capture buffer 256 MB, plus Host PC streaming64 MB, plus Host PC streaming4 GB, plus Host PC streamingHost PC only
Timing resolution 16.7 ns16.7 nsUSB 3.0: 2 ns / USB 2.0: 16.7 ns21 ns
USB class-level decoding Full class-level decodingFull class-level decodingFull class-level decodingDescriptor parsing only
Advanced triggers Up to 8 states, 6 matches per stateNot listedUp to 8 states; 6 matches (USB 2.0), 3 per stream (USB 3.0)Not listed

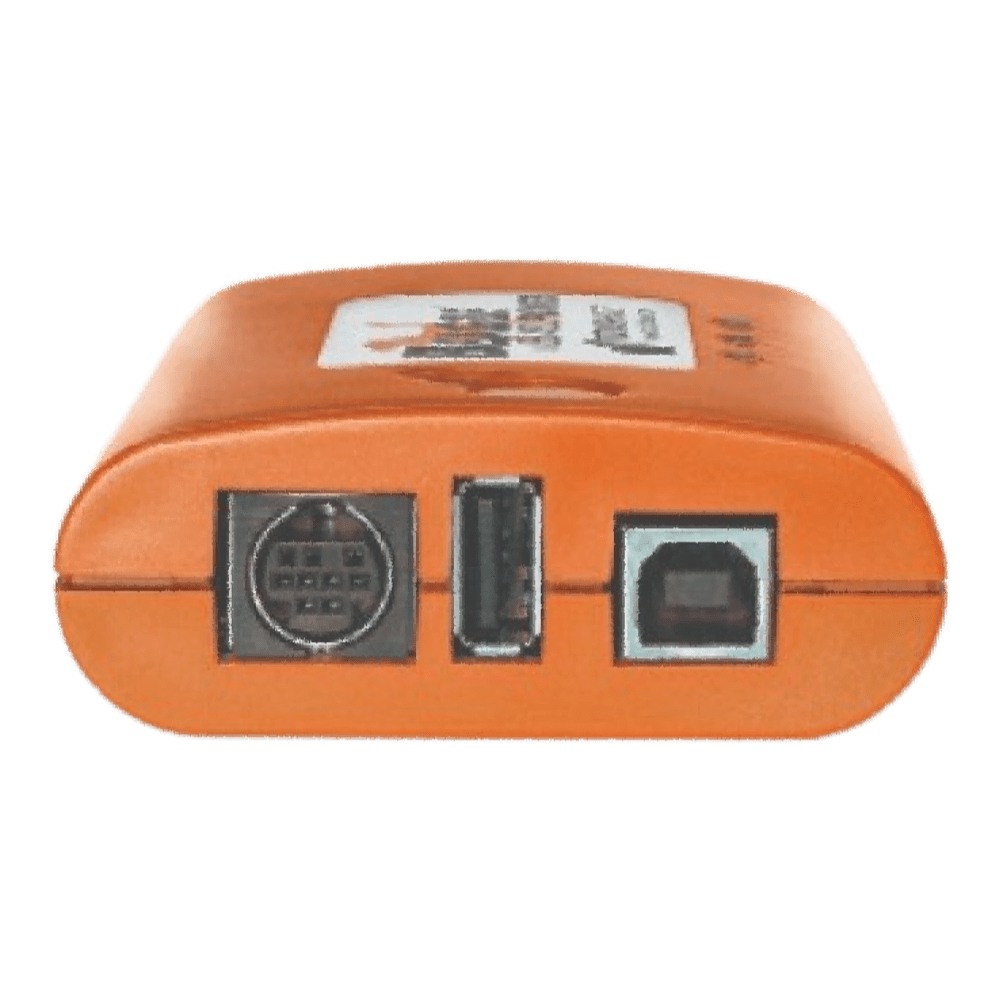

Digital I/O 4 in / 4 out (Mini-DIN 9)4 in / 4 out (Mini-DIN 9)4 in / 4 out (Mini-DIN 9); 1 in / 1 out (SMA)Not listed
VBUS current & voltage monitoring Supported (peak 3 A, 20 V transient)Not listedNot listedNot listed
Power source USB bus poweredUSB bus poweredExternal AC adapterUSB bus powered
Price£2,680 £1,375 £5,580 £540
