SKU: 102/016Aaronia SPECTRAN V6 Command Center (10 MHz - 8GHz)
Aaronia SPECTRAN V6 Command Center (10 MHz - 8GHz)
Couldn't load pickup availability

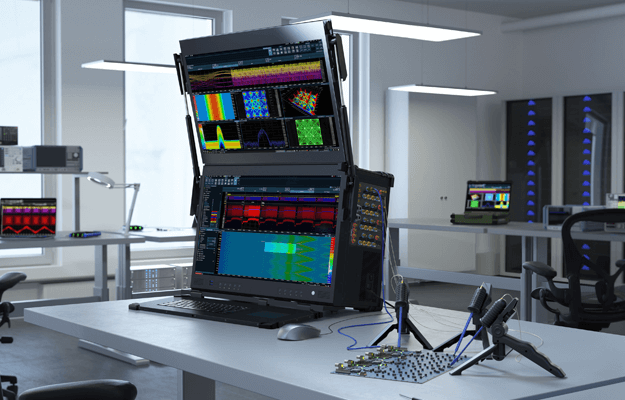

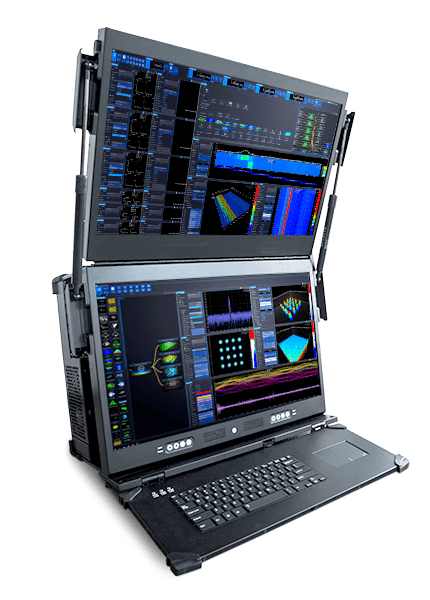

The SPECTRAN V6 Command Center is the culmination of Aaronia's efforts in building its Spectrum Analyzer Battleship:
It scans 6GHz in less than 1 millisecond, which is an astonishing speed of 4THz per second.
This high-end spectrum analyzer offers the RF performance you need with all measurement details available at the same time.
The setup is completely customizable and thanks to its cascadable system can dock up to 4 independent analyzers.
The two 4K widescreen monitors display and capture the bandwidth of up to 980MHz in real-time (with four internal analyzers), with a POI
below 10ns (I/Q-based) and 97ns (FFT-based). With up to 24TB hard drives you basically have an „unlimited“ recording time, as only 1GB is needed per minute.
| Specifications | V6 CC | V6 CC PRO | V6 CC ENTERPRISE |
| Real-time bandwidth Rx | 160 MHz RTBW | 490 MHz RTBW | 980 MHz RTBW |
| Real-time bandwidth Tx | - | 320 MHz RTBW (opt. 490 MHz) |
640 MHz RTBW (opt. 980 MHz) |
| DSP processing | 930 GMACs | 1860 GMACs | 3720 GMACs |
| FFT-rate | 480 million | 1920 million | 3840 million |
| ADC | 1 x 2GSPS 16 Bit | 4 x 2GSPS 16 Bit | 8 x 2GSPS 16 Bit |
| DAC | 1 x 2GSPS 14-Bit | 2 x 2GSPS 14-Bit | 4 x 2GSPS 14-Bit |
| RF connectors | 1x Rx (SMA) | 4x Rx, 2x Tx (SMA) | 8x Rx, 4x Tx (SMA) |
Hardware
The Command Center has a wide measuring range of 10MHz to 6 GHz and includes up to four receivers (8 x 2GSPS 16 Bit I/Q-data) and four vector signal generators (4 x 2GSPS 14-Bit I/Q). In terms of hardware, the computer features the best components available. The SPECTRAN® V6 Command Center runs on the AMD Ryzen 9 5900X (12Core) processor (opt. AMD Ryzen Threadripper 3960X (24Core), with 64 GB DDR4 RAM and an Nvidia GTX 1660 Ti graphics card allowing for gapless streaming and playback.
Perfect for any RF Problem
The setup is completely customizable, and – thanks to its cascadable system – can be combined with up to four independent analyzers. Two 24" 4K widescreen displays capture and visualize a instantaneous bandwidth (complex I/Q) of up to 980 MHz (I/Q) , with a remarkable POI of 10ns (I/Q). Moreover, with up to 18 TB hard drives, you have virtually unlimited recording time.
Peak Performance Measuring
- Various trigger functions and unlimited number of markers
- Different views: Spectrum / Persistence Spectrum, Spectrogram / Waterfall, 3D Waterfall, Histogram, etc.
- Multi-window feature supports several simultaneous views, e.g. Spectrum & Waterfall & Histogram at the same time
- Virtually unlimited storage of measuring data (HDD can be expanded to up to 18 TB for gapless recording)
- Comfortable reference level and color settings
- Reporting and recording functions
- Storage of personal sessions
- And much more ...
Applications
- Technical surveillance countermeasures (TSCM)
- Security surveys for detecting and preventing eavesdropping
- Interference hunting
- Spectrum monitoring and enforcement
- Maintenance, installation and repair both in the factory and in the field
- VIP monitoring
- Conference monitoring
- EMC / EMI testing
- Detection of weak signals masked by stronger ones
- Detection of rare, short-duration events
- Capturing spread-spectrum and frequencyhopping signals
- Investigating abuse of crowded RF spectrums
