SmartProto Board

SmartProto Board

SKU: MIKROE-197

Regular price
£5.88 exc VAT
£7.06 inc VAT
Regular price Sale price
£5.88 exc VAT
£7.06 inc VAT
Sale Sold out
Shipping calculated at checkout.
If no stock shown above, check availability

Payment methods

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Bank transfer
View full details

Overview

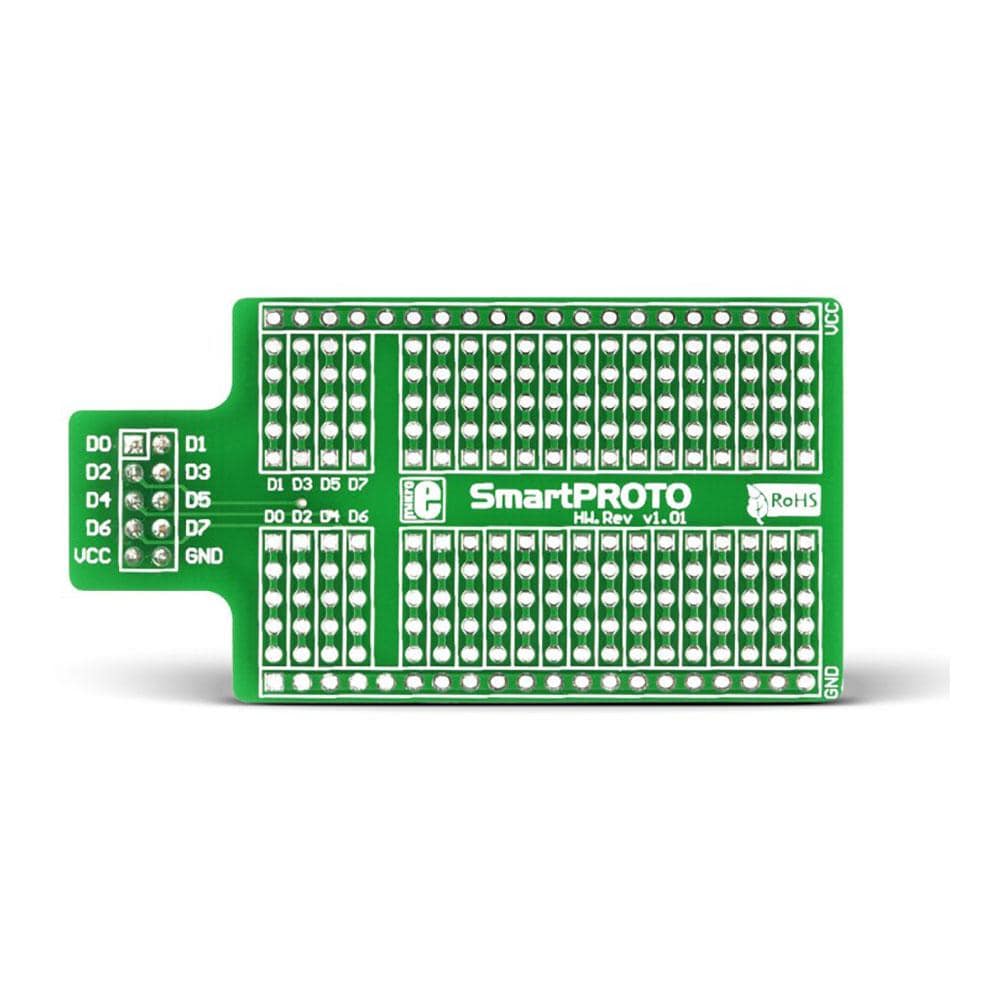

Intended to aid easy and fast prototype development, the SmartPROTO Board can be used to place additional components onto the prototyping area and quickly assemble custom accessory boards for a wide range of development systems from MikroElektronika. For this, this add-on board comes with a female IDC10 connector and two prototyping areas. The first prototyping area includes eight lines with five prototyping pads, wherein each pad is connected to one IDC10 pin (D0-D7). The other prototyping area has 15 double lines each with five pads.

This add-on board also has additional power lines for the components. On the outer edges of the board, it features a line for GND and a line of pads for VCC. The SmartPROTO Board is also designed to be compatible with the port expansion headers on MikroElektronika

Intended to aid easy and fast prototype development, the SmartPROTO Board can be used to place additional components onto prototyping area and quickly assemble custom accessory board for a wide range of development systems from MikroElektronika. For this, this add-on board comes with female IDC10 connector and two prototyping areas. The first prototyping area includes eight lines with five prototyping pads, wherein each pad is connected to one IDC10 pin (D0-D7). The other prototyping area has 15 double lines each with five pads.

This add-on board also has additional power lines for the components. On the outer edges of the board, it features a line for GND and a line of pads for VCC. The SmartPROTO Board is also designed to be compatible with the port expansion headers on MikroElektronika

Overview
ApplicationsPlace additional components onto prototyping area and quickly assemble custom accessory board for your development system
Product typeAdapter
Key components
On-board modulesFemale IDC10 connector. 8 lines with 5 prototyping pads and 15 double lines each with 5 pads. Additional power lines
Features
Key featuresTwo prototyping areas on-board
Key benefitsFlexible solution suitable for all MCU architectures
Interfaces
InterfaceGPIO
CompatibilityIDC10
Electrical
Power supply3.3V or 5V
Compliance
Country of originSerbia
RoHSCompliant
Ordering information
Part number (SKU)MIKROE-197
ManufacturerMikroelektronika d.o.o.
EAN8606015072371
Warranty12 months
Shipping weight0.01 kg
  • 1 × SmartProto Board
