Extended-Range Shunt-Thru Measurement
Video notes

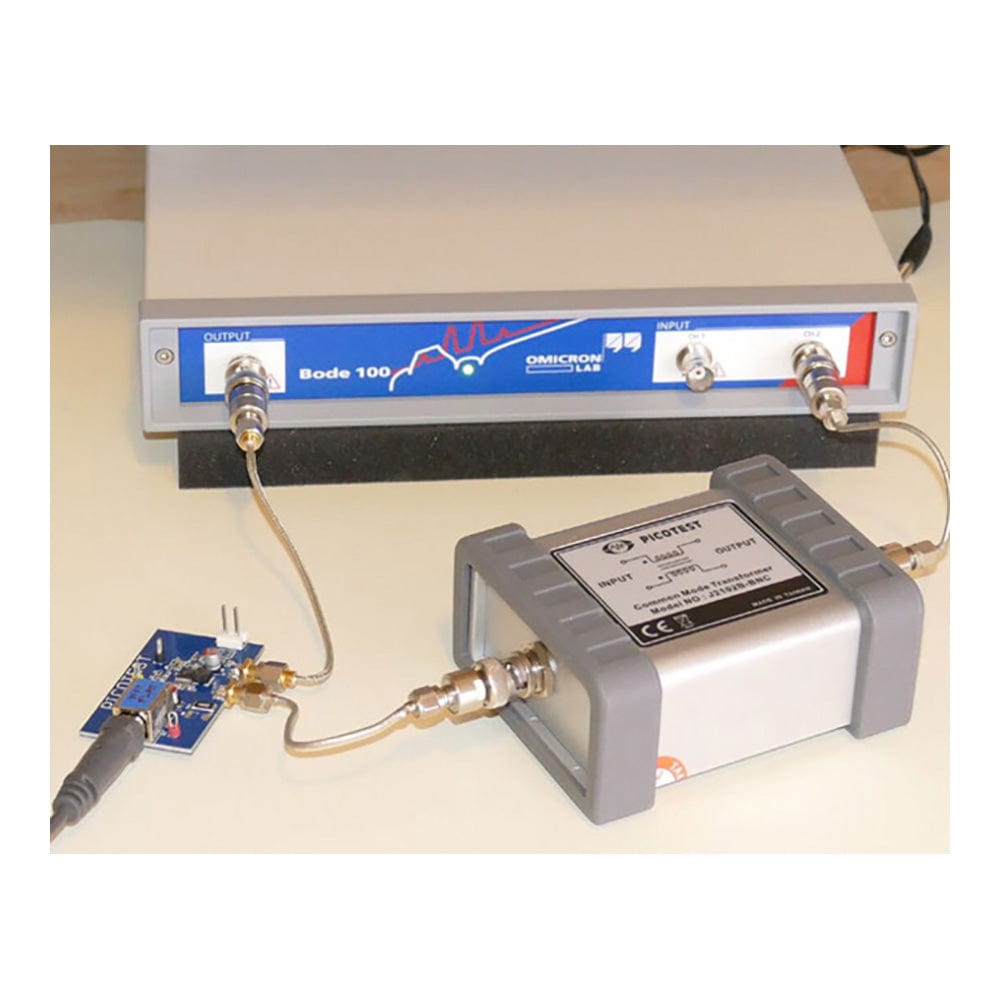

Steve Sandler of Picotest shows how to make 2-port shunt-thru impedance measurements with the Bode 100, for power distribution networks and decoupling capacitors.
Picotest
Picotest J2102B Common Mode Transformer
Picotest J2102B Common Mode Transformer
SKU: J2102B-BNC
£830.50 exc VAT
Check and Add to Cart
Confirm the price and stock for your selection, set the quantity, then press Add to Cart.
Regular price
£830.50
exc VAT
£996.60
inc VAT
Regular price
Sale price
Unit price
per
£830.50
exc VAT
£996.60
inc VAT
Shipping calculated at checkout.
If no stock is shown above, order now and we'll dispatch within 7 working days.
Payment methods
- Bank transfer
Couldn't load pickup availability
Key Features
Supports the 2 Port Shunt Thru impedance measurement required for Power Distribution Networks (PDNs)
Ultra-low noise output - Ultra-high ripple rejection

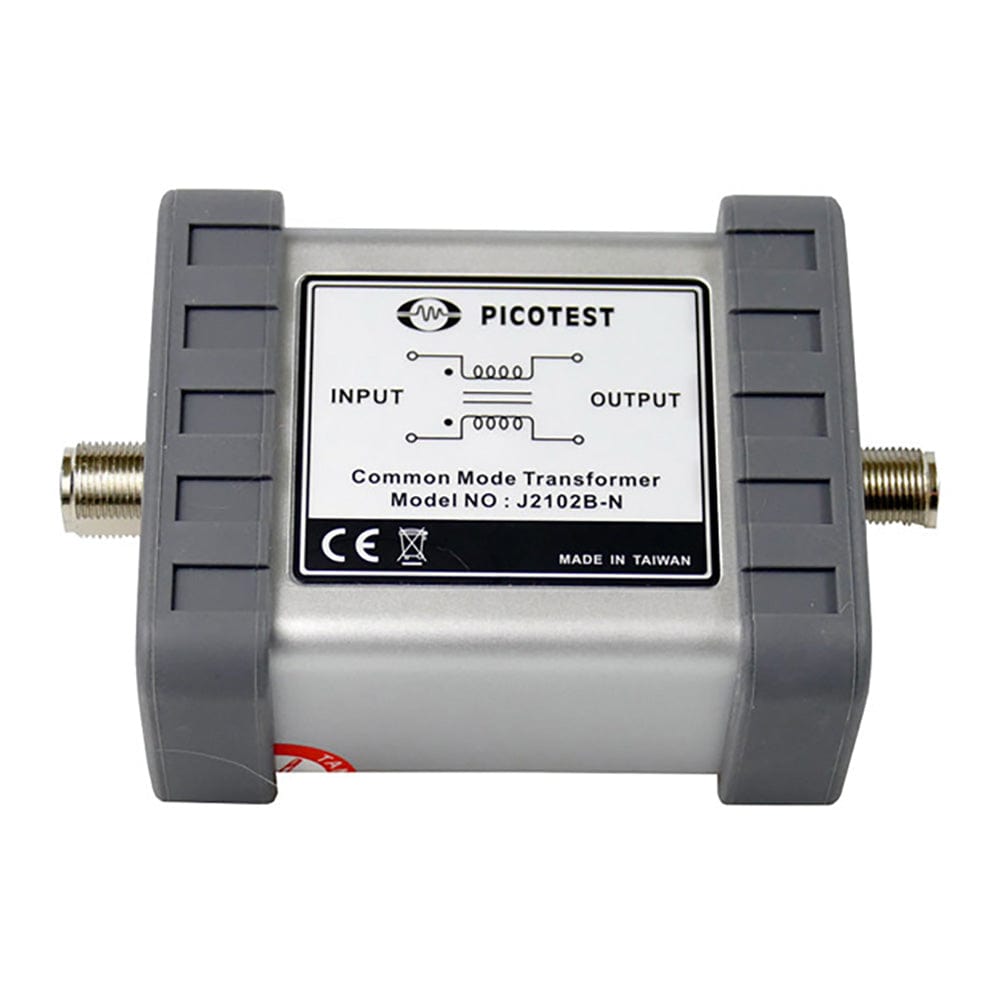

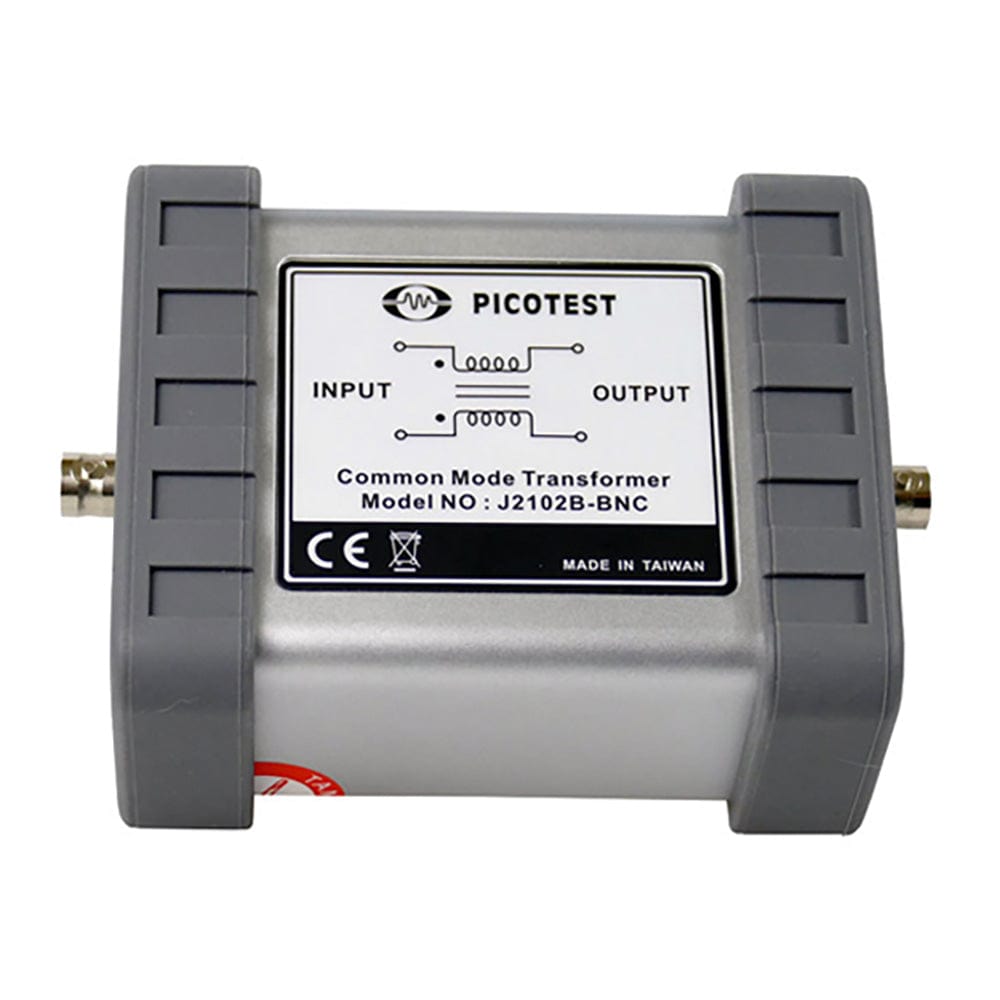

Two output connector versions, BNC and N
Maintains 50 Ohm transmission line integrity to at least 6GHz
Works with all types of test equipment to eliminate ground loops, such as Network Analyzers, Oscilloscopes and Spectrum Analyzers
Overview
J2102B Common Mode Transformer - Enhance Your Signal Quality!
Discover the ultimate solution to mitigate the negative impact of low-frequency ground loops with our advanced J2102B Common Mode Transformer. Designed to provide exceptional performance and unmatched results, this transformer is the perfect addition to your toolkit for superior signal integrity.
Key Features
1. Ground Loop Attenuation: Experience a significant reduction in the adverse effects of low-frequency ground loops, ensuring your signals remain clean and free from interference.
2. Impedance Measurement Support: Facilitates the essential 2-Port Shunt Thru impedance measurement required for Power Distribution Networks (PDNs), enabling accurate assessments for optimal network performance.
3. Ultra-Low Noise Output: Enjoy an ultra-low noise output that guarantees pristine signal quality, allowing you to capture even the most delicate details confidently.
4. Ultra-High Ripple Rejection: Say goodbye to unwanted ripple effects in your signals as our Common Mode Transformer offers exceptional ripple rejection, resulting in a smooth and consistent output.
5. Versatile Output Connectors: Choose between two output connector versions - BNC and N - to suit your specific setup and equipment requirements, ensuring a seamless integration process.
6. Transmission Line Integrity: Maintain the integrity of your 50 Ohm transmission lines effortlessly, extending up to an impressive 6GHz, for consistent and reliable signal transmission.
7. Compatibility: Our Common Mode Transformer is compatible with various test equipment, including Network Analyzers, Oscilloscopes, and Spectrum Analyzers. Say goodbye to ground loops and unlock the true potential of your equipment!
Videos
Videos are hosted on YouTube and load only when you press play.
The simplest and most effective method for eliminating a ground loop is to add a wideband common mode transformer to the measurement, such as the Picotest J2102B Common Mode Transformer. The transformer for a low impedance PDN measurement must have very wide bandwidth, low loss and tight coupling, otherwise, the results will not be accurate over the measured frequency range. It is also important to maintain the 50 Ohm transmission line impedance through this transformer. The J2102B accomplishes this with ease.The J2102B paired with the Picotest PDN Cable is the best general solution. The J2113A is a better choice if you need to measure below 3kHz and below a maximum frequency of 500kHz. Due to the limited CMRR, the J2113A is not recommended below 1mOhm. If other cables are used with either solution, there may be significant degradation in measurement accuracy below 1MHz due to poor cable shield resistance and isolation.
| Ordering information | |
|---|---|
| Part number (SKU) | J2102B-BNC |
| Manufacturer | Picotest |
| EAN | 5055383623853 |
| Warranty | 12 months |
- 1 ×J2102B common mode transformer, BNC connectors
- 1 ×User manual
