Mikroelektronika d.o.o.

Opto Click Board™

Opto Click Board™

SKU: MIKROE-1196

Regular price
£25.00 exc VAT
£30.00 inc VAT
Regular price Sale price
£25.00 exc VAT
£30.00 inc VAT
Sale Sold out
Shipping calculated at checkout.
If no stock shown above, check availability

Payment methods

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Bank transfer
View full details

Overview

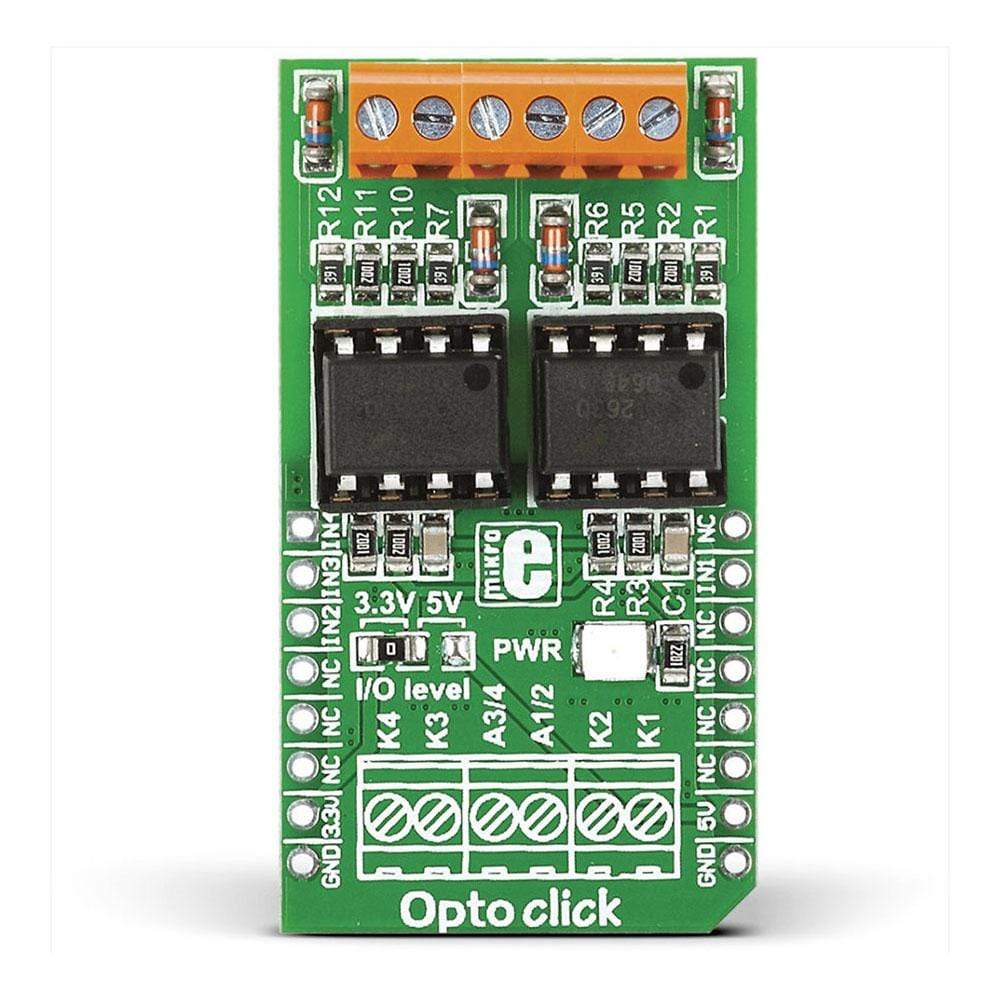

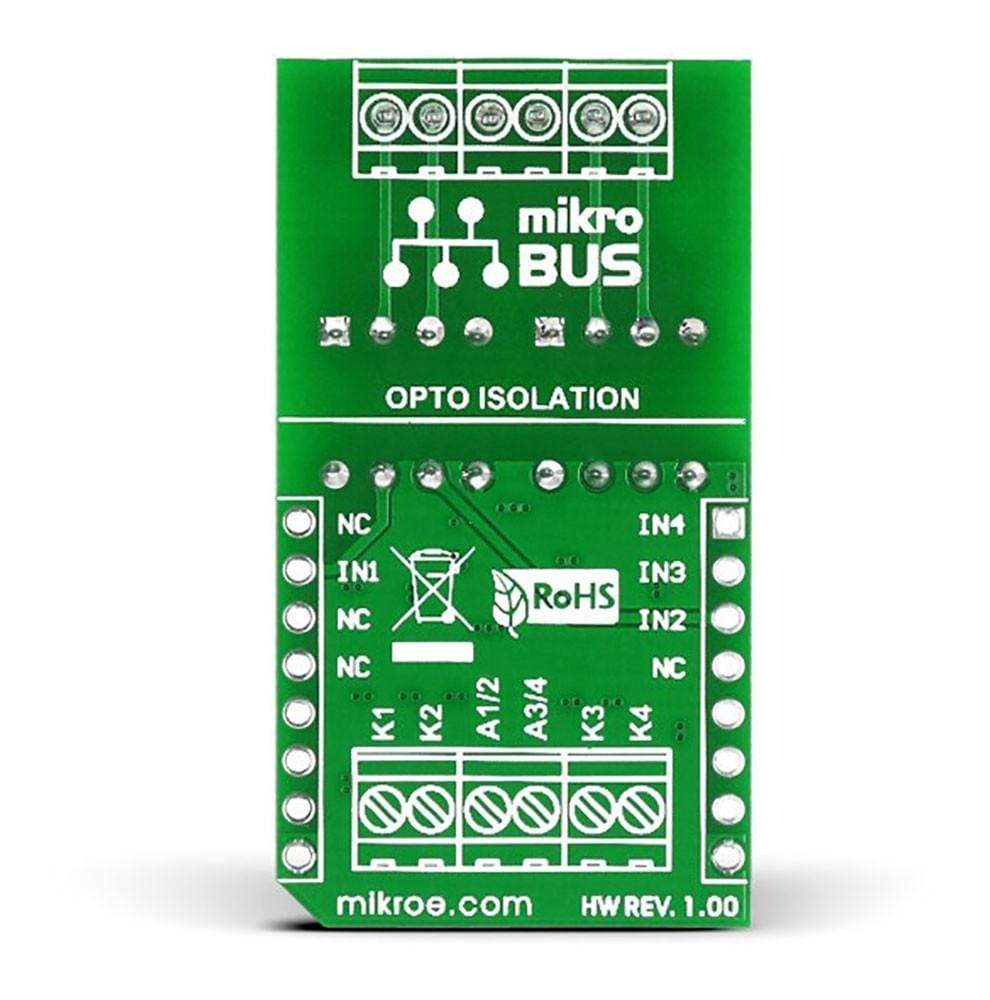

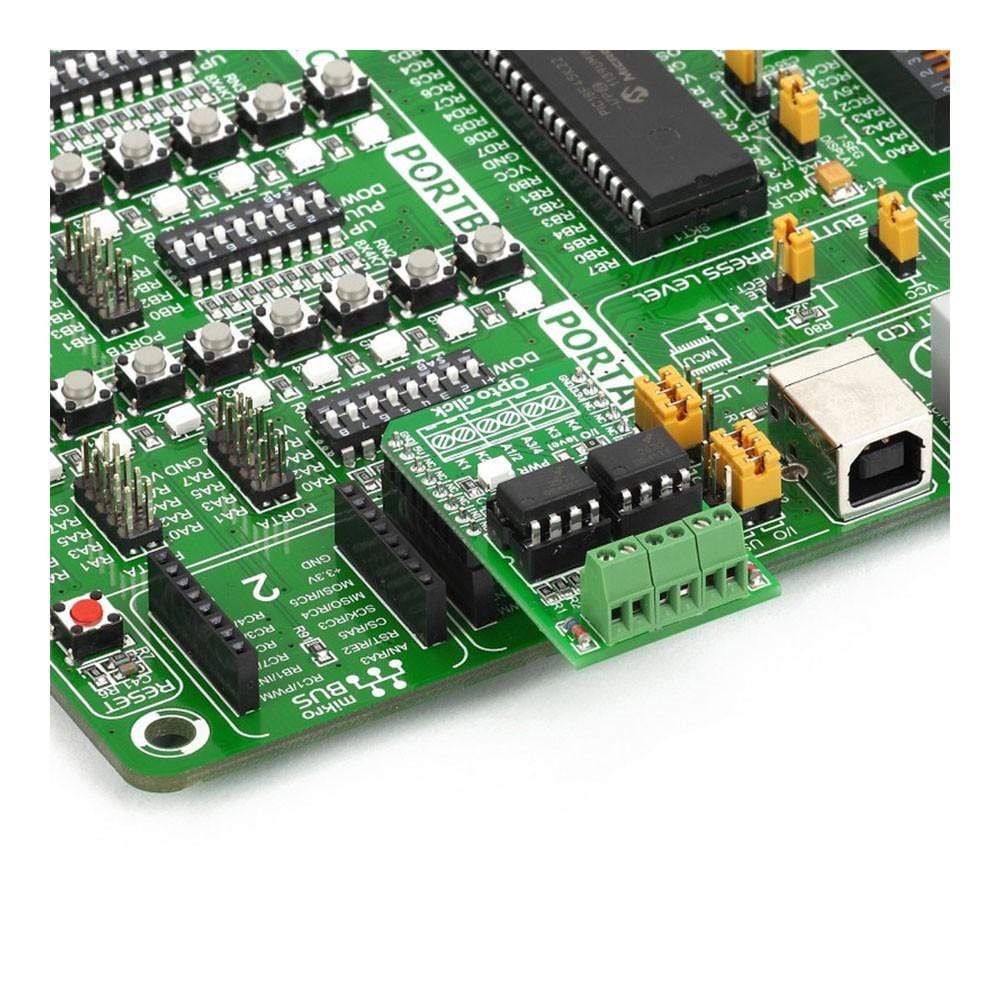

Introduce electrical isolation between inputs and outputs to the device using the OPTO Click Board™. The board has two DIP VO2630 dual-channel optocoupler modules that enable high speed (10 MBit/s) data transfer between its input and output with galvanic isolation. The DIP8 sockets allow for easy replacement of optocouplers. OPTO Click Board™ uses four MikroBUS lines (INT, CS, RST, AN) to communicate with the target board microcontroller. It also features six onboard screw terminals that ensure simple and secure connections. OPTO Click Board™ operates on a 3.3V or 5V power supply, which can be selected using an SMD jumper.

The OPTO Click Board™ is an ideal choice for PLC and ATE I/O isolation, high-speed A/D and D/A conversion, digital control power supply, computer peripherals, microprocessor system interface, multiplexed data transmission and many more.

IC/Module: VO2630 High Speed Optocoupler

VO2630 is a dual channel 10 MBd optocoupler connected to four lines (INT, CS, RST and AN) on the mikroBUS socket. It features common mode transient immunity of 100 V/s and low input current capability of 5 mA.

Galvanic Isolation

Galvanic isolation is a design technique that separates electrical circuits to eliminate stray currents. Signals can pass between galvanically isolated circuits, but stray currents, such as differences in ground potential or currents induced by AC power, are blocked. The optocouplers aboard OPTO Click Board™ allow high speed transfer between the input and output while preventing current flow.

SMD Jumper

The zero-ohm J1 SMD jumper aboard OPTO Click Board™ enables the user to switch from the 3.3V (default) to 5V power supply by appropriate soldering.

Overview
CategoryOptocoupler
ApplicationsOPTO Click is perfect for PLC and ATE I/O isolation, switching power supplies, computer and microprocessor peripheral interface and more
Key components
On-board modulesVO2630 dual channel, high speed optocoupler
Features
Key featuresHigh speed, 10 MBit/s.
Interfaces
InterfaceGPIO
CompatibilitymikroBUS™
Electrical
Input voltage3.3V or 5V
Physical
Click board sizeL (57.15 x 25.4 mm)
Compliance
Country of originSerbia
RoHSCompliant
Ordering information
Part number (SKU)MIKROE-1196
ManufacturerMikroelektronika d.o.o.
EAN8606015073910
Warranty12 months
Shipping weight0.036 kg
  • 1 × Opto Click Board™

Contact us to confirm the full contents of the box.
