Overview
The MINI-32 for PIC32MZ is a small PIC32 development board containing the PIC32MZ microcontroller (1 MB Live-Update Flash and 512 KB SRAM) with FPU from Microchip.
This compact and powerful development board is designed to work as a standalone device or as an MCU card in DIP40 socket.
USB HID bootloader
MINI-32 for PIC32MZ is pre-programmed with USB HID Bootloader so it is not necessary to have an external programmer.
Microcontroller features
This 32-bit (1 MB Live-Update Flash and 512 KB SRAM) microcontroller with FPU is rich with on-chip peripherals.
The PIC32MZ EF family features high core performance up to 200 MHz, an integrated Floating-Point Unit (FPU), a wide selection of peripherals and excellent connectivity options including Controller Area Network (CAN).
on-board oscillators
The board is equipped with a 24MHz crystal oscillator and 32.768kHz crystal which can be used for internal RTCC module.
| Overview | |
|---|---|
| Description | Architecture PIC32 (32-bit), MCU PIC32MZ, MCU Memory 1 MB Live-Update Flash and 512 KB SRAM, On-board modules 3 x LEDs, 1 x Reset Button, USB connector, Key Benefits Comes preprogrammed with USB HID Bootloader, Input Voltage 5V (via USB) or 3.3V (via external source) |
| Key components | |

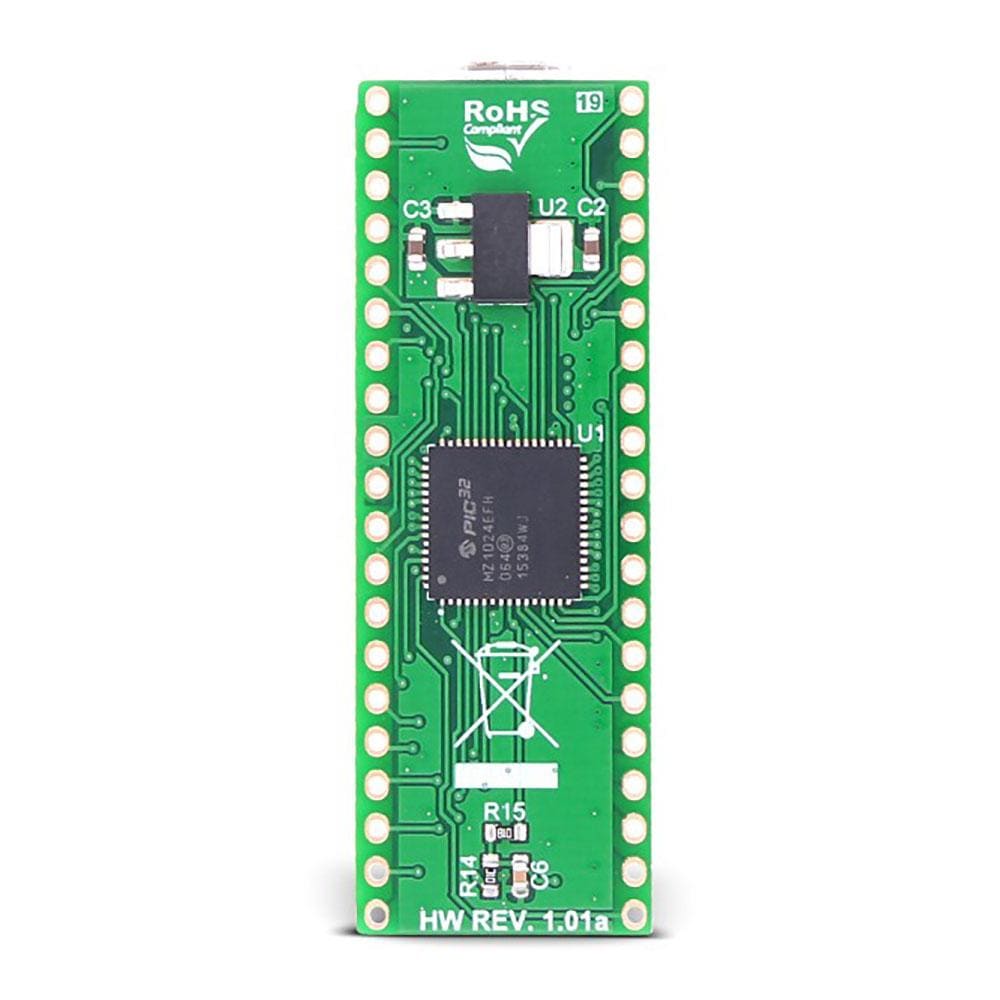

| Main IC | PIC32MZ1024EFH064-I/MR (Microchip Technology) |
| Compliance | |
| Country of origin | Serbia |
| RoHS | Compliant |
| Ordering information | |
| Part number (SKU) | MIKROE-2802 |
| Manufacturer | Mikroelektronika d.o.o. |
| EAN | 8606018711734 |
| Warranty | 12 months |
| Shipping weight | 0.01 kg |
-
1 ×
MINI-32 for PIC32MZ
Contact us to confirm the full contents of the box.
Questions and Answers
No questions have been asked about this product yet. Ask our engineers below and we'll reply by email.
