CANSPI Board

CANSPI Board

SKU: MIKROE-68

Regular price
£25.00 exc VAT
£30.00 inc VAT
Regular price Sale price
£25.00 exc VAT
£30.00 inc VAT
Sale Sold out
Shipping calculated at checkout.
If no stock shown above, check availability

Payment methods

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Bank transfer
View full details

Overview

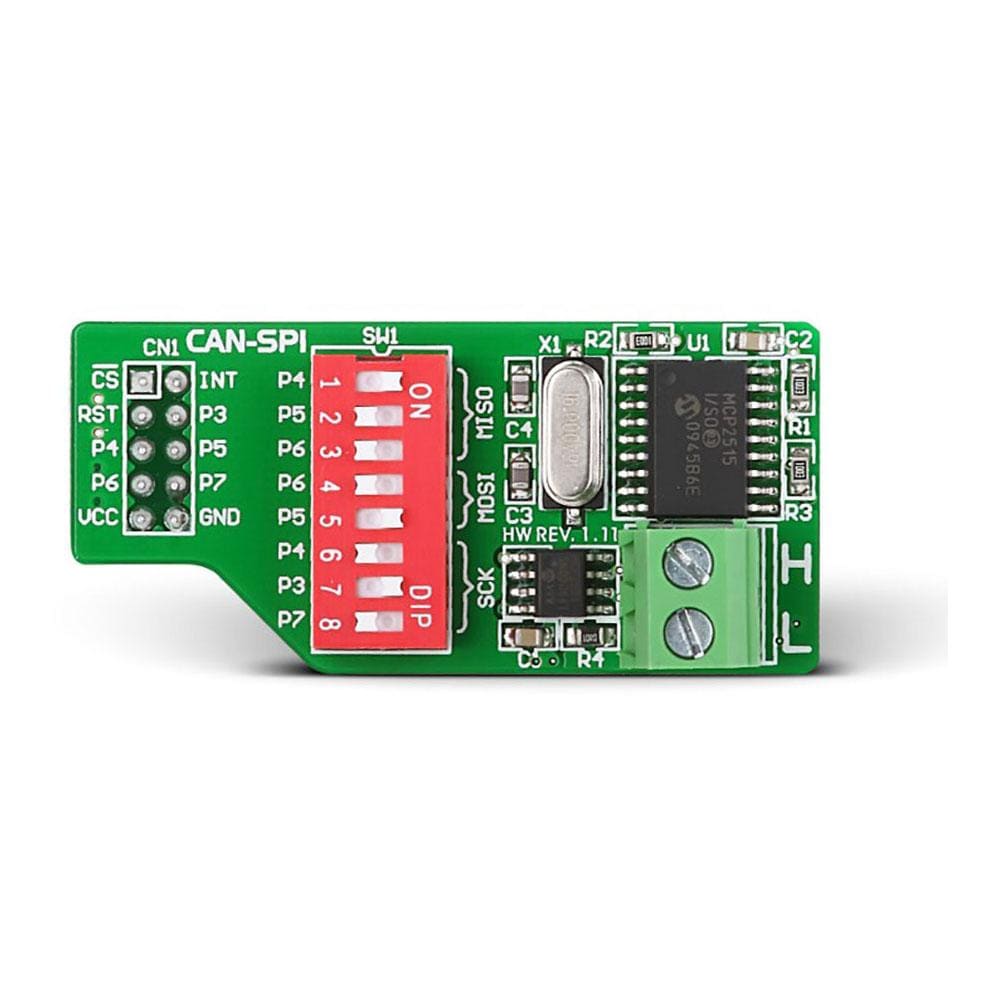

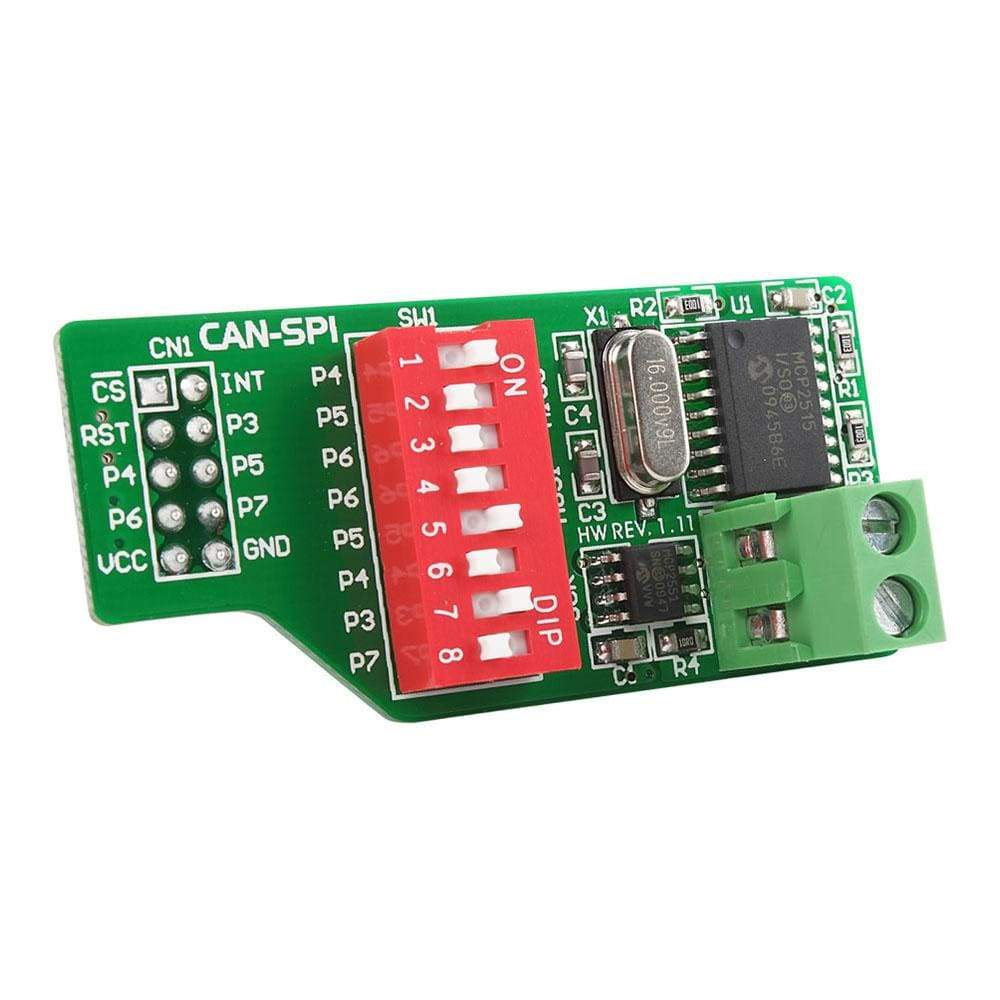

The CANSPI is an easy-to-use, compact accessory board that lets you connect a CAN (Controller Area Network) bus to any microcontroller with Serial Peripheral Interface (SPI). The board employs both an MCP2515 CAN controller and an MCP2551 CAN transceiver. The MCP2515 circuit as a CAN controller allows for data exchange with microcontrollers using a standard SPI communication interface. On the other hand, the transceiver MCP2551 chip provides necessary signal adjustments and allows the signals to be sent/received at a 1 Mb/s. The CANSPI board allows transmitting and receiving standard and extended data and remote frames.

It makes an ideal option for users looking to connect CAN to a microcontroller without integrated CAN support. Applications like industrial automation, home automation, and the automotive and mobile machine industry are well-suited for the CANSPI board.

MCP2515 CAN Controller

MCP2515 is a stand-alone Controller Area Network (CAN) controller that is capable of transmitting and receiving both standard and extended data and remote frames. It communicates with MCUs using the industry standard SPI interfaces. The CAN controller comes with two acceptance masks and six acceptance filters to filter out unwanted messages. Hence, it also minimizes the host microcontrollers overhead.

MCP2551 CAN Transceiver

MCP2551 is a high-speed, fault-tolerant CAN transceiver that serves as an interface between a CAN protocol controller and the physical bus. Fully compatible with the ISO-11898 standard, it functions at 1 Mb/s speed and provides differential transmit and receive capability for the CAN controller.

Overview
ApplicationsCAN SPI board is ideal for industrial automation, home automation as well as in automotive and mobile machine industry
Product typeCAN
Key components
On-board modulesMCP2515 CAN controller, MCP2551 transceiver
Features
Key featuresSupports 1 Mb/s operation. Low current standby operation. Detection of ground fault on TXD input. Up to 112 nodes can be connected
Key benefitsProtection against damage due to short-circuit conditions
Interfaces
InterfaceSPI
CompatibilityIDC10
Electrical
Power supply5V
Compliance
Country of originSerbia
RoHSCompliant
Ordering information
Part number (SKU)MIKROE-68
ManufacturerMikroelektronika d.o.o.
EAN8606015070438
Warranty12 months
Shipping weight0.012 kg
  • 1 × CANSPI Board

Contact us to confirm the full contents of the box.
