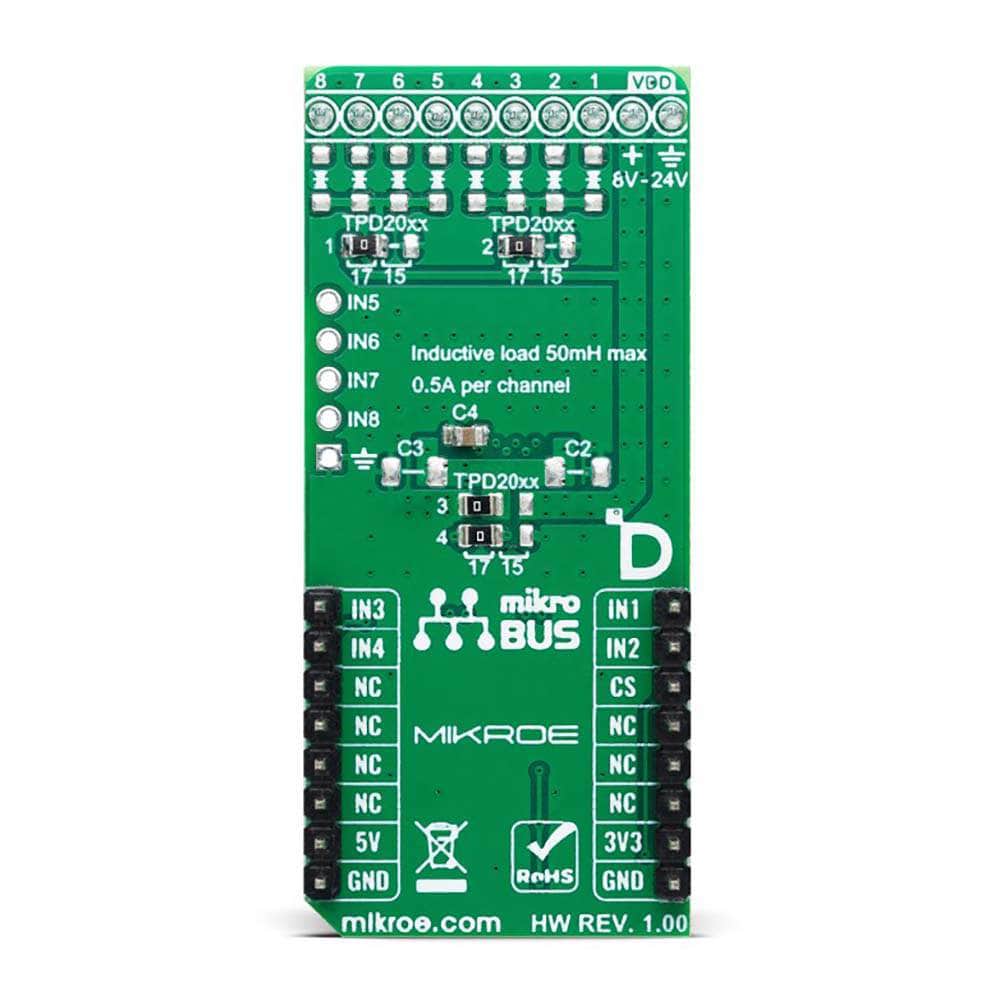

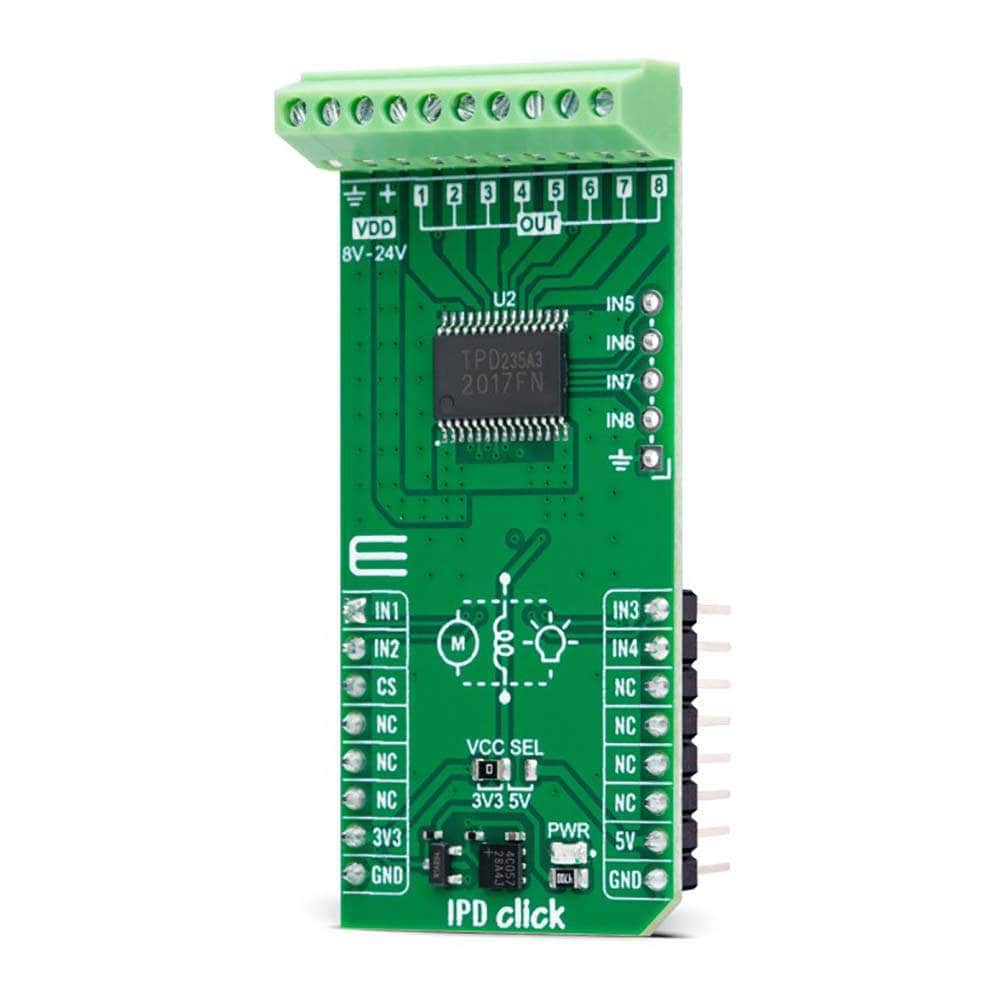

IPD - TPD2017 Click Board

8-Channel, 500mA Low-Side Inductive Load Drivers

SKU: MIKROE-6075

Product variants

£14.40 inc VAT

£12.00 exc VAT

~~£20.00 GBP~~

£14.40 inc VAT

£12.00 exc VAT

Sale Sold out

Shipping calculated at checkout.

If no stock shown above, Order NOW to ship within 10 working days

Order Quantity

Key Features

Low-side load switch, CMOS/TTL logic control, protection features, suitable for inductive and resistive loads, inductive load of 50mH max, 0.5A output current per channel, can drive load directly, high-voltage operation, and more

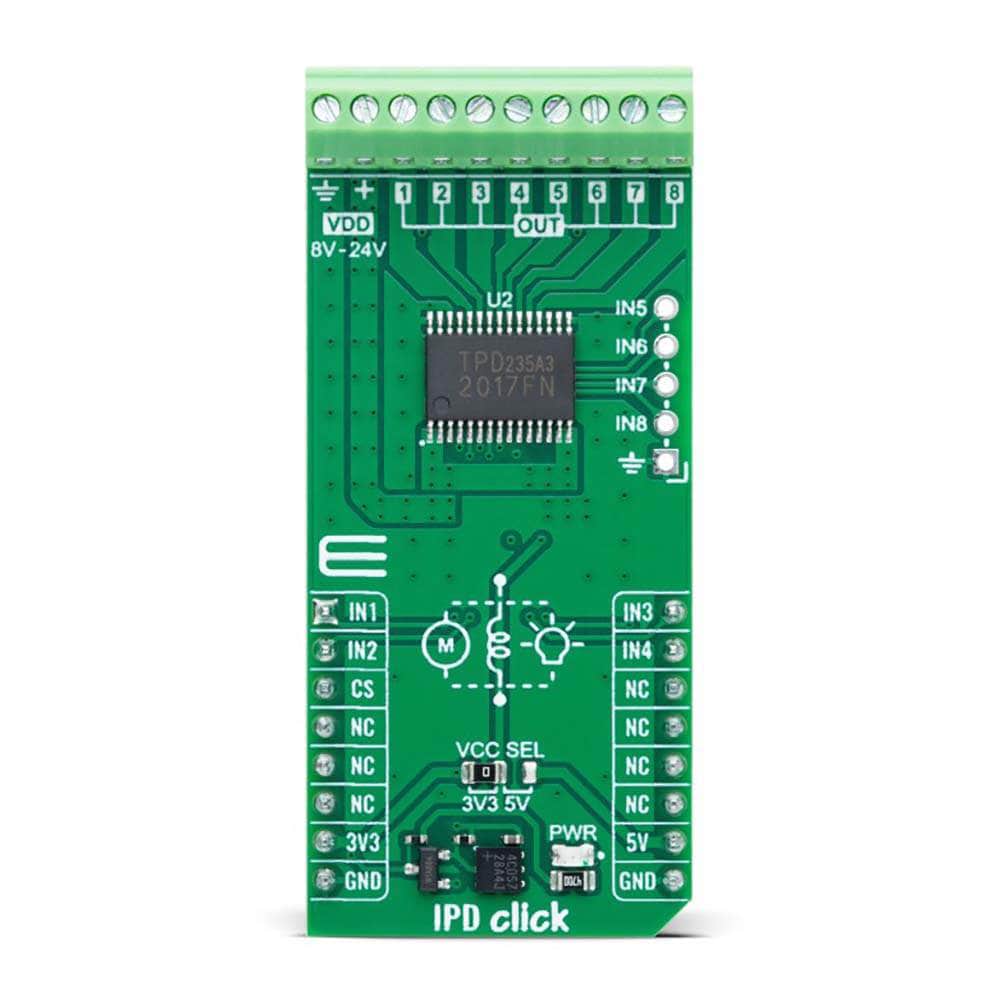

Based on the TPD2017FN - 8-channel low-side load switch featuring MOSFET outputs from Toshiba Semiconductor
Ideal for developing wearable technology, smart home devices, robotics, and AR/VR applications

Introducing the IPD Click Board™: Revolutionize Your Industrial Automation

Are you ready to take your industrial automation to the next level? Look no further than the IPD Click Board™ – a game-changer in controlling inductive and resistive loads with unmatched precision and reliability.

Unparalleled Performance

TPD2017FN Integration: Powered by Toshiba Semiconductor's cutting-edge 8-channel low-side switch with MOSFET outputs, ensuring seamless compatibility with CMOS and TTL logic.
Built-In Protection: Say goodbye to system glitches! Our board comes equipped with robust safeguards against overcurrent and overheating, guaranteeing optimal performance even in the most demanding conditions.

Versatile Functionality

Inductive Load Support: Harness the power of inductive loads up to 50mH, with a remarkable current capacity of 0.5A per channel, empowering you to tackle diverse industrial challenges with ease.
Flexible Power Options: With support for external power supplies ranging from 8-24V, enjoy unparalleled flexibility in powering your operations.

Effortless Integration

Seamless Setup: Our Click board™ features pre-configured jumpers and load decoupling diodes for hassle-free installation, saving you valuable time and effort.
mikroBUS™ Compatibility: Fully compatible with the mikroBUS™ socket and supported by the mikroSDK open-source libraries, providing unparalleled flexibility and customization options.

Groundbreaking ClickID Feature

Automatic Detection: Experience unparalleled convenience with our groundbreaking ClickID feature, allowing your host system to effortlessly detect and identify the IPD Click Board™, streamlining your workflow like never before.
