Serial Ethernet 2 Board

Serial Ethernet 2 Board

SKU: MIKROE-604

Regular price
£48.00 exc VAT
£57.60 inc VAT
Regular price Sale price
£48.00 exc VAT
£57.60 inc VAT
Sale Sold out
Shipping calculated at checkout.
If no stock shown above, check availability

Payment methods

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Bank transfer
View full details

Overview

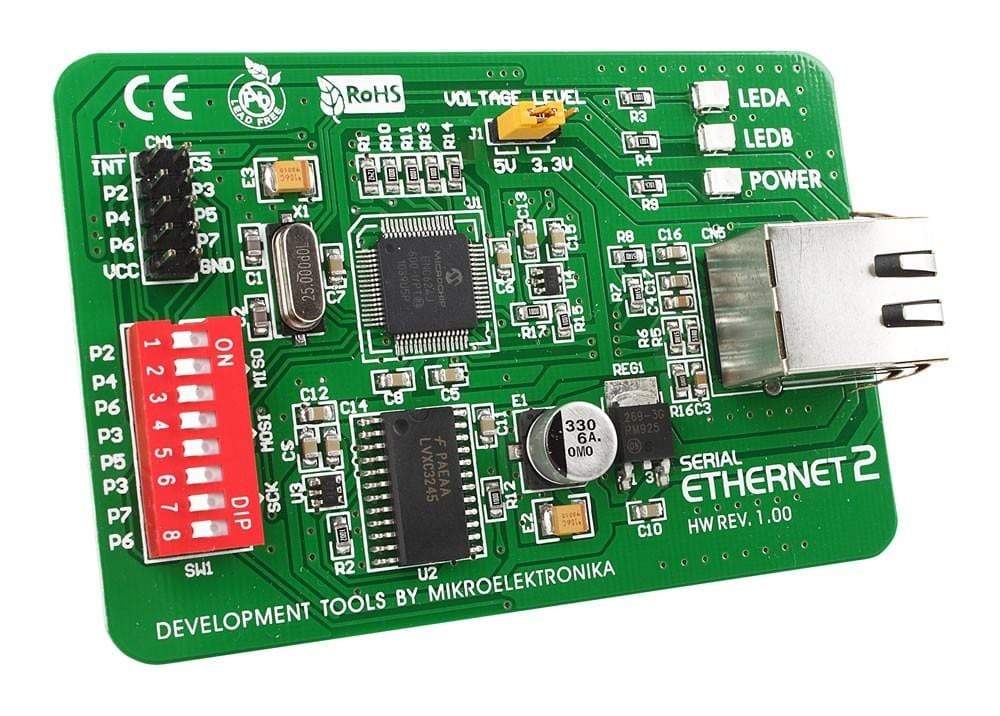

Now introduce more speed and flexibility in Ethernet applications using the new Serial Ethernet 2 Board. Designed to connect MikroElektronika's development systems and prototyping boards easily, the board has an ENC624J600 10/100 Base-T Ethernet controller from Microchip. It also features an integrated MAC & PHY, hardware cryptographic security engines and a unique MAC address. The Serial Ethernet 2 uses the industry standard SPI for communication with the host controller. A series of onboard DIP switches allow the user to select which pins will be used for SCK, MISO and MOSI lines. The Serial Ethernet 2 Board can be configured for use with 3.3V and 5V microcontrollers. A jumper J1 allows the user to connect to any of the two power supply positions (3.3V or 5V). The onboard LEDs denote the power status and indicate data transfer through the Ethernet network.

With these features, the Serial Ethernet 2 Board is an ideal choice for high-speed Ethernet devices that requires low power consumption and high data rates.

IC/Module: ENC624J600 10/100 Base-T Ethernet Controller

The ENC624J600 is a new 10/100 Base-T Ethernet controller featuring a compact design and additional flexibility in choosing SPI communication line pins via DIP switches. Designed to meet IEEE 802.3 specifications applicable to 10Base-T and.

100Base-TX Ethernet, ENC624J600 provides a 16-bit wide DMA for fast data throughout and supports for hardware IP checksum calculations.

MAC and PHY Layer

The MAC (Medium Access Controller) supports promiscuous reception along with support for unicast, multicast and broadcast packets. The PHY (Physical Layer) features a wave shaping output filter and has an internal loopback mode.

Overview
ApplicationsLow power consumption and high data rates make this device great choice for high speed ethernet devices
Product typeEthernet
Key components
On-board modulesMicrochip's ENC624J600 10/100 Base-T Ethernet controller.
Features
Key featuresFactory Preprogrammed Unique MAC Address. Supports Auto-Negotiation. Supports Half and Full-Duplex Operation. Hardware Security Acceleration Engines.
Key benefitsProgrammable Automatic Retransmit on Collision. 10/100Base-T Ethernet development tool at popular price
Interfaces
InterfaceSPI
CompatibilityIDC10
Electrical
Power supply3.3V or 5V
Compliance
Country of originSerbia
RoHSCompliant
Ordering information
Part number (SKU)MIKROE-604
ManufacturerMikroelektronika d.o.o.
EAN8606015072104
Warranty12 months
Shipping weight0.04 kg
  • 1 × Serial Ethernet 2 Board

Contact us to confirm the full contents of the box.
