BIG8051 Development Board
BIG8051 Development Board

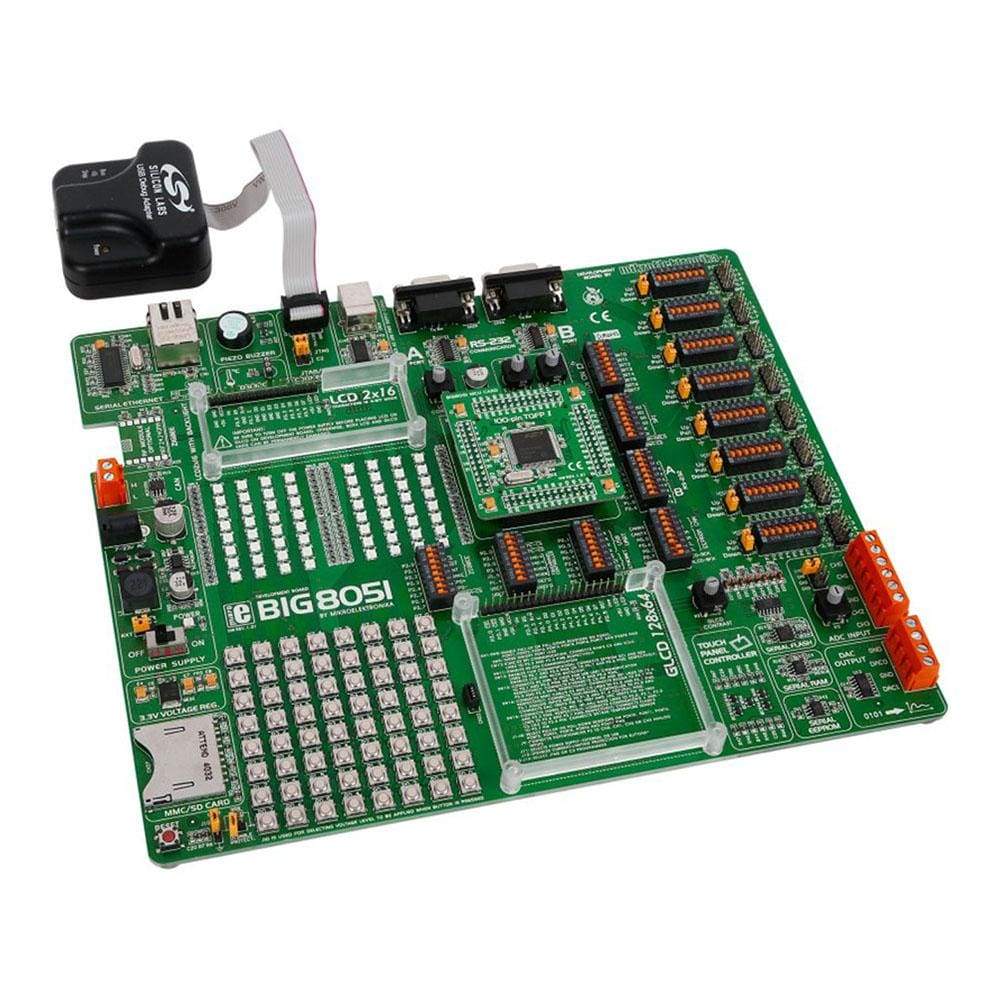

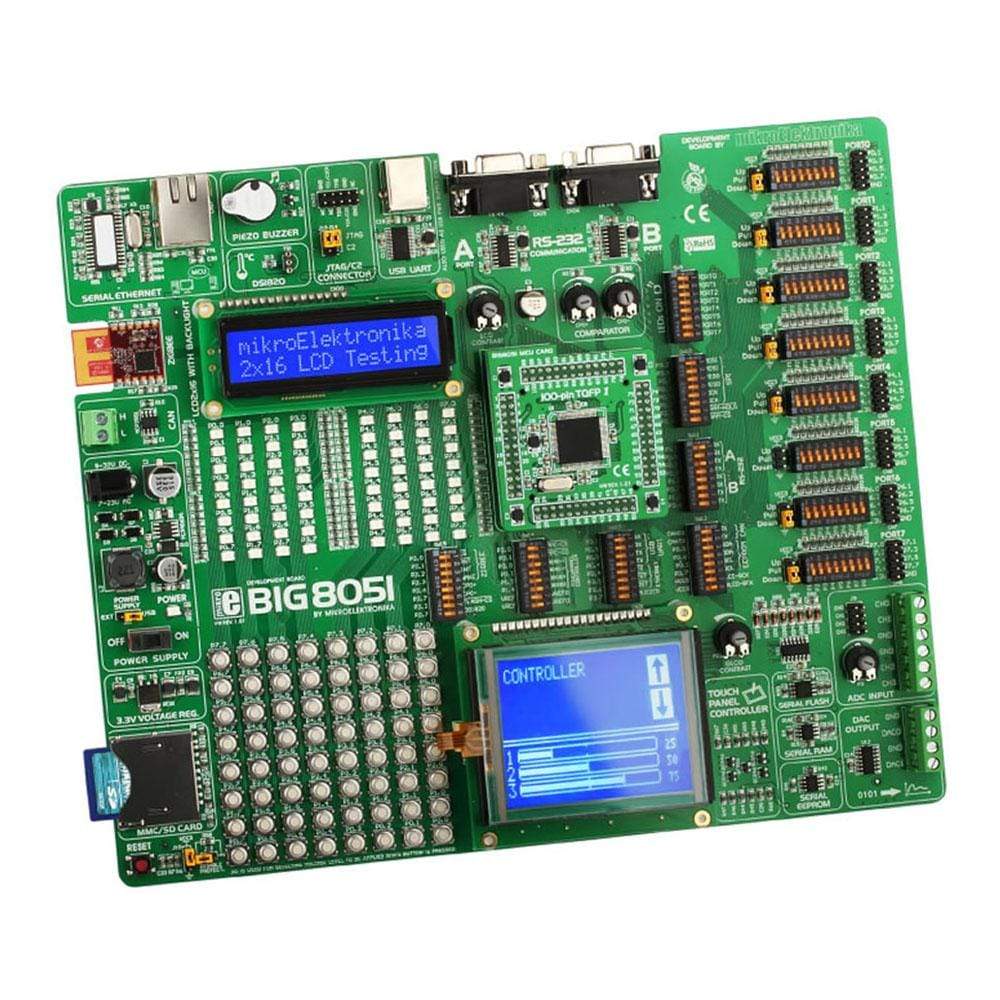

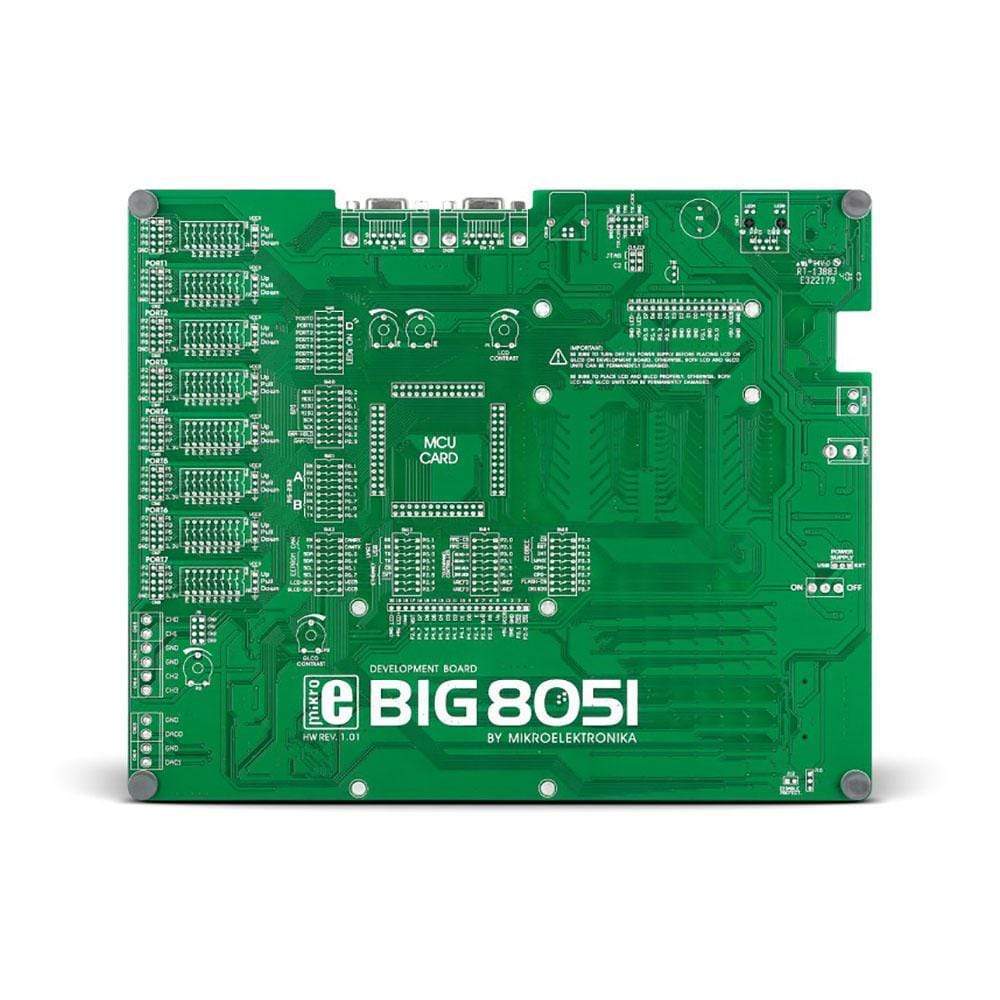

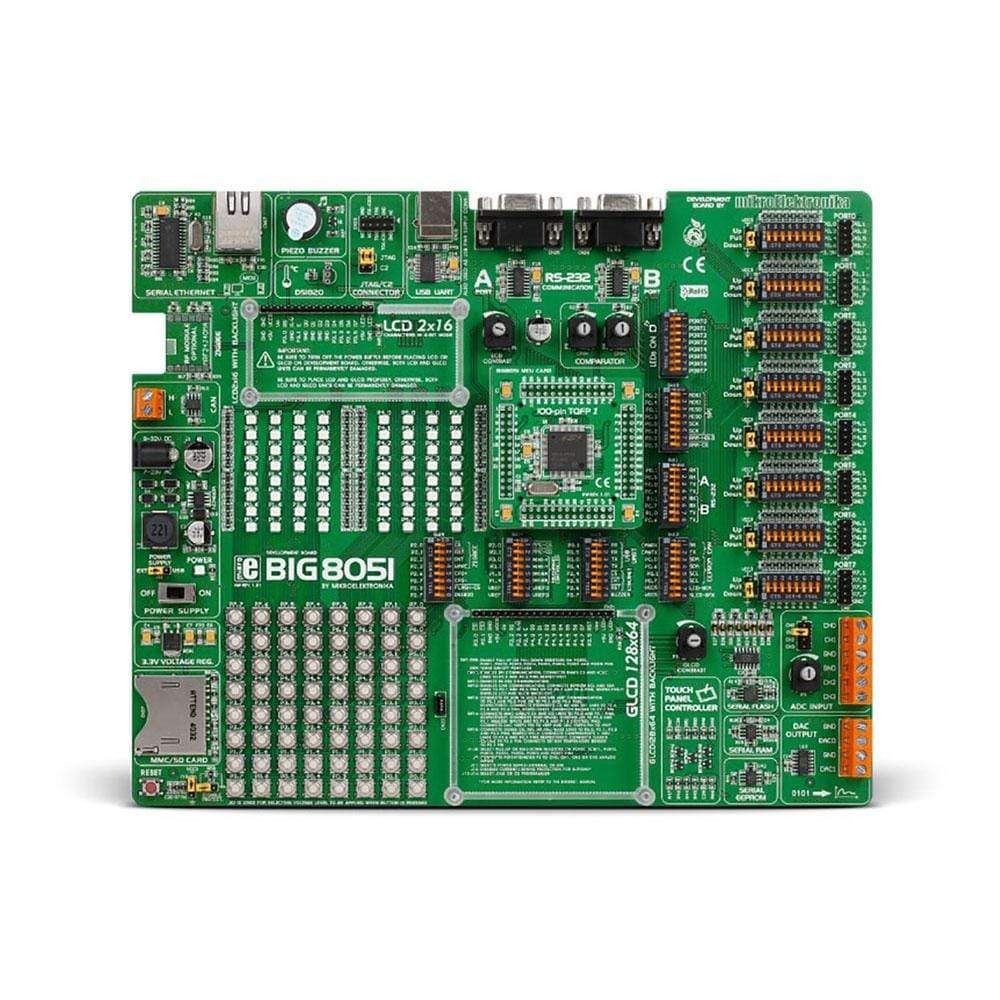

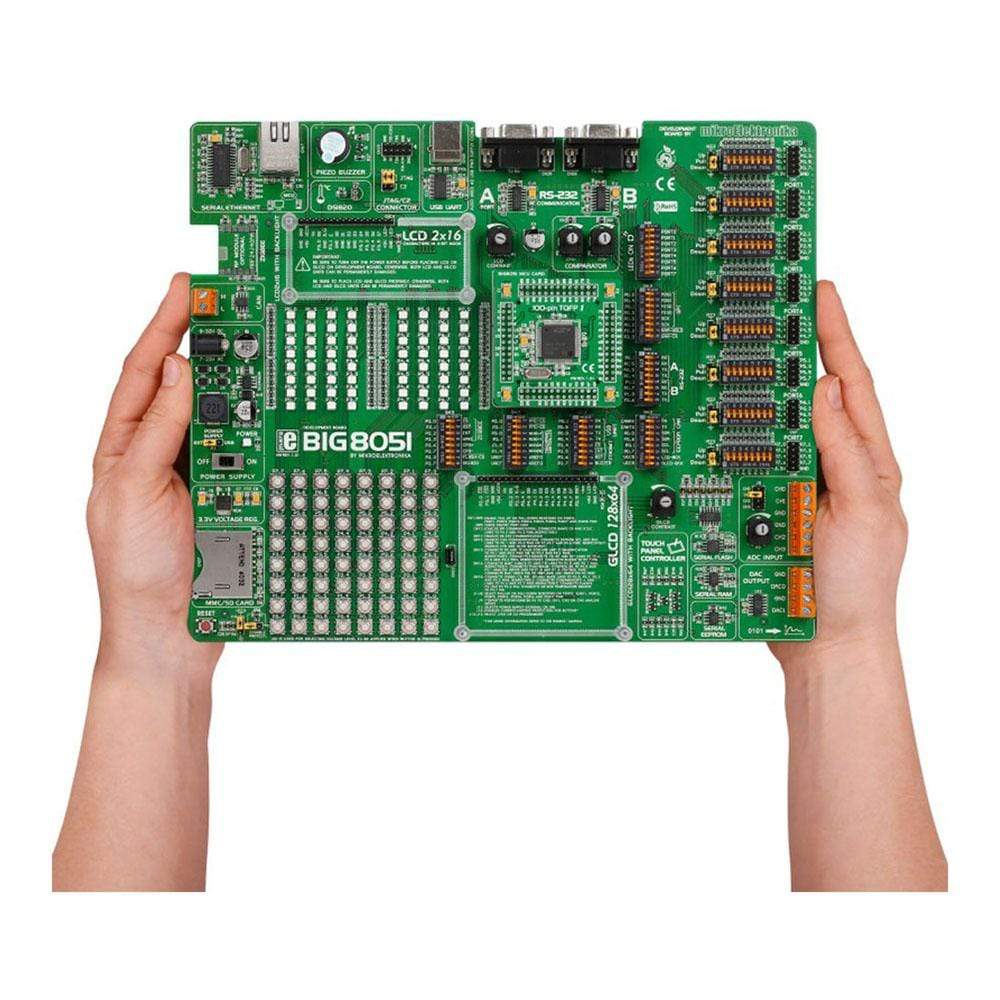

The BIG8051 Development Board is a multi-functional development board that combines power, beauty, and quality. Designed for Silicon Labs C8051Fxxx microcontrollers, this sophisticated development system comes loaded with numerous peripherals, such as Serial Ethernet, Serial Flash, Serial RAM, Serial EEPROM, MMC/SD card, CAN, USB-UART, ZigBee, piezo buzzer, and so on.
The presence of four serial memory modules including, EEPROM, RAM, Flash, and MMC/SD mass storage provide the microcontroller with enough storage space. It is equipped with a highly integrated 8-bit C8051f040 microcontroller featuring a powerful 8051 core with 25 MHz performance. The BIG8051 Development System can be programmed using a USB Debug Adapter that comes with the development system.
The onboard Ethernet module allows the development system to access the LAN network via the RJ45 connector while the built-in piezo buzzer on the BIG8051 Development System allows the emission of audio signals. For connecting the microcontroller to the external USB devices, it is equipped with the USB UART module. The board includes 64 LEDs that indicate the state of each microcontroller I/O pin.
