SKU: MIKROE-5741Smart Buck 3 Click Board

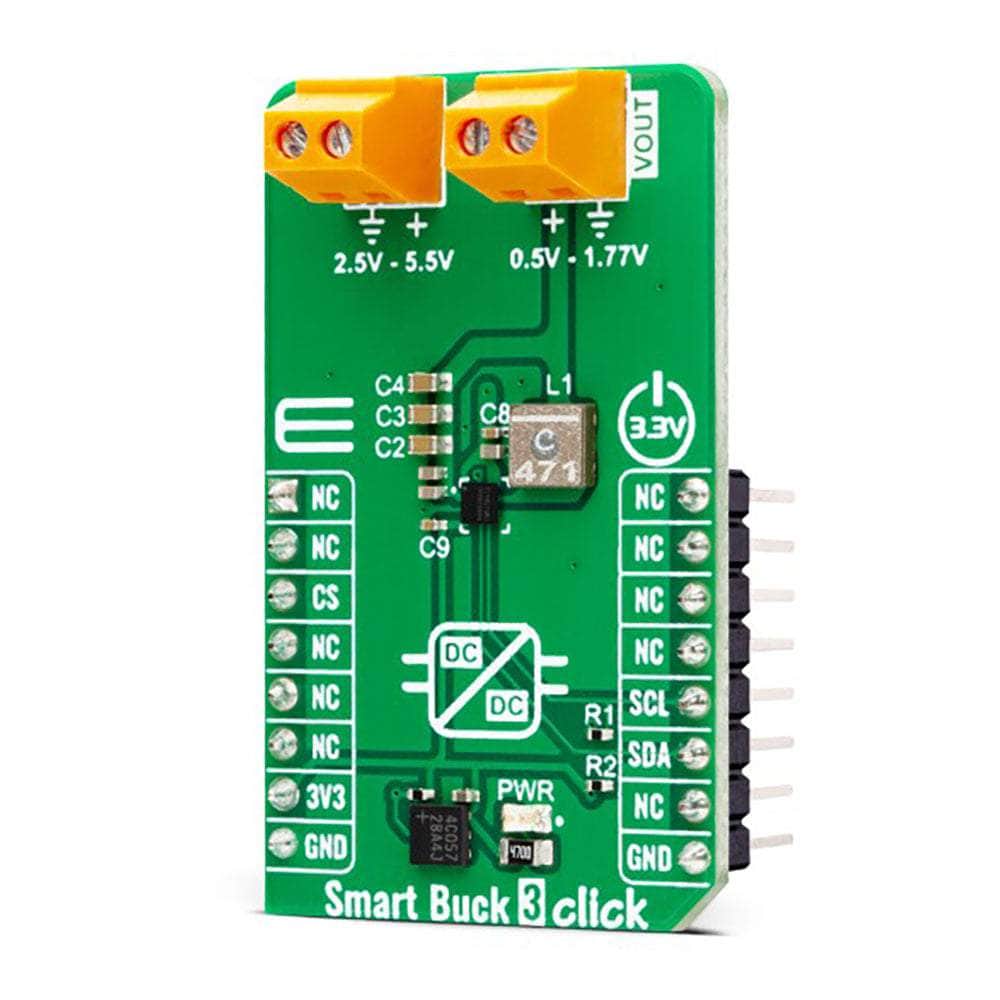

Smart Buck 3 Click Board
Couldn't load pickup availability
Key Features
- Highest efficiency, excellent DC output voltage regulation, soft start, programmable slew rate at voltage transition, over current protection, input under voltage detection/lock-out, and more
- Based on the TPS62366A - high-frequency synchronous step down DC-DC converter from Texas Instruments
- Can be used for the development of DSPs power supplies, portable devices, dynamic voltage scaling, and more
- mikroBUS: I2C Interface
The Smart Buck 3 Click Board™: Power Efficiency at Your Fingertips
Introducing the Smart Buck 3 Click Board™, the compact add-on board that revolutionizes your power supply needs. This cutting-edge device takes your projects to new heights with its high-frequency synchronous step-down DC-DC converter.
Efficient Power Management Made Easy
Powered by the TPS62366A from Texas Instruments, the Smart Buck 3 Click Board™ offers unparalleled performance and versatility. Its I2C compatible interface and remote sense feature provide seamless integration into your system.
Flexible Input and Output Range
The Smart Buck 3 Click Board™ accepts input voltages ranging from 2.5V up to 5.5V, accommodating various power sources, including popular battery technologies. As for the output, the converter can scale voltage from 0.5V up to 1.77V in precise 10mV increments while delivering an impressive peak output current of up to 2.5A.
Swift and Steady Performance
Experience smooth operation with the Smart Buck 3 Click Board™. Its advanced design ensures a typical switching frequency of 2.5MHz, guaranteeing optimal power delivery and minimizing any performance hiccups.
Unleash Your Creativity
Whether you're working on DSP power supplies, portable devices, or dynamic voltage scaling, the Smart Buck 3 Click Board™ is the ultimate solution. Take advantage of its compact form factor and robust features to bring your projects to life.
Seamless Integration with mikroSDK
Enjoy hassle-free software development with the Smart Buck 3 Click Board™. This innovative device is supported by a mikroSDK-compliant library, offering a range of functions that simplify your coding tasks. Start building your dream system with confidence.
Ready to Power Up?

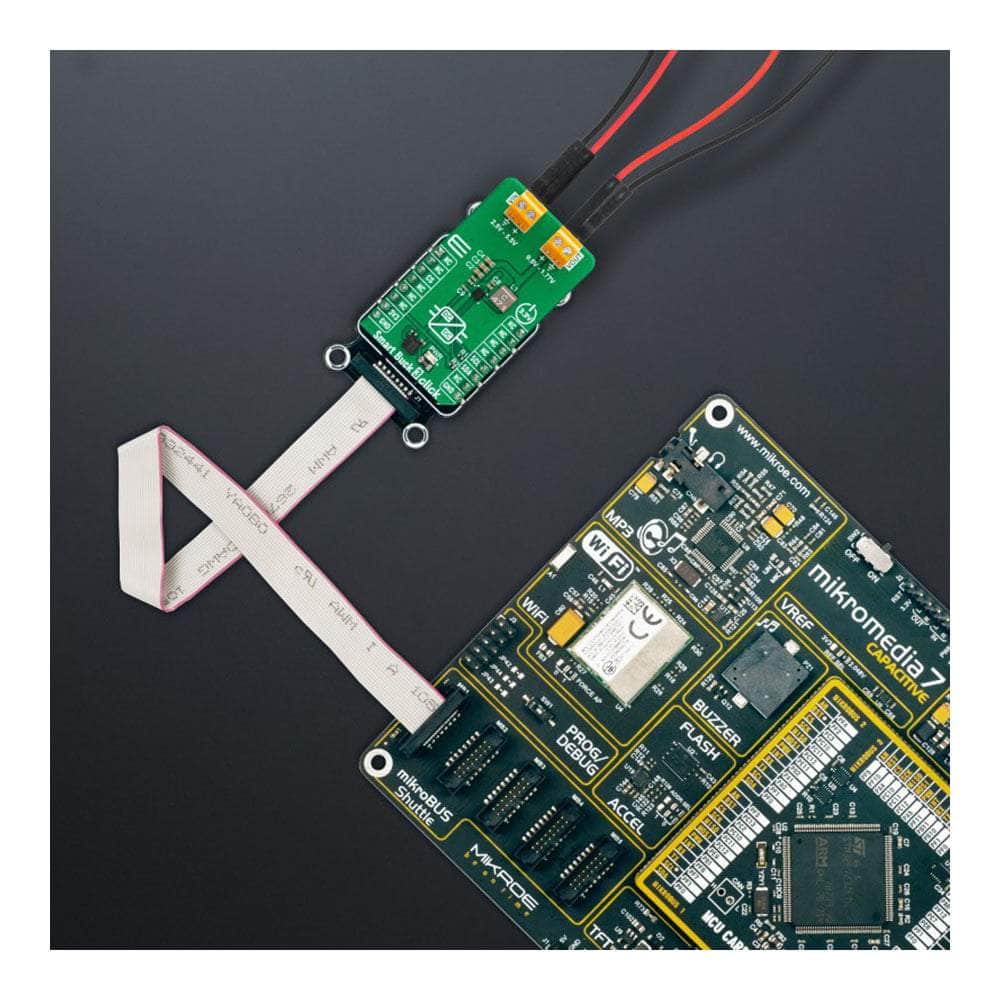

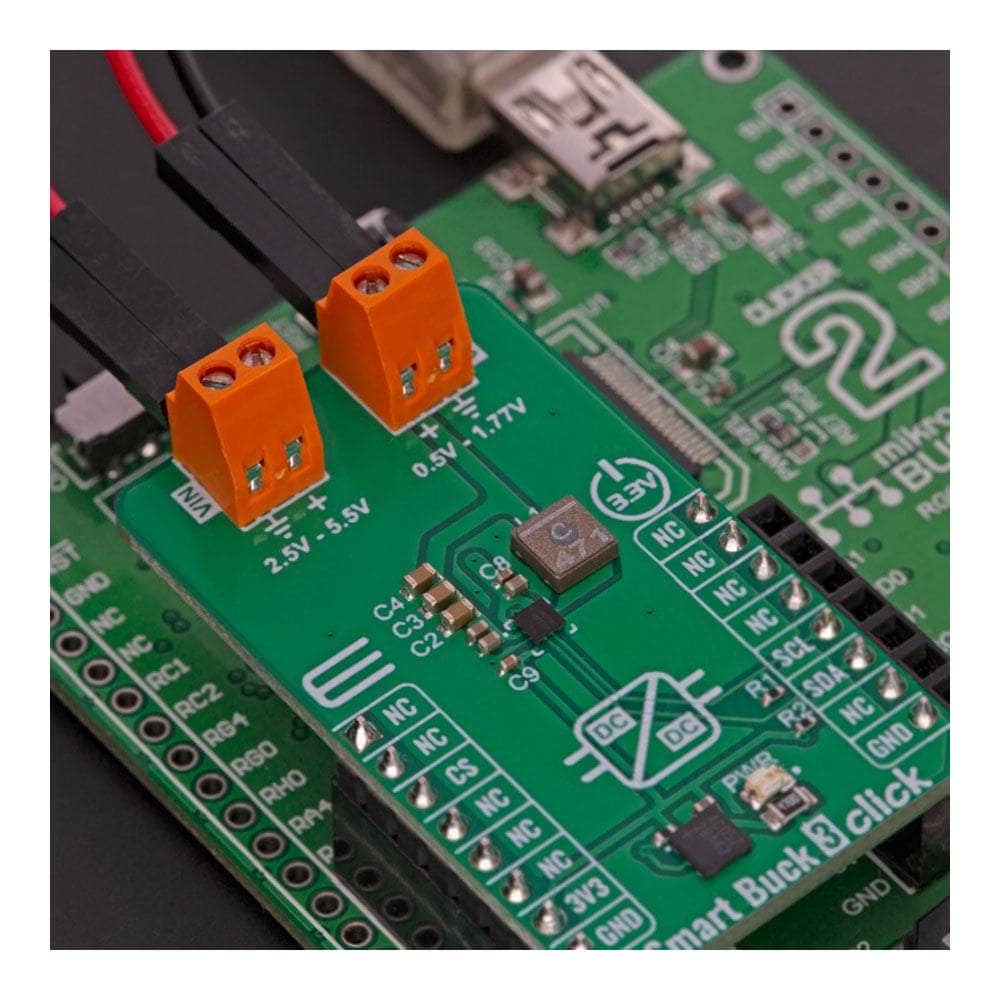

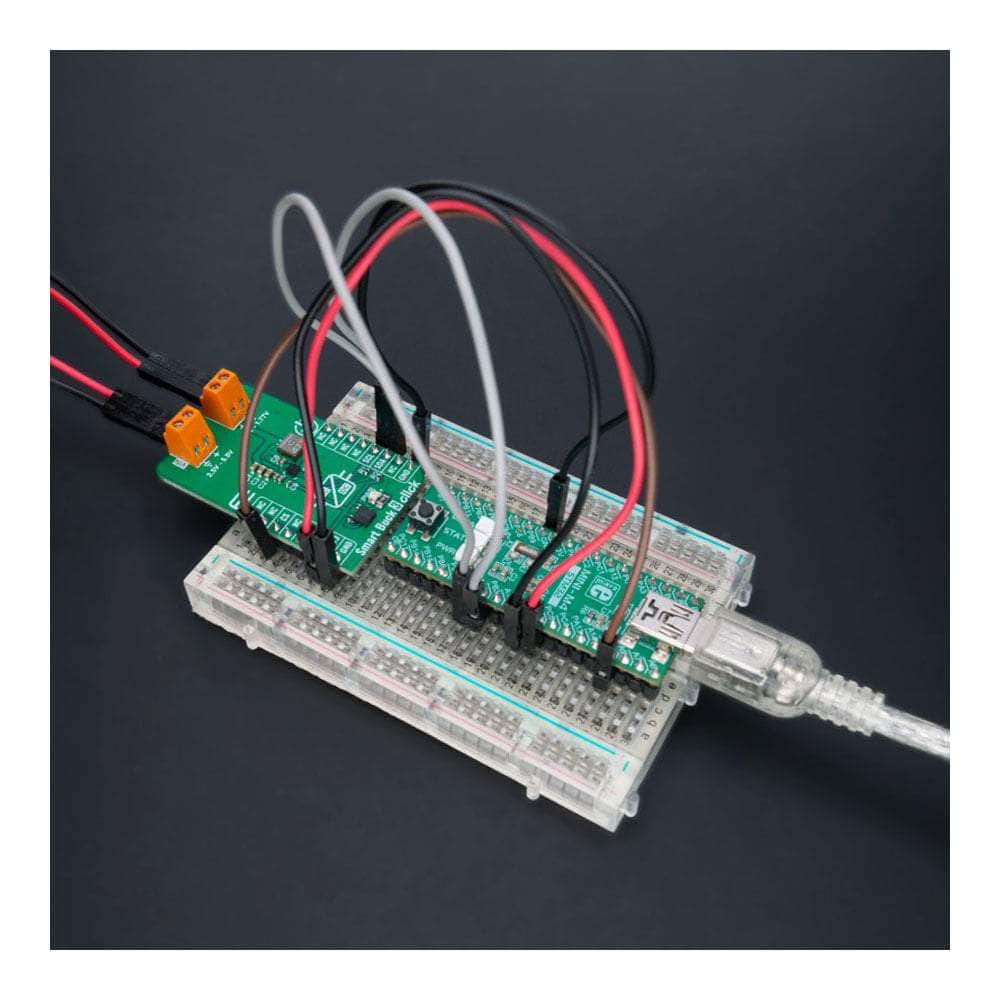

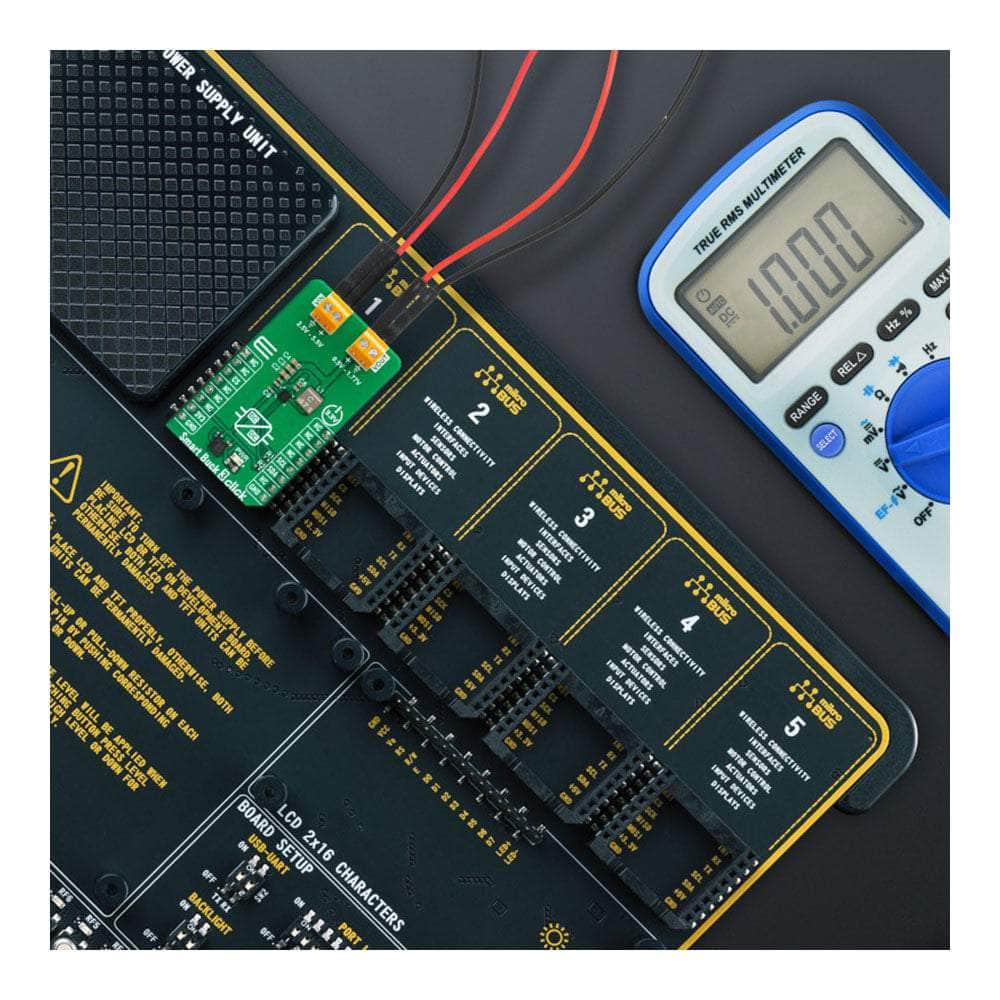

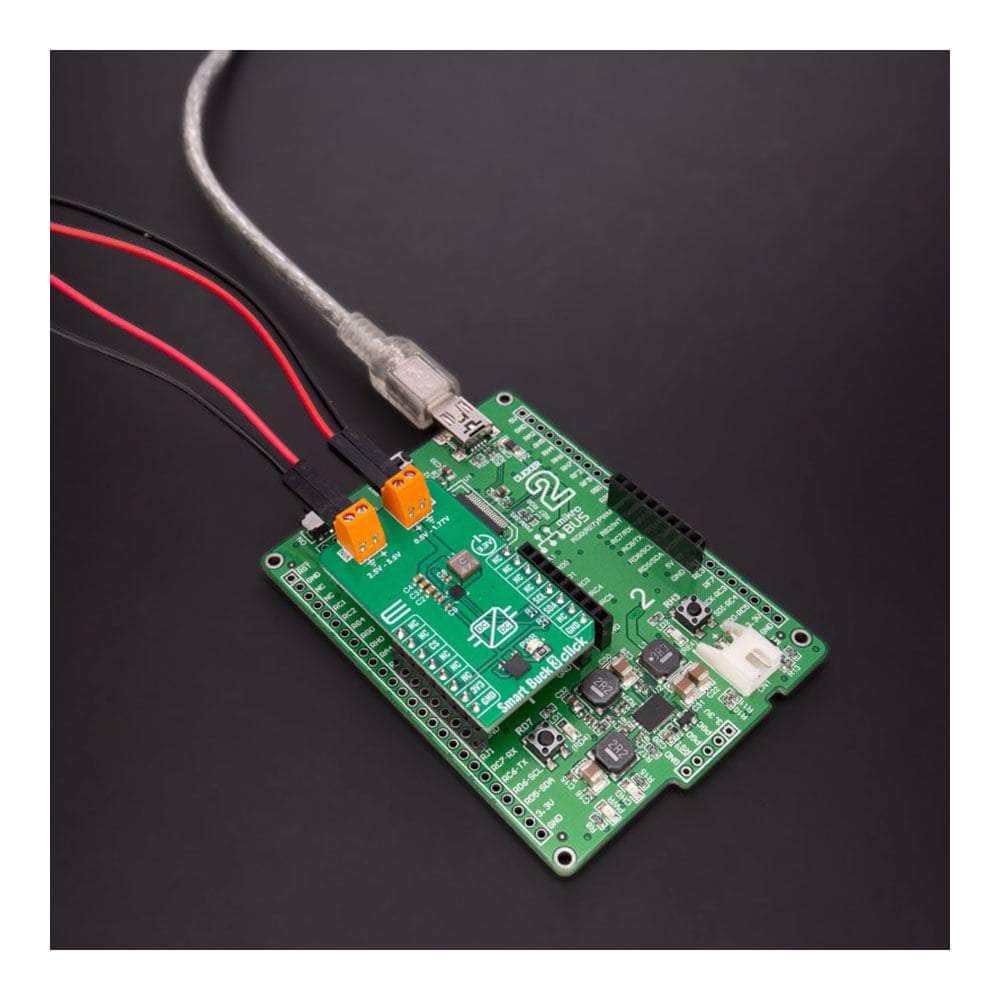

The Smart Buck 3 Click Board™ comes fully tested and ready to be integrated into any system equipped with the mikroBUS™ socket. Don't miss out on this exceptional power management solution - unleash the potential of your projects today!

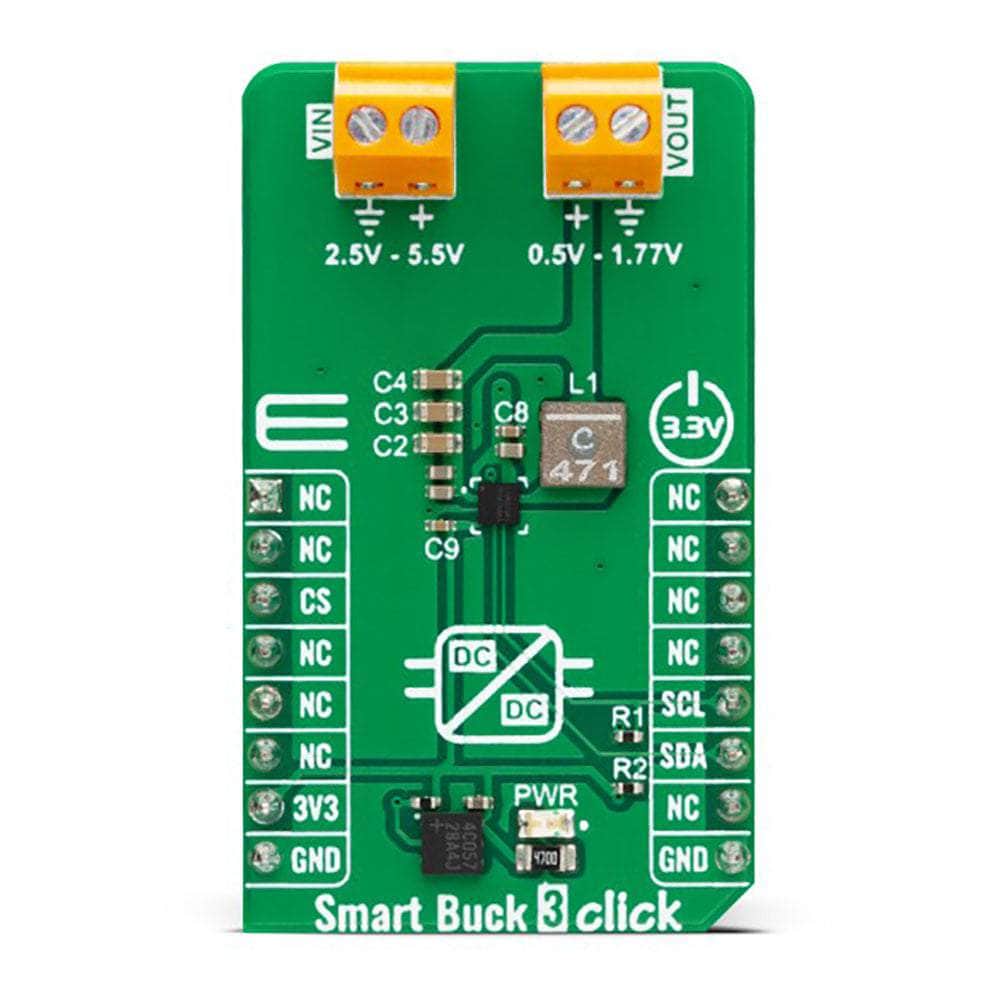

How Does The Smart Buck 3 Click Board™ Work?
The Smart Buck 3 Click Board™ is based on the TPS62366A, a processor supply with I2C compatible interface and a remote sense from Texas Instruments. Its dedicated inputs over the VIN terminal allow fast voltage transition while introducing input under voltage detection and lockout. In addition, it features over-temperature protection, a soft start, excellent DC output voltage regulation, and other robust operation/protection features. It offers a high-efficiency step-down conversion, with the highest efficiency towards low and highest output currents. This way, it increases the battery ON-time.
The TPS62366A uses the DCS-Control™ architecture and fully differential sensing to achieve precise static and dynamic transient output voltage regulation. This way, the output voltage security margins can be kept small. The used architecture supports PWM mode for medium and heavy load conditions and a Power Save mode for light loads. During the PWM mode, it works at the 2.5MHz frequency, and as the load decreases, the TPS62366A enters a Power Save mode (on this board set at 1.16V). This transition is seamless and does not affect output voltage transients.
In addition, the TPS62366A incorporates internal soft-start circuitry, which controls the output voltage ramp-up after enabling the device by eliminating the inrush current. The converter avoids excessive voltage drops of primary cells and rechargeable batteries with high internal impedance. During this procedure, the output voltage is monotonically ramped up to the threshold of the minimum programmable output voltage and further increases by the ramp rate settings to the programmed output voltage.
The Smart Buck 3 Click Board™ uses a standard 2-Wire I2C interface to communicate with the host MCU supporting Standard, Fast, and High-speed modes with a frequency of up to 3.4MHz. The I2C address is fixed and can not be changed.
This Click board™ can only be operated with a 3.3V logic voltage level. The board must perform appropriate logic voltage level conversion before using MCUs with different logic levels. However, the Click board™ comes equipped with a library containing functions and an example code that can be used, as a reference, for further development.
SPECIFICATIONS
| Type | Buck |
| Applications | It can be used for the development of DSPs power supplies, portable devices, dynamic voltage scaling, and more |
| On-board modules | TPS62366A - high-frequency synchronous step-down DC-DC converter from Texas Instruments |
| Key Features | Highest efficiency, excellent DC output voltage regulation, soft start, programmable slew rate at voltage transition, over current protection, input under voltage detection/lock-out, and more |
| Interface | I2C |
| Compatibility | mikroBUS |
| Click board size | M (42.9 x 25.4 mm) |
| Input Voltage | 3.3V |

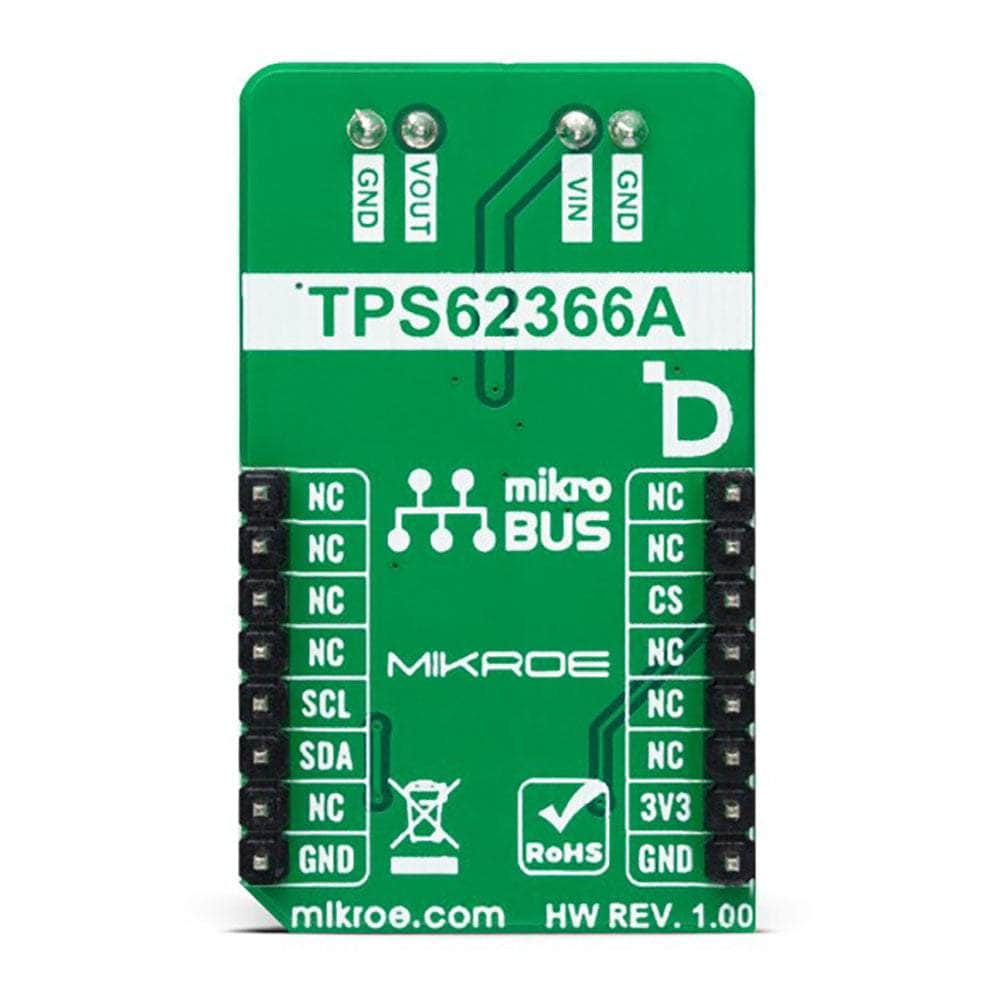

PINOUT DIAGRAM
This table shows how the pinout on Smf the Smart Buck 3 Click Board™corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
| Notes | Pin |  |
Pin | Notes | |||
|---|---|---|---|---|---|---|---|
| NC | 1 | AN | PWM | 16 | NC | ||
| NC | 2 | RST | INT | 15 | NC | ||
| NC | 3 | CS | RX | 14 | NC | ||
| NC | 4 | SCK | TX | 13 | NC | ||
| NC | 5 | MISO | SCL | 12 | SCL | I2C Clock | |
| NC | 6 | MOSI | SDA | 11 | SDA | I2C Data | |
| Power Supply | 3.3V | 7 | 3.3V | 5V | 10 | NC | |
| Ground | GND | 8 | GND | GND | 9 | GND | Ground |

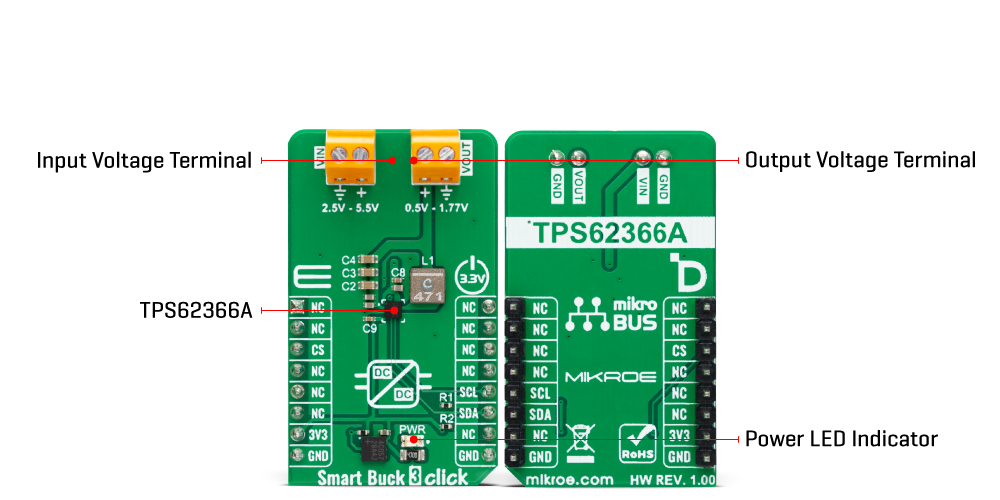

ONBOARD SETTINGS AND INDICATORS
| Label | Name | Default | Description |
|---|---|---|---|
| LD1 | PWR | - | Power LED Indicator |
SMART BUCK 3 CLICK ELECTRICAL SPECIFICATIONS
| Description | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Supply Voltage | - | 3.3 | - | V |
| Input Voltage Range | 2.5 | - | 5.5 | V |
| Output Voltage Range | 0.7 | - | 1.77 | V |
| Output Current | - | - | 2.5 | A |
Software Support
We provide a library for the SSmart Buck 3 Click Board™ and a demo application (example) developed using MIKROE compilers. The demo can run on all the main MIKROE development boards.
The package can be downloaded/installed directly from NECTO Studio The package Manager (recommended), downloaded from our LibStock™ or found on MikroE Github account.
Library Description
This library contains API for the Smart Buck 3 Click Board™ driver.
Key functions
-
smartbuck3_set_voltageSmart Buck 3 set voltage function. -
smartbuck3_get_voltageSmart Buck 3 get voltage function. -
smartbuck3_set_operation_modeSmart Buck 3 set operation mode function.
Example Description
This example demonstrates the use of the Smart Buck 3 Click Board™. This driver provides functions for device configurations and for the sets and reads the output voltage.
void application_task ( void )
{
if ( SMARTBUCK3_OK == smartbuck3_set_voltage( &smartbuck3, vout_mv ) )
{
Delay_ms( 100 );
if ( SMARTBUCK3_OK == smartbuck3_get_voltage( &smartbuck3, &vout_mv ) )
{
log_printf ( &logger, " Vout: %u mVrn", vout_mv );
}
}
vout_mv += 100;
if ( vout_mv > SMARTBUCK3_VOUT_MAX )
{
vout_mv = SMARTBUCK3_VOUT_MIN;
}
Delay_ms( 3000 );
}
The full application code, and ready to use projects can be installed directly from NECTO Studio The package Manager (recommended), downloaded from our LibStock™ or found on MikroE Github account.
Other MikroE Libraries used in the example:
- MikroSDK.Board
- MikroSDK.Log
- Click.SmartBuck3
Additional Notes and Information
Depending on the development board you are using, you may need USB UART Click Board™, USB UART 2 Click or RS232 Click to connect to your PC, for development systems with no UART to USB interface available on the board. UART terminal is available in all MIKROE compilers.
MIKROSDK
Thie Smart Buck 3 Click Board™ is supported with mikroSDK - MIKROE Software Development Kit, which needs to be downloaded from the LibStock and installed for the compiler you are using to ensure proper operation of mikroSDK compliant Click board™ demo applications.
