SKU: MIKROE-5738eFuse 7 Click Board
eFuse 7 Click Board
Couldn't load pickup availability
Key Features
- Wide operating voltage, adjusting current limit, short-circuit protection features, thermal shutdown protection, and auto recovery, reverse current blocking and more
- Based on the LS12052BD33 - eFuse with over-voltage protection and blocking FET control from Littelfuse
- Can be used for the development of robust protection for multiple faults on the system rail and current limiting for systems such as telecom radios and industrial printers
- mikroBUS: GPIO Interface

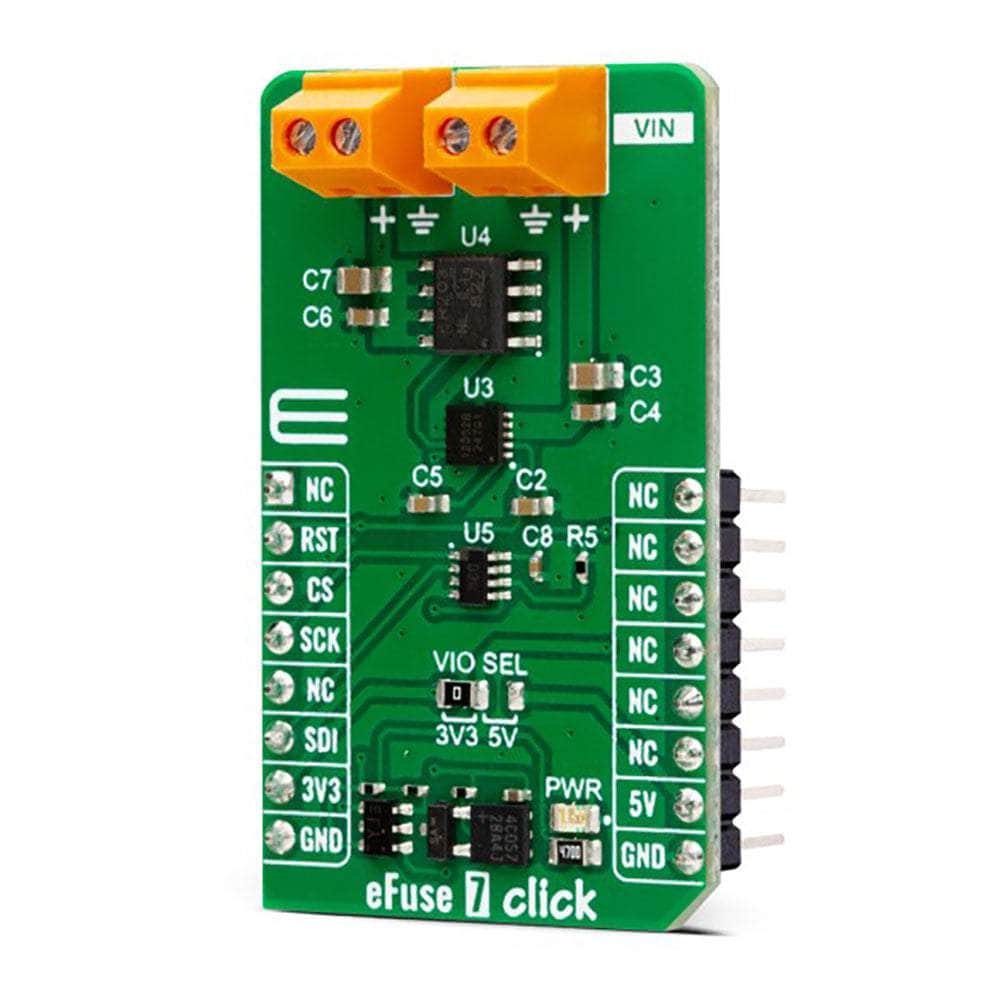

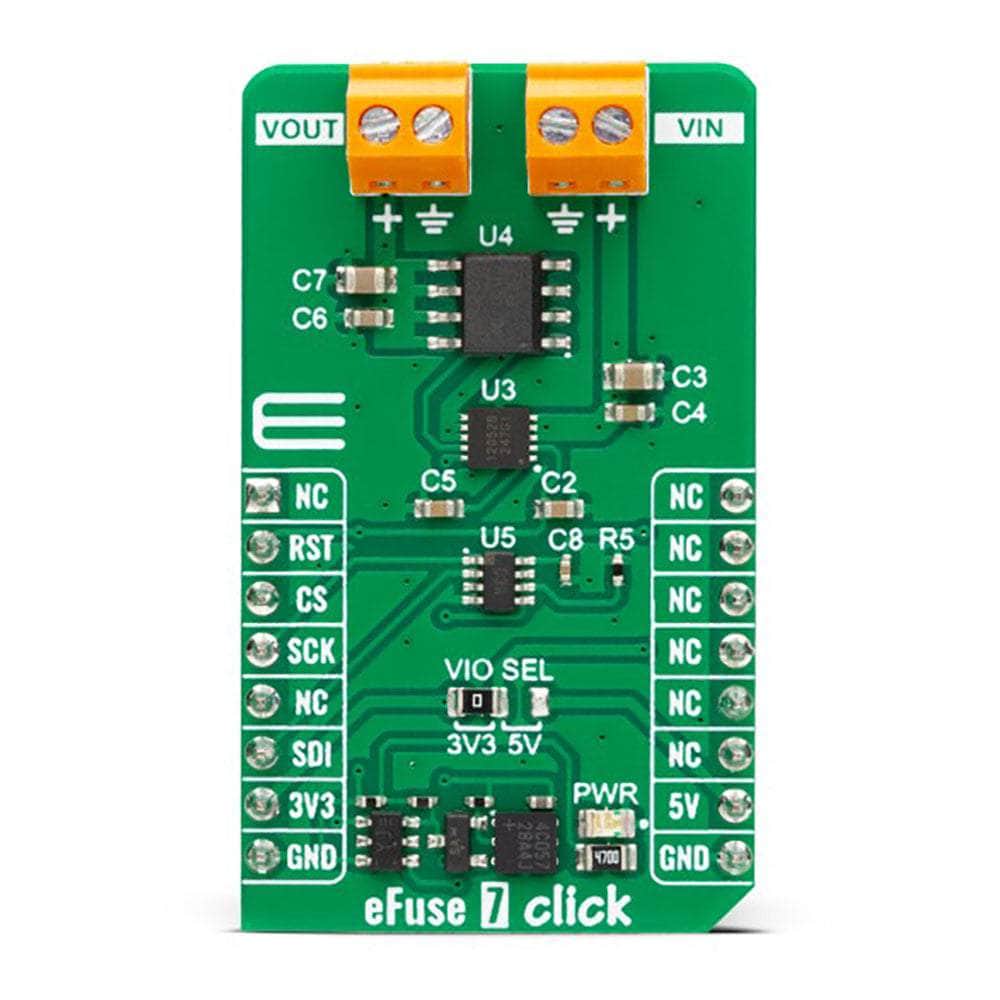

The eFuse 7 Click Board™ is a compact add-on board designed to provide a reliable and efficient power path protection solution for various electronic systems. With its advanced features and industrial-grade components from Littelfuse, this Click board™ ensures safe levels of circuit currents and voltages during fault conditions.
At the heart of the eFuse 7 Click Board™ lies the LS12052BD33, a high-performance eFuse with exceptional over-voltage protection and blocking FET control capabilities. This industrial-grade eFuse boasts a wide input voltage range from 2.7V up to 18V, allowing it to adapt to diverse system requirements. It also offers external programmable soft-start time and current limit options, enabling flexible customization. Additionally, the eFuse supports reverse current blocking, further enhancing its functionality.
![Mikroelektronika d.o.o. MIKROE-5738 eFuse 7 Click Board - The Debug Store UK](http://thedebugstore.com/cdn/shop/files/mikroelektronika-d-o-o-mikroe-5738-40159785386207.jpg?v=1688124362&width=1445)
![Mikroelektronika d.o.o. MIKROE-5738 eFuse 7 Click Board - The Debug Store UK](http://thedebugstore.com/cdn/shop/files/mikroelektronika-d-o-o-mikroe-5738-40159785320671.jpg?v=1688124364&width=1445)
![Mikroelektronika d.o.o. MIKROE-5738 eFuse 7 Click Board - The Debug Store UK](http://thedebugstore.com/cdn/shop/files/mikroelektronika-d-o-o-mikroe-5738-40159785484511.jpg?v=1688124539&width=1445)
![Mikroelektronika d.o.o. MIKROE-5738 eFuse 7 Click Board - The Debug Store UK](http://thedebugstore.com/cdn/shop/files/mikroelektronika-d-o-o-mikroe-5738-40159785418975.jpg?v=1688124367&width=1445)
![Mikroelektronika d.o.o. MIKROE-5738 eFuse 7 Click Board - The Debug Store UK](http://thedebugstore.com/cdn/shop/files/mikroelektronika-d-o-o-mikroe-5738-40159785451743.jpg?v=1688124542&width=1445)
![Mikroelektronika d.o.o. MIKROE-5738 eFuse 7 Click Board - The Debug Store UK](http://thedebugstore.com/cdn/shop/files/mikroelektronika-d-o-o-mikroe-5738-40159785255135.jpg?v=1688124370&width=1445)
![Mikroelektronika d.o.o. MIKROE-5738 eFuse 7 Click Board - The Debug Store UK](http://thedebugstore.com/cdn/shop/files/mikroelektronika-d-o-o-mikroe-5738-40159785222367.jpg?v=1688124373&width=1445)
![Mikroelektronika d.o.o. MIKROE-5738 eFuse 7 Click Board - The Debug Store UK](http://thedebugstore.com/cdn/shop/files/mikroelektronika-d-o-o-mikroe-5738-40159785287903.jpg?v=1688124376&width=1445)
