Mikroelektronika d.o.o.

WiFi 2.4GHz/5.4GHz Active FPC Antenna

Name: WiFi 2.4GHz/5.4GHz Active FPC Antenna
Brand: Mikroelektronika d.o.o.
SKU: MIKROE-5707
Price: 7.0 GBP
Availability: InStock

SKU: MIKROE-5707

Product variants

£8.40 inc VAT

£7.00 exc VAT

~~£4.68 GBP~~

£8.40 inc VAT

£7.00 exc VAT

Sale Sold out

Shipping calculated at checkout.

If no stock shown above, check availability

Order Quantity

View full details

Overview

Upgrade Your Wireless Connectivity with WiFi 2.4GHz/5.4GHz Active FPC Antenna

Introducing the WiFi 2.4GHz/5.4GHz Active FPC Antenna (W3918B0100) - the small yet powerful flat patch antenna that operates in two different frequency ranges, offering dual-frequency capabilities with central frequencies of 2.4GHz and 5.4GHz. Measuring just 35.2x8.5x0.15mm, this antenna is incredibly efficient and has a nominal impedance of 50Ω.

Designed to meet your wireless connectivity needs, this antenna boasts a 2W power rating and omni radiation pattern, making it an excellent choice for various applications, including WiFi 6E, Bluetooth, ZigBee, ISM band radios, IoT, M2M, and many more.

Dual-Frequency Capabilities

The WiFi 2.4GHz/5.4GHz Active FPC Antenna (W3918B0100) is the perfect solution for those who require dual-frequency capabilities. With central frequencies of 2.4GHz and 5.4GHz, this antenna provides exceptional performance for both frequency ranges.

Easy Integration

This antenna has a U.FL connector type and 100mm cable length for easy integration, making it a great choice for any wireless connectivity project.

Pair with Numerous Click Boards™

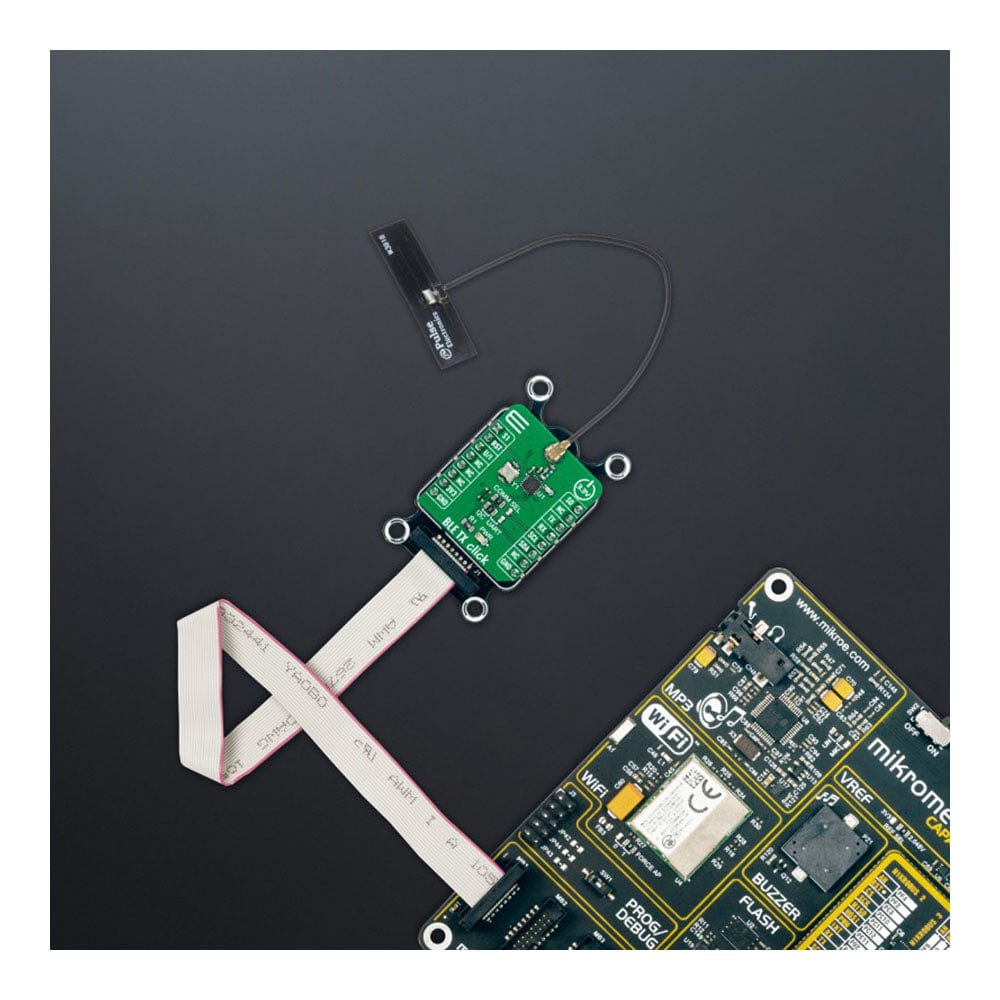

This antenna is an exceptional option for even more versatility when paired with numerous Click boards™ from our wireless connectivity group, including WiFly Click, WiFi 10 Click, BLE 5 Click, and BLE TX Click. For more details about these Click boards™, please refer to their product pages.

Upgrade your wireless connectivity with the WiFi 2.4GHz/5.4GHz Active FPC Antenna and experience exceptional performance in dual-frequency capabilities, easy integration, and versatility. Order yours today!

How Does The WiFi 2.4GHz/5.4GHz Active FPC Antenna Work?

The WiFi 2.4GHz/5.4GHz Active FPC Antenna (W3918B0100) is an active flat patch antenna from Pulse Electronics ideal for WiFi 6E, Bluetooth, ZigBee, ISM band radios, IoT, M2M, and more. With dual-frequency capabilities in a range of 2.4-2.5GHz and 4.9-5.925GHz, with central frequencies of 2.4GHz and 5.4GHz, this flat patch antenna boasts a gain of typical 3dBi and omnidirectional radiation pattern. Measuring 35.2x8.5x0.15mm, the antenna size is compact yet efficient, and with a nominal impedance of 50Ω, it's designed to work seamlessly with your existing setup. The FPC material used for the antenna ensures durability and reliability, and with a power rating of 2W, you can trust it to perform consistently. The U.FL connector type and 10mm cable length allows easy integration into your system. With its superior performance, the WiFi 2.4GHz/5.4GHz Active FPC Antenna is the perfect choice for wireless communication and networking.

WiFi 2.4 GHz/5.4GHz active FPC antenna-inner
