LED Driver 15 Click Board™
LED Driver 15 Click Board™
SKU: MIKROE-5583
Couldn't load pickup availability
Overview
Introducing the LED Driver 15 Click Board™ - Simplify Your LED Control!
Looking for a way to easily control multiple LEDs in your project? The LED Driver 15 Click Board™ is the perfect solution! This compact add-on board is designed to simplify LED control and make your project shine.
Advanced Features for High Efficiency
The LED Driver 15 Click Board™ features the advanced MP3309C synchronous boost white LED driver from Monolithic Power Systems. This driver offers high efficiency, delivering up to 40mA of LED current while operating from a voltage of mikroBUS™ power rails. With support for up to 8 white LEDs in series, this Click board™ is perfect for backlight applications, LED status signalization, home automation projects, and more!
Programmable Switching Frequency and Dimming
The MP3309C LED driver also features a programmable switching frequency, allowing you to optimize efficiency for your specific project. It also supports analogue and PWM dimming, giving you complete control over your LED illumination.
Built-In Protection for Reliable Performance
The LED Driver 15 Click Board™ features multiple built-in protection functions, ensuring reliable performance even during abnormalities. This Click board™ is the perfect choice for projects that require white light for detection, recognition, and handling.
Easy Software Development with mikroSDK
The LED Driver 15 Click Board™ is supported by a mikroSDK-compliant library, which includes functions that simplify software development. This Click board™ comes fully tested and ready to use with any system equipped with the mikroBUS™ socket.
Upgrade your LED control today with the LED Driver 15 Click Board™!
Downloads
| General Information | |
|---|---|
Part Number (SKU) |
MIKROE-5583
|
Manufacturer |
|
| Physical and Mechanical | |
Weight |
0.02 kg
|
| Other | |
EAN |
8606027385506
|
Questions and Answers
-
What Are Some Applications Where the LED Driver 15 Click Board™ Can Be Used?
The LED Driver 15 Click Board™ is suitable for:
- Backlighting in amusement products
- LED status signalling
- Home automation projects
- Other applications that need white-light illumination for tasks such as detection, recognition and handling
-
Is the LED Driver 15 Click Board™ Easy to Use?
Yes. The LED Driver 15 Click Board™ is supported by a mikroSDK-compliant library with functions that simplify software development. It is fully compatible with the mikroBUS™ standard and is ready to use on a system equipped with the mikroBUS™ socket.
-
What Is the Maximum Number of White LEDs That the LED Driver 15 Click Board™ Can Support in Series?
The LED Driver 15 Click Board™ can support up to 8 white LEDs in series, with a maximum current of 40mA.
-
What Type of Dimming Does the LED Driver 15 Click Board™ Support?
The LED Driver 15 Click Board™ supports both analogue and PWM dimming.
-
What Type of Protection Functions Does the MP3309C Have?
The MP3309C has these protection functions:
- Configurable over-voltage protection (OVP)
- Over-current protection with cycle-by-cycle current limit
- Under-voltage lockout (UVLO)
- LED open protection
- Thermal shutdown
-
What Is the LED Driver 15 Click Board™?

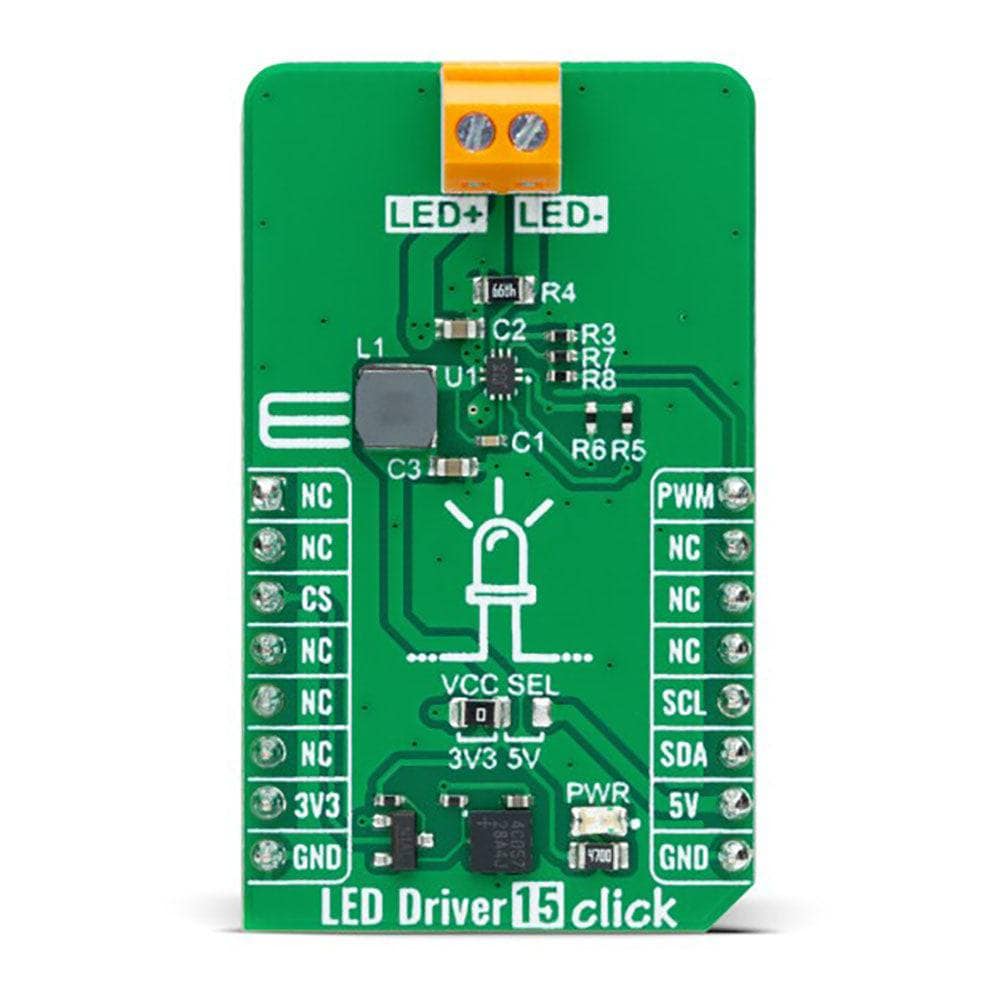

The LED Driver 15 Click Board™ is a compact add-on board that simplifies control of multiple LEDs. It uses the MP3309C, a fully integrated synchronous boost white LED driver with an I2C interface from Monolithic Power Systems.
-
What Are the Features of the MP3309C?
The MP3309C:
- Delivers up to 40mA of LED current at high efficiency
- Runs from the mikroBUS™ power rails
- Supports up to 8 white LEDs in series
- Has a programmable switching frequency to optimise efficiency
- Supports analogue and PWM dimming
- Has multiple built-in protection functions that protect the circuit during abnormal conditions
