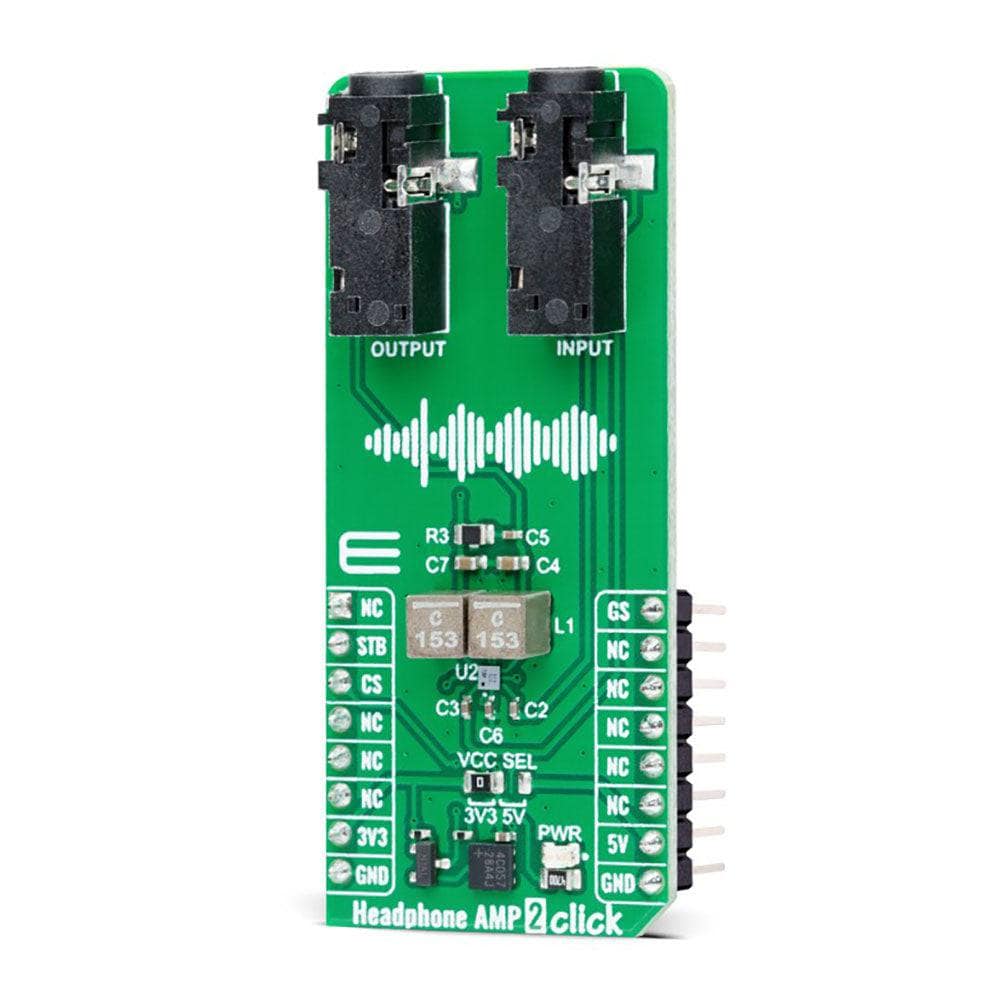

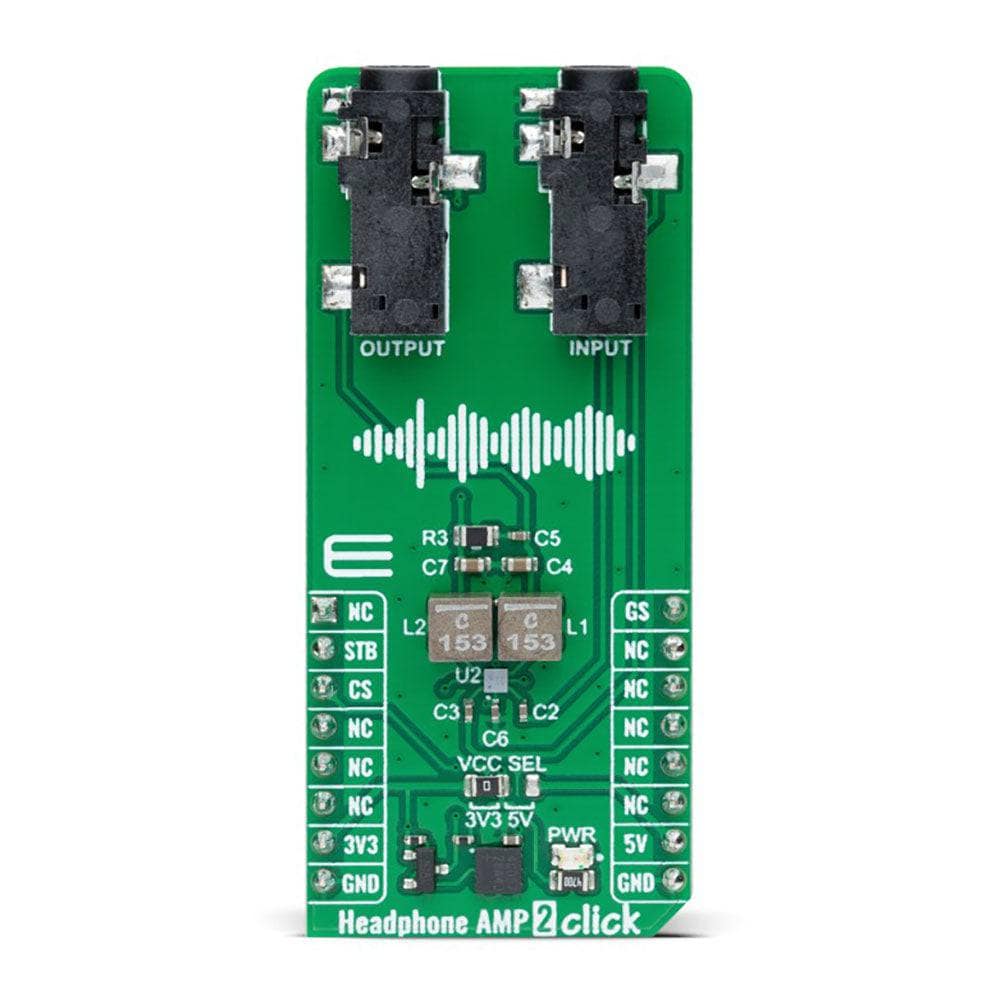

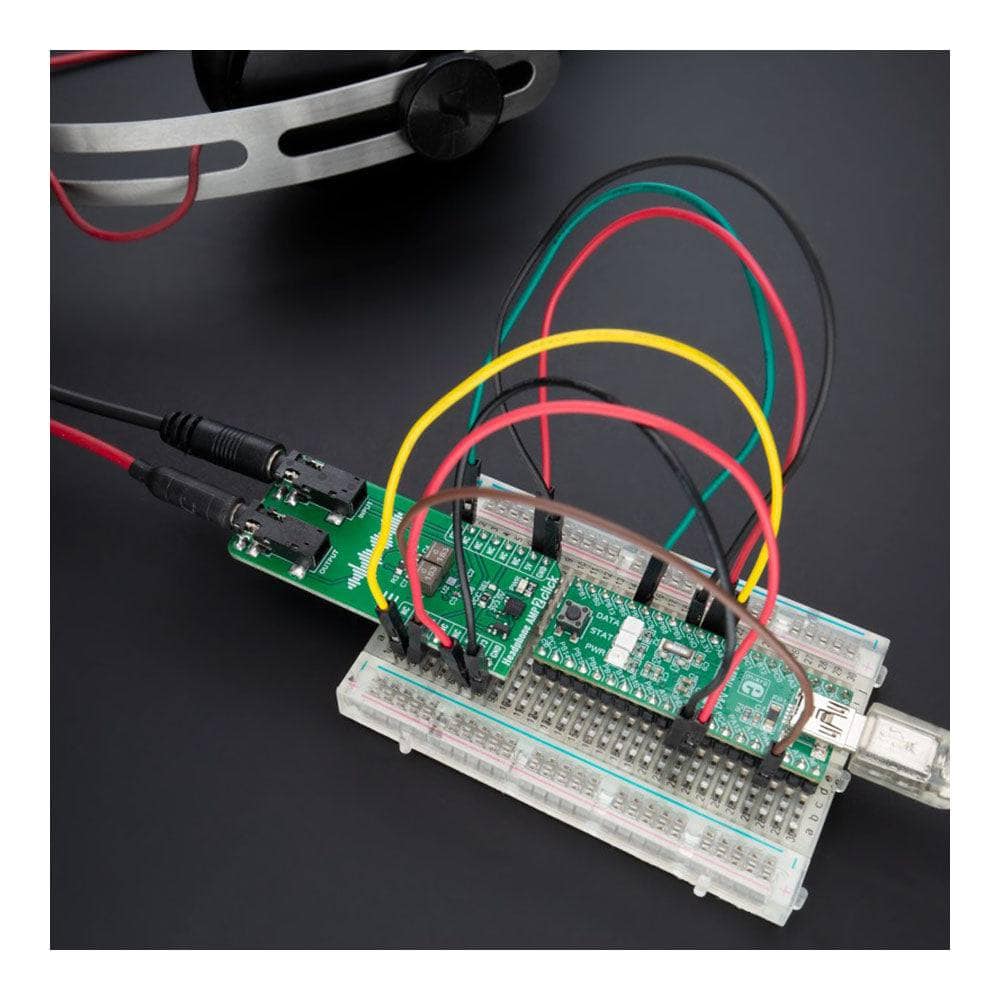

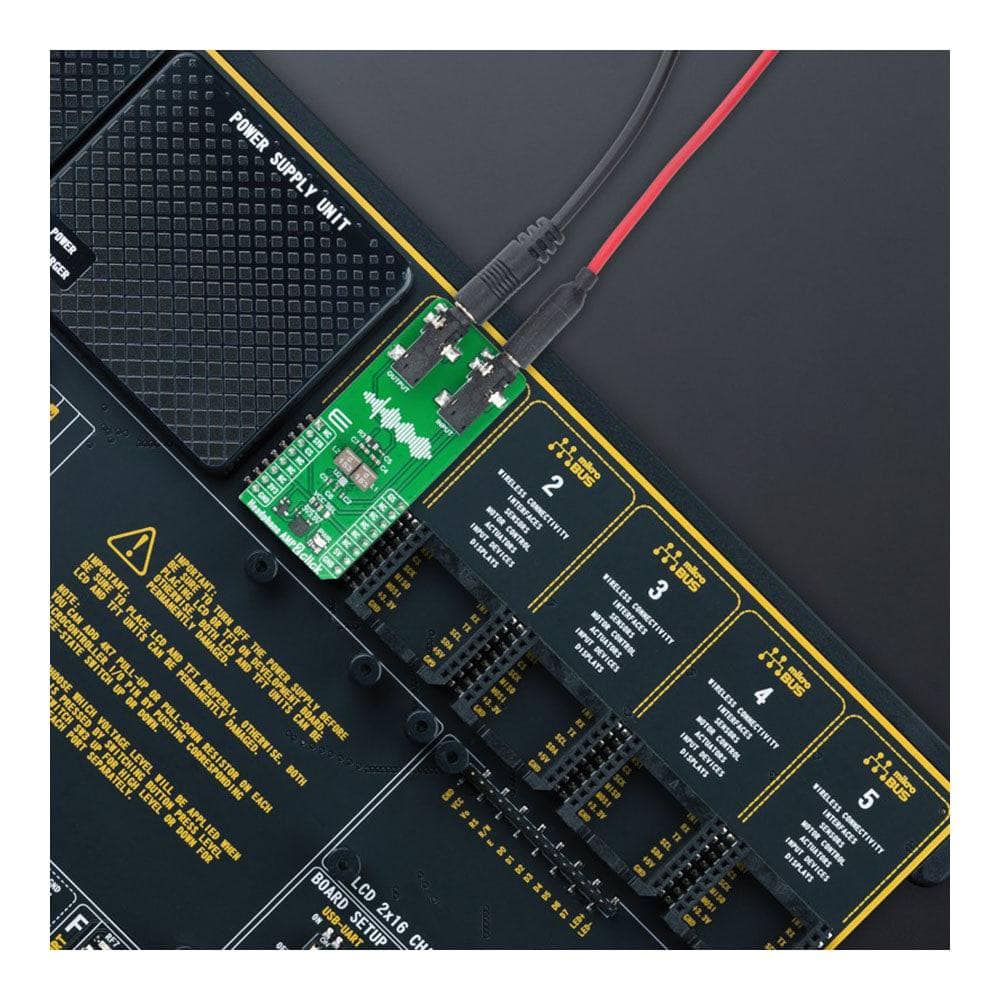

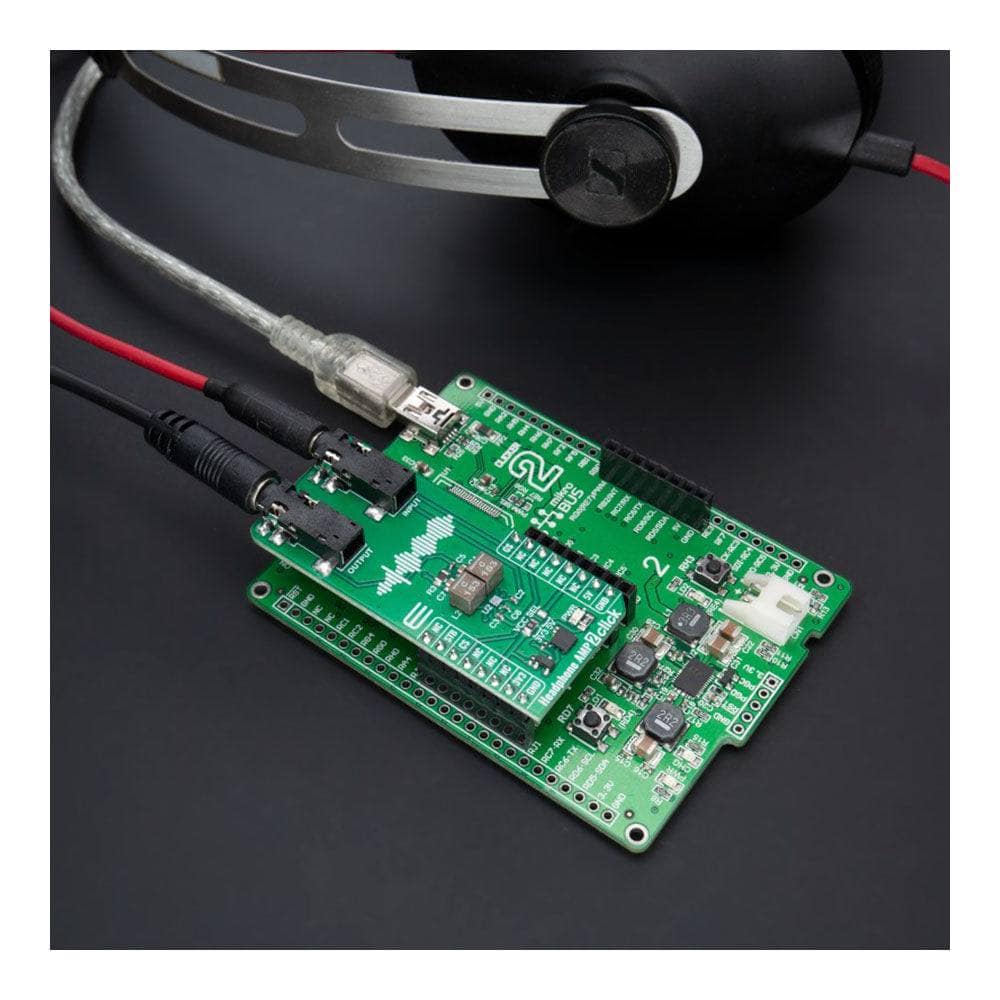

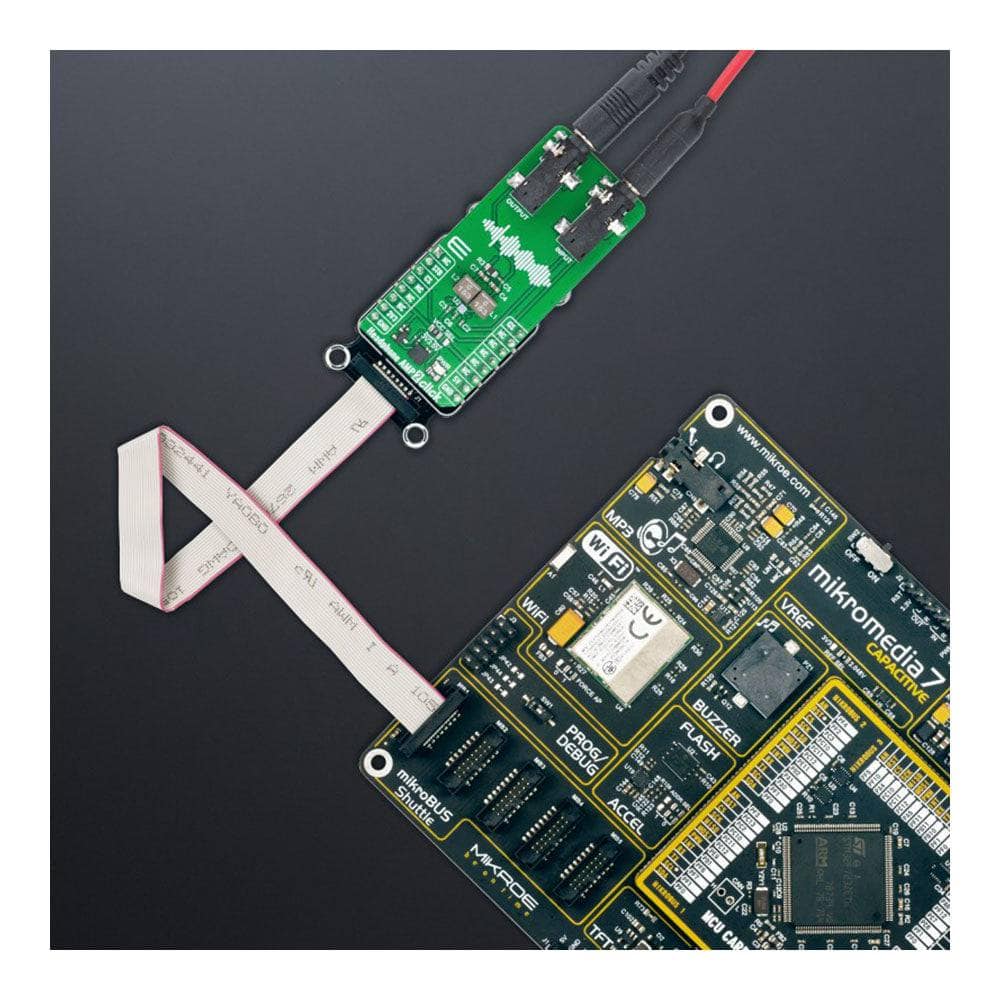

SKU: MIKROE-5577Headphone AMP 2 Click Board
Headphone AMP 2 Click Board
Couldn't load pickup availability
Key Features
- Better efficiency than typical class-AB amplifiers, gain selection, Standby mode control, low power consumption, low pop-and-click noise, protection features, and more
- Based on the TS2007FC - class-D audio power amplifier from STMicroelectronics
- Can be used for portable electronics and audio systems, representing a perfect solution for remote, headphone audio-volume control applications
- mikroBUS: GPIO Interface
Introducing the Headphone AMP 2 Click Board™: The Perfect Addition to Your Audio System
Looking for a compact and reliable solution for remote headphone audio-volume control applications? Look no further than the Headphone AMP 2 Click Board™, the perfect add-on board for your audio system.
Experience High-Quality Audio Performance
The Headphone AMP 2 Click Board™ features the TS2007FC, a class-D audio power amplifier from STMicroelectronics. With the ability to drive up to 2.3W into a 4Ω load at 5V, the TS2007FC achieves better efficiency than typical class-AB audio power amplifiers. Plus, it can switch between two gain settings, either 6 or 12dB, through one mikroBUS™ pin. With pop-and-click reduction circuitry and a Standby mode for reduced power consumption, this board is equipped with all the features you need for top-quality audio performance.
Enjoy Reliable and Safe Operation
Equipped with protection features, the Headphone AMP 2 Click Board™ ensures reliable and safe operation. Plus, it is suitable for portable electronics and audio systems, making it the perfect solution for all your audio needs.
Simplify Software Development
The Headphone AMP 2 Click Board™ is supported by a mikroSDK-compliant library, which includes functions that simplify software development. This Click board™ comes fully tested and ready to be used on any system equipped with the mikroBUS™ socket.
Don't settle for anything less than the best when it comes to your audio system. Upgrade to the Headphone AMP 2 Click Board™ and experience top-quality audio performance today!
How Does The Headphone AMP 2 Click Board™ Work?

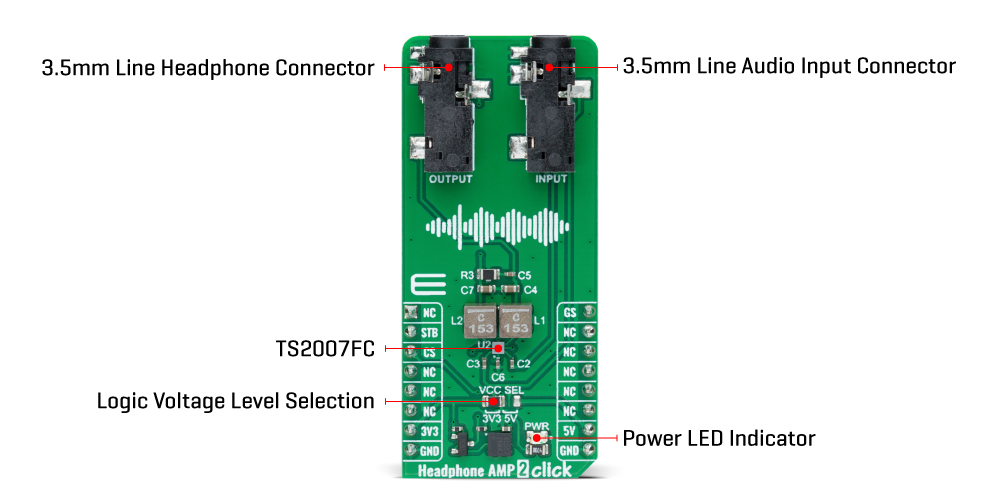

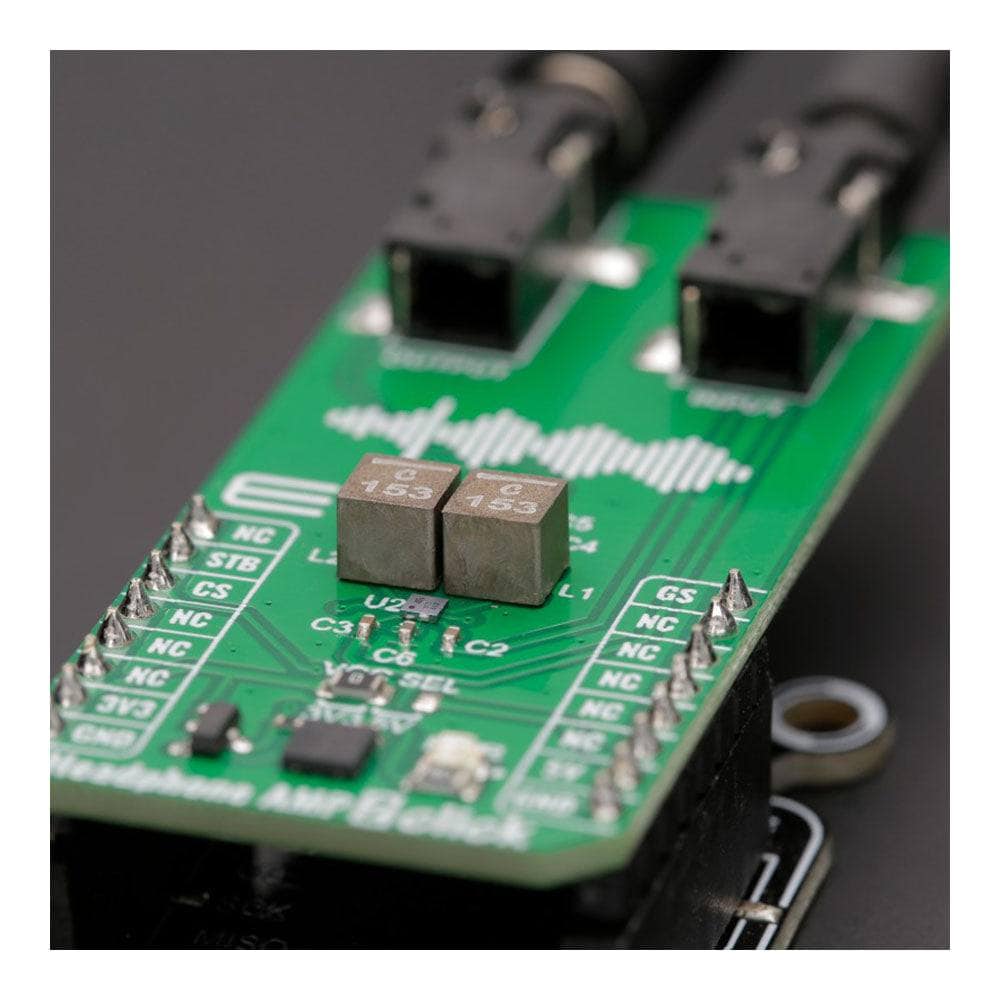

The Headphone AMP 2 Click Board™ is based on the TS2007FC, a monolithic, fully-differential input/output, class-D power amplifier from STMicroelectronics. The TS2007FC can drive up to 2.3W into 4Ω load at 5V, achieving better efficiency than typical class-AB audio power amplifiers. It includes a common mode feedback loop that controls the output bias value to average it at half of the power supply value in the DC common mode input voltage range. This feature allows the board always to have a maximum output voltage swing and, consequently, maximizes the output power. In addition, as the load is connected differentially, compared to a single-ended topology, the output is four times higher for the same power supply voltage.
.jpg)
The Headphone AMP 2 Click Board™ establishes communication with MCU using two pins on the mikroBUS™ socket. The GS pin of the mikroBUS™ socket controls the TS2007FC's differential gain, set to either 6 or 12dB depending on the logic level of the GS pin. It is also possible to set the Click board™ in Standby mode, depending on the set logic level (active low) on the STB pin of the mikroBUS™ socket. When the Standby mode control pin is set to a high logic state, the time required to put the two output stages into high impedance and the internal circuitry in Shutdown mode is typically 1ms. This time decreases the gain and avoids any pop noise during Shutdown. Furthermore, the TS2007FC has several protection features like thermal Shutdown and short circuit protection allowing a reliable operation.
The Headphone AMP 2 Click Board™ can operate with either 3.3V or 5V logic voltage levels selected via the VCC SEL jumper. This way, both 3.3V and 5V capable MCUs can use the communication lines properly. However, the Click board™ comes equipped with a library containing easy-to-use functions and an example code that can be used, as a reference, for further development.
SPECIFICATIONS
| Type | Amplifier |
| Applications | Can be used for portable electronics and audio systems, representing a perfect solution for remote, headphone audio-volume control applications |
| On-board modules | TS2007FC - class-D audio power amplifier from STMicroelectronics |
| Key Features | Better efficiency than typical class-AB amplifiers, gain selection, Standby mode control, low power consumption, low pop-and-click noise, protection features, and more |
| Interface | GPIO |
| Compatibility | mikroBUS |
| Click board size | L (57.15 x 25.4 mm) |
| Input Voltage | 3.3V or 5V |

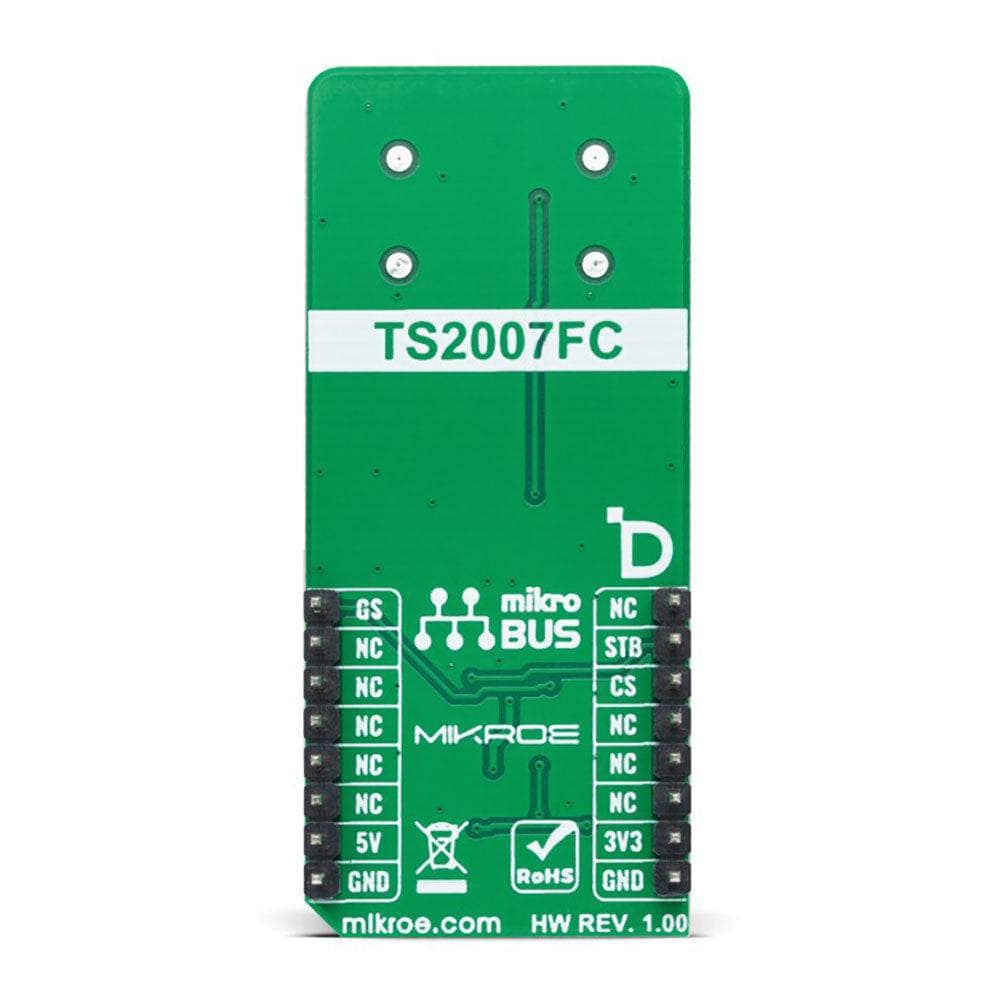

PINOUT DIAGRAM
This table shows how the pinout of the Headphone AMP 2 Click Board™ corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
| Notes | Pin |  |
Pin | Notes | |||
|---|---|---|---|---|---|---|---|
| NC | 1 | AN | PWM | 16 | GS | Gain Selection | |
| Standby Mode | STB | 2 | RST | INT | 15 | NC | |
| NC | 3 | CS | RX | 14 | NC | ||
| NC | 4 | SCK | TX | 13 | NC | ||
| NC | 5 | MISO | SCL | 12 | NC | ||
| NC | 6 | MOSI | SDA | 11 | NC | ||
| Power Supply | 3.3V | 7 | 3.3V | 5V | 10 | 5V | Power Supply |
| Ground | GND | 8 | GND | GND | 9 | GND | Ground |
ONBOARD SETTINGS AND INDICATORS
| Label | Name | Default | Description |
|---|---|---|---|
| LD1 | PWR | - | Power LED Indicator |
| JP1 | VCC SEL | Left | Logic Level Voltage Selection 3V3/5V: Left position 3V3, Right position 5V |
HEADPHONE AMP 2 CLICK ELECTRICAL SPECIFICATIONS
| Description | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Supply Voltage | 3.3 | - | 5 | V |
| Load Impedance | - | 4 | - | Ω |
| Output Power | - | - | 2.3 | W |
Software Support
We provide a library for the Headphone AMP 2 Click Board™ as well as a demo application (example), developed using MikroE compilers. The demo can run on all the main MikroE development boards.
The package can be downloaded/installed directly from NECTO Studio The package Manager (recommended), downloaded from our LibStock™ or found on MikroE Github account.
Library Description
This library contains API for the Headphone AMP 2 Click Board™ driver.
Key functions
-
headphoneamp2_set_device_onHeadphone Amp 2 set device on function. -
headphoneamp2_gain_selectHeadphone Amp 2 select gain level function. -
headphoneamp2_change_gainHeadphone Amp 2 change gain function.
Example Description
This library contains API for the Headphone AMP 2 Click Board™ driver. This demo application shows use of the Headphone AMP 2 Click Board™.
void application_task ( void )
{
headphoneamp2_change_gain( &headphoneamp2 );
log_printf( &logger, " The gain level has been changed.rn" );
Delay_ms( 5000 );
}
The full application code, and ready to use projects can be installed directly from NECTO Studio The package Manager (recommended), downloaded from our LibStock™ or found on MikroE Github account.
Other MikroE Libraries used in the example:
- MikroSDK.Board
- MikroSDK.Log
- Click.HeadphoneAmp2
Additional Notes and Information
Depending on the development board you are using, you may need USB UART Click Board™, USB UART 2 Click or RS232 Click to connect to your PC, for development systems with no UART to USB interface available on the board. UART terminal is available in all MikroE compilers.
MIKROSDK
The Headphone AMP 2 Click Board™ is supported with mikroSDK - MikroE Software Development Kit, which needs to be downloaded from the LibStock and installed for the compiler you are using to ensure proper operation of mikroSDK compliant Click board™ demo applications.
Headphone AMP 2 Click Board
Frequently Asked Questions
Ask a Question-
Is the Headphone AMP 2 Click Board™ compatible with my audio system?
The Headphone AMP 2 Click Board™ can be used with any system equipped with the mikroBUS™ socket. It is compatible with a wide range of audio systems, making it a versatile solution for your audio needs.
-
Is it easy to develop software for the Headphone AMP 2 Click Board™?
Yes, the Headphone AMP 2 Click Board™ is supported by a mikroSDK-compliant library that includes functions that simplify software development. This Click board™ comes fully tested and ready to be used on any system equipped with the mikroBUS™ socket.
-
Is the Headphone AMP 2 Click Board™ safe and reliable to use?
Yes, the Headphone AMP 2 Click Board™ is equipped with protection features that ensure reliable and safe operation. It is suitable for portable electronics and audio systems, making it the perfect solution for all your audio needs.
-
What kind of audio performance can I expect from the Headphone AMP 2 Click Board™?
The Headphone AMP 2 Click Board™ offers high-quality audio performance with better efficiency than typical class-AB audio power amplifiers. It features the ability to switch between two gain settings, either 6 or 12dB, through one mikroBUS™ pin. It also comes with pop and click reduction circuitry, and a Standby mode for reduced power consumption.
-
What is the Headphone AMP 2 Click Board™?
The Headphone AMP 2 Click Board™ is a compact and reliable add-on board that provides remote headphone audio-volume control applications. It is equipped with the TS2007FC, a class-D audio power amplifier from STMicroelectronics, that can drive up to 2.3W into a 4Ω load at 5V.
