Product Description
Programming
This AVR board has USB 2.0 AVR programmer called AVRprog2. This USB AVR programmer doesn't use boot loader or any similar way of programming. The whole AVR memory and all pins are available for your application. Aside from that, this programmer is fast and easy to use InSystem programmer. This AVR Programmer is driven and powered from a single USB port on your computer. No additional AC power adapter is needed.
Relays and optocouplers

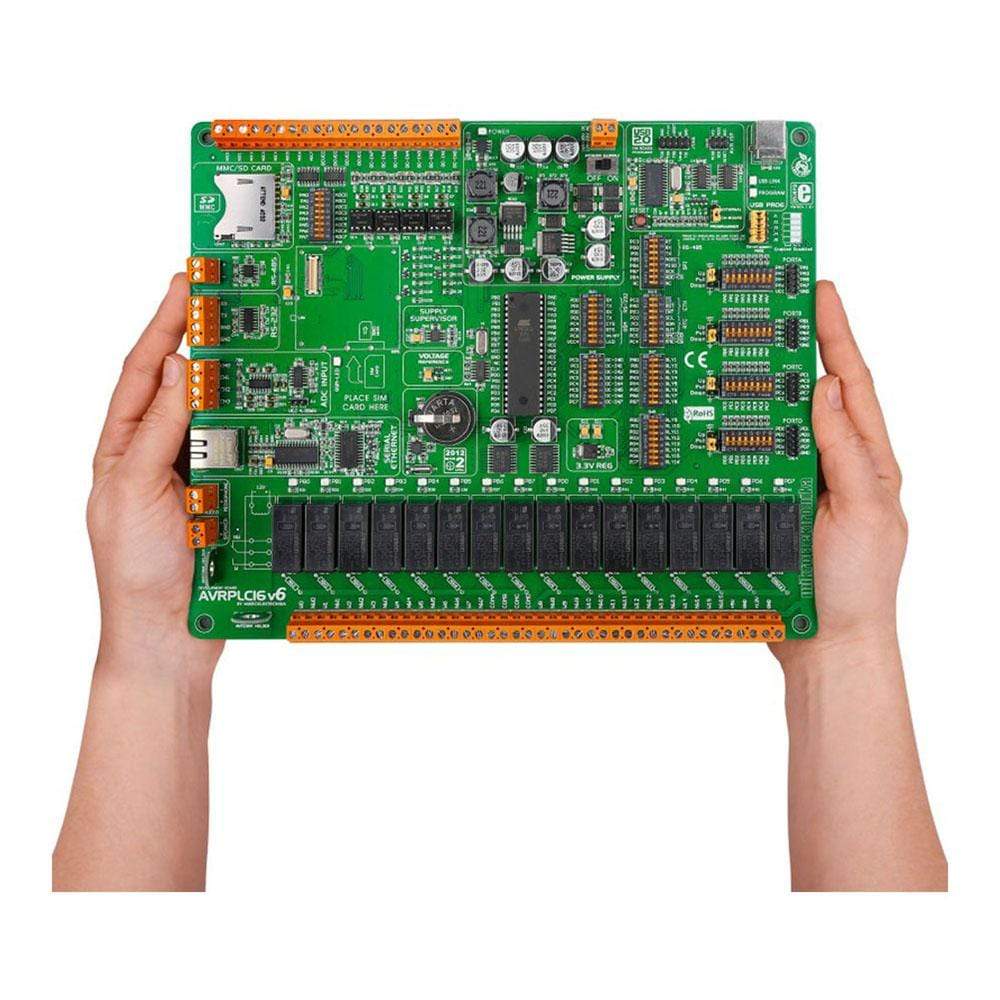

Develop complex industrial, home or office control systems with 8 optocouplers and 16 relays that allow you to connect the MCU to high-powered external industrial (but also home or office) devices.
Interfaces

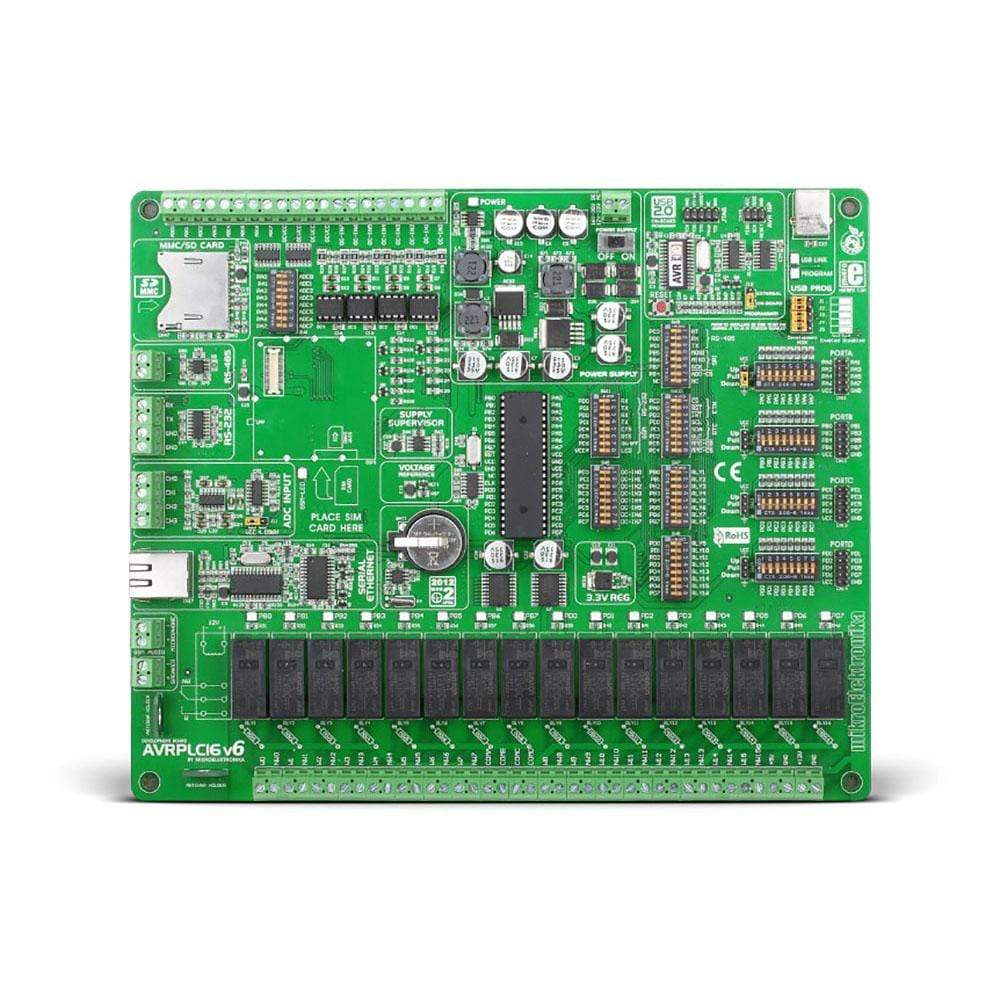

AVRPLC16 v6 has modules and inputs for versatile PLC development. Serial Ethernet, RS232 and RS485 (ADM485) communications are supported, a real-time clock with a battery supply will keep track of time, four IDC10 ports for further connectivity, 12-bit MCP3204 ADC with four inputs for testing it, and more.
Supports GSM
On board GSM connector lets you add Telit’s GM862-QUAD module via our GSM booster card. The GSM socket also supports Telit’s older, now obsolete, GM862-GPS, GM862-QUAD-PY and GM862-QUAD modules, if you happen to own one). Note: GSM Booster is not included in price.
Ethernet On-Board
Board is equipped with a Serial Ethernet module ENC28J60 which enables you to have full control over your PLC system from a web browser or any other network-connected device.
