Mikroelektronika d.o.o.


CAN Isolator 2 Click Board

CAN Isolator 2 Click Board

Isolated CAN Bus Transceiver
Regular price
$24.00 USD excluding tax
Regular price Sale price
$24.00 USD excluding tax
Sale Sold out
Shipping calculated at checkout.

Key Features

  • The fully isolated interface between the CAN protocol controller and the physical layer bus, capable of running at data rates of up to 5Mbps, robust electromagnetic compatibility, ideal passive high impedance bus terminal when unpowered, long bus cable length, dominant and recessive states during operation, and more
  • Based on the ISO1042 - isolated CAN transceiver from Texas Instruments
  • Can be used for the development of solar inverters, AC and servo drives, industrial field networks, PLC and DCS communication modules, battery charging and management, and more

The CAN Isolator 2 Click Board™

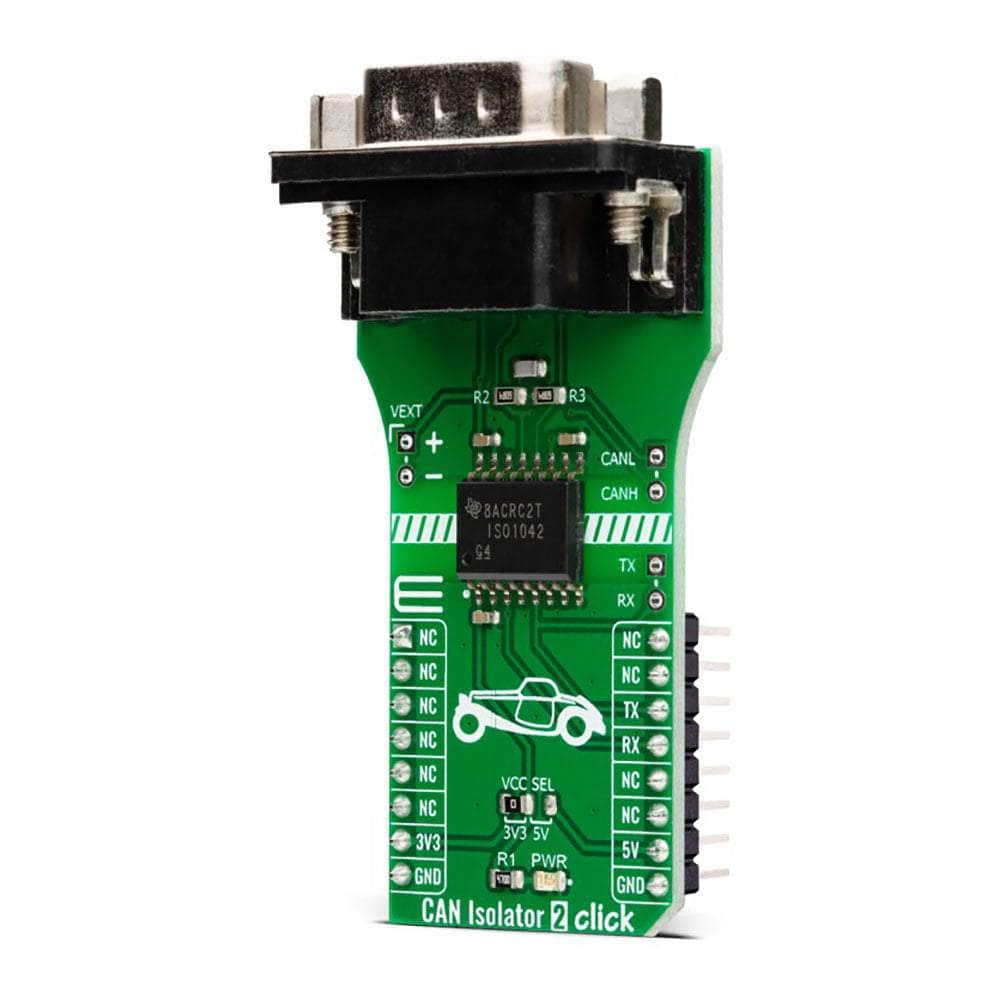

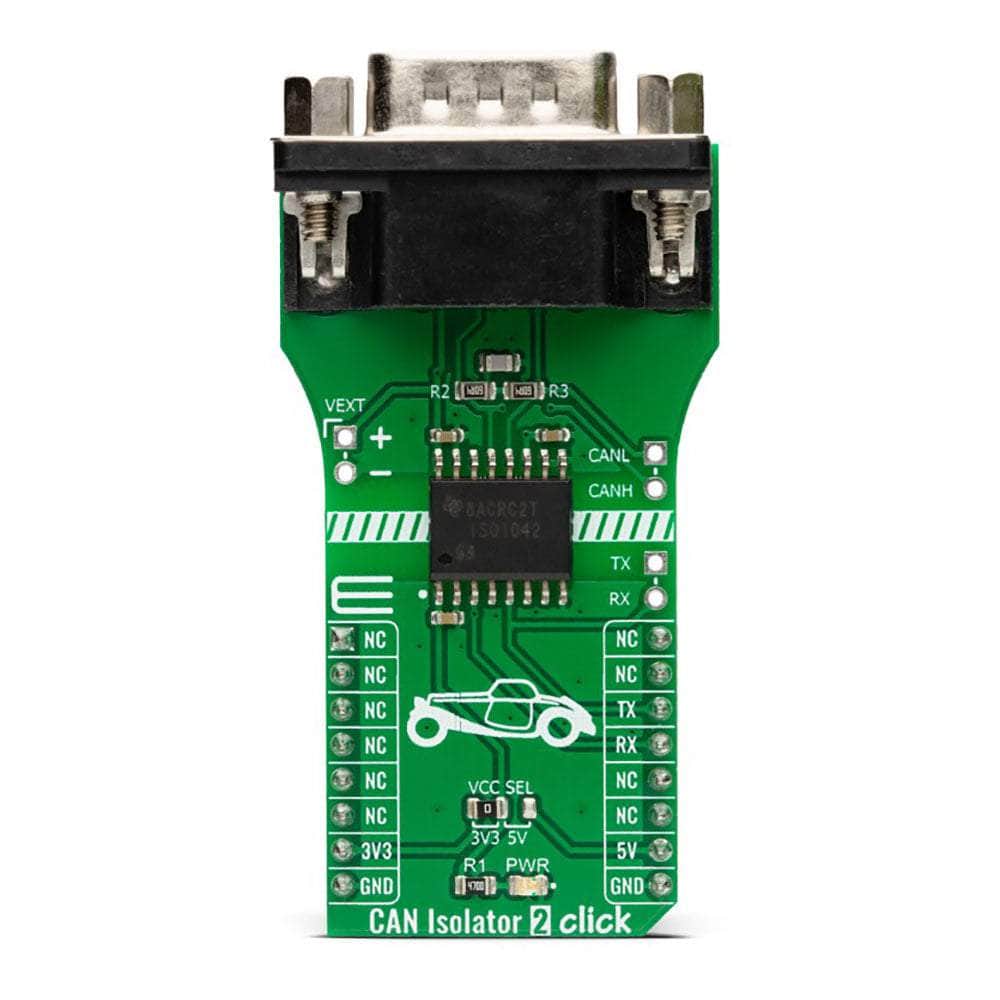

The CAN Isolator 2 Click Board™ is a compact add-on board that provides isolated CAN communication. This board features the ISO1042, an isolated CAN transceiver from Texas Instruments.

Galvanically-Isolated CAN Transceiver

This galvanically-isolated CAN transceiver meets the ISO11898-2 specifications and offers a +/-70V DC bus fault protection, along with the +/-30V of common mode voltage range.

High-Speed CAN Communication

The transceiver supports two CAN modes, with speeds of up to 1Mbps in Classic CAN and flexible data rate (FD) CAN, which allows much faster transfer of payload compared to the classic CAN with up to 5Mbps.

Perfect Solution for Various Applications

This Click board™ makes the perfect solution for the development of:

  • Solar inverters
  • AC and servo drives
  • Industrial field networks
  • PLC and DCS communication modules
  • Battery charging and management
  • And more

mikroSDK Compliant Library

The CAN Isolator 2 Click Board™ is supported by a mikroSDK compliant library, which includes functions that simplify software development.

Ready to Use

This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.
