Wireless SUN Click Board
Couldn't load pickup availability
Key Features
- Wi-SUN FAN certified, supports multi-hop mesh network and channel hopping, high data rates, adjustable transmission power, built-in Wi-SUN FAN software stack, and more
- Based on the BP35C5 - ultra-compact Wi-SUN FAN compatible wireless communication module from Rohm Semiconductor
- Can be used for social infrastructures such as traffic lights and street lights, smart buildings, and logistics
- mikroBUS: UART Interface

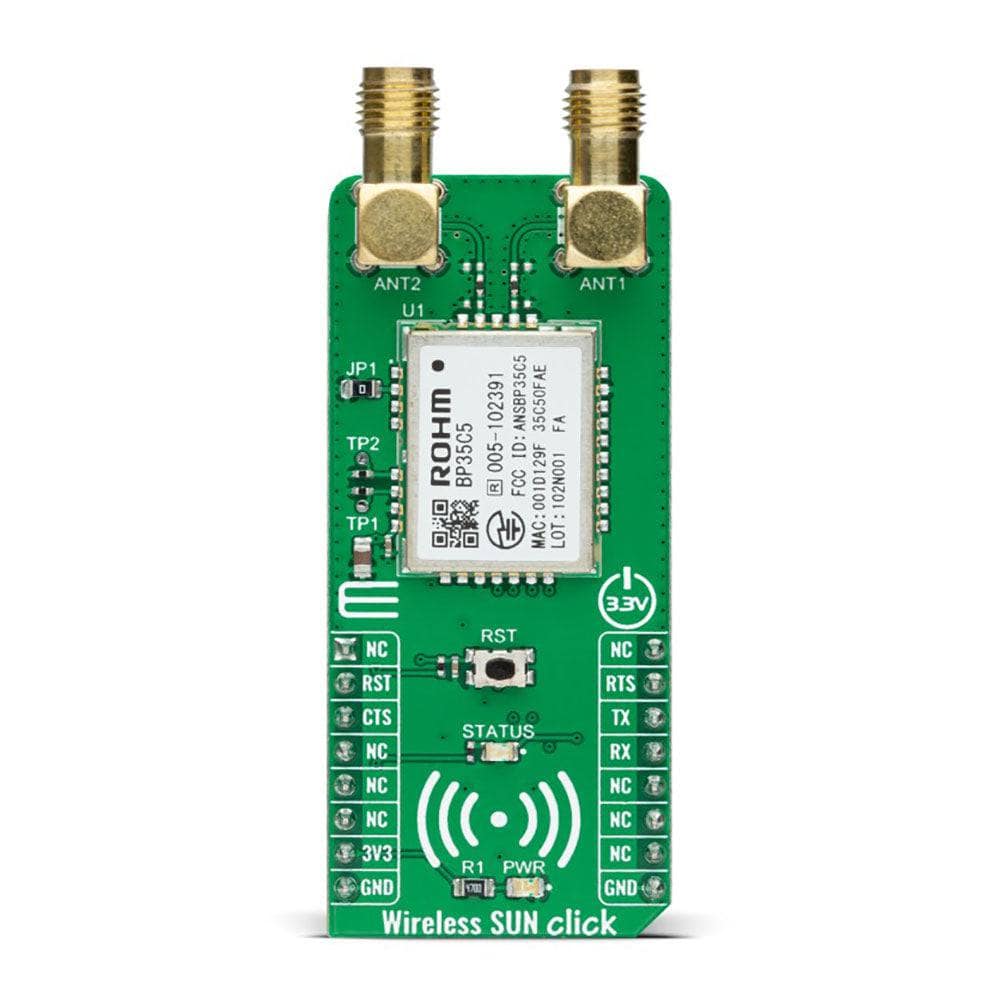

The Wireless SUN Click Board™ is a compact add-on board representing a Wireless Smart Utility Network for Field Area Network (Wi-SUN FAN) solution. This board features the BP35C5, a Wi-SUN FAN-compatible wireless communication module from Rohm Semiconductor. The BP35C5 operates in the 920MHz band and includes a Wi-SUN software stack that enables operation at different transmission modes for high efficiency. Besides, certification under ARIB and the FCC allows immediate use in Japan and the US in large-scale (up to 1,000-node Sub-GHz) multi-hop mesh networks supporting channel hopping. This Click board™ is suitable for social infrastructures such as traffic lights and street lights, smart buildings, and logistics, allowing a remote management system to be built that covers the entire city.
The Wireless SUN Click Board™ is supported by a mikroSDK-compliant library, which includes functions that simplify software development. This Click board™ comes as a thoroughly tested product, ready to be used on a system equipped with the mikroBUS™ socket.
How Does The Wireless SUN Click Board™ Work?
The Wireless SUN Click Board™ is based on the BP35C5, an ultra-compact Wi-SUN FAN compatible wireless communication module from Rohm Semiconductor. The BP35C5 has been certified by the Radio Law of ARIB and FCC, so it can be used in Japan and the United States operating at the frequency of 920MHz with a binary GFSK modulation method. It also includes a Wi-SUN software stack that enables operation at different transmission modes (20, 10, or 1mW) for high efficiency. In addition, since it has a built-in security function and supports communication encryption and security key update on the module side, it can perform secure communication efficiently without complicated control.
As mentioned before, this module uses the Wi-SUN FAN (Field Area Network) mesh networking protocol, consisting of a parent repeater called Border Router, a repeater called Router, and a terminal called Leaf. It can cover a wide range because of its relay function (hopping function). That's why it is possible to build a mesh network of up to 1000 units - multi-hop mesh networks supporting channel hopping with the ability to avoid radio interference by automatic routing (ability to switch routes automatically). This feature makes it suitable for social infrastructure applications such as traffic lights and street lights, building a remote management system that covers the entire city.
The Wireless SUN Click Board™ communicates with MCU using the UART interface with commonly used UART RX, TX, and hardware flow control pins UART CTS and RTS (Clear to Send and Ready to Send). It operates at 115200 bps by default configuration to transmit and exchange data with the host MCU. Besides, additional onboard test points TP1 and TP2 offer users full support of debugging and programming capabilities through a Serial Wire Debug interface for programming and debugging, available through the SWD interface pins (SWCK and SWD).
In addition to the appropriate interfaces, this Click board™ also has some additional features. A Reset button routed to the RST pin on the mikroBUS™ socket puts the module into a Reset state. At the same time, a blue LED indicator labelled STATUS represents a broadcast transmitting status LED indicator.
The Wireless SUN Click Board™ can be operated only with a 3.3V logic voltage level. The board must perform appropriate logic voltage level conversion before using MCUs with different logic levels. However, the Click board™ comes equipped with a library containing functions and an example code that can be used, as a reference, for further development.
SPECIFICATIONS
| Type | Sub-1 GHz Transceievers |
| Applications | Can be used for social infrastructures such as traffic lights and street lights, smart buildings, and logistics |
| On-board modules | BP35C5 - ultra-compact Wi-SUN FAN compatible wireless communication module from Rohm Semiconductor |
| Key Features | Wi-SUN FAN certified, supports multi-hop mesh network and channel hopping, high data rates, adjustable transmission power, built-in Wi-SUN FAN software stack, and more |
| Interface | UART |
| Compatibility | mikroBUS |
| Click board size | L (57.15 x 25.4 mm) |
| Input Voltage | 3.3V |
PINOUT DIAGRAM
This table shows how the pinout of the Wireless SUN Click Board™ corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
| Notes | Pin |  |
Pin | Notes | |||
|---|---|---|---|---|---|---|---|
| NC | 1 | AN | PWM | 16 | NC | ||
| Reset | RST | 2 | RST | INT | 15 | RTS | UART RTS |
| UART CTS | CTS | 3 | CS | RX | 14 | TX | UART TX |
| NC | 4 | SCK | TX | 13 | RX | UART RX | |
| NC | 5 | MISO | SCL | 12 | NC | ||
| NC | 6 | MOSI | SDA | 11 | NC | ||
| Power Supply | 3.3V | 7 | 3.3V | 5V | 10 | NC | |
| Ground | GND | 8 | GND | GND | 9 | GND | Ground |
ONBOARD SETTINGS AND INDICATORS
| Label | Name | Default | Description |
|---|---|---|---|
| LD1 | PWR | - | Power LED Indicator |
| LD2 | STATUS | - | Broadcast Status LED Indicator |
| T1 | RESET | - | Reset Button |
| TP1-TP2 | TP1-TP2 | - | SWD Interface Testpoints for Debugging |
WIRELESS SUN CLICK ELECTRICAL SPECIFICATIONS
| Description | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Supply Voltage | - | 3.3 | - | V |
| Frequency Range | 902.2 | 920 | 928 | MHz |
| RX Sensitivity | - | -105 | - | dBm |
| Operating Temperature Range | -30 | +25 | +85 | °C |
Software Support
Software Support
We provide a library for the Wireless SUN Click Board™ as well as a demo application (example), developed using MikroElektronika compilers. The demo can run on all the main MikroElektronika development boards.
The package can be downloaded/installed directly from NECTO Studio The package Manager (recommended), downloaded from our LibStock™ or found on the MikroE Github account.
Library Description
This library contains API for the Wireless SUN Click Board™ driver.
Key functions
-
wirelesssun_send_cmdThis function sends a specified command to the Click Board™ module. -
wirelesssun_send_cmd_with_parameterThis function sends a specified command to the Click Board™ module with desired parameters appended to. -
wirelesssun_generic_readThis function reads the desired number of data bytes by using the UART serial interface.
Example Description
This example demonstrates the Wireless SUN Click Board™ by showing the communication between the two Click Board™ boards configured as BORDER and ROUTER.
void application_task ( void )
{
#ifdef DEMO_APP_BORDER
wirelesssun_process( );
if ( strstr( app_buf, WIRELESSSUN_CMD_PROMPT_SIGN ) )
{
uint8_t demo_hex_msg[ 100 ] = { 0 };
uint8_t demo_text_msg[ 50 ] = { 0 };
char * __generic_ptr start_msg_ptr = NULL;
char * __generic_ptr end_msg_ptr = NULL;
uint8_t msg_len = 0;
uint8_t msg_cnt = 0;
if ( ( strstr( app_buf, WIRELESSSUN_RSP_TCPR ) ) || ( strstr( app_buf, WIRELESSSUN_RSP_UDPR ) ) )
{
if ( strstr( app_buf, WIRELESSSUN_RSP_TCPR ) )
{
start_msg_ptr = strstr( app_buf, WIRELESSSUN_RSP_TCPR );
}
else
{
start_msg_ptr = strstr( app_buf, WIRELESSSUN_RSP_UDPR );
}
start_msg_ptr = strstr ( start_msg_ptr, ">" ) + 2;
end_msg_ptr = strstr( start_msg_ptr, WIRELESSSUN_CMD_PROMPT_SIGN );
msg_len = ( end_msg_ptr - start_msg_ptr );
memcpy ( demo_hex_msg, start_msg_ptr, msg_len );
for ( msg_cnt = 0; msg_cnt < msg_len; msg_cnt += 2 )
{
demo_text_msg[ msg_cnt / 2 ] = hex_to_uint8 ( &demo_hex_msg [ msg_cnt ] );
}
if ( strstr( app_buf, WIRELESSSUN_RSP_TCPR ) )
{
log_printf( &logger, "rn - Received TCP message: "%s" -rn", demo_text_msg );
}
else
{
log_printf( &logger, "rn - Received UDP message: "%s" -rn", demo_text_msg );
}
}
wirelesssun_clear_app_buf( );
}
#else
wirelesssun_wait_for_connection ( );
uint8_t gbl_address[ 20 ] = { 0 };
wirelesssun_get_parent_gbl_address ( gbl_address );
for ( ; ; )
{
uint8_t tcp_udp_params[ 120 ] = { 0 };
uint8_t demo_hex_msg[ 100 ] = { 0 };
uint8_t demo_text_msg[ 50 ] = { 0 };
uint8_t msg_cnt = 0;
strcpy ( demo_text_msg, DEMO_TEXT_MESSAGE );
strcpy ( tcp_udp_params, gbl_address );
strcat ( tcp_udp_params, WIRELESSSUN_CMD_DELIMITER );
strcat ( tcp_udp_params, WIRELESSSUN_DEFAULT_PORT );
strcat ( tcp_udp_params, WIRELESSSUN_CMD_DELIMITER );
for ( msg_cnt = 0; msg_cnt < strlen ( demo_text_msg ); msg_cnt++ )
{
uint8_to_hex ( demo_text_msg[ msg_cnt ], &demo_hex_msg[ msg_cnt * 2 ] );
}
strcat ( tcp_udp_params, demo_hex_msg );
log_printf( &logger, "rn - Sending "%s" message via TCP -rn", demo_text_msg );
wirelesssun_send_cmd_with_parameter ( &wirelesssun, WIRELESSSUN_CMD_TCPS, tcp_udp_params );
wirelesssun_rsp_check ( );
Delay_ms ( 3000 );
log_printf( &logger, "rn - Sending "%s" message via UDP -rn", demo_text_msg );
wirelesssun_send_cmd_with_parameter ( &wirelesssun, WIRELESSSUN_CMD_UDPS, tcp_udp_params );
wirelesssun_rsp_check ( );
Delay_ms ( 3000 );
}
#endif
}
The complete application code, and ready to use projects can be installed directly from NECTO Studio. The package Manager (recommended), downloaded from our LibStock™ or found on the MikroE Github account.
Other MikroE Libraries used in the example:
- MikroSDK.Board
- MikroSDK.Log
- Click.WirelessSUN
Additional Notes and Information
Depending on the development board you are using, you may needs a USB UART Click Board™, USB UART 2 Click or RS232 Click to connect to your PC, for development systems with no UART to USB interface available on the board. UART terminal is available in all MikroElektronika compilers.
