The MRAM 3 Click Board™ is a compact add-on board representing a magnetoresistive random-access memory solution. This board features the AS3001204, 1Mb high-performance serial SPI MRAM memory organized as 128K words of 8 bits each from Avalanche Technology. The MRAM technology is analogue to Flash technology with SRAM-compatible read/write timings (Persistent SRAM, P-SRAM), where data is always non-volatile. It also has a hardware write-protection feature and performs read and write operations with data retention for one million years and write endurance of 10¹⁴cycles. This Click board™ is suitable for data storage and retrieval applications without incurring significant latency penalties.

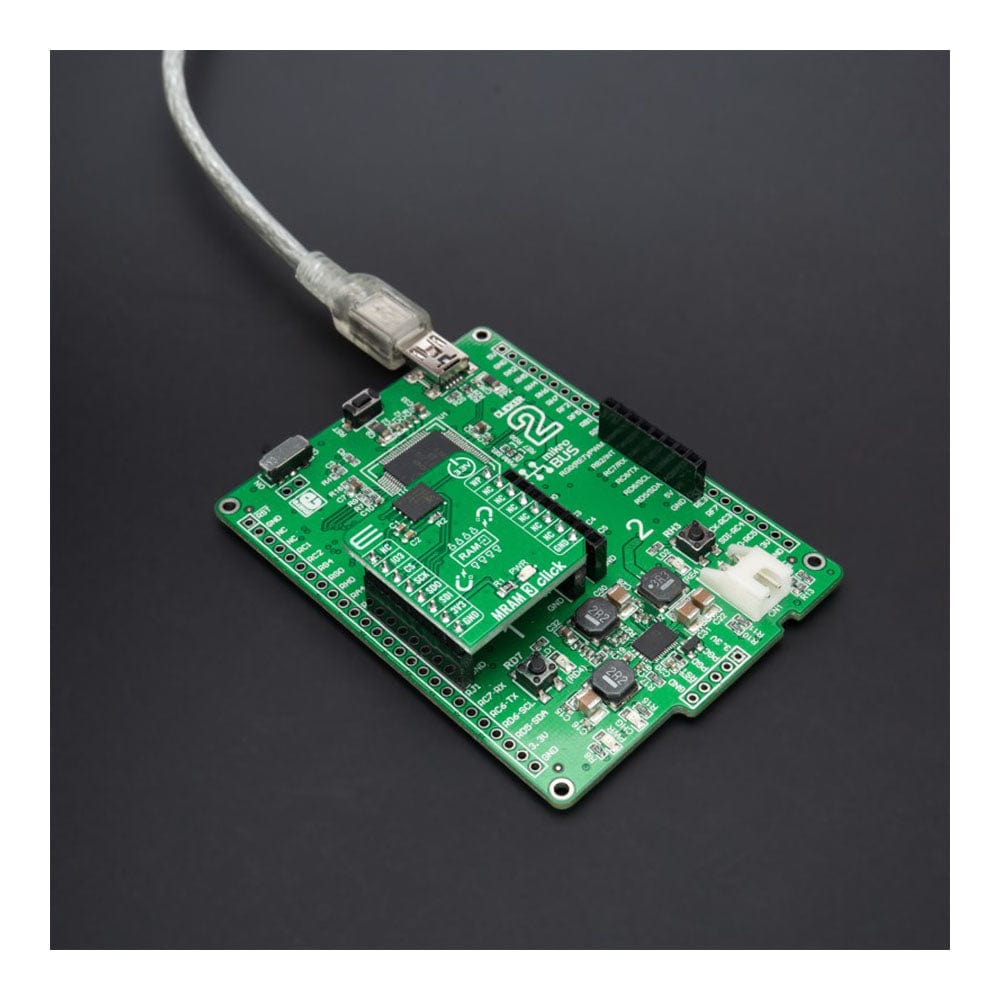

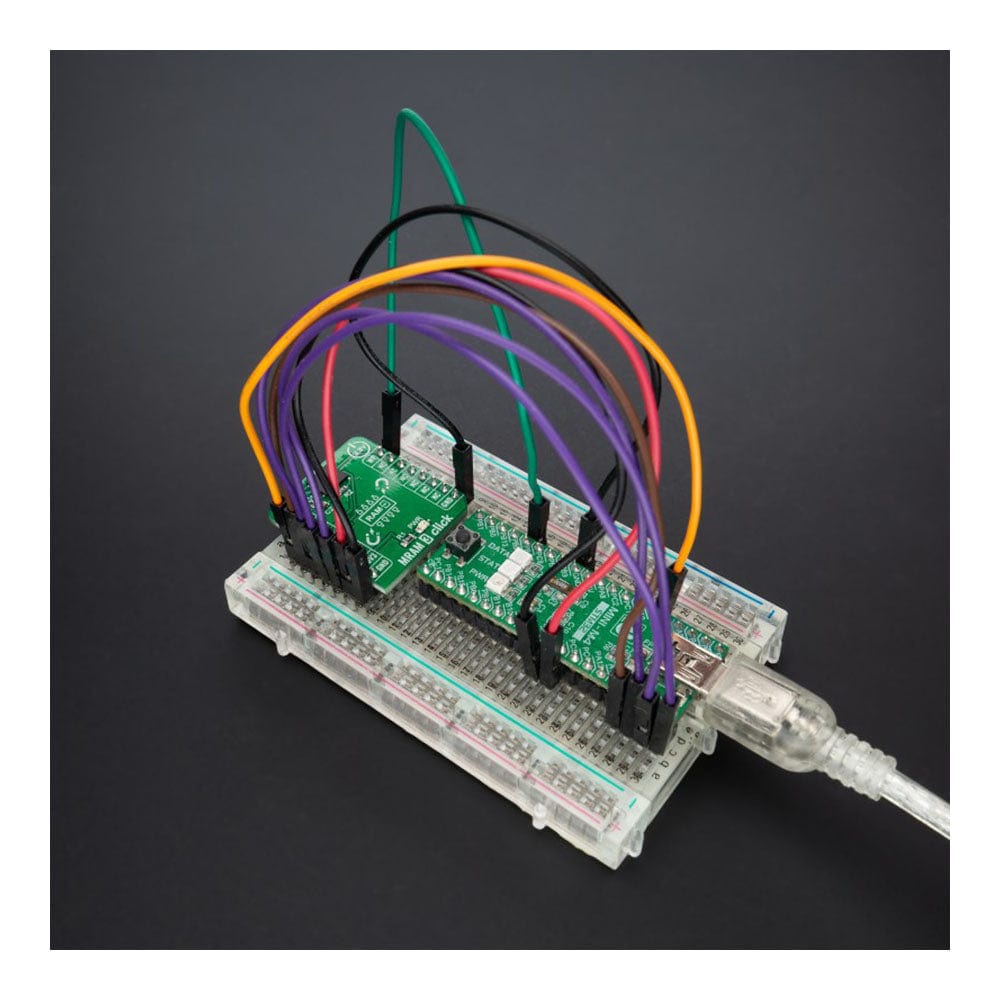

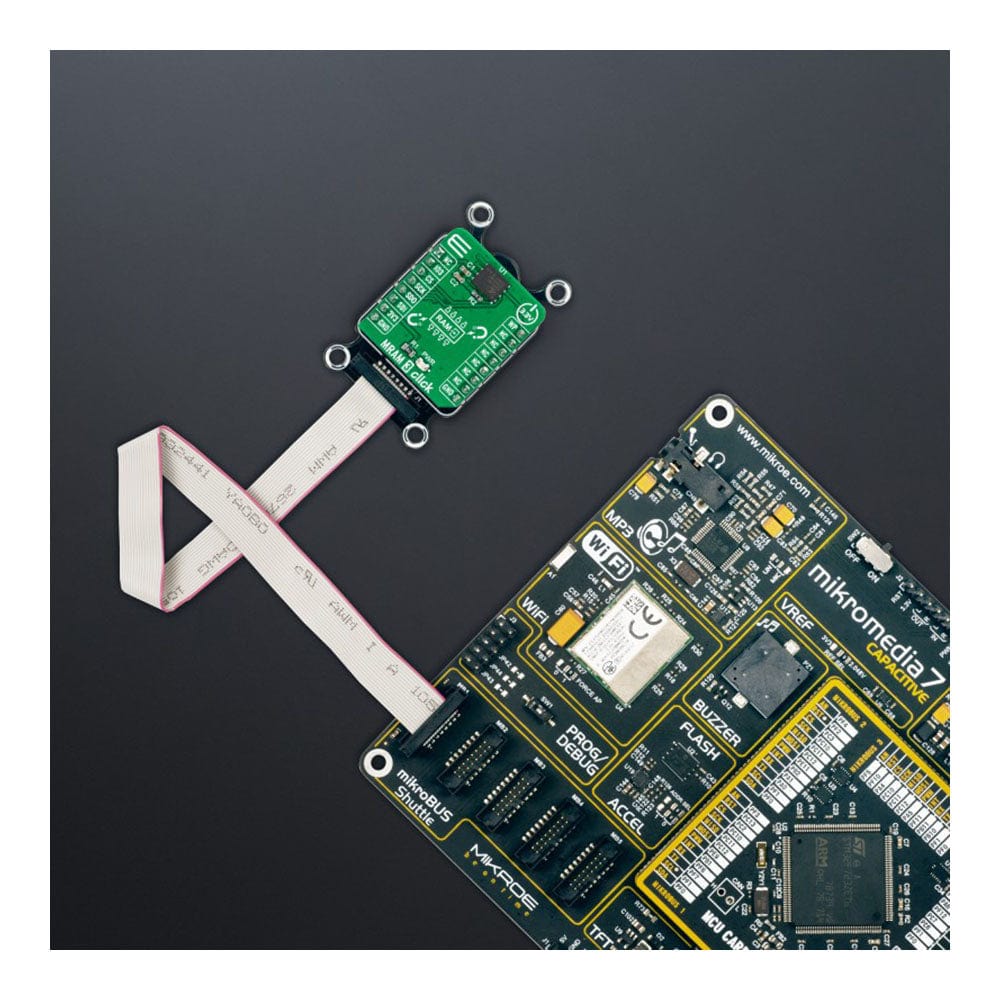

The MRAM 3 Click Board™ is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.

View full details

Product Description

How Does The MRAM 3 Click Board™ Work?

The MRAM 3 Click Board™ is based on the AS3001204, a 1Mb MRAM memory with an SPI interface and Write Protection feature from Avalanche Technology. The AS3001204 is organized as 128K words of 8 bits each and benefits from 1.000.000 years of data retention combining their unprecedented data storage with excellent energy efficiency. It is highly reliable, lasting 10¹⁴ full-memory read/write/erase cycles, which makes this Click board™ suitable for high-reliability applications as a non-volatile storage media or temporary RAM expansion for storing data in any embedded application.

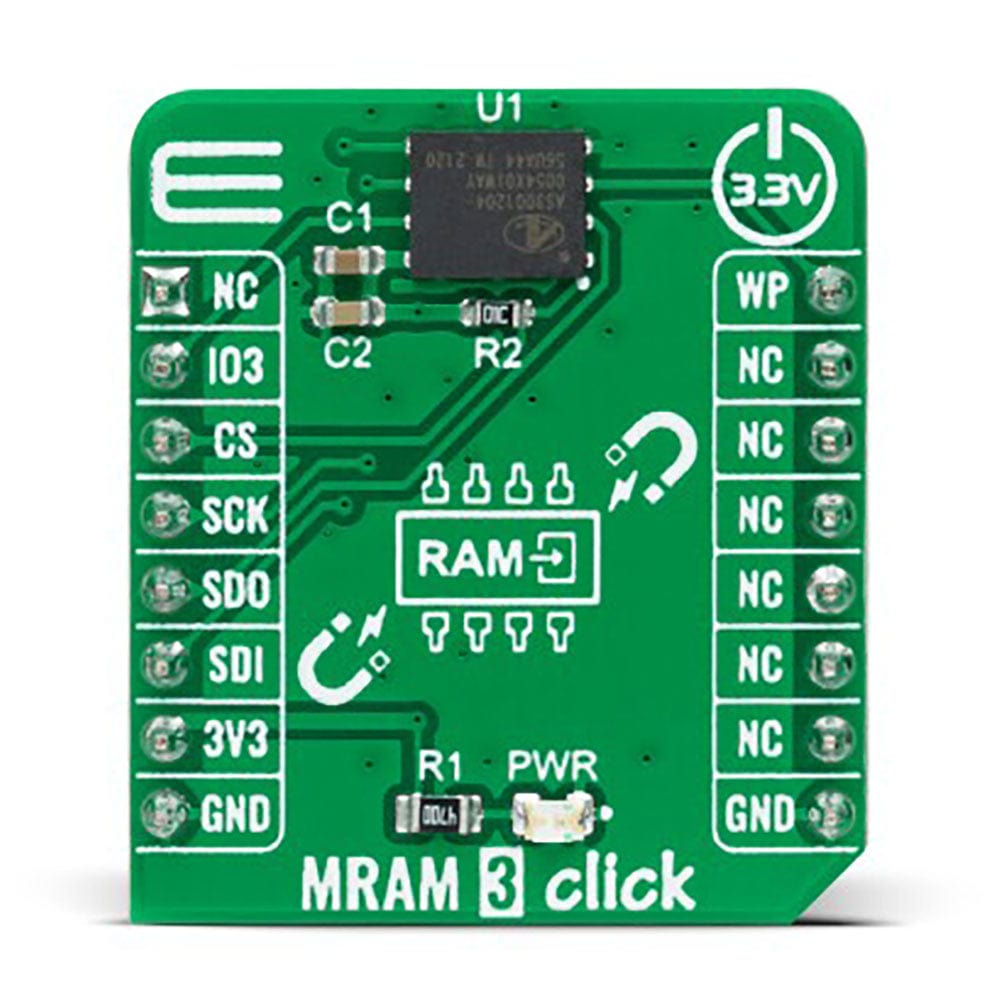

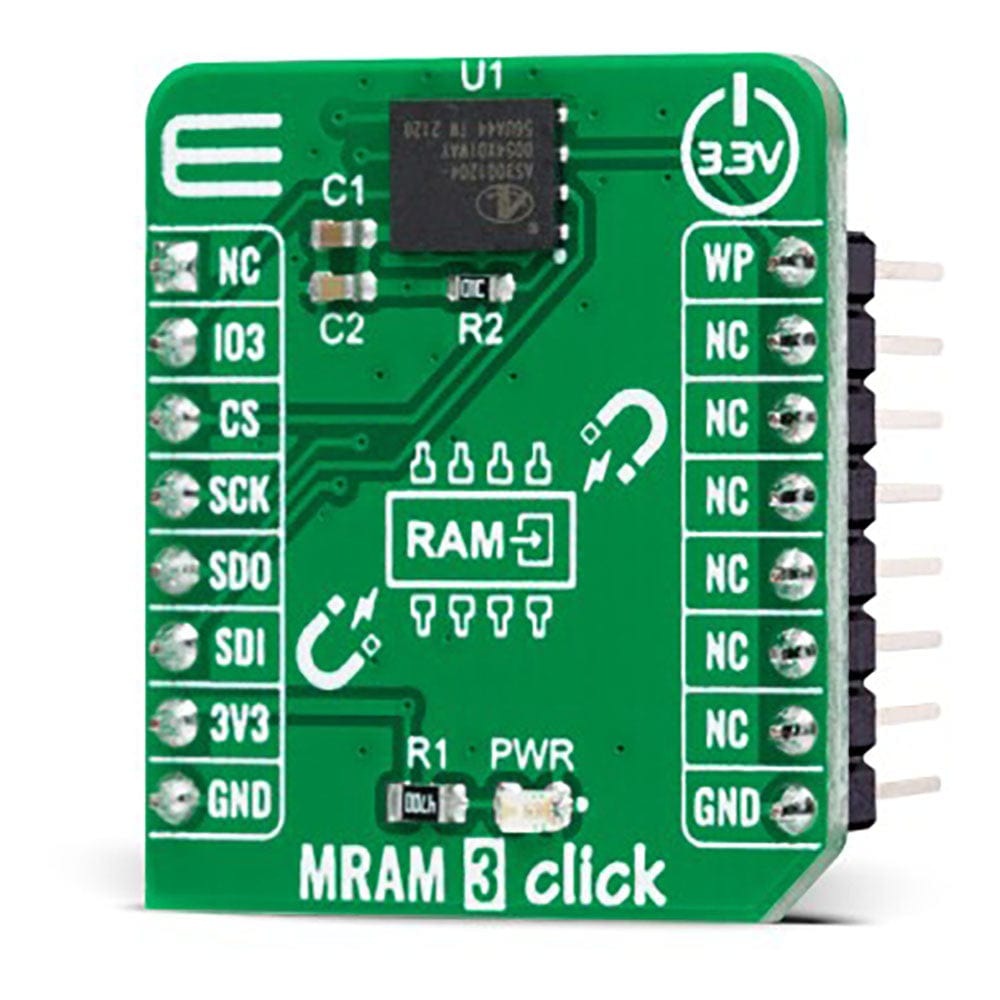

MRAM 3 Click Board™ inner

The AS3001204 is an accurate random-access memory allowing both reads and writes to occur randomly in memory. It offers low latency, low power, and scalable non-volatile memory technology. The MRAM technology is analog to Flash technology with SRAM compatible read/write timings (Persistent SRAM, P-SRAM), where data is always non-volatile.

The MRAM 3 Click Board™ communicates with MCU using the SPI serial interface that supports the Dual/Quad SPI and the two most common modes, SPI Mode 0 and 3, with a maximum SPI frequency of 108MHz. Alongside an SPI-compatible bus interface, the AS3001204 also features an eXecute-In-Place (XIP) functionality which allows completing a series of reading and writing instructions without having to individually load the read or write command for each instruction and hardware/software-based data protection mechanisms.

Hardware Write Protection function, labelled as WP routed to the PWM pin of the mikroBUS™ socket, allows the user to freeze the entire memory area, thus protecting it from Write instructions. The other pin, the IO3 pin routed to the RST pin of the mikroBUS™ socket, represents the bidirectional I/O that transfers data into and out of the device in Dual and Quad SPI modes.

The MRAM 3 Click Board™ can be operated only with a 3.3V logic voltage level. The board must perform appropriate logic voltage level conversion before using MCUs with different logic levels. However, the Click board™ comes equipped with a library containing functions and an example code that can be used, as a reference, for further development.

SPECIFICATIONS

Type	MRAM
Applications	Can be used for applications that need data storage and retrieval without incurring significant latency penalties
On-board modules	AS3001204 - 1Mb MRAM memory from Avalanche Technology
Key Features	Virtually unlimited endurance and data, hardware/software-based data protection mechanisms, low power consumption, SPI/QSPI interface, and more
Interface	QSPI, SPI
Compatibility	mikroBUS
Click board size	S (28.6 x 25.4 mm)
Input Voltage	3.3V

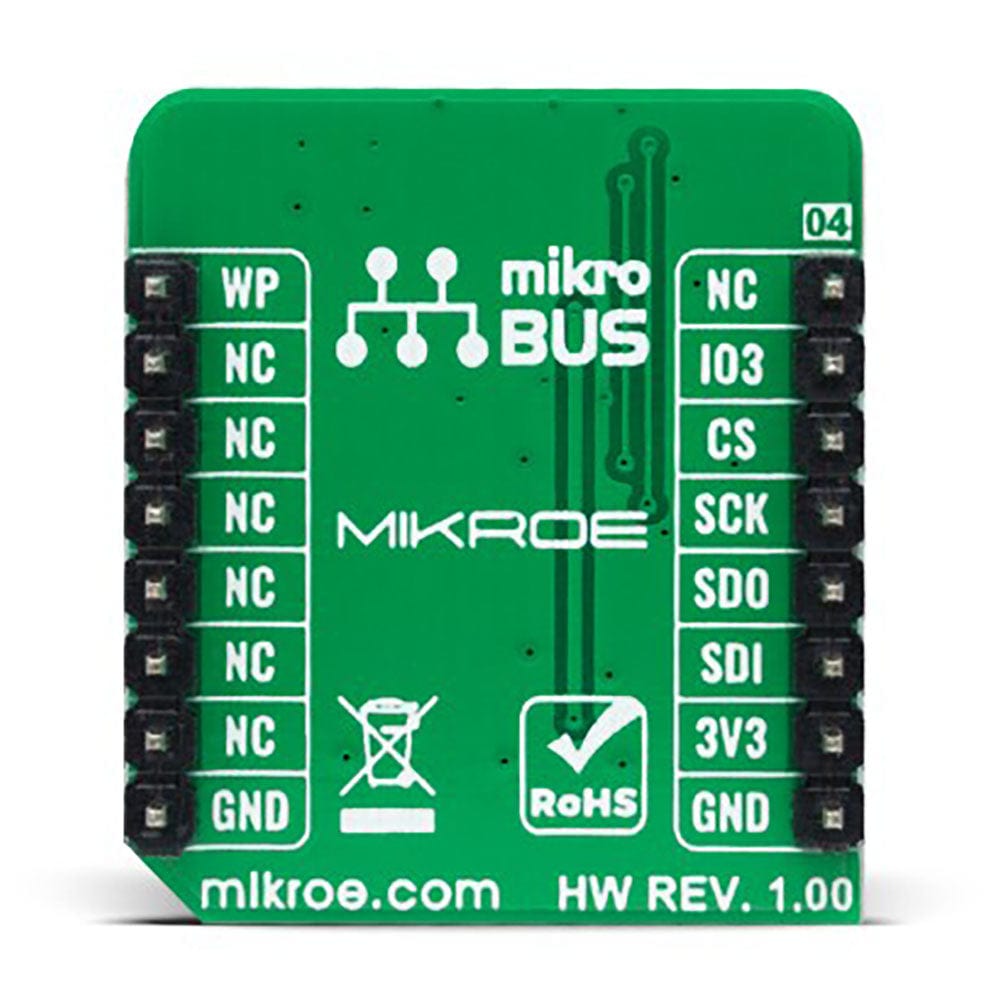

PINOUT DIAGRAM

This table shows how the pinout of the MRAM 3 Click Board™ corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).

Notes	Pin					Pin	Notes
NC	1	AN	PWM	16	WP	Write Protect / QSPI IO2
QSPI IO3	IO3	2	RST	INT	15	NC
SPI Chip Select	CS	3	CS	RX	14	NC
SPI Clock	SCK	4	SCK	TX	13	NC
SPI Data OUT / QSPI IO1	SDO	5	MISO	SCL	12	NC
SPI Data IN / QSPI IO0	SDI	6	MOSI	SDA	11	NC
Power Supply	3.3V	7	3.3V	5V	10	NC
Ground	GND	8	GND	GND	9	GND	Ground

ONBOARD SETTINGS AND INDICATORS

Label	Name	Default	Description
LD1	PWR	-	Power LED Indicator

MRAM 3 CLICK ELECTRICAL SPECIFICATIONS

Description	Min	Typ	Max	Unit
Supply Voltage	-	3.3	-	V
Memory Size	-	-	1	Mb
Endurance	10¹⁴	-	-	Cycles
Data Retention	10⁶	-	-	Years
Operating Temperature Range	-40	+25	+85	°C

Software Support

We provide a library for the MRAM 3 Click Board™ as well as a demo application (example), developed using MikroElektronika compilers. The demo can run on all the main MikroElektronika development boards.

The package can be downloaded/installed directly from NECTO Studio The package Manager (recommended), downloaded from our LibStock™ or found on the MikroE Github account.

Library Description

This library contains API for the MRAM 3 Click Board™ driver.

Key functions

mram3_memory_write This function writes the desired number of data bytes starting from the selected memory address.
mram3_memory_read This function reads the desired number of data bytes starting from the selected memory address.
mram3_aug_memory_write This function writes the desired number of data bytes starting from the selected augmented memory address.

Example Description

This example demonstrates the use of the MRAM 3 Click Board™ by writing specified data to the memory and reading it back.

void application_task ( void )
 {
     uint8_t data_buf[ 128 ] = { 0 };
     memcpy ( data_buf, DEMO_TEXT_MESSAGE_1, strlen ( DEMO_TEXT_MESSAGE_1 ) );
     if ( MRAM3_OK == mram3_memory_write ( &mram3, STARTING_ADDRESS,
                                           data_buf, sizeof ( data_buf ) ) )
     {
         log_printf ( &logger, "Data written to address 0x%.5LX: %srn", ( uint32_t ) STARTING_ADDRESS,
                                                                                       data_buf );
     }
     memset ( data_buf, 0, sizeof ( data_buf ) );
     if ( MRAM3_OK == mram3_memory_read ( &mram3, STARTING_ADDRESS,
                                          data_buf, sizeof ( data_buf ) ) )
     {
         log_printf ( &logger, "Data read from address  0x%.5LX: %srn", ( uint32_t ) STARTING_ADDRESS,
                                                                                       data_buf );
         Delay_ms ( 3000 );
     }
     memcpy ( data_buf, DEMO_TEXT_MESSAGE_2, strlen ( DEMO_TEXT_MESSAGE_2 ) );
     if ( MRAM3_OK == mram3_memory_write ( &mram3, STARTING_ADDRESS,
                                           data_buf, sizeof ( data_buf ) ) )
     {
         log_printf ( &logger, "Data written to address 0x%.5LX: %srn", ( uint32_t ) STARTING_ADDRESS,
                                                                                       data_buf );
     }
     memset ( data_buf, 0, sizeof ( data_buf ) );
     if ( MRAM3_OK == mram3_memory_read ( &mram3, STARTING_ADDRESS,
                                          data_buf, sizeof ( data_buf ) ) )
     {
         log_printf ( &logger, "Data read from address  0x%.5LX: %srnn", ( uint32_t ) STARTING_ADDRESS,
                                                                                         data_buf );
         Delay_ms ( 3000 );
     }
 }

The complete application code and ready-to-use projects can be installed directly from NECTO Studio The package Manager (recommended), downloaded from our LibStock™ or found on the MikroE Github account.

Other MikroE Libraries used in the example:

MikroSDK.Board
MikroSDK.Log
Click.MRAM3

Additional Notes and Information

Depending on the development board you are using, you may need a USB UART Click Board™, USB UART 2 Click, or RS232 Click to connect to your PC for development systems with no UART to USB interface available on the board. UART terminal is available in all MikroElektronika compilers.

MIKROSDK

The MRAM 3 Click Board™ is supported with mikroSDK - MikroElektronika Software Development Kit. To ensure proper operation of mikroSDK compliant Click board™ demo applications, mikroSDK should be downloaded from the LibStock and installed for the compiler you are using.
