SKU: MIKROE-5183Radar Click Board
Radar Click Board
Couldn't load pickup availability
Key Features
- Integrated mmWave technology, low power consumption, high resolution, adjustable detection range, immune to environmental factors, up to 10m/5m for macro/micro motion, and more
- Based on the MM5D91-00 - presence detection sensor module from Jorjin Technologies Inc
- Can be used for various presence sensing applications, from office and home to commercial buildings and more
- mikroBUS: UART Interface
Introducing the Radar Click Board™ - Your Ultimate Solution to Presence Detection!
Are you tired of traditional presence detection systems that fail to deliver accurate results? Do you want a smarter solution that can help you detect intruders with ease? Look no further than the Radar Click Board™!
Our advanced board utilizes cutting-edge technology to detect the infrared radiation emanating from an intruder's body. With the MM5D91-00 presence detection sensor module, which integrates 60GHz mmWave technology, this board can count the number of people entering or exiting an entrance with ease.
Features You'll Love
Our Radar Click Board™ is a comprehensive solution that includes:
- An ARM Cortex-M4F-based processor system
- 1Tx, 3Rx antenna
- Integrated regulator
- Azimuth and elevation field of view of ±45° and ±40°
- Up to 10m detection for macro and 5m detection for micro motion
- Immunity to environmental factors such as temperature, wind, sunlight, and dust
Perfect for Various Presence Sensing Applications
Whether you need to monitor your office, home, or commercial building, the Radar Click Board™ is perfect for various presence sensing applications. Our advanced technology ensures accurate and reliable results every time, helping you stay safe and secure.
Easy to Use and Develop
Our Click board™ is designed to be easy to use and develop. It is supported by a mikroSDK compliant library that includes functions to simplify software development. Plus, our board comes fully tested and ready to be used on a system equipped with the mikroBUS™ socket, making setup a breeze.
Invest in the Radar Click Board™ today and experience the ultimate solution to presence detection!

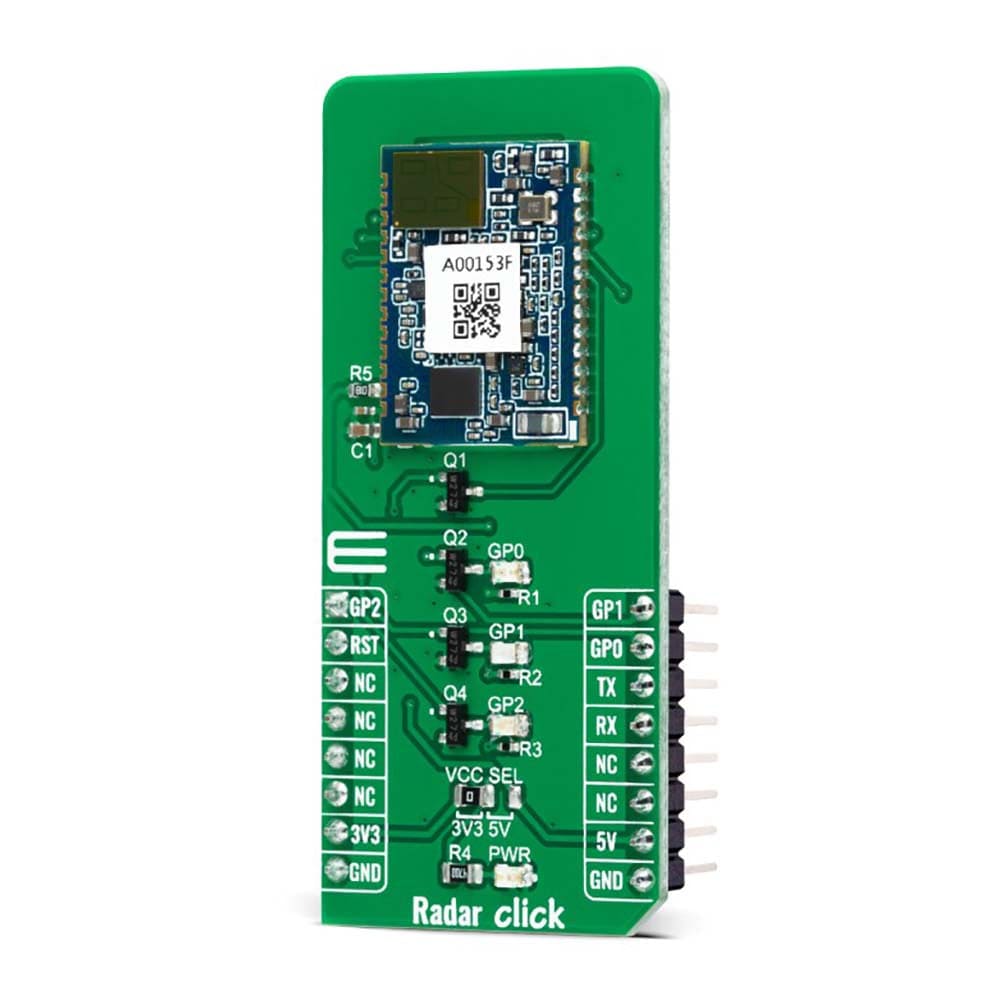

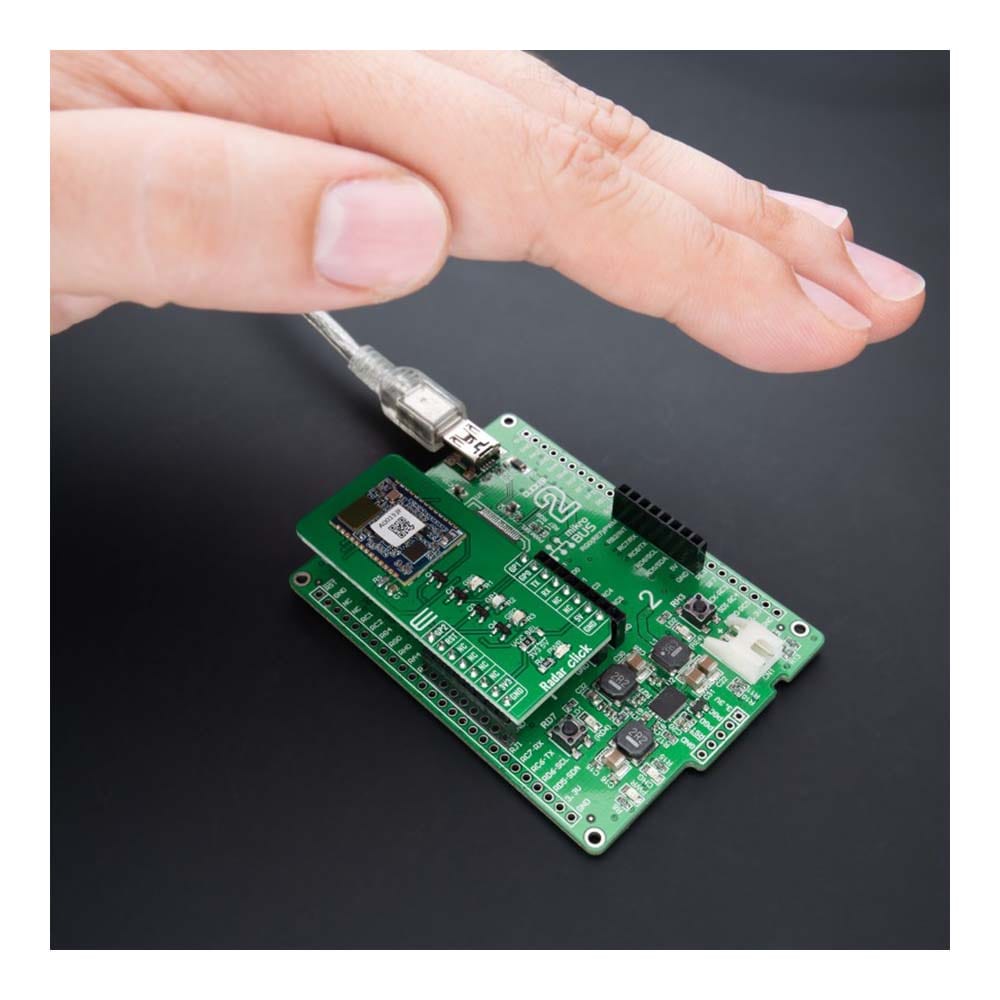

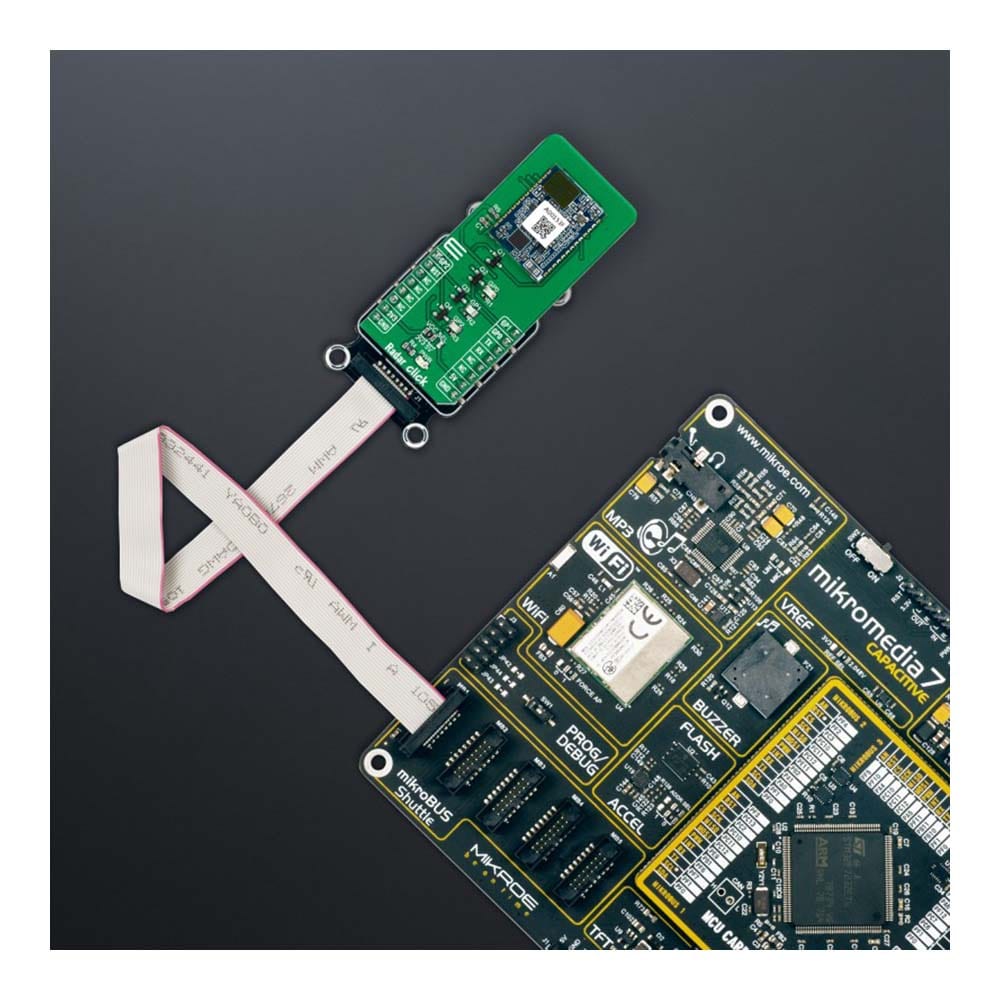

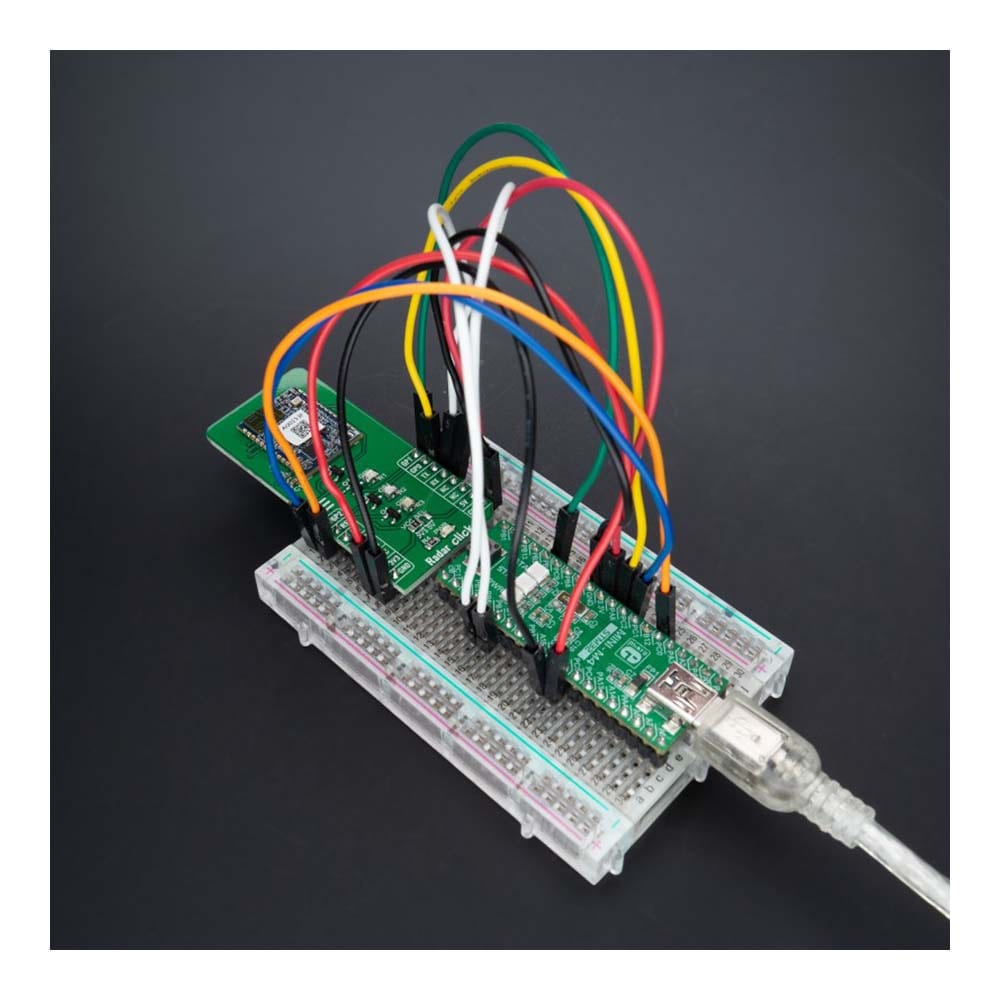

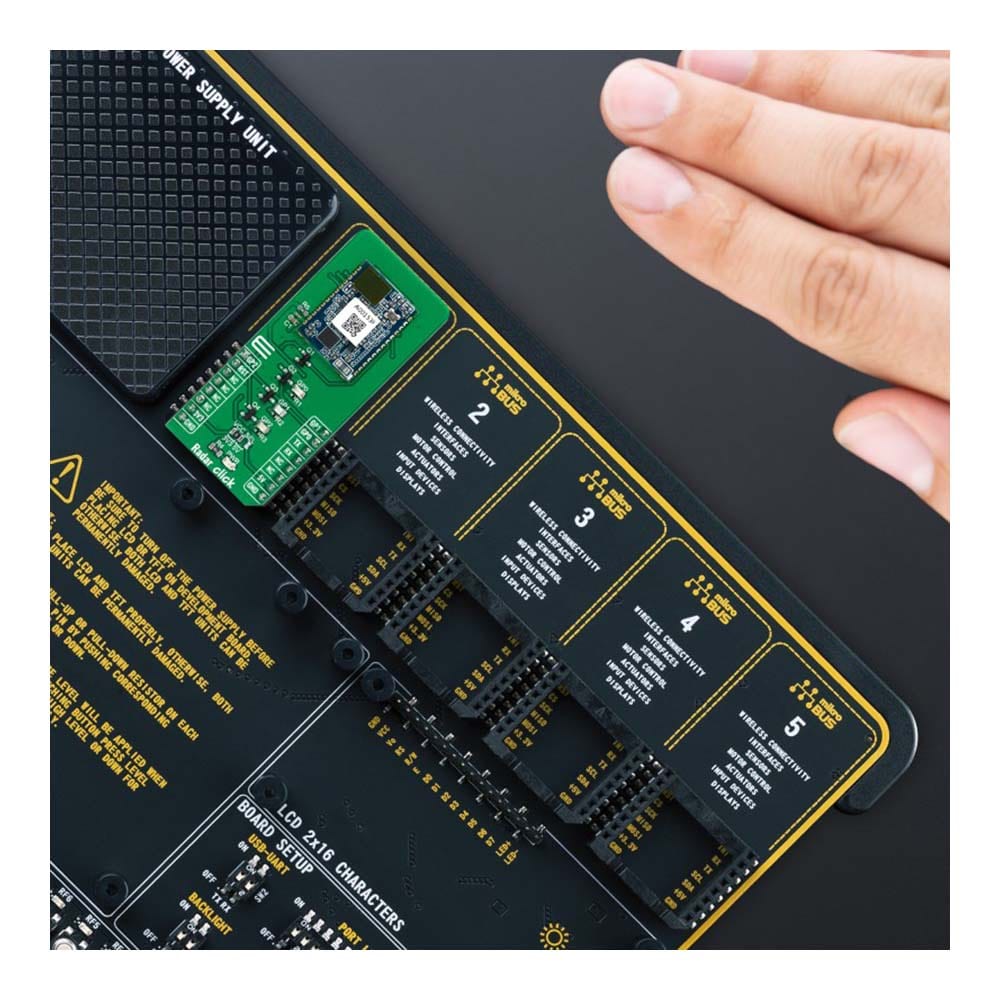

How Does The Radar Click Board™ Work?
The Radar Click Board™ as its foundation uses the MM5D91-00, a presence detection sensor module with an integrated mmWave technology from Jorjin Technologies Inc. It counts the number of people entering or exiting an entrance, simplifies the implementation of mmWave sensors in the band of 61.0 to 61.5GHz, and includes the ARM Cortex-M4F-based processor system 1Tx 3Rx antenna and onboard regulator. This Click board™ is built to demonstrate the function of the entrance counter of the 60GHz radar sensor with its sophisticated radar presence detection algorithms.
Characterized by low power consumption and high resolution, this board represents a suitable solution for various presence sensing applications, from office and home to commercial buildings and more. Its detection range goes up to 10m for macro motion, representing human movements, and 5m for micro motion, which stands for stationary human (normal breathing and blinking eyes) in sitting or standing positions with no active signs for at least 30 seconds. Immune to environmental factors such as temperature, wind, sunlight, and dust/debris, the MM5D91-00 also comes with azimuth and elevation field of view of ±45° and ±40°.
The MM5D91-00 communicates with MCU using the UART interface with the default baud rate of 115200bps for the data transfer. In addition, it also uses several mikroBUS™ pins. An active-low reset signal routed on the RST pin of the mikroBUS™ socket activates a hardware reset of the radar module. It also has three general-purpose pins, routed to the AN, PWM, and INT pins of the mikroBUS™ socket marked as GP2, GP1, and GP0 to signal an essential change in device status, alongside its green, red, and blue LED indicators. Green LED stands for active presence indication, while red LED represents non-presence indication. Blue LED serves for bootloader mode indication.
The Radar Click Board™ can operate with both 3.3V and 5V logic voltage levels selected via the VCC SEL jumper. This way, it is allowed for both 3.3V and 5V capable MCUs to use the communication lines properly. However, the Click board™ comes equipped with a library that contains easy-to-use functions and an example code that can be used, as a reference, for further development.
SPECIFICATIONS
| Type | Motion |
| Applications | Can be used for various presence sensing applications, from office and home to commercial buildings and more |
| On-board modules | MM5D91-00 - presence detection sensor module from Jorjin Technologies Inc |
| Key Features | Integrated mmWave technology, low power consumption, high resolution, adjustable detection range, immune to environmental factors, up to 10m/5m for macro/micro motion, and more |
| Interface | UART |
| Compatibility | mikroBUS |
| Click board size | L (57.15 x 25.4 mm) |
| Input Voltage | 3.3V or 5V |

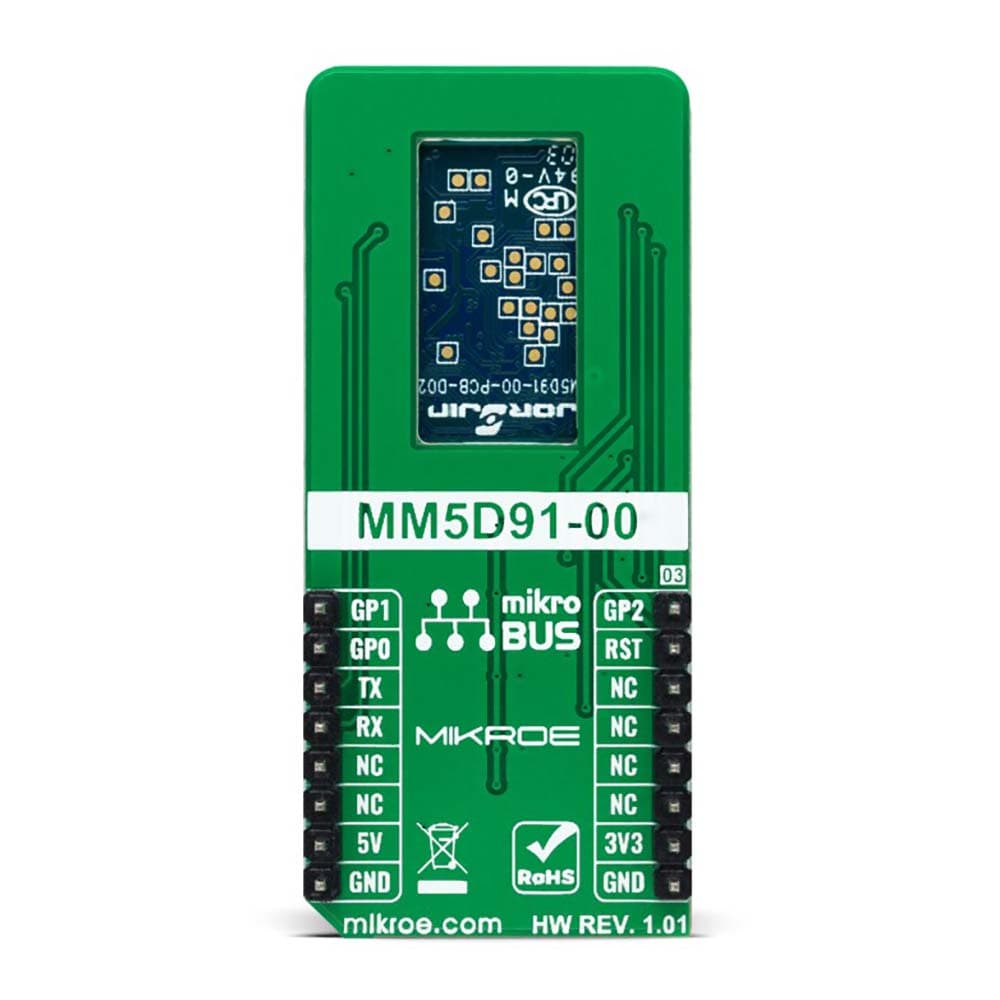

PINOUT DIAGRAM
This table shows how the pinout on Radar Click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
| Notes | Pin |  |
Pin | Notes | |||
|---|---|---|---|---|---|---|---|
| General Purpose 2 | GP2 | 1 | AN | PWM | 16 | GP1 | General Purpose 1 |
| Reset | RST | 2 | RST | INT | 15 | GP0 | General Purpose 0 |
| NC | 3 | CS | RX | 14 | TX | UART TX | |
| NC | 4 | SCK | TX | 13 | RX | UART RX | |
| NC | 5 | MISO | SCL | 12 | NC | ||
| NC | 6 | MOSI | SDA | 11 | NC | ||
| Power Supply | 3.3V | 7 | 3.3V | 5V | 10 | 5V | Power Supply |
| Ground | GND | 8 | GND | GND | 9 | GND | Ground |

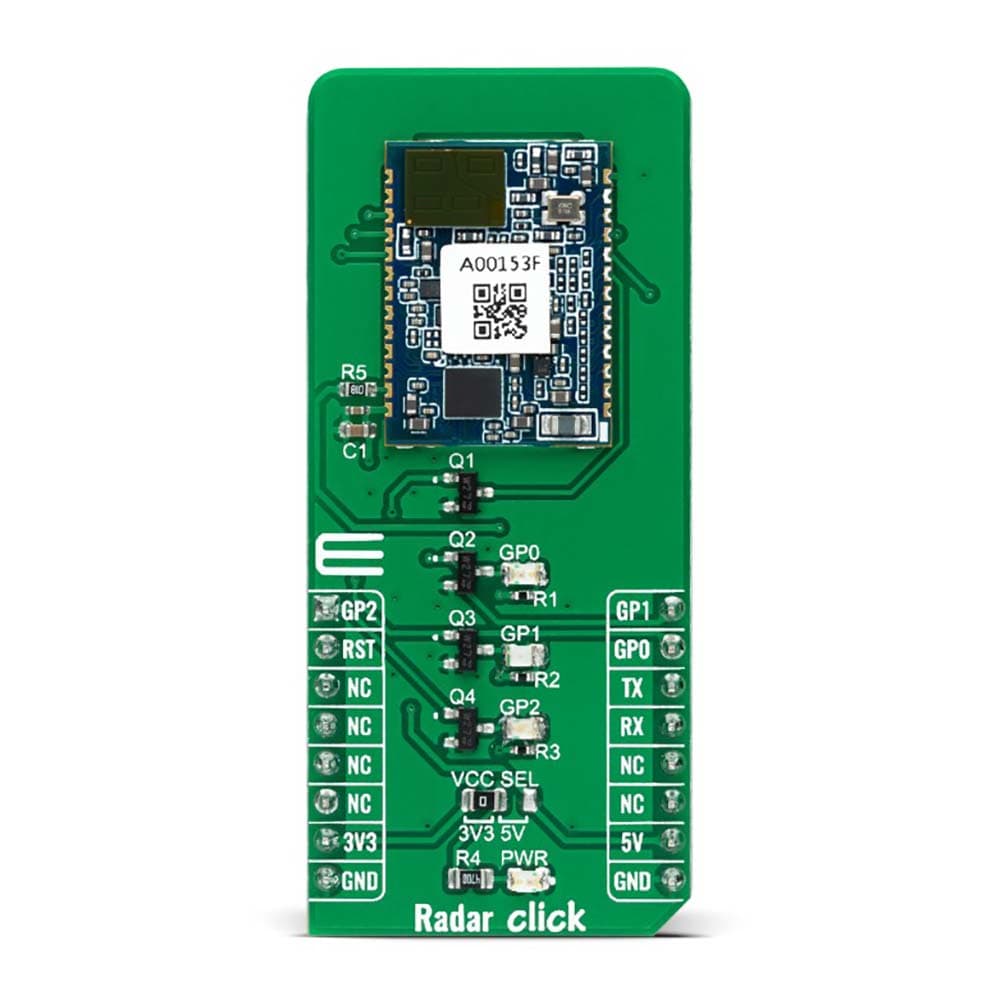

ONBOARD SETTINGS AND INDICATORS
| Label | Name | Default | Description |
|---|---|---|---|
| LD1 | GP0 | - | Presence LED Indicator |
| LD2 | GP1 | - | Non-Presence LED Indicator |
| LD3 | GP2 | - | Bootloader Mode LED Indicator |
| LD4 | PWR | - | Power LED Indicator |
| JP1 | VCC SEL | Left | Logic Level Voltage Selection 3V3/5V: Left position 3V3, Right position 5V |
RADAR CLICK ELECTRICAL SPECIFICATIONS
| Description | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Supply Voltage | 3.3 | - | 5 | V |
| Frequency Range | 61 | - | 61.5 | GHz |
| E-Plane | 25 | 40 | 55 | Deg |
| H-Plane | 30 | 45 | 60 | Deg |
| Operating Temperature Range | -10 | +25 | +70 | °C |
Software Support
We provide a library for the Radar Click Board™ as well as a demo application (example), developed using MikroElektronika compilers. The demo can run on all the main MikroElektronika development boards.
The package can be downloaded/installed directly from NECTO Studio The package Manager (recommended), downloaded from our LibStock™ or found on MikroE Github account.
Library Description
This library contains API for the Radar Click Board™ driver.
Key functions
-
radar_get_eventThis function waits for an IN/OUT event or ACK command response. -
radar_get_temperatureThis function reads the chip internal temperature. -
radar_set_detection_rangeThis function sets the min and max presence detection values.
Example Description
This example demonstrates the use of the Radar Click Board™ by reading and parsing events as well as the module internal temperature.
void application_task ( void )
{
uint8_t evt_id, evt_payload_size, evt_payload[ 16 ];
if ( RADAR_OK == radar_get_event ( &radar, &evt_id, evt_payload, &evt_payload_size ) )
{
if ( RADAR_CMD_ID_DETECT_IN_EVT == evt_id )
{
log_printf( &logger, " EVENT: INrn" );
radar_float_bytes_t distance;
memcpy ( distance.b_data, &evt_payload[ 8 ], 4 );
radar_float_ieee_to_mchip ( &distance.f_data );
log_printf( &logger, " Target distance: %.3f mrn", distance.f_data );
memcpy ( distance.b_data, &evt_payload[ 12 ], 4 );
radar_float_ieee_to_mchip ( &distance.f_data );
log_printf( &logger, " Accuracy (+/-): %.3f mrn", distance.f_data );
}
else
{
log_printf( &logger, " EVENT: OUTrn" );
}
uint32_t evt_time = ( ( uint32_t ) evt_payload[ 3 ] << 24 ) | ( ( uint32_t ) evt_payload[ 2 ] << 16 ) |
( ( uint16_t ) evt_payload[ 1 ] << 8 ) | evt_payload[ 0 ];
log_printf( &logger, " Elapsed time: %.2f srn", evt_time / 1000.0 );
float temperature;
if ( RADAR_OK == radar_get_temperature ( &radar, &temperature ) )
{
log_printf( &logger, " Temperature: %.2f Crnn", temperature );
}
}
}
The full application code, and ready to use projects can be installed directly from NECTO Studio The package Manager (recommended), downloaded from our LibStock™ or found on MikroE Github account.
Other MikroE Libraries used in the example:
- MikroSDK.Board
- MikroSDK.Log
- Click.Radar
Additional Notes and Information
Depending on the development board you are using, you may need USB UART Click Board™, USB UART 2 Click or RS232 Click to connect to your PC, for development systems with no UART to USB interface available on the board. UART terminal is available in all MikroElektronika compilers.
MIKROSDK
The Radar Click Board™ is supported with mikroSDK - MikroElektronika Software Development Kit. To ensure proper operation of mikroSDK compliant Click board™ demo applications, mikroSDK should be downloaded from the LibStock and installed for the compiler you are using.
