SKU: MIKROE-5124GSM 5 Click Board
GSM 5 Click Board
Couldn't load pickup availability
Key Features
- Industry proven SARA form factor, optimized power consumption for IoT applications, GPRS class 12, standard grade, global region, audio and SIM interfaces, jamming detection, and more
- Based on the SARA-G450 - quad-band 2.5G GSM/GPRS module from u-blox
- Can be used for 2G cellular module M2M applications such as utility metering and tracking systems
- mikroBUS: UART Interface
The GSM 5 Click Board™ is a compact add-on board representing a compact GSM cellular network communication solution. This board features the SARA-G450, a GSM/GPRS quad-band cellular module certified and approved by the leading regulatory bodies and operators from u-blox. It features class 12 GSM/GPRS connectivity in the popular u-blox SARA form factor. It has a comprehensive feature set, including an extensive set of internet protocols designed to provide fully integrated access to u-blox GNSS positioning with embedded A-GPS (AssistNow Online and AssistNow Offline) functionality. Besides a data rate up to 85.6 kbps and an advanced jamming detection feature, this board also offers a high-quality integrated audio interface allowing voice communication. This Click board™ is suitable for price-to-performance 2G cellular module M2M applications, such as utility metering and tracking systems.
The GSM 5 Click Board™ is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a thoroughly tested product, ready to be used on a system equipped with the mikroBUS™ socket.

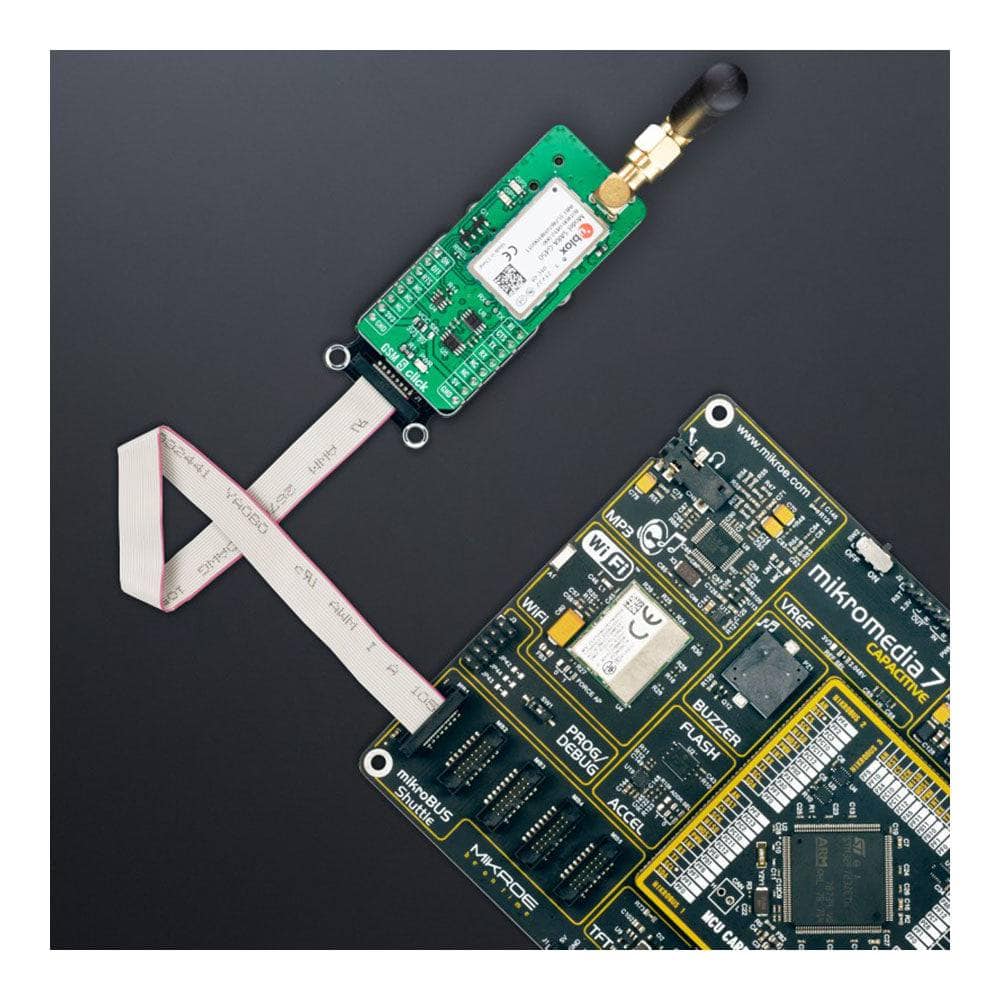

How Does The GSM 5 Click Board™ Work?

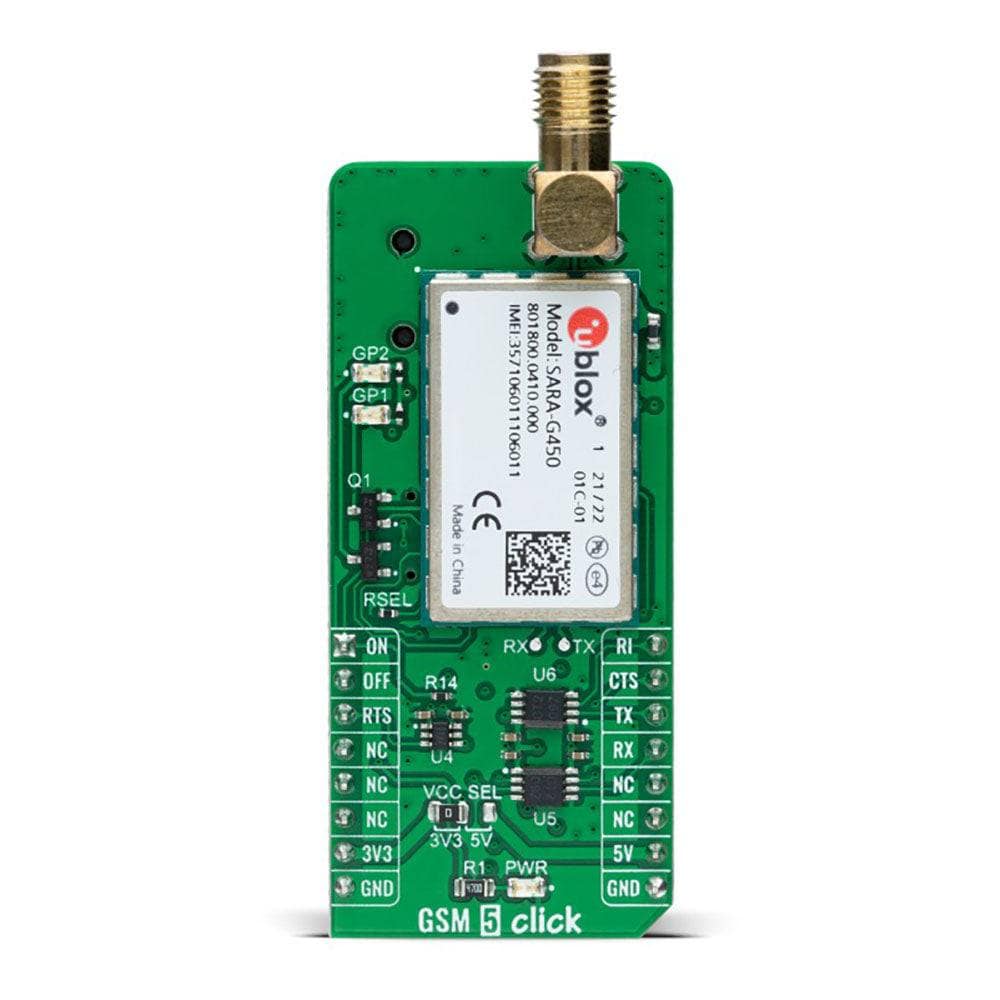

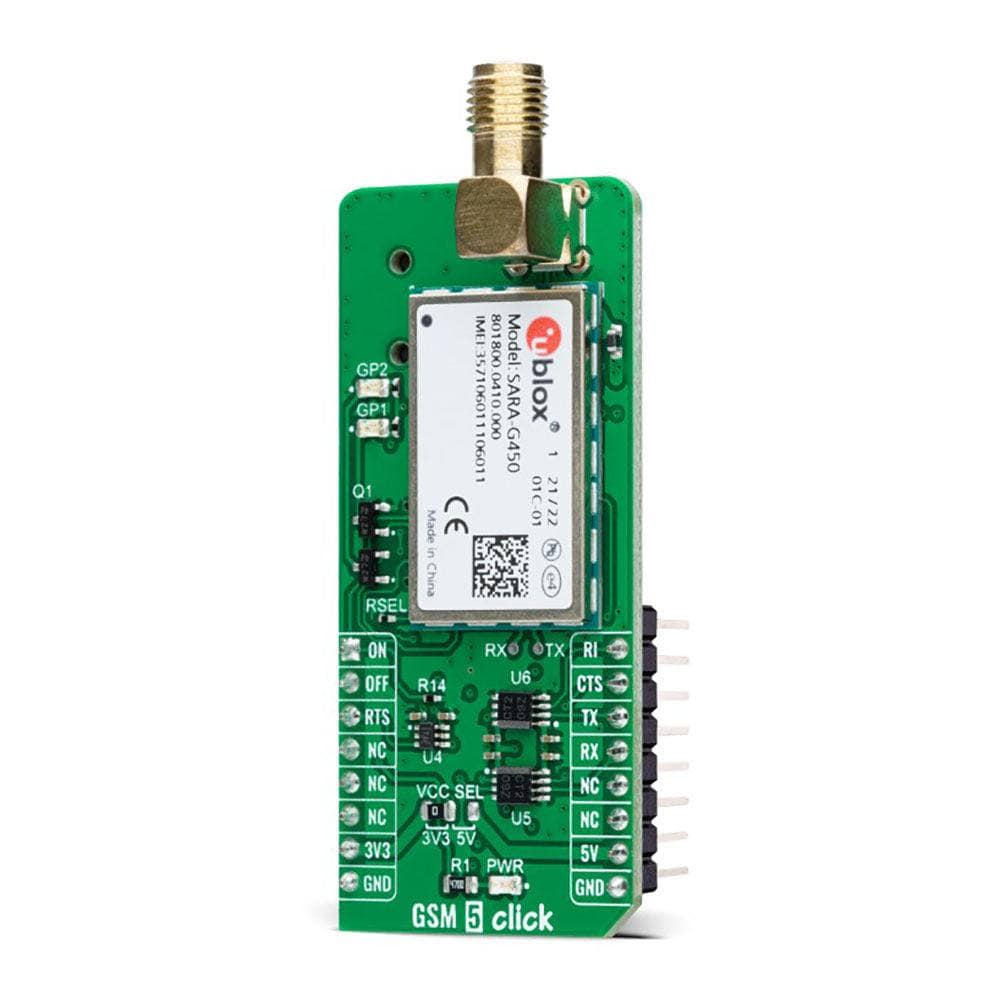

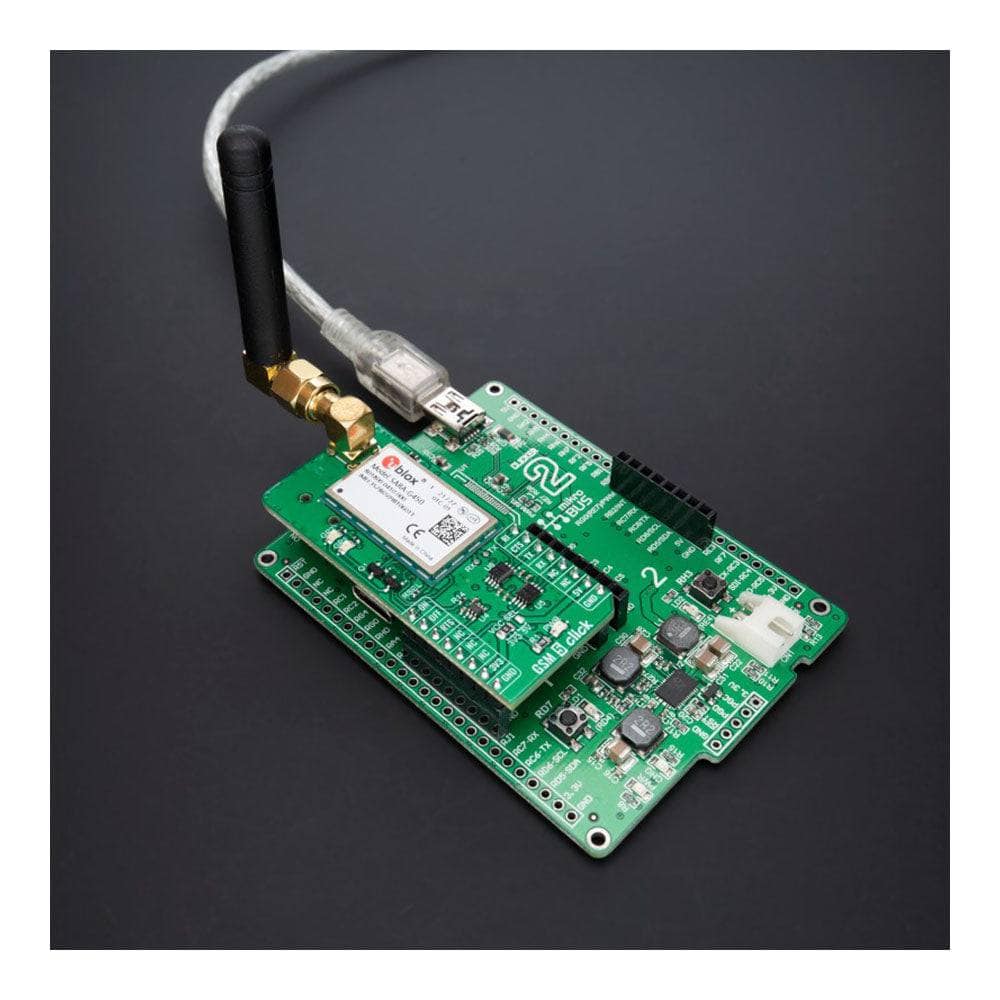

The GSM 5 Click Board™ as its foundation uses the SARA-G450, a compact quad-band 2.5G GSM/GPRS module from u-blox. Alongside low power consumption, the SARA-G450 module also features a baseband, RF transceiver, power management unit, and power amplifier in a single solution, supporting 2G, 3G, LTE, and LPWA (Cat M1 and Cat NB1) radio access technologies. Covering frequencies of 850/900MHz and 1800/1900MHz, it provides a fully qualified and certified solution, reducing cost and enabling a short time to market. It is ideally suited for M2M applications such as automatic meter reading, remote monitoring automation and control, surveillance, and security, asset tracking, and more.
This module has a comprehensive feature set, including an extensive set of internet protocols. It is also designed to provide fully integrated access to u-blox GNSS positioning with embedded A-GPS (AssistNow Online and AssistNow Offline) functionality. Any host processor connected to the cellular module through a single serial port can control both the module and positioning. The SARA-G450 module also offers extensive audio features, which users can access via an onboard 3.5mm audio jack, all configurable through the AT commands.
The GSM 5 Click Board™ communicates with MCU using the UART interface with commonly used UART RX, TX, and hardware flow control pins UART CTS, RTS, and RI (Clear to Send, Ready to Send, and Ring Indicator) by exchanging standard AT commands. It operates at 115200 bps by default configuration to transmit and exchange data with the host MCU. An additional interface can also be found on the board as a test point for firmware upgrades and trace log capture (diagnostics purposes).

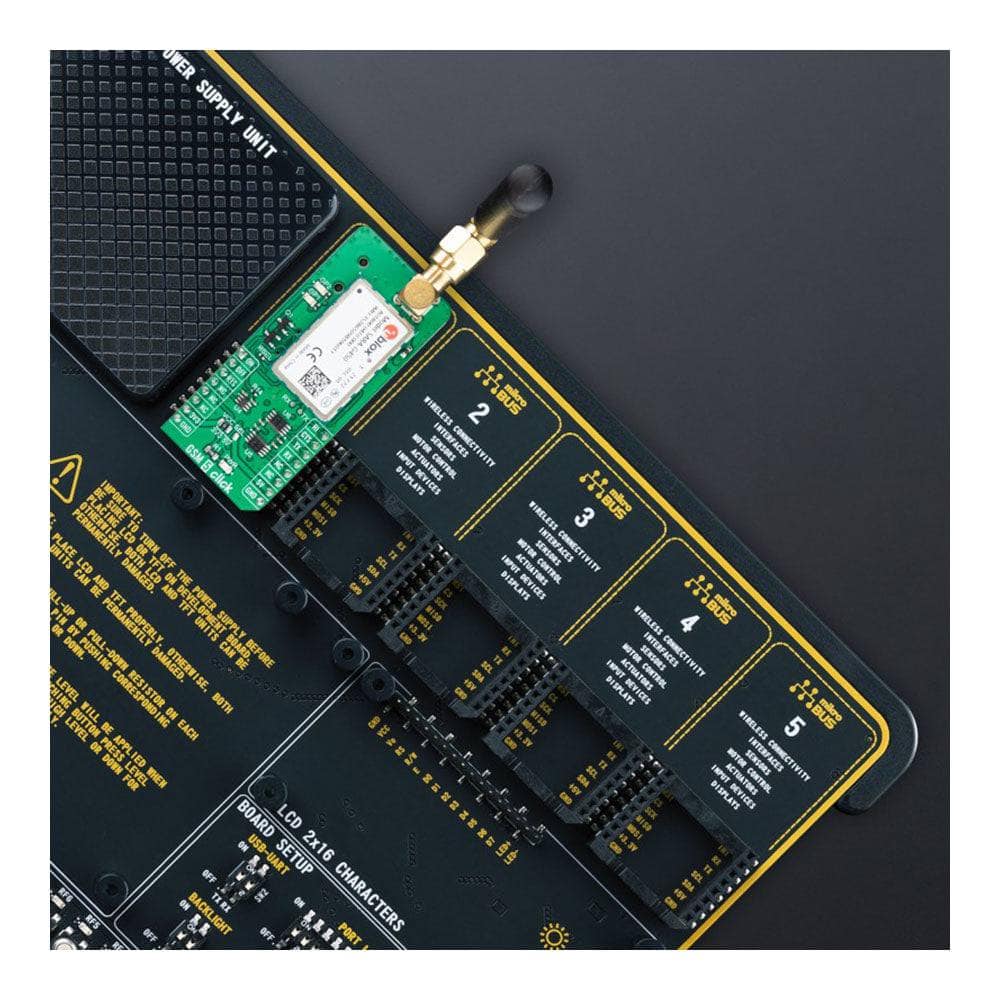

In addition to the UART pins, this Click board™ also has two additional marked as ON and OFF routed to the AN and RST pins of the mikroBUS™ socket used to turn ON/OFF the chip itself. Besides, it uses two orange LED indicators labelled GP1 and GP2 for optional user-configurable network-status visual indications such as registered home network, registered roaming, voice or data call enabled, and no service.

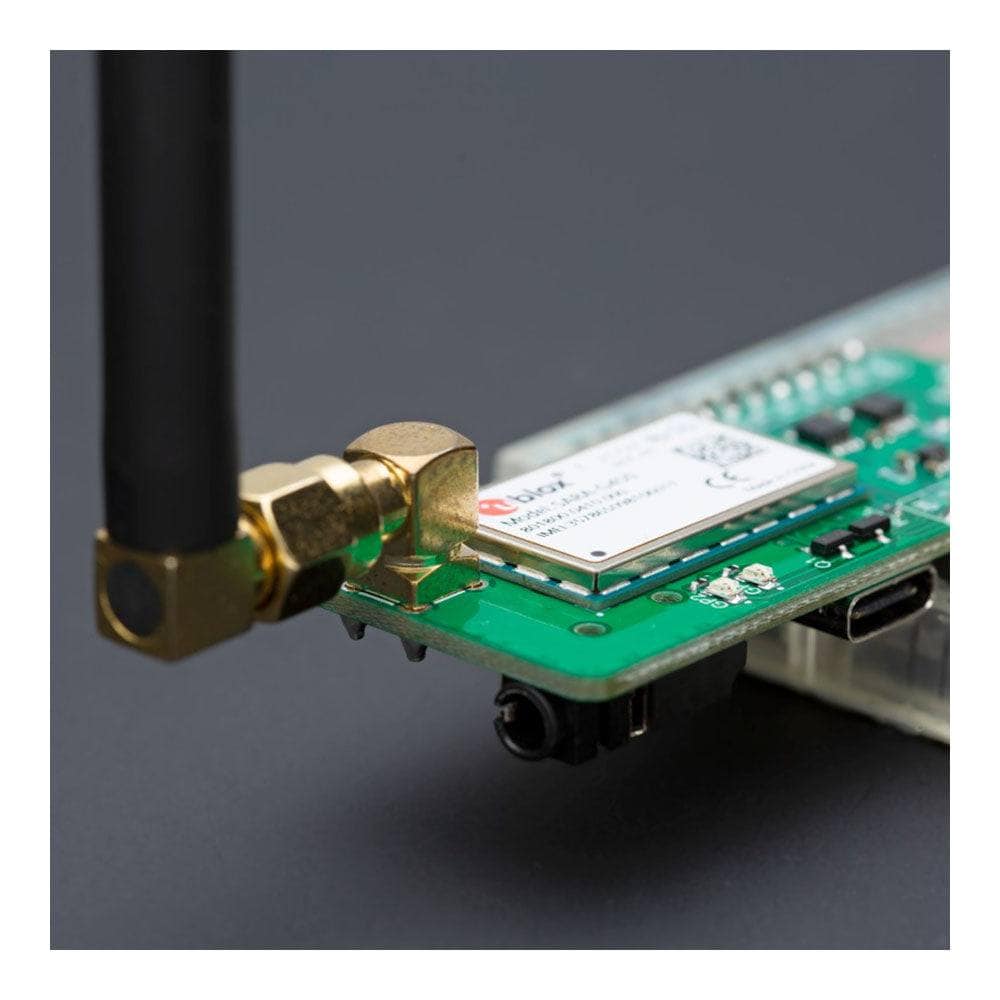

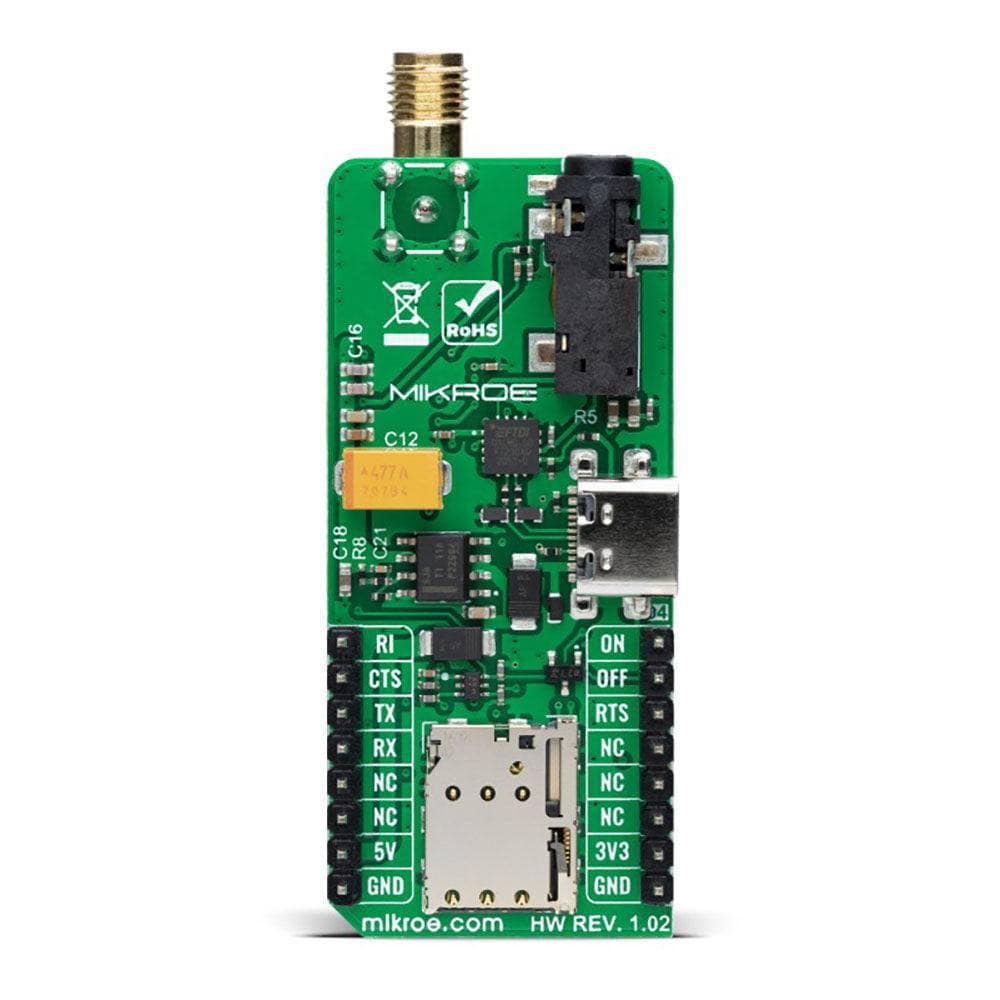

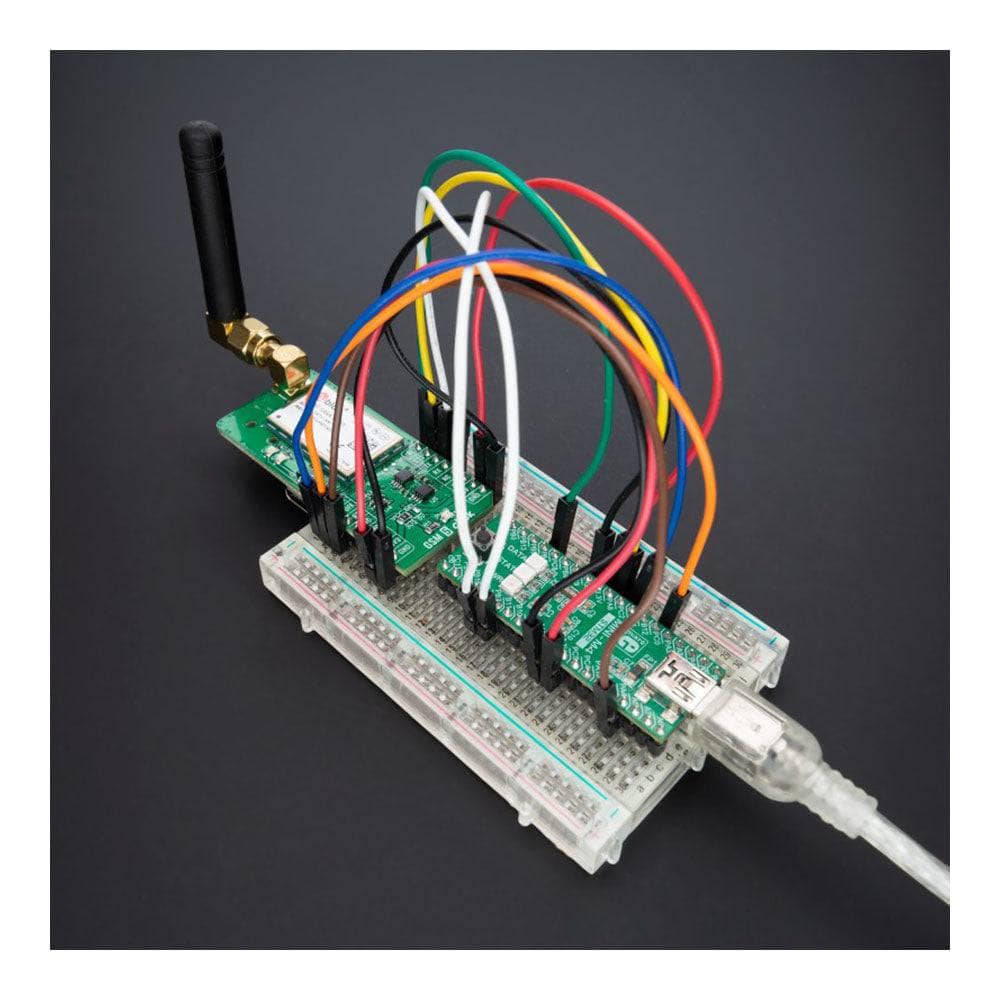

The GSM 5 Click Board™ possesses the SMA antenna connector on which an appropriate antenna connects that MikroE has in its offer. It is also equipped with a USB type C connector, which allows the module to be powered and configured by a personal computer (PC) using FT230X, a compact USB to a serial UART interface bridge, and a Nano-SIM card slot that provides multiple connections and interface options.
The GSM 5 Click Board™ can operate with both 3.3V and 5V MCUs. A proper logic voltage level conversion is performed by appropriate voltage level translators, while the on-board LDO, the TPS7A7002, ensures the recommended voltage levels power module. However, the Click board™ comes equipped with a library containing easy-to-use functions and an example code that can be used, as a reference, for further development.
SPECIFICATIONS
| Type | GSM/LTE |
| Applications | Can be used for 2G cellular module M2M applications such as utility metering and tracking systems |
| On-board modules | SARA-G450 - quad-band 2.5G GSM/GPRS module from u-blox |
| Key Features | Industry proven SARA form factor, optimized power consumption for IoT applications, GPRS class 12, standard grade, global region, audio and SIM interfaces, jamming detection, and more |
| Interface | UART,USB |
| Compatibility | mikroBUS |
| Click board size | L (57.15 x 25.4 mm) |
| Input Voltage | 3.3V or 5V |
PINOUT DIAGRAM
This table shows how the pinout of the GSM 5 Click Board™ corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
| Notes | Pin |  |
Pin | Notes | |||
|---|---|---|---|---|---|---|---|
| Module Power-On | ON | 1 | AN | PWM | 16 | RI | UART RI |
| Module Power-Off | OFF | 2 | RST | INT | 15 | CTS | UART CTS |
| UART RTS | RTS | 3 | CS | RX | 14 | TX | UART TX |
| NC | 4 | SCK | TX | 13 | RX | UART RX | |
| NC | 5 | MISO | SCL | 12 | NC | ||
| NC | 6 | MOSI | SDA | 11 | NC | ||
| Power Supply | 3.3V | 7 | 3.3V | 5V | 10 | 5V | Power Supply |
| Ground | GND | 8 | GND | GND | 9 | GND | Ground |
ONBOARD SETTINGS AND INDICATORS
| Label | Name | Default | Description |
|---|---|---|---|
| LD1 | PWR | - | Power LED Indicator |
| LD2-LD3 | GP1-GP2 | - | User-Configurable LED Indicator |
| JP1 | VCC SEL | Left | Logic Level Voltage Selection 3V3/5V: Left position 3V3, Right position 5V |
| RSEL | RSEL | Populated | Digital Interface Voltage Level Selection Jumper |
| TP1-TP2 | RX-TX | - | UART Interface Testpoints for FW Upgrade and Diagnostics |
GSM 5 CLICK ELECTRICAL SPECIFICATIONS
| Description | Min | Typ | Max | Unit |
|---|---|---|---|---|
| Supply Voltage | 3.3 | - | 5 | V |
| Frequency Range | 850/1800 | - | 900/1900 | MHz |
| Data Rate | - | - | 85.6 | kbps |
| Sensitivity | - | -109 | - | dBm |
| Operating Temperature Range | -40 | +25 | +85 | °C |
Software Support
We provide a library for the GSM 5 Click Board™ as well as a demo application (example), developed using MikroElektronika compilers. The demo can run on all the main MikroElektronika development boards.
The package can be downloaded/installed directly from NECTO Studio The package Manager (recommended), downloaded from our LibStock™ or found on the MikroE Github account.
Library Description
This library contains API for GSM 5 Click Board™ driver.
Key functions
-
gsm5_send_cmdThis function sends a specified command to the Click Board™ module. -
gsm5_set_sim_apnThis function sets APN for the sim card. -
gsm5_send_sms_textThis function sends text message to a phone number.
Example Description
Application example shows a device capable of connecting to the network and sending SMS or TCP/UDP messages using standard "AT" commands.
void application_task ( void )
{
switch ( example_state )
{
case GSM5_CONFIGURE_FOR_NETWORK:
{
if ( GSM5_OK == gsm5_configure_for_network( ) )
{
example_state = GSM5_WAIT_FOR_CONNECTION;
}
break;
}
case GSM5_WAIT_FOR_CONNECTION:
{
if ( GSM5_OK == gsm5_check_connection( ) )
{
example_state = GSM5_CONFIGURE_FOR_EXAMPLE;
}
break;
}
case GSM5_CONFIGURE_FOR_EXAMPLE:
{
if ( GSM5_OK == gsm5_configure_for_example( ) )
{
example_state = GSM5_EXAMPLE;
}
break;
}
case GSM5_EXAMPLE:
{
gsm5_example( );
break;
}
default:
{
log_error( &logger, " Example state." );
break;
}
}
}
The full application code, and ready to use projects can be installed directly from NECTO Studio The package Manager (recommended), downloaded from our LibStock™ or found on MikroE Github account.
Other MikroE Libraries used in the example:
- MikroSDK.Board
- MikroSDK.Log
- Click.GSM5
Additional Notes and Information
Depending on the development board you are using, you may need USB UART Click Board™, USB UART 2 Click or RS232 Click to connect to your PC, for development systems with no UART to USB interface available on the board. UART terminal is available in all MikroElektronika compilers.
MIKROSDK
The GSM 5 Click Board™ is supported with mikroSDK - MikroElektronika Software Development Kit. To ensure proper operation of mikroSDK compliant Click board™ demo applications, mikroSDK should be downloaded from the LibStock and installed for the compiler you are using.
