Mikroelektronika d.o.o.

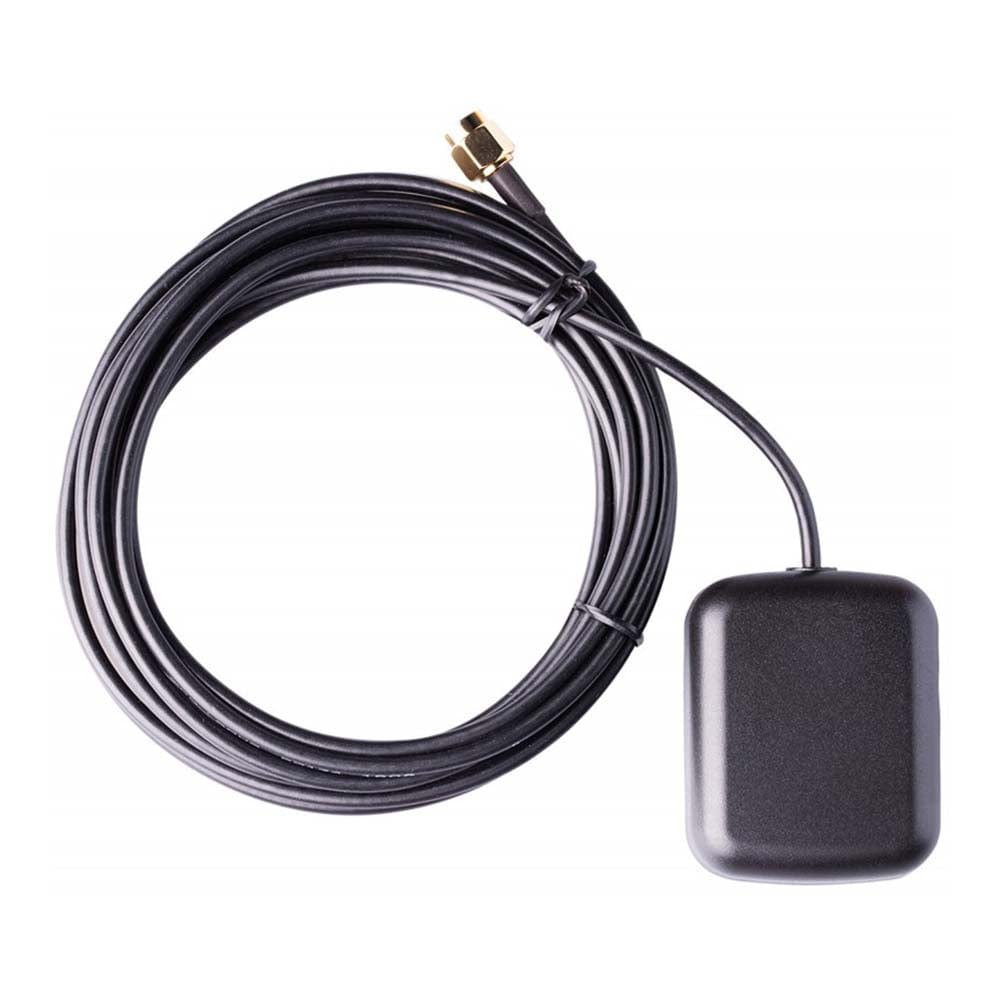

GPS & GLONASS External Passive Antenna

GPS & GLONASS External Passive Antenna

SKU: MIKROE-5114

£17.20 inc VAT
£14.40 exc VAT
£14.40 GBP
£17.20 inc VAT
£14.40 exc VAT
Sale Sold out
Shipping calculated at checkout.
If no stock shown above, check availability
View full details
  • Mikroelektronika d.o.o. MIKROE-5114 GPS & GLONASS External Passive Antenna - The Debug Store UK

Key Features

GPS: 1575.42MHz ± 1.023MHz
GLONASS: 1602MHz ± 4MHz
50Ω Impedance
3m Cable with SMA Male Connector

Overview

The GPS&GLONASS External Passive Antenna is a 100% waterproof external antenna, which represents an excellent choice for all GPS/GNSS Click boards™ from our offer. It has wide bandwidth that supports GSM/GPRS modules. The antenna has 3m cable with SMA male connector on the end, which allows you easy positioning in space. If you are looking for a perfect external antenna for your locator device, this is the right product for you.

Downloads

Specifications

  • Frequency range:
    • GPS: 1575.42MHz ± 1.023MHz
    • GLONASS: 1602MHz ± 4MHz
  • Impedance: 50Ω
  • V.S.W Ratio: 1.5:1
  • Gain: 2.5dBic
  • Bandwidth: ≥10MHz
  • Polarization: RHCP
  • Cable Length: 3m
  • Connector Type: SMA male
  • Working Temperature: -40⁰C to +85⁰C
Engineer Q&A

Questions and Answers

1 question
  • What Is the Dimensions of This Antenna?

    The antenna body is approximately 49 x 39 x 15mm (48.6 x 39.2 x 15.2mm, tolerance ±0.5mm, from the size drawing in the MIKROE datasheet).

    Answered by John LeggUpdated 11 Oct 2026

Can't find your answer? Ask our engineers.

Ask a Question

Ask Our Engineers About This Product

Your question goes to the Debug Store technical team. We answer by email, and useful questions may be added to this page without your name or email address.

We reply within 24 hours.
