Mikroelektronika d.o.o.

SKU: MIKROE-4955

MCP251863 Click Board

MCP251863 Click Board

Regular price
£30.00 inc VAT
£25.00 exc VAT
Regular price Sale price
£30.00 inc VAT
£25.00 exc VAT
Sale Sold out
Shipping calculated at checkout.
When pre-ordered, this item normally ships within 10 working days

Key Features

  • Expands the existing MCU with the reliable and robust CAN connectivity option, support for both CAN 2.0B and CAN FD frames, high speed CAN communication up to 5 Mbps, integrated DE-9 connector, and more
  • Based on the MCP251863 - CAN FD controller with an SPI interface and a high-speed CAN transceiver from Microchip
  • Can be used for developing a wide range of automotive diagnostic applications, even on MCUs that do not natively support CAN interface
  • mikroBUS: SPI, PWM and GPIO Interfaces

NOTE: This Click board™ represents an optimized version of the MCP2518FD Click Board™ with the aim of more efficient hardware, where the controller and transceiver, in this case, can be found in one package.

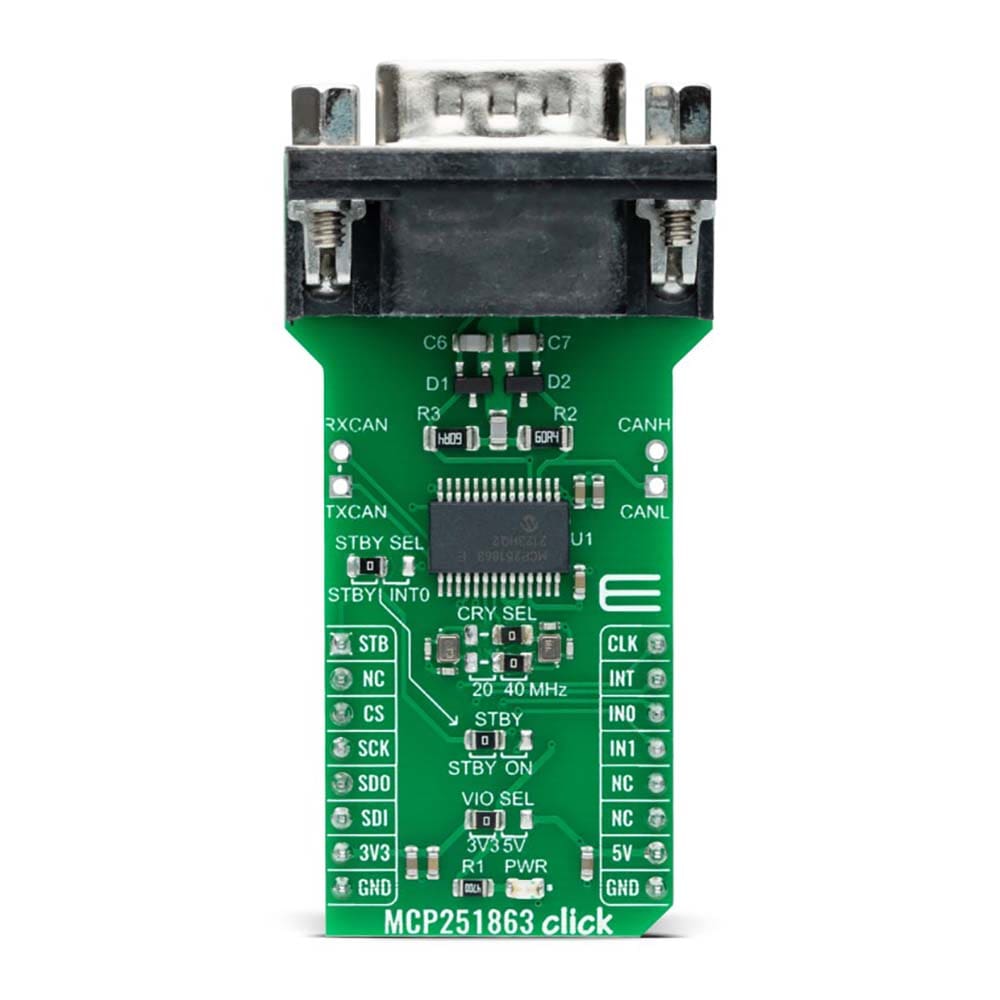

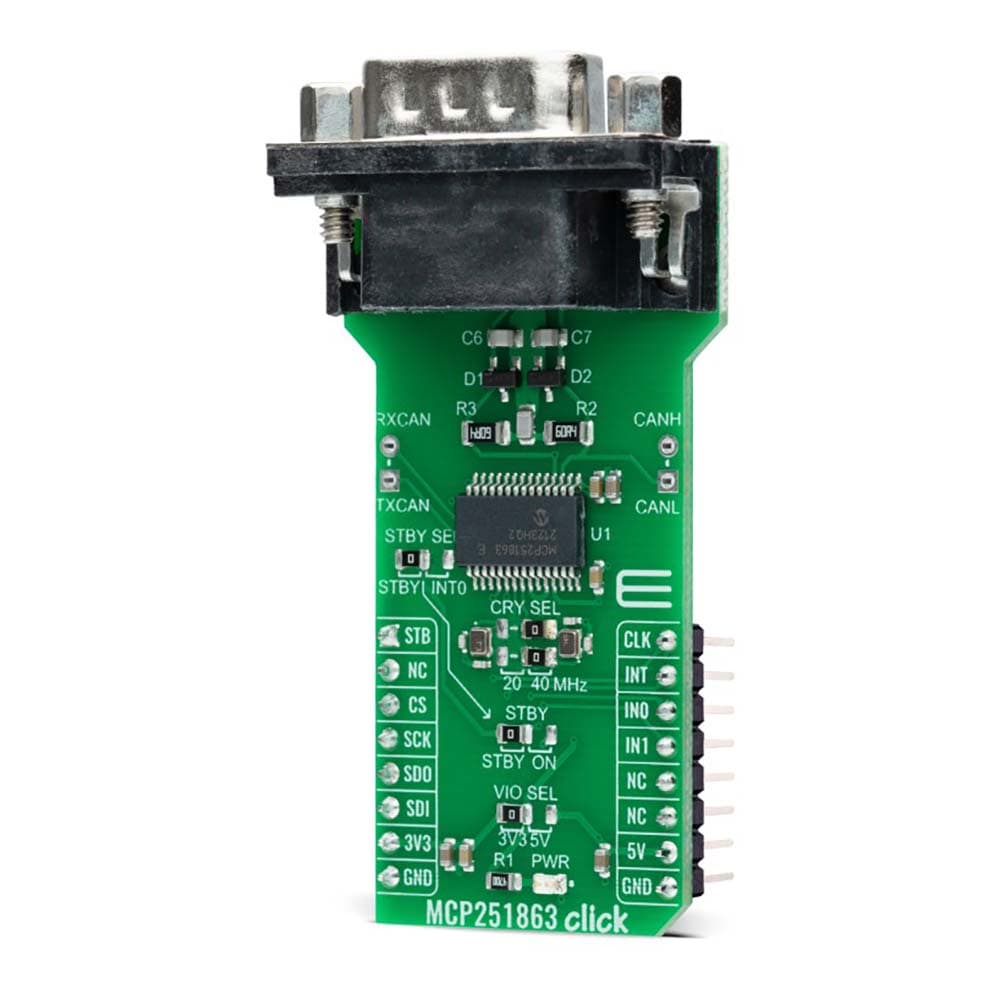

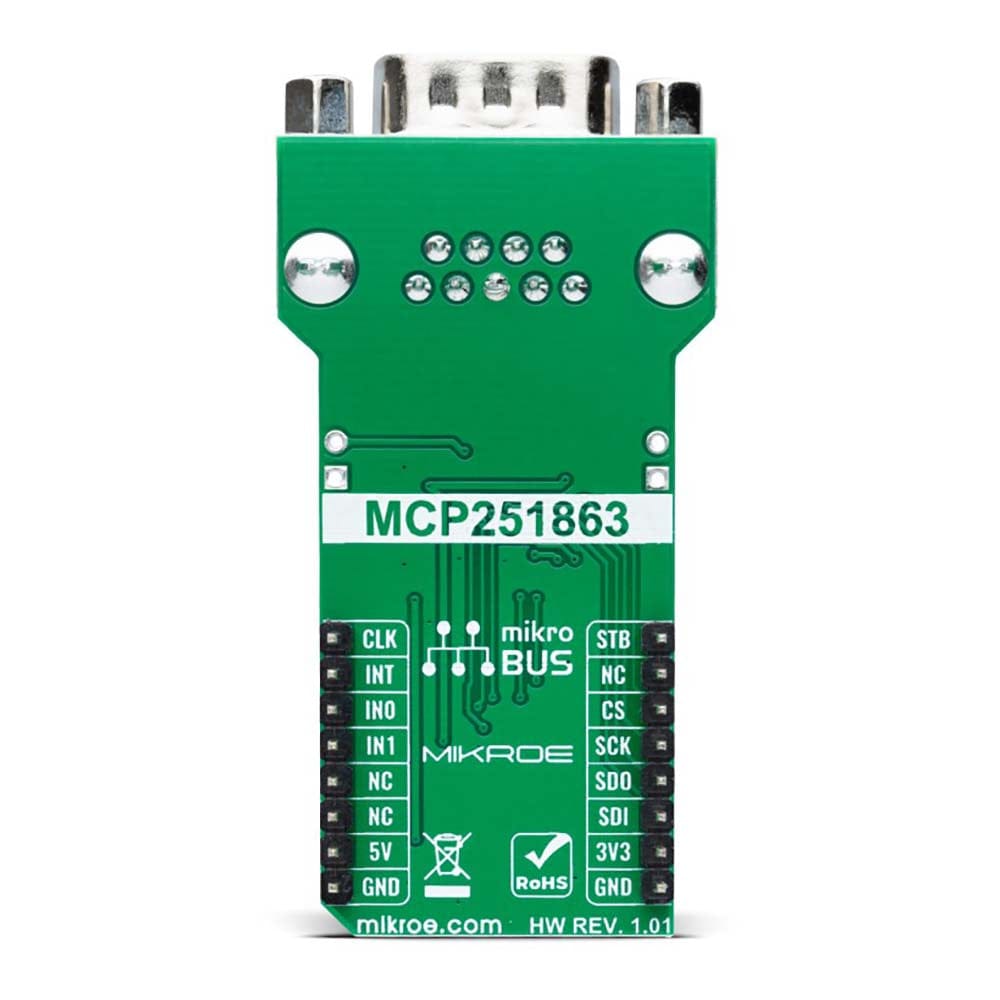

The MCP251863 Click Board™ is a compact add-on board representing a complete CAN solution used as a control node in a CAN network. This board features the MCP251863, an IC representing a compact solution with a CAN FD controller (MCP2518FD) and a CAN transceiver in one package (ATA6563) from Microchip. A high-speed CAN transceiver provides a physical connection with the CAN bus itself, while the CAN controller represents an interface between the MCU and the CAN transceiver. It features three operating modes with dedicated fail-safe features, remote wake-up via CAN, and ideally passive behavior when powered off on the CAN bus. This Click board™ is suitable for developing a wide range of automotive diagnostic applications, even on MCUs that don’t support the CAN interface.

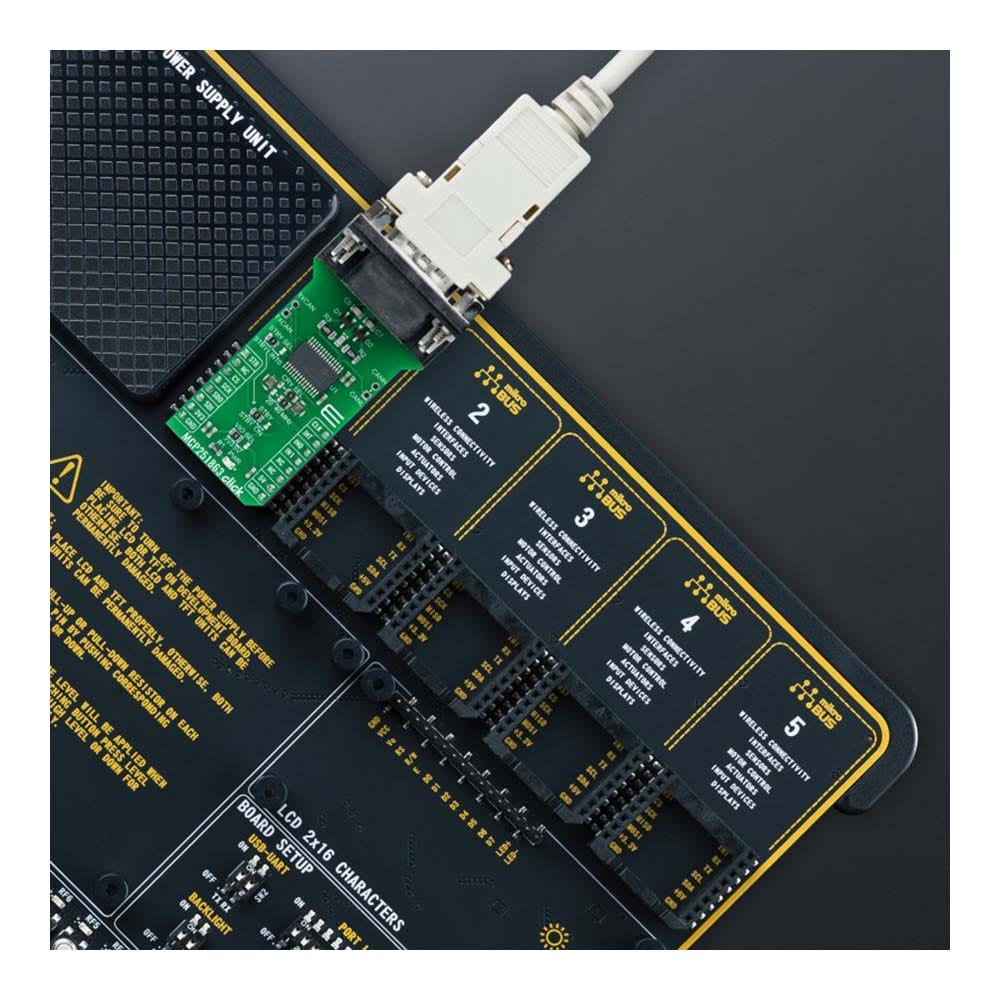

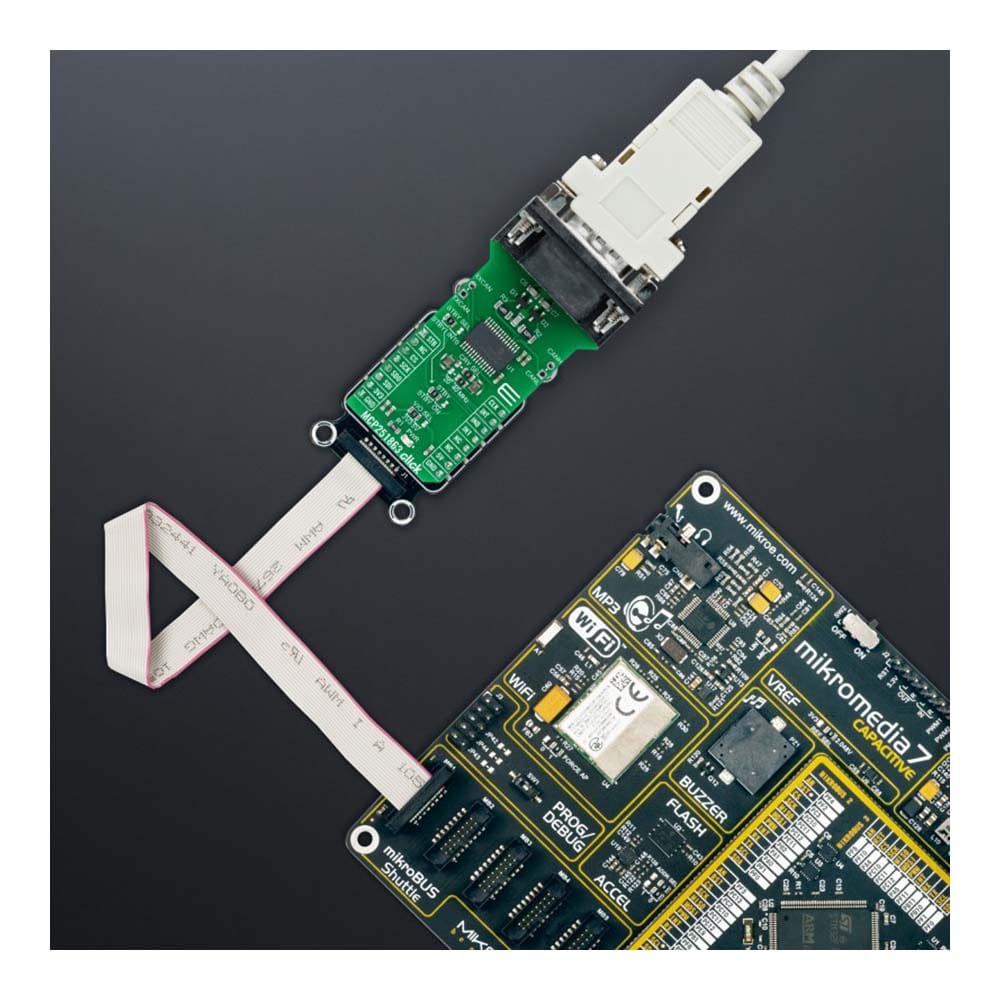

The MCP251863 Click Board™ is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.
