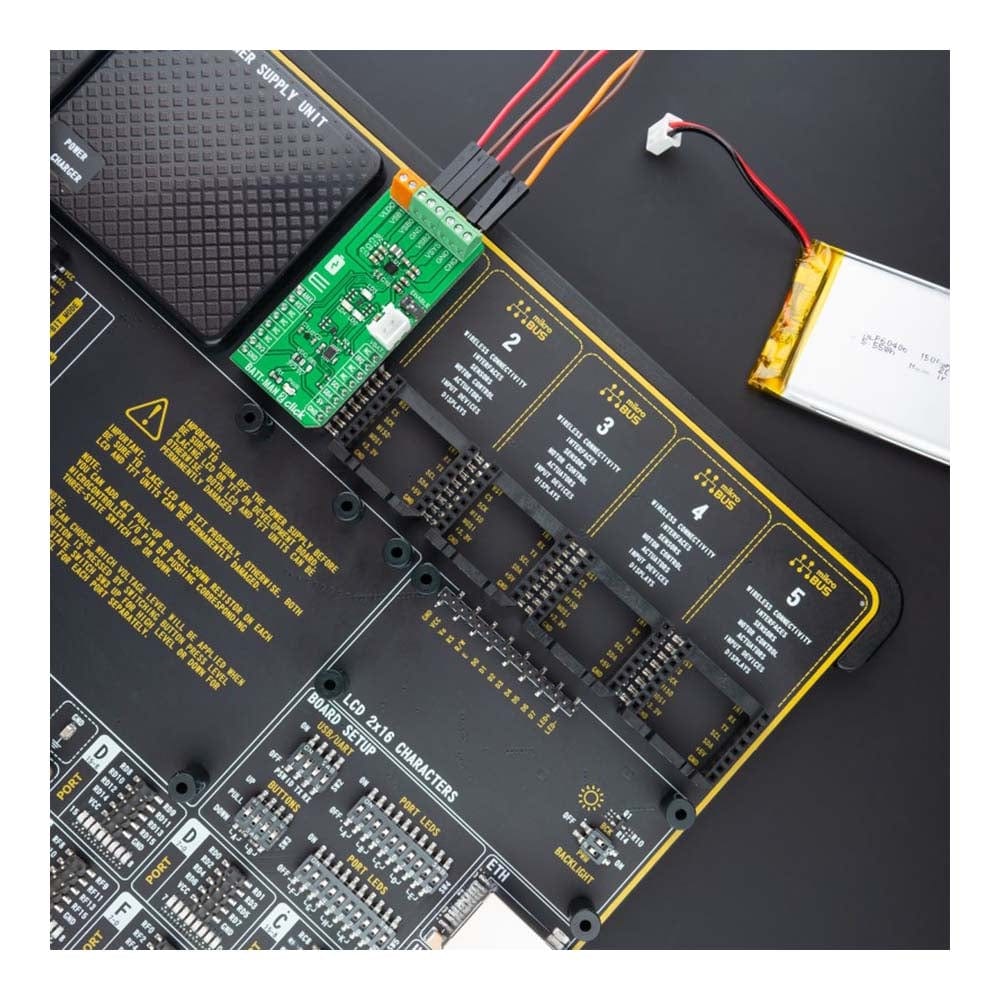

Overview

The BATT-MAN 2 Click Board™ is a compact add-on board representing an advanced battery and power management solution. This board features the MAX77654, a single inductor, multiple-output (SIMO) power management IC (PMIC) from Analog Devices. This I2C programmable board features a buck-boost regulator that provides three independently programmable power rails from a single inductor. Also, it has one 100mA LDO output with ripple rejection for audio and other noise-sensitive applications and a highly-configurable linear charger that supports a wide range of Li+ battery capacities featuring battery temperature monitoring for additional safety (JEITA).

The BATT-MAN 2 Click Board™ is suitable as a battery charging and power supply solution for low-power applications where size and efficiency are critical.

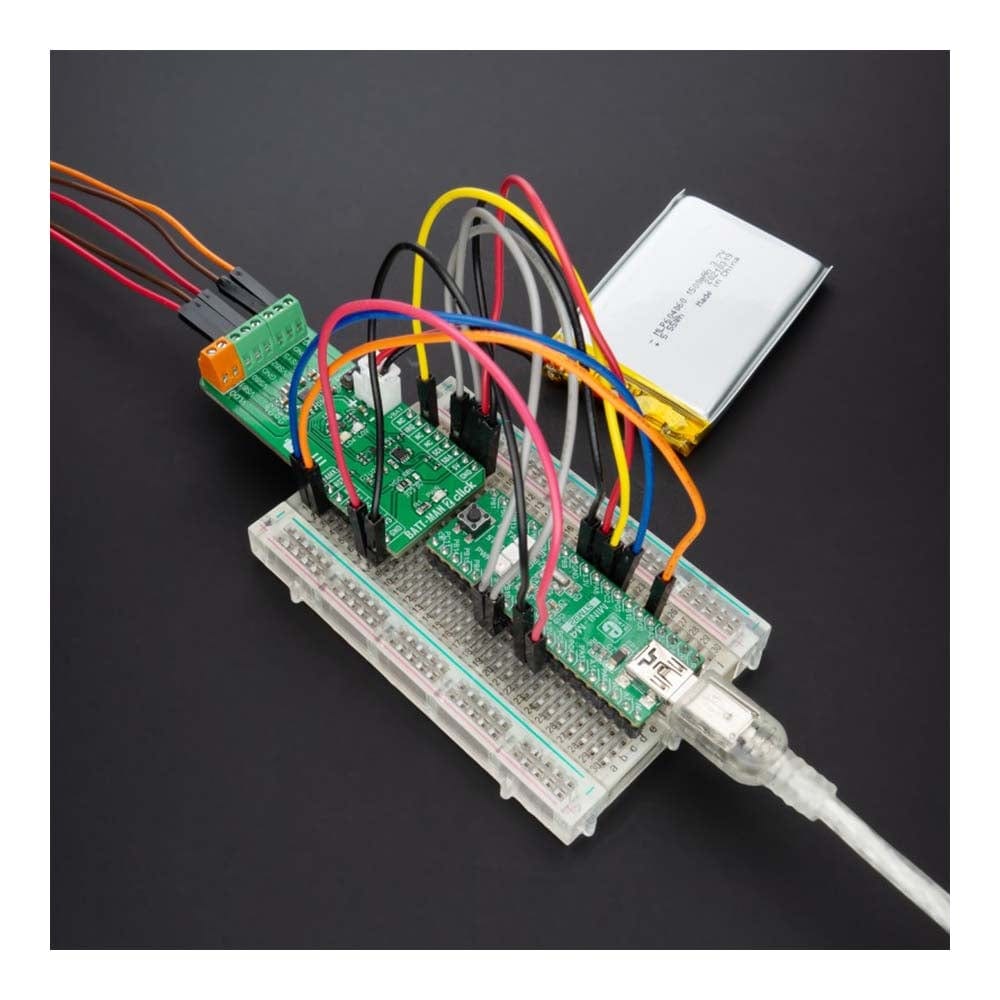

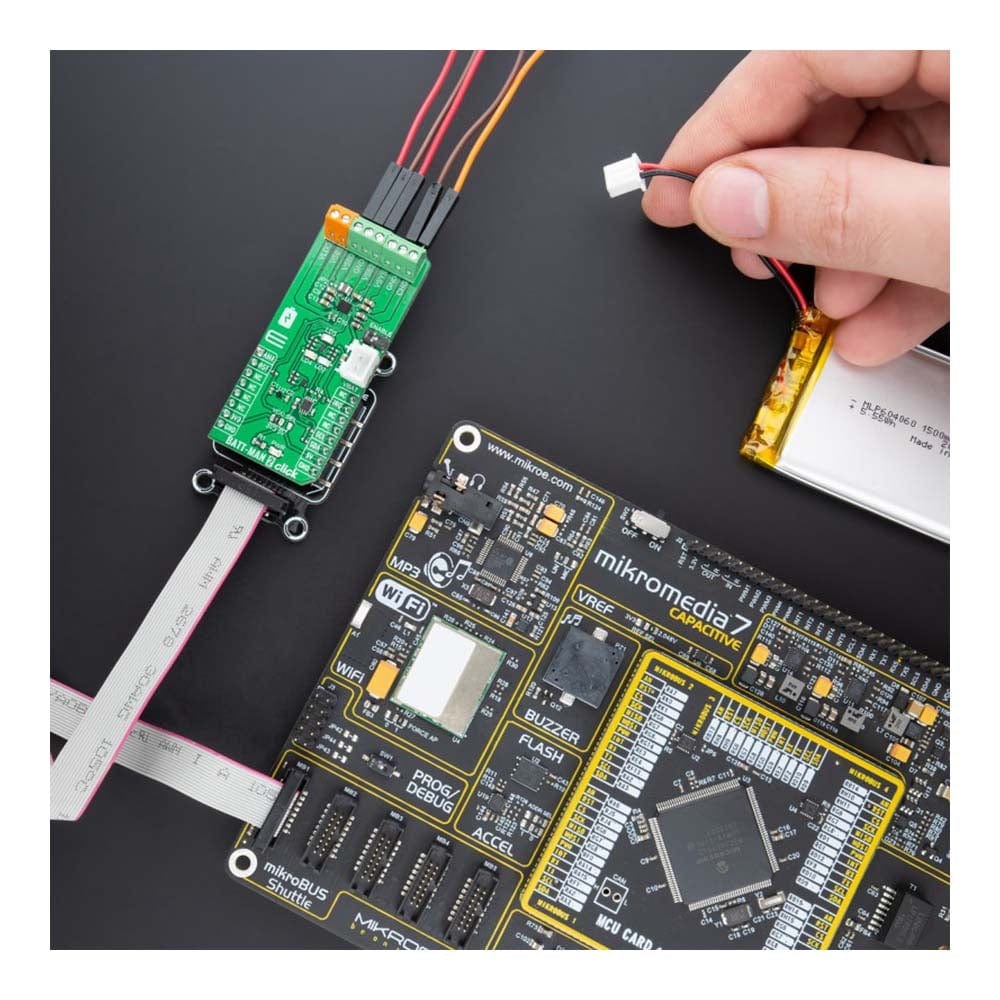

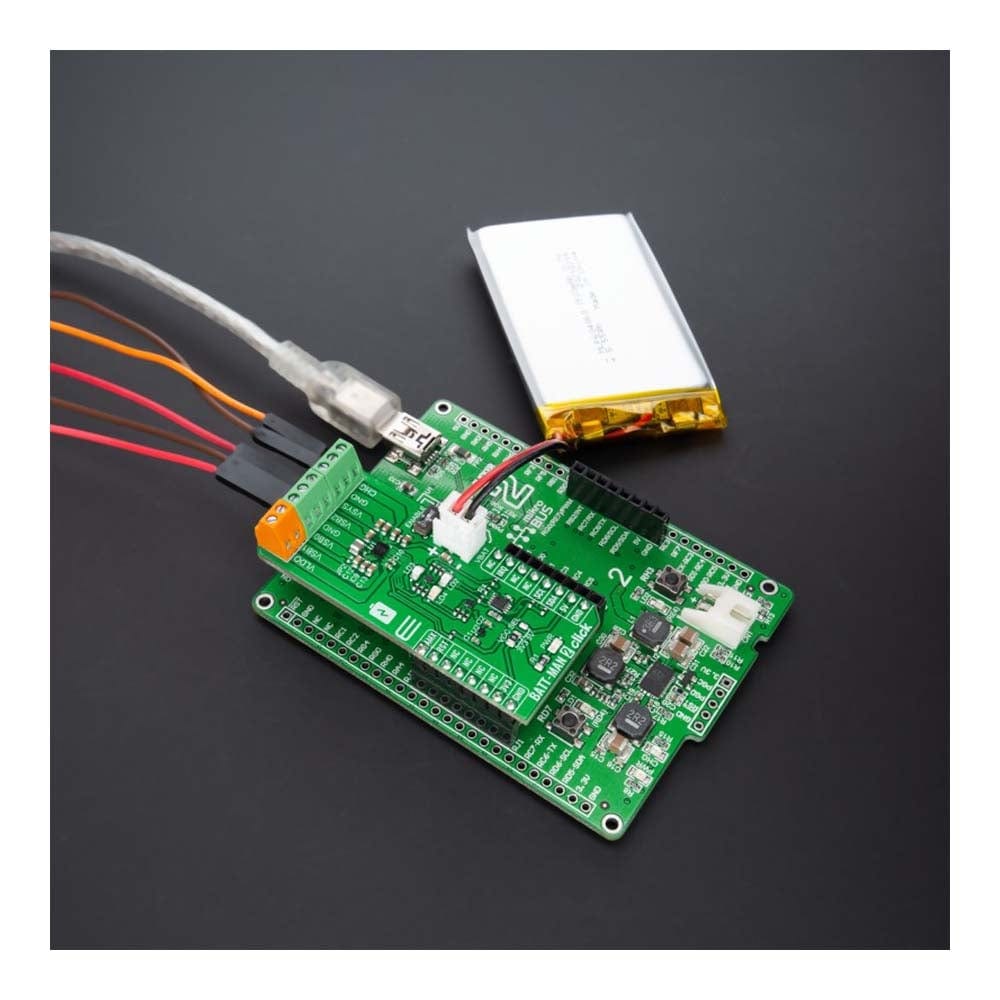

How Does The BATT-MAN 2 Click Board™ Work?

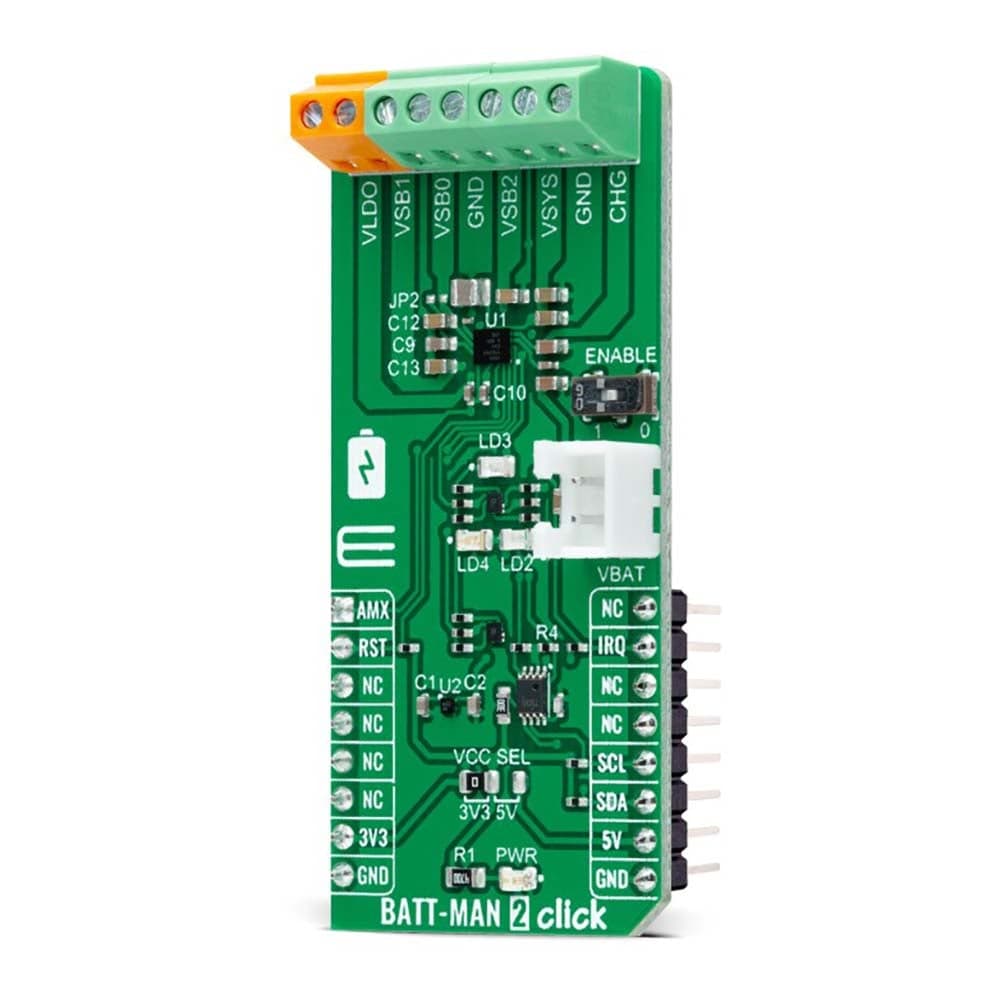

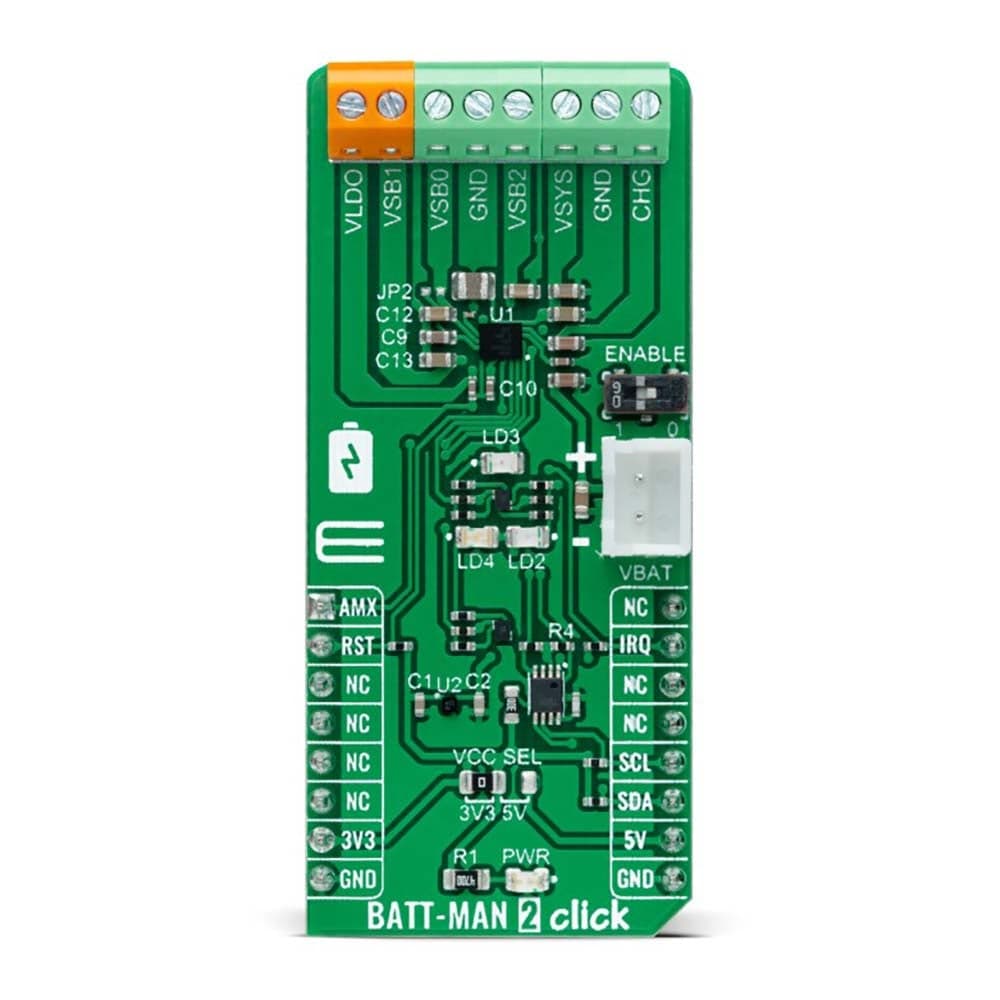

The BATT-MAN 2 Click Board™ uses the MAX77654, a highly-integrated battery charging and power management solution for low-power applications from Analog Devices. It features a single-inductor, multiple-output (SIMO) buck-boost regulator efficiently that provides three independently programmable power rails available on onboard terminals labelled as VSB0, VSB1, and VSB2. Also, it has one 100mA LDO output, labelled as VLDO, with ripple rejection for audio and other noise-sensitive applications. This LDO output can also be configured as a load switch to manage power consumption by disconnecting external blocks when not required. The LDO output can be activated/deactivated by populating the JP2 onboard jumper.

The MAX77654 also has an integrated highly-configurable linear charger that supports a wide range of Li+ battery capacities with a wide range of charge current and charger termination voltage options, featuring battery temperature monitoring for additional safety (JEITA). The charger feature is OFF when the CHG supply is invalid (supply in the range from 4.1V up to 7.25V), disabled, or with the fresh battery. In addition to all the output terminals on this board, another one is marked with VSYS, which is the system power output terminal. In addition to providing power to the system resources and the control logic of the device, VSYS is also designed for external use.

The BATT-MAN 2 Click Board™ communicates with MCU using the standard I2C 2-Wire interface for configuring and checking the device's status. Since the sensor for operation requires a 1.8V logic voltage level to work correctly, a small regulating LDO is used, the ADP160 from Analog Devices, providing a 1.8V out of mikroBUS™ rails. That's why the PCA9306 voltage-level translator is also featured. The I2C interface bus lines are routed to the dual bidirectional voltage-level translator, allowing this Click board™ to work with both 3.3V and 5V MCUs properly.

An onboard switch labelled as ENABLE has the primary purpose of generating a wake-up signal for the PMIC that turns ON the regulators by setting the switch to an appropriate position marked as 1 or 0. In addition, this Click board™ also has some additional features, such as a Reset routed to the RST pin on the mikroBUS™ socket used to hold the processor in a Reset state when the device is powered down.

It also uses an interrupt pin, the INT pin of the mikroBUS™ socket, to signal an essential change in device status, while the three additional LED indicators, red, yellow, and blue LEDs labelled as LED2, LED3, and LED4, can be used for optional user-configurable visual indication. Besides, this device includes an analog multiplexer (AMX), routed to the AN pin on the mikroBUS™ socket, that switches several internal voltage and current signals to an external node for monitoring with an external ADC.

The BATT-MAN 2 Click Board™ can operate with both 3.3V and 5V logic voltage levels selected via the VCC SEL jumper. This way, it is allowed for both 3.3V and 5V capable MCUs to use the communication lines properly. However, the Click board™ comes equipped with a library containing easy-to-use functions and an example code that can be used, as a reference, for further development.

SPECIFICATIONS

Type Buck-Boost
ApplicationsThe  The BATT-MAN 2 Click Board™ can be used as a battery charging and power supply solution for low-power applications where size and efficiency are critical
On-board modules MAX77654 - single inductor, multiple-output (SIMO) power management IC (PMIC) from Maxim Integrated, now part of Analog Devices
Key Features 3 x Buck-Boost outputs, 1 x LDO output, low power consumption, DC charging source, charger optimized for small battery size, flexible and configurable interface, analog MUX output for power monitoring, and more
Interface I2C
Compatibility mikroBUS
Click board size L (57.15 x 25.4 mm)
Input Voltage 3.3V or 5V,External

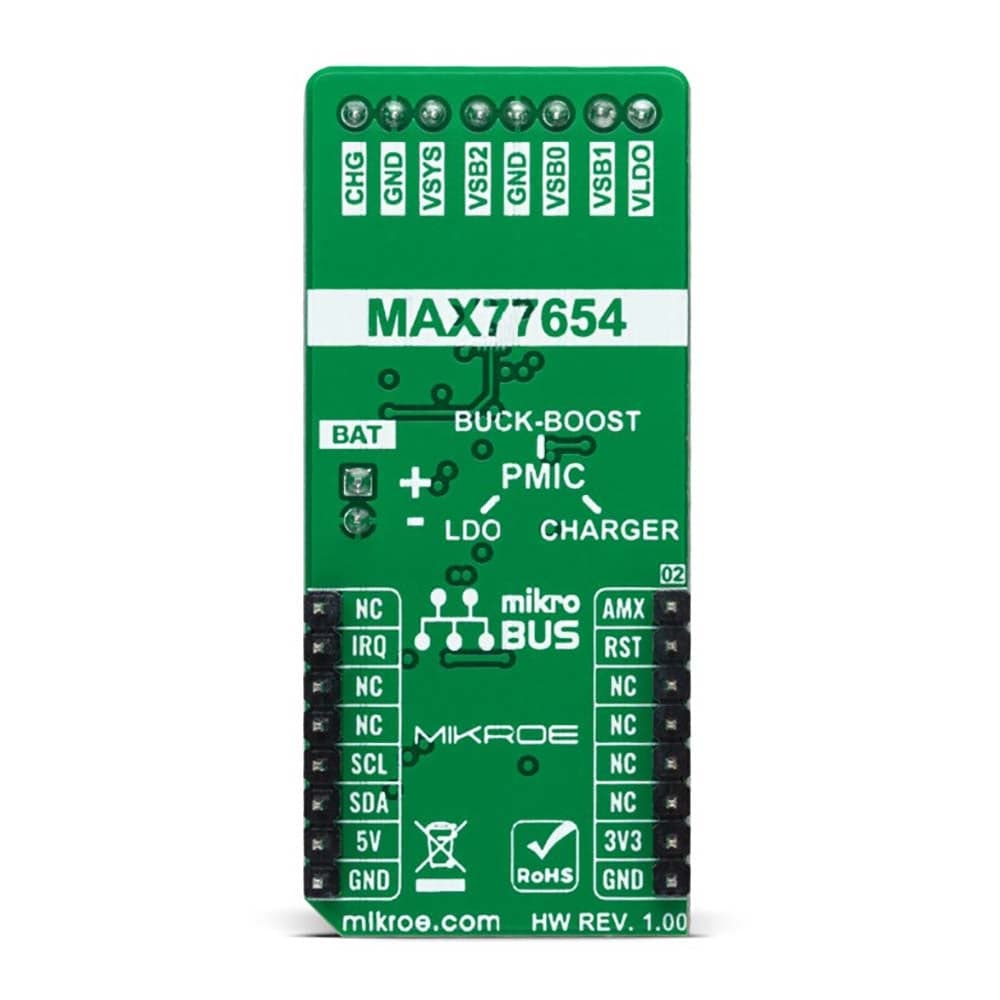

PINOUT DIAGRAM

This table shows how the pinout of the BATT-MAN 2 Click Board™ corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).

Notes Pin Pin Notes
Analog Signal AMX 1 AN PWM 16 NC
Reset RST 2 RST INT 15 IRQ Interrupt
NC 3 CS RX 14 NC
NC 4 SCK TX 13 NC
NC 5 MISO SCL 12 SCL I2C Clock
NC 6 MOSI SDA 11 SDA I2C Data
Power Supply 3.3V 7 3.3V 5V 10 5V Power Supply
Ground GND 8 GND GND 9 GND Ground

ONBOARD SETTINGS AND INDICATORS

Label Name Default Description
LD1 PWR - Power LED Indicator
LD2-LD4 LD2-LD4 - User-Configurable LED Indicators
JP1 VCC SEL Left Logic Level Voltage Selection 3V3/5V: Left position 3V3, Right position 5V
SW1 ENABLE Left Enable Switch Selection 1/0: Left position 1, Right position 0

BATT-MAN 2 CLICK ELECTRICAL SPECIFICATIONS

Description Min Typ Max Unit
Supply Voltage (VCC) 3.3 - 5 V
Buck-Boost Channels Range (VSBx) 0.8 - 5.5 V
LDO Channel Range (VLDO) - - 100 mA
DC Charging Source Channel Range 4.10 - 7.25 V
Fast-Charge Current Range (BATT) 7.5 - 300 mA
Operating Temperature Range -40 +25 +85 °C
