PICPLC16 v7a Development Board

DEVELOP INDUSTRIAL, HOME AND OFFICE CONTROL DEVICES

The PICPLC16 v7a development system provides a development environment for experimenting with industrial devices. With 16 Opto-inputs and 16 relays (for currents up to 16A), you can develop PIC-based industrial, home or office automation devices the easy way.

We equipped it with our revolutionary new programmer & debugger - CODEGRIP and mikroBUS™ support. We now present you with the new version 7a that brings so much more, and we hope that you will be thrilled with your new board, just as we are.

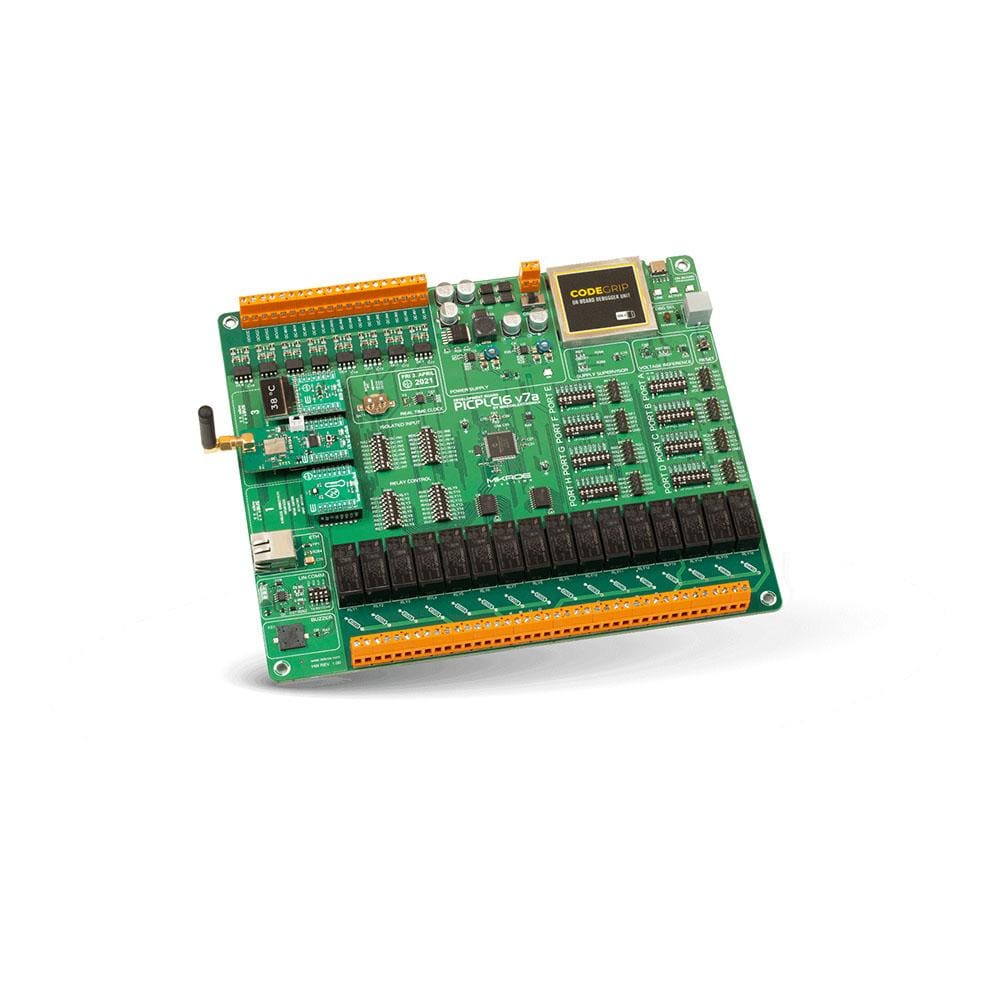

* Shown image is for illustration purposes only. Click boards™ shown in the image above
are available for purchase separately!

CODEGRIP Onboard

Powerful onboard CODEGRIP USB-C programmer and In-Circuit debugger will simplify programming and debugging, whether you're an experienced professional or a beginner.

mikroBUS™ Sockets

Just plug in your Click board, and it's ready to work. We picked up a set of the most useful pins you need for development and made a pinout standard you will enjoy using.

Amazing Connectivity

PICPLC16 v7a offers amazing connectivity options. Ethernet, LIN, and pin headers for each port, you can connect accessory boards, sensors and your custom electronics with ease.

Industrial Control

Develop complex industrial, home or office control systems with 16 optocouplers and 16 relays that allow you to connect the MCU to high-powered external industrial (but also home or office) devices.

CODEGRIP – ONBOARD PROGRAMMER

CODEGRIP is a unified solution, designed to perform programming and debugging tasks on an on-board MCU, based on the Microchip PIC architecture.

The CODEGRIP module uses the USB-C connector for a reliable and secure connection with the personal computer (host PC). It allows in-place programming and debugging of the onboard MCU, offering many useful programming/debugging options and seamless integration with the Mikroe software environment.

CODEGRIP SUITE

PICPLC16 v7a development board is supported by a powerful CODEGRIP Suite, offering complete control over the PICPLC16 v7a development board. It is used to intelligently manage programming and debugging tasks, and to configure various other options and settings, providing visual feedback through its clean and comprehensive Graphical User Interface (GUI). To better understand how to operate and configure PICPLC16 v7a development board and its integrated CODEGRIP module, a separate manual is provided on this link.
