I2C MUX 4 Click Board

I2C MUX 4 Click Board

Multiplexer For Solving I2C Address Conflicts
Regular price
$20.00 USD exc tax
Regular price Sale price
$20.00 USD exc tax
Sale Sold out
Shipping calculated at checkout.
Order NOW to ship within 10 working days

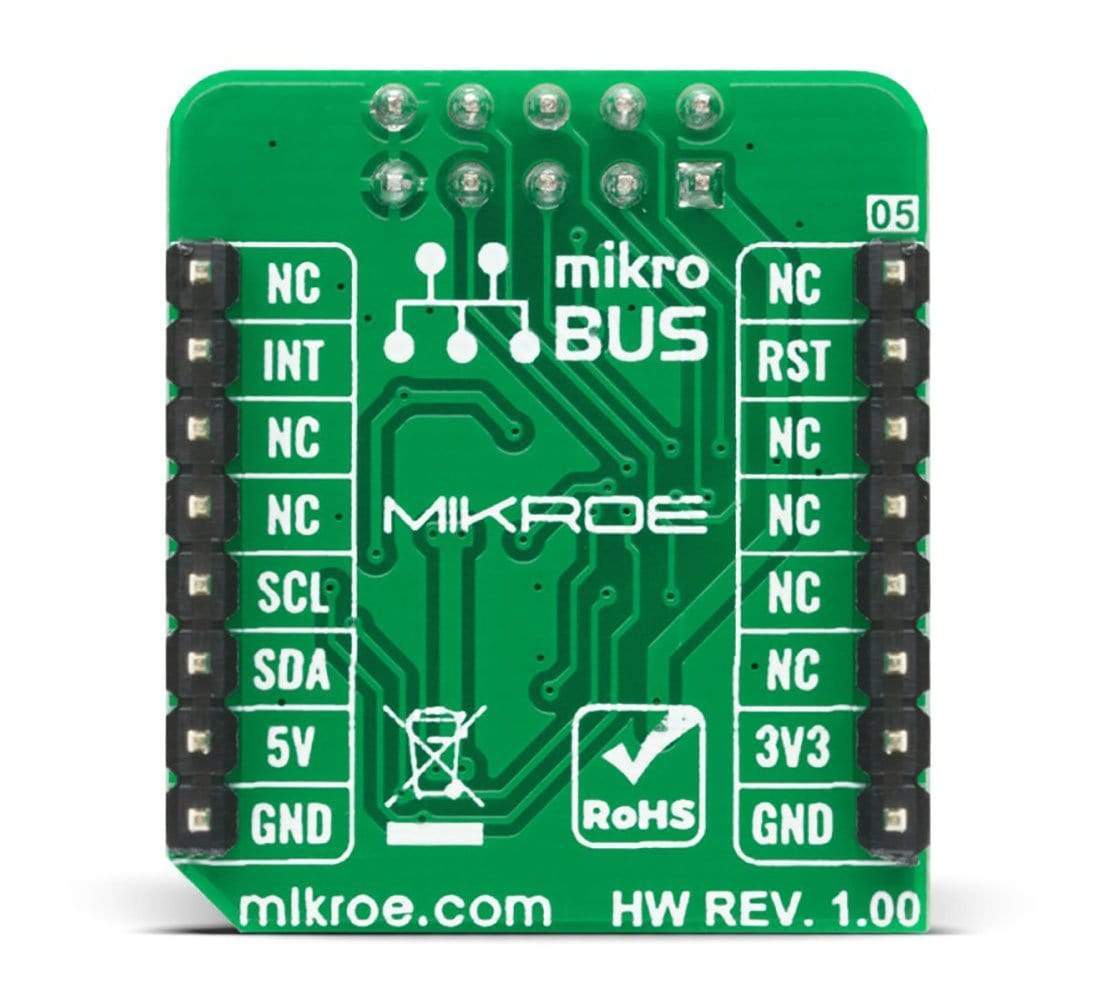

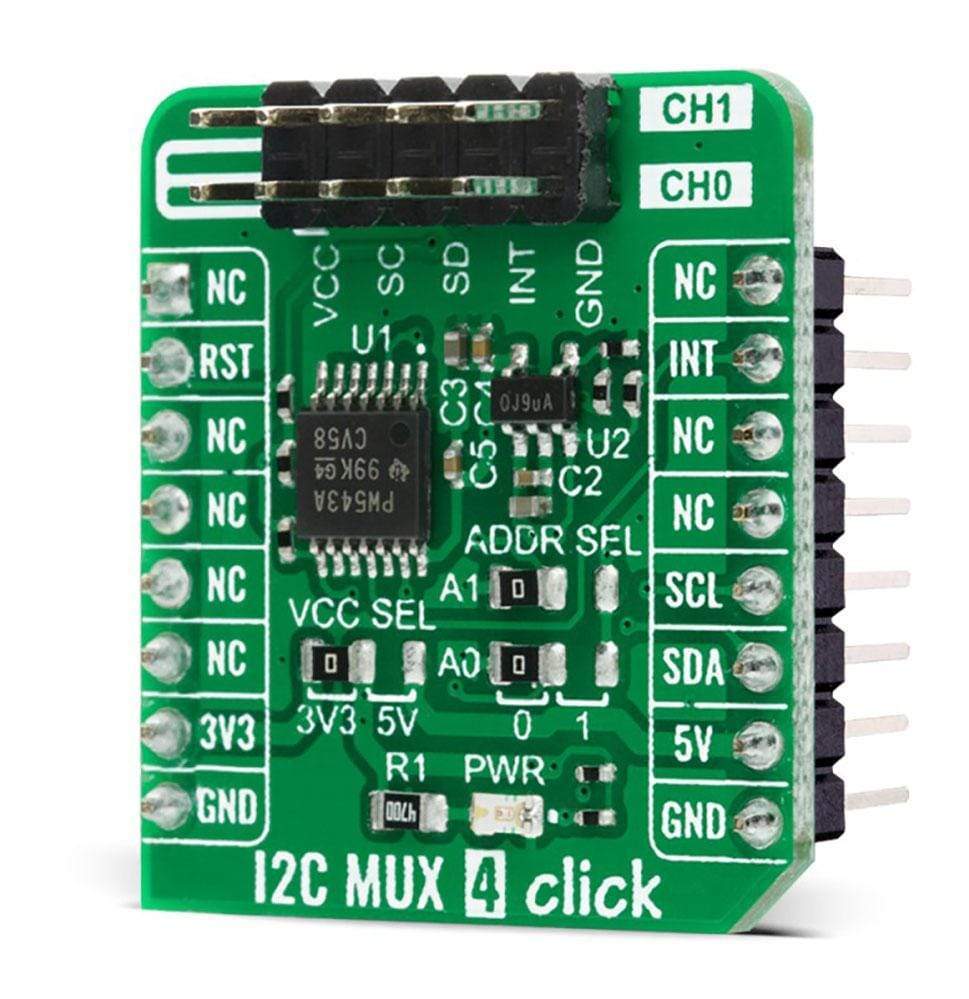

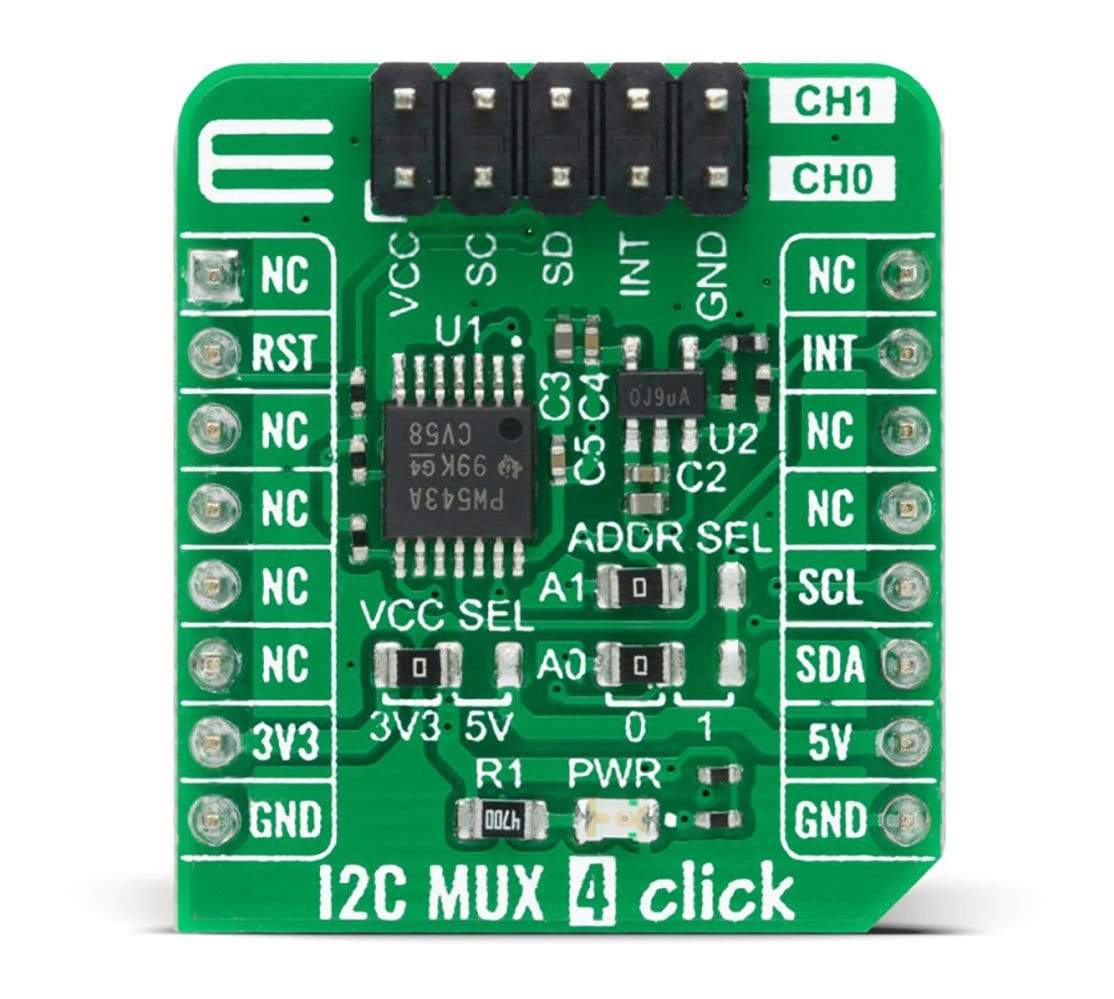

The I2C MUX 4 Click Board™ is a compact add-on board that contains a dual bidirectional translating switch dedicated for applications with I2C slave address conflicts. This board features the TCA9543APWR, a low voltage 2-channel I2C bus switch with interrupt logic from Texas Instruments. The master SCL/SDA signals are directed to two downstream pairs, or channels, where either individual SCL/SDA channel or both channels can be selected by setting the programmable control register. It has two interrupts and a Reset input which allows the TCA9543A to recover from a situation where one of the downstream I2C buses is stuck in a low state. This Click Board™ is suitable to work with I2C interfaces for applications such as fault isolation, address conflict, level translation, or broadcast communication.

The I2C MUX 4 Click Board™ is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click Board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.
