Mikroelektronika d.o.o.

Gyro 5 Click Board

Gyro 5 Click Board

SKU: MIKROE-3669
Regular price
£28.80 inc VAT
£24.00 exc VAT
Regular price Sale price
£28.80 inc VAT
£24.00 exc VAT
Sale Sold out
Shipping calculated at checkout.
If no stock shown above, Order NOW to ship within 10 working days
View full details

Overview

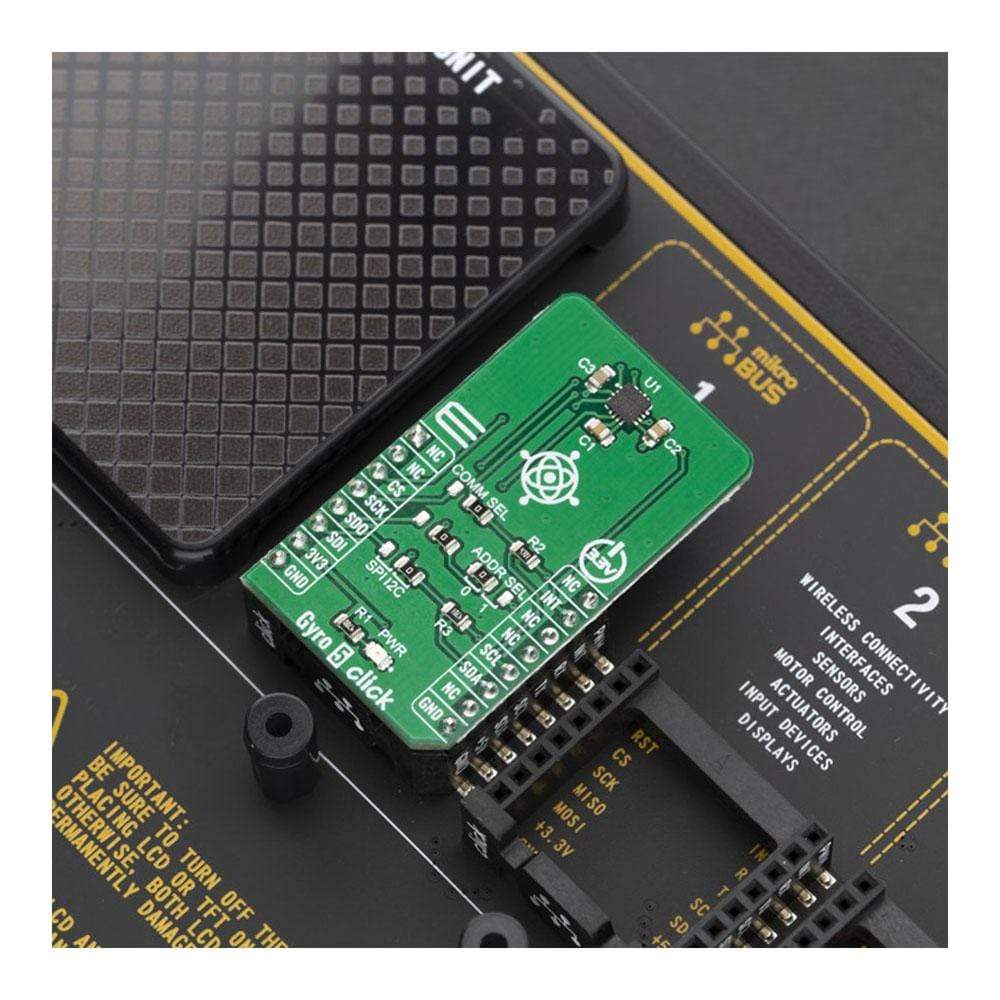

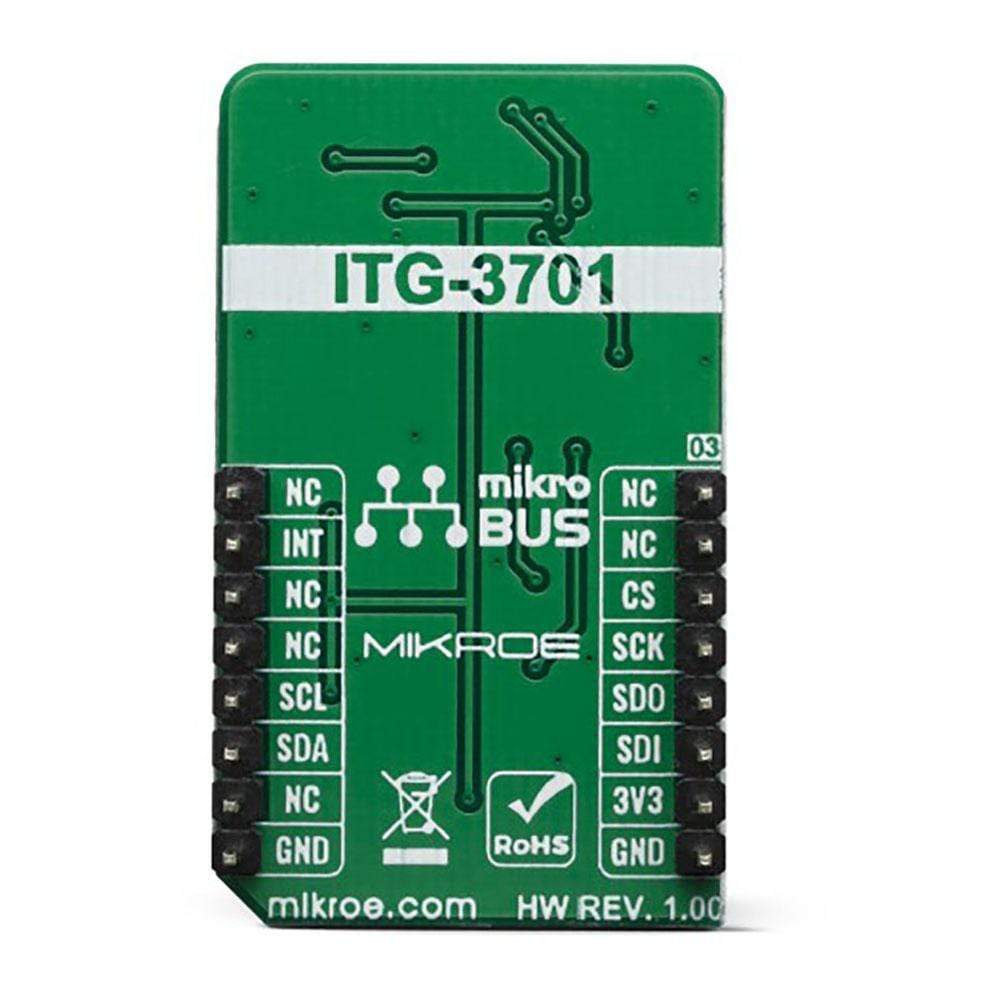

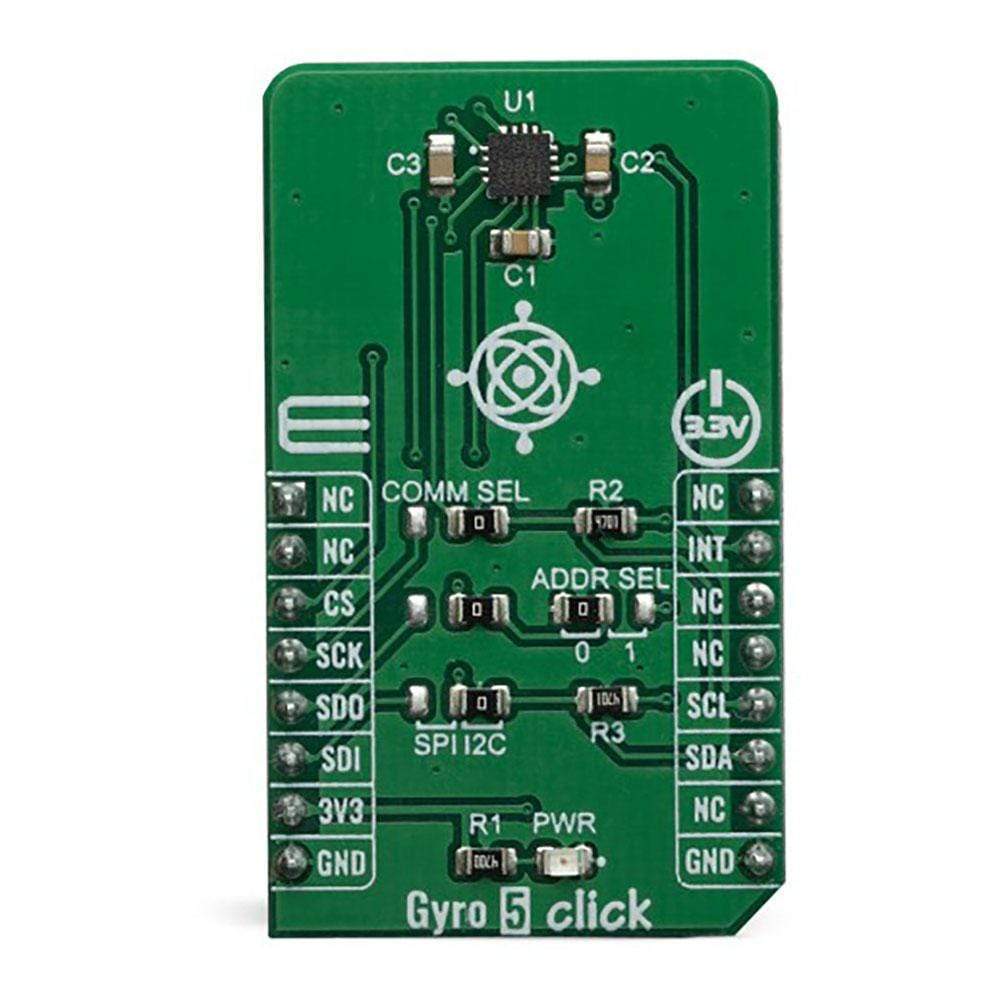

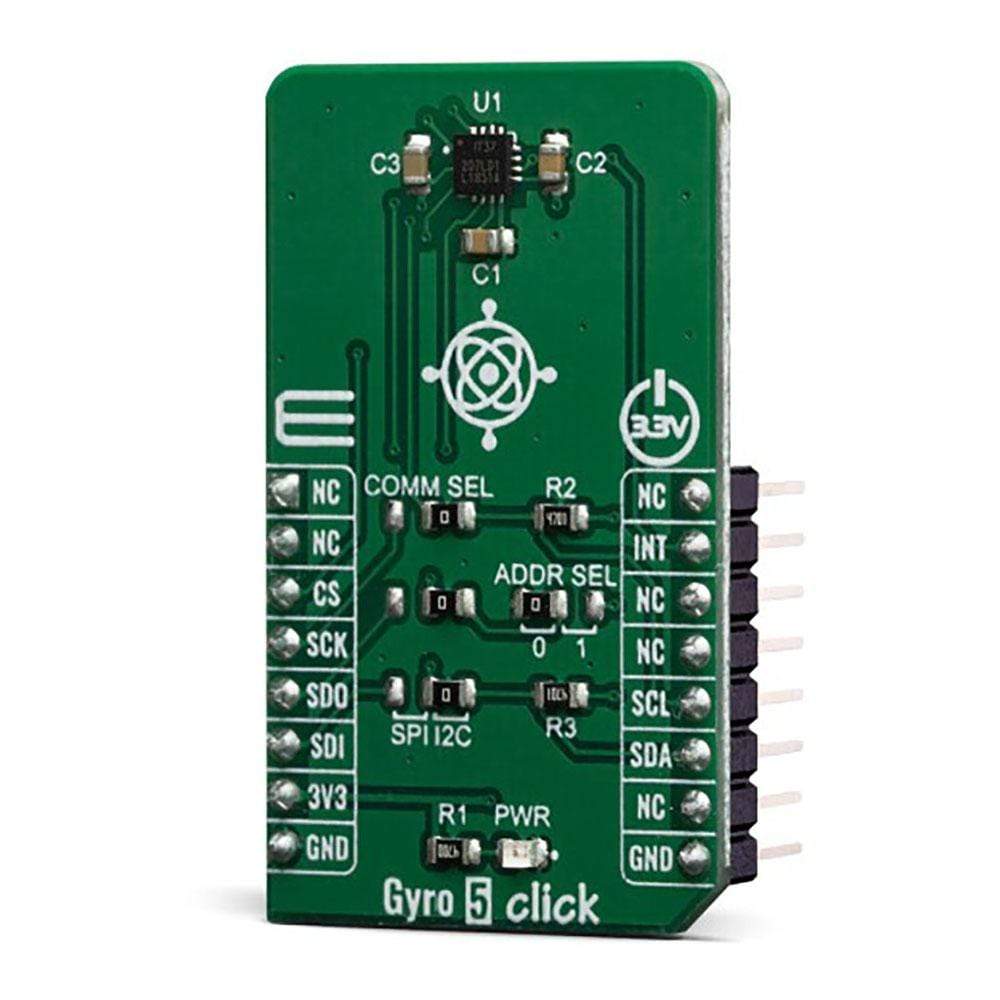

The Gyro 5 Click Board™ is a three-axis gyroscope Click Board™ that can sense motion over three perpendicular axes. It is equipped with the ITG-3701, a three-axis digital gyroscope. This IC incorporates microelectromechanical sensing elements (MEMS), produced using a proprietary CMOS micromachining technology. This technology allows for excellent stability and linearity over temperature. The angular data is available in a 16-bit format, along with the device’s die temperature data. Gyro 5 Click can be used for angular speed up to 4000 degrees per second (DPS), it features a FIFO buffer, two dedicated interrupt lines, and on-chip data processing for optimized firmware development.

The Gyro 5 Click Board™ is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click Board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.
