Buck 12 Click Board
Buck 12 Click Board

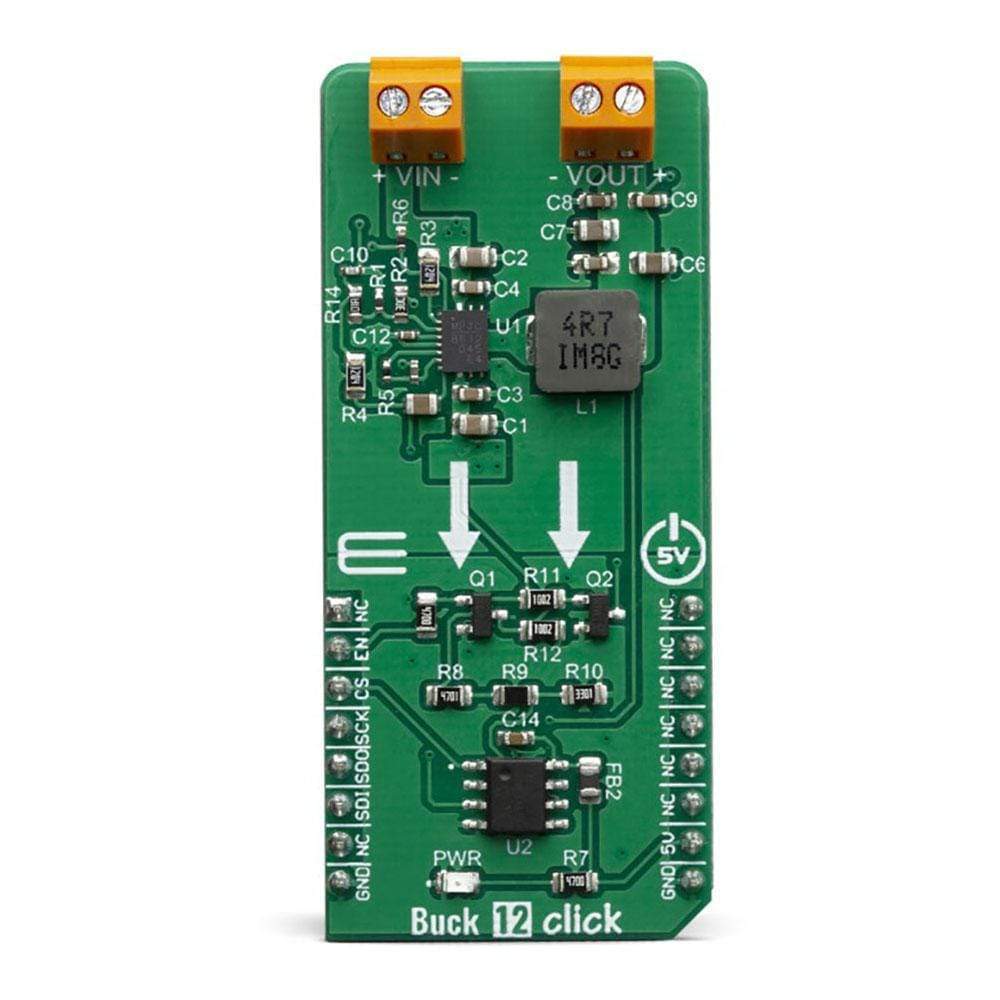

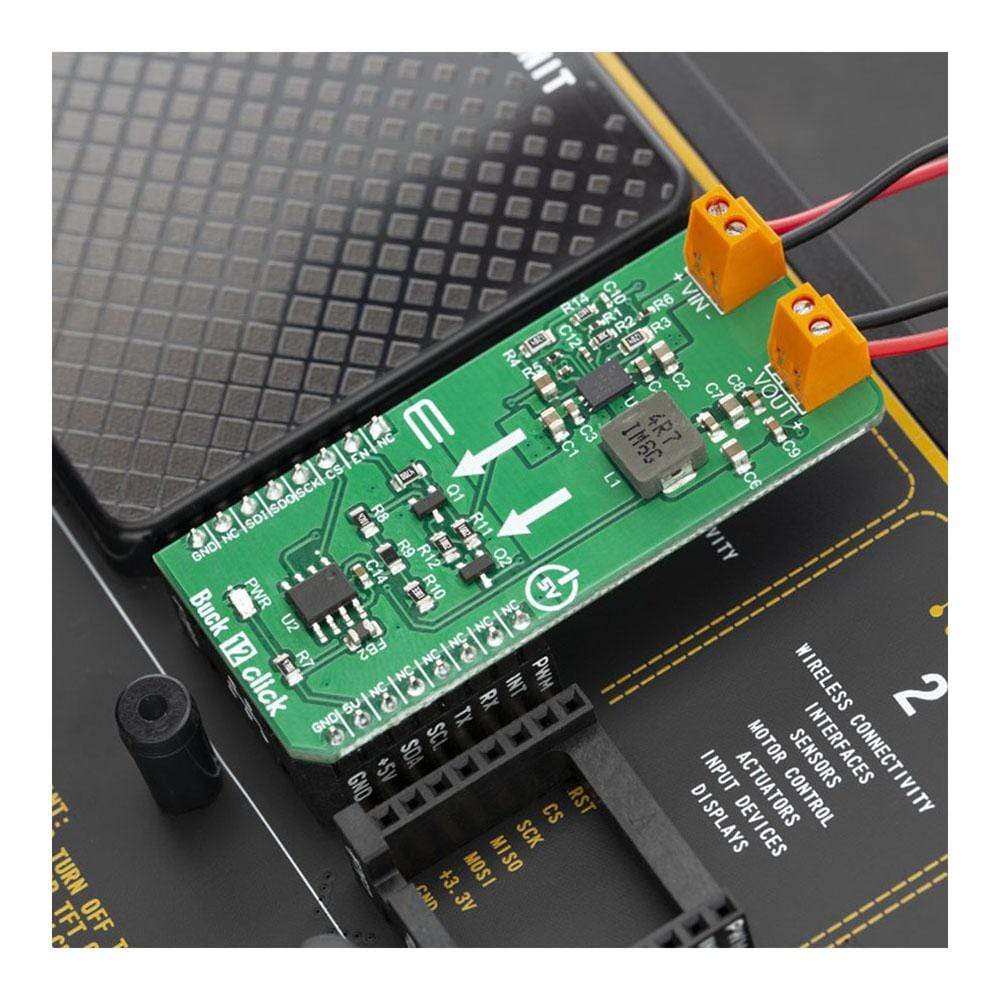

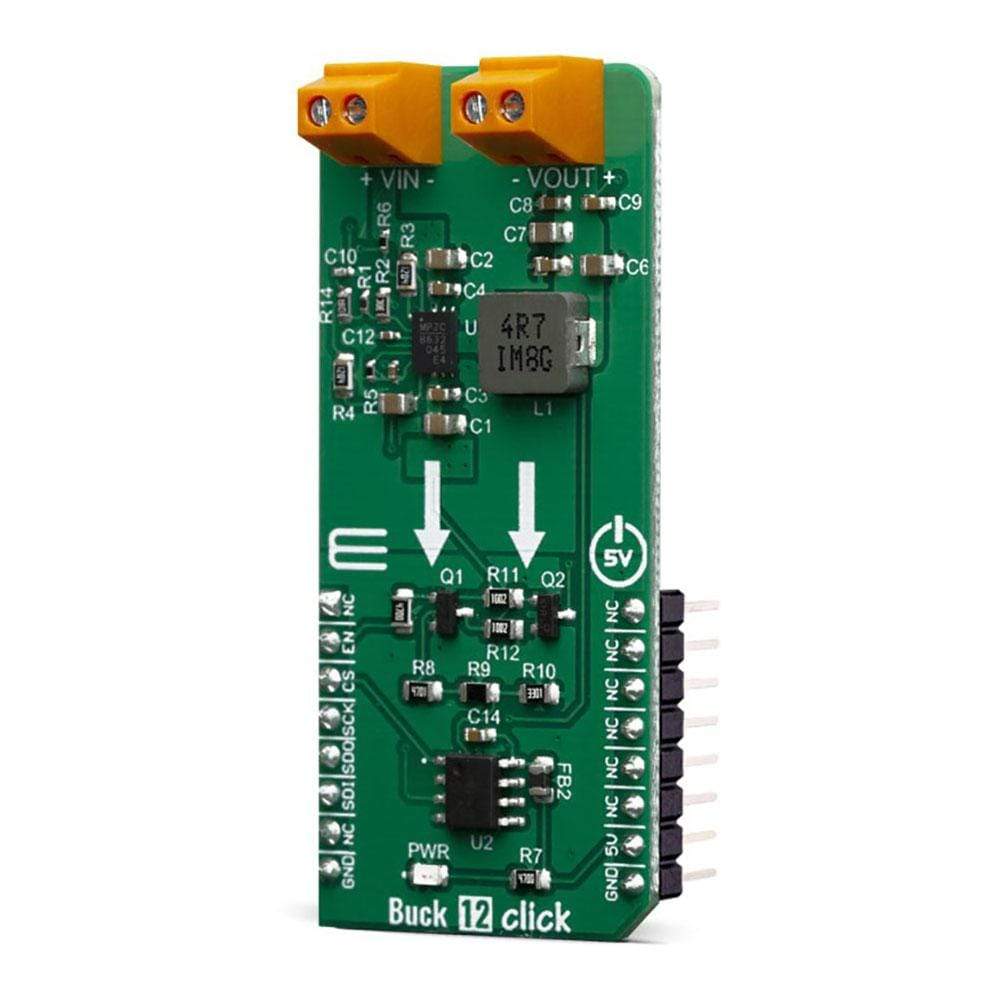

The Buck 12 Click Board™ is a high-efficiency step-down converter that provides 3.3V on its output, derived from the connected power supply voltage, in the range from 4.2V to 18V. Buck 12 Click Board™ is based on the MPQ8632, a highly efficient DC-DC step-down converter. In addition, the Buck 12 Click Board™ offers to monitor the input and output voltage stability by employing an additional A/D converter circuit. Due to its high efficiency, MPQ8632 allows the Click Board™ to efficiently deliver up to 4A of current. It features a package that enables a low noise performance, high efficiency, and very compact size while maintaining compatibility with higher current ICs from the family.
The MPQ8632 has a wide voltage input range, which is one of its key features. It uses Constant-On-Time (COT) control mode to provide fast transient response and ease loop stabilisation. It also features a set of standard protection options, found on many similar devices: over-current protection, over-voltage protection and thermal shutdown, etc. The Click Board™ can be used for a wide range of applications that require 3.3V, including field embedded applications, sensors, PLC modules, video surveillance systems, and similar applications that require step-down conversion to 3.3V.
How Does The Buck 12 Click Board™ Work?
The Buck 12 Click Board™ is equipped with the MPQ8632, a synchronous step-down converter, from Monolithic Power (MPS). This is an advanced integrated step-down converter, which requires a minimum number of external components, readily available on the market. It utilizes a peak-current-mode control architecture, which along with the automatic switch-mode switching, ensures a very good efficiency. The MPQ8632 buck converter features over-current, under-voltage, and thermal protection, making Buck 12 Click Board™ a robust and reliable power supply solution.
The output voltage is determined by the feedback voltage on the FB pin. The output voltage is set to 3.3V making it usable with most embedded applications, allowing them to be powered from the same source, like the rest of the application, which may use a higher voltage for its operation. This is a common-case scenario in various field applications where a relatively high voltage is required i.e. for servos, step motors, displays, etc.
When there is overload at the output, the low-side MOSFET will allow the inductor current to drop. It will remain open until the current through the inductor falls below the limit. If the FB voltage drops too much during the overload, the device enters the hiccup mode, in which the device disables the output power stage, discharges the soft-start capacitor and then automatically retries soft-start.
The MPQ8632 is able to automatically switch between different operating modes, depending on the current through the load. At very light loads, the device is operated in skip mode. In this mode HS-FET turns on for a fixed interval determined by the one-shot on-timer. When the HS-FET turns off, the LS-FET turns on until the inductor current reaches zero. The LS-FET driver turns into tri-state (high Z) whenever the inductor current reaches zero. This way, the device is in an idle state, while the light load consumes energy stored within the coil. This greatly improves the efficiency when a light load is used. This is also called discontinuous conduction mode (DCM).
When heavily loaded, The MPQ8632 is automatically switches to heavy load operation or continuous-conduction-mode (CCM). In this mode, when VFB is below VREF, HS-FET turns on for a fixed interval determined by the one- shot on-timer. When the HS-FET turns off, the LS-FET turns on until the next period. In CCM operation, the switching frequency is fairly constant and is also called PWM mode.
Packed in QFN casing (3X4mm), the MPQ8632 occupies a very small area on the PCB. Combined with the low count of external components it requires, the MPQ8632 leaves enough space for an additional IC to be used. This Click Board™ uses the MCP3202, a Dual Channel 12-Bit A/D Converter which uses the SPI interface, from Microchip. It allows monitoring the input and output voltages over the SPI interface. This ADC is powered from the +5V mikroBUS power rail. The same voltage is used as a reference.
The Buck 12 Click Board™ itself requires an external power supply to be connected at the input terminal, labelled as VIN. The VOUT terminal provides the connected load with the regulated 3.3V voltage.
SPECIFICATIONS
Type | Buck |
Applications | The Buck 12 Click Board™ can be used for a wide range of applications that require 3.3V, including field embedded applications, sensors, PLC modules, video surveillance systems, and similar applications that require step-down voltage conversion. |
On-board modules | MPQ8632, a synchronous step-down converter, from MPS; MCP3202, a Dual Channel 12-Bit A/D Converter from Microchip. |
Key Features | low-power dissipation due to high efficiency, over-current, under-voltage, and thermal protection, wide range for the input supply voltage, ADC for measuring the output voltage accuracy, etc. |
Interface | SPI |
Compatibility | mikroBUS |
Click Board™ size | L (57.15 x 25.4 mm) |
Input Voltage | 5V |

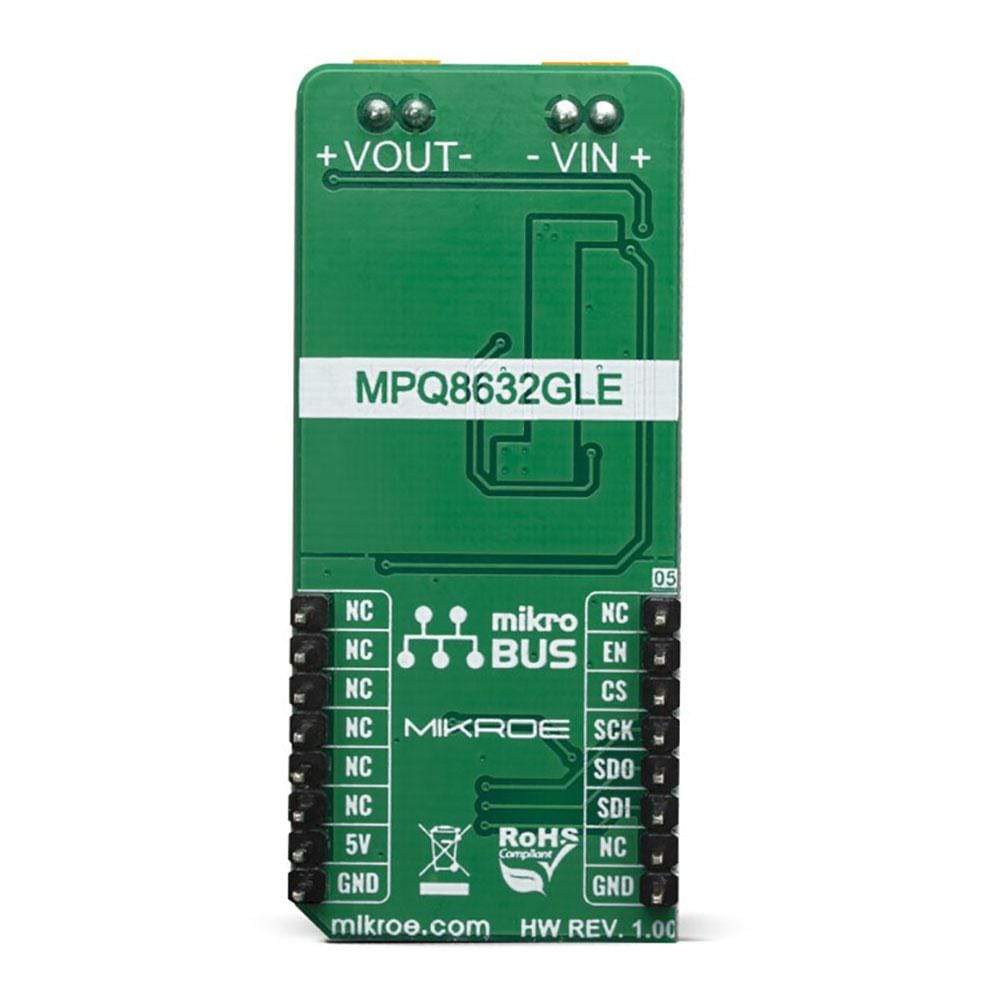

PINOUT DIAGRAM
This table shows how the pinout of the Buck 12 Click Board™ corresponds to the pinout on the mikroBUS socket (the latter shown in the two middle columns).
Notes | Pin | Pin | Notes | ||||
---|---|---|---|---|---|---|---|
NC | 1 | AN | PWM | 16 | NC | ||
Enable input | EN | 2 | RST | INT | 15 | NC | |
Chip Enable | CS | 3 | CS | RX | 14 | NC | |
SPI Clock | SCK | 4 | SCK | TX | 13 | NC | |
SPI SDO | SDO | 5 | MISO | SCL | 12 | NC | |
SPI SDI | SDI | 6 | MOSI | SDA | 11 | NC | |
NC | 7 | 3.3V | 5V | 10 | 5V | Power supply | |
Ground | GND | 8 | GND | GND | 9 | GND | Ground |
ONBOARD SETTINGS AND INDICATORS
Label | Name | Default | Description |
---|---|---|---|
PWR | PWR | - | Power LED Indicator |
VIN | VIN | - | External PSU input connector |
VOUT | VOUT | - | Output connector |
BUCK 12 Click Board™ ELECTRICAL SPECIFICATIONS
Description | Min | Typ | Max | Unit |
---|---|---|---|---|
Output voltage (VOUT) | - | 3.3V | - | V |
Output current (continuous) | 0 | - | 4 | A |
Input voltage | 4.2 | - | 18 | V |
Software Support
We provide a library for the Buck 12 Click Board™ on our LibStock page, as well as a demo application (example), developed using MikroElektronika compilers. The demo can run on all the main MikroElektronika development boards.
Library Description
The library initializes and defines the SPI bus driver. The library includes function for enable or disable buck device. The user also has the function for read voltage on the input and output terminal.
Key Functions
void buck12_control(uint8_t ctrl)
- Function for enable or disable device.float buck12_getVoltage(uint8_t selectVolt)
- Function for get Voltage.
Example Description
The application is composed of three sections :
- System Initialization - Initializes SPI module and sets CS pin and RST pin as OUTPUT.
- Application Initialization - Initialization driver init and BUCK enabled.
- Application Task - Reads the voltage in [mV] at the input and output terminals. This data logs to the USBUART every 2 sec.
Note: Voltage on VIN terminal must be between 2.5V and 18V. When the BUCK is enabled - the voltage on the VOUT terminal is about 3.3V..
void applicationTask() { char demoText[ 20 ]; float Voltage; Voltage = buck12_getVoltage(_BUCK12_INPUT_VOLTAGE); FloatToStr(Voltage, demoText); mikroBUS_logWrite("* VIN : ", _LOG_TEXT); mikroBUS_logWrite(demoText, _LOG_TEXT); mikroBUS_logWrite(" mV", _LOG_LINE); Voltage = buck12_getVoltage(_BUCK12_OUTPUT_VOLTAGE); FloatToStr(Voltage, demoText); mikroBUS_logWrite("* VOUT : ", _LOG_TEXT); mikroBUS_logWrite(demoText, _LOG_TEXT); mikroBUS_logWrite(" mV", _LOG_LINE); mikroBUS_logWrite("--------------------------", _LOG_LINE); Delay_ms( 2000 ); }
The full application code, and ready to use projects can be found on our LibStock page.
Other mikroE Libraries used in the example:
- SPI
- UART
- Conversions
Additional Notes and Information
Depending on the development board you are using, you may need a USB UART Click Board™, USB UART 2 Click Board™ or RS232 Click Board™ to connect to your PC, for development systems with no UART to USB interface available on the board. The terminal available in all MikroElektronika compilers, or any other terminal application of your choice, can be used to read the message.
MIKROSDK
The Buck 12 Click Board™ is supported with mikroSDK - MikroElektronika Software Development Kit. To ensure proper operation of mikroSDK compliant Click Board™ demo applications, mikroSDK should be downloaded from the LibStock and installed for the compiler you are using.
Software Support
We provide a library for the Buck 12 Click Board™ on our LibStock page, as well as a demo application (example), developed using MikroElektronika compilers. The demo can run on all the main MikroElektronika development boards.
Library Description
The library initializes and defines the SPI bus driver. The library includes function for enable or disable buck device. The user also has the function for read voltage on the input and output terminal.
Key Functions
void buck12_control(uint8_t ctrl)
- Function for enable or disable device.float buck12_getVoltage(uint8_t selectVolt)
- Function for get Voltage.
Example Description
The application is composed of three sections :
- System Initialization - Initializes SPI module and sets CS pin and RST pin as OUTPUT.
- Application Initialization - Initialization driver init and BUCK enabled.
- Application Task - Reads the voltage in [mV] at the input and output terminals. This data logs to the USBUART every 2 sec.
Note: Voltage on VIN terminal must be between 2.5V and 18V. When the BUCK is enabled - the voltage on the VOUT terminal is about 3.3V..
void applicationTask() { char demoText[ 20 ]; float Voltage; Voltage = buck12_getVoltage(_BUCK12_INPUT_VOLTAGE); FloatToStr(Voltage, demoText); mikroBUS_logWrite("* VIN : ", _LOG_TEXT); mikroBUS_logWrite(demoText, _LOG_TEXT); mikroBUS_logWrite(" mV", _LOG_LINE); Voltage = buck12_getVoltage(_BUCK12_OUTPUT_VOLTAGE); FloatToStr(Voltage, demoText); mikroBUS_logWrite("* VOUT : ", _LOG_TEXT); mikroBUS_logWrite(demoText, _LOG_TEXT); mikroBUS_logWrite(" mV", _LOG_LINE); mikroBUS_logWrite("--------------------------", _LOG_LINE); Delay_ms( 2000 ); }
The full application code, and ready to use projects can be found on our LibStock page.
Other mikroE Libraries used in the example:
- SPI
- UART
- Conversions
Additional Notes and Information
Depending on the development board you are using, you may need a USB UART Click Board™, USB UART 2 Click Board™ or RS232 Click Board™ to connect to your PC, for development systems with no UART to USB interface available on the board. The terminal available in all MikroElektronika compilers, or any other terminal application of your choice, can be used to read the message.
MIKROSDK
The Buck 12 Click Board™ is supported with mikroSDK - MikroElektronika Software Development Kit. To ensure proper operation of mikroSDK compliant Click Board™ demo applications, mikroSDK should be downloaded from the LibStock and installed for the compiler you are using.
