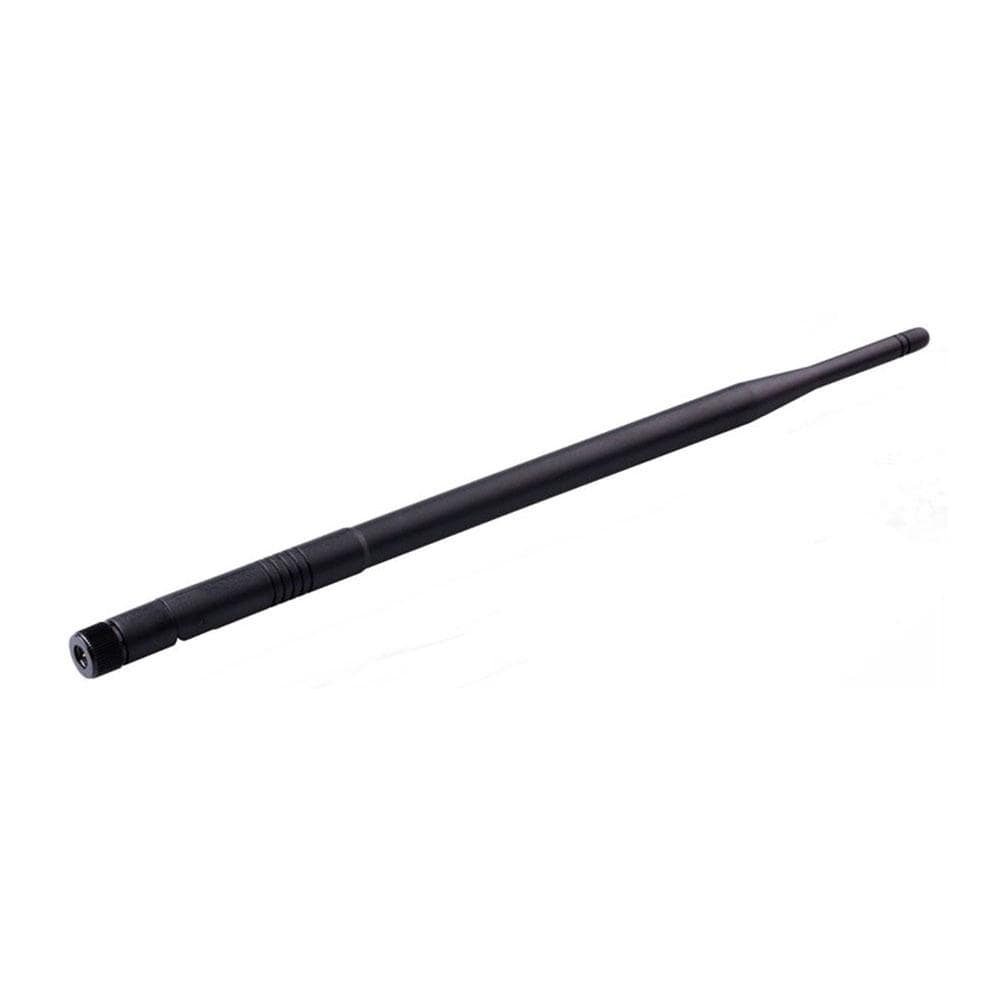

LTE Rubber Antenna

LTE Rubber Antenna

for 3G/4G Applications

SKU: MIKROE-3371

Regular price
£9.48 exc VAT
£11.38 inc VAT
Regular price £9.48 GBP Sale price
£9.48 exc VAT
£11.38 inc VAT
Sale Sold out
Shipping calculated at checkout.
If no stock shown above, check availability

Payment methods

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Bank transfer
View full details

Overview

This multi-band LTE Rubber Antenna with adjustable angle is an excellent choice for all 3G/4G LTE-based Click Boards™ from our offer, as well as other devices that require excellent throughput on all major cellular bands worldwide. The antenna has an SMA male connector on its end, which allows it to be mounted directly on the Click Board™ or the female SMA module connector. The antenna position can be adjusted in 45° increments (0°/45°/90°)

This multi-band LTE Rubber Antenna with adjustable angle is an excellent choice for all 3G/4G LTE-based Click Board™s from our offer, as well as other devices that require excellent throughput on all major cellular bands worldwide. The antenna has an SMA male connector on its end, which allows it to be mounted directly on the Click Board™ or the female SMA module connector. The antenna position can be adjusted in 45° increments (0°/45°/90°).

  • Frequency range: 700 - 2700 MHz
  • Impedance: 50Ω
  • VSW Ratio: <3.0:1
  • Gain: 5dB
  • Polarization: Vertical
  • Max Input Power: 20W
  • Antenna Length: 210mm
  • Antenna Diameter: 13mm / 5.5mm
  • Connector Type: SMA male
  • Storage Temperature: -30⁰C to +75⁰C
Performance
Frequency range700 - 2700 MHz
Compliance
Country of originSerbia
RoHSCompliant
Additional specifications
Impedance50Ω
Ordering information
Part number (SKU)MIKROE-3371
ManufacturerMikroelektronika d.o.o.
EAN8606018714551
Warranty12 months
Shipping weight0.025 kg
  • 1 × LTE Rubber Antenna
