LDC1101 Click Board
LDC1101 Click Board
Couldn't load pickup availability
Key Features
- Two independent cores, one that outputs 16-bit inductance and impedance data, and the other that outputs 24-bit inductance data. Wide operating frequency range allows many kinds of objects to be sensed. Reliable sensing even in harsh environments
- Based on the LDC1101, an integrated high-resolution, high-speed inductance-to-digital converter, by Texas Instruments
- It can be used for high-speed object counting, motor speed sensing, for developing various buttons, keypads and other types of HMI-based applications. Utilizing the ability to sense both impedance and inductance properties, it is possible to develop metal composition and metal detection applications.
Overview

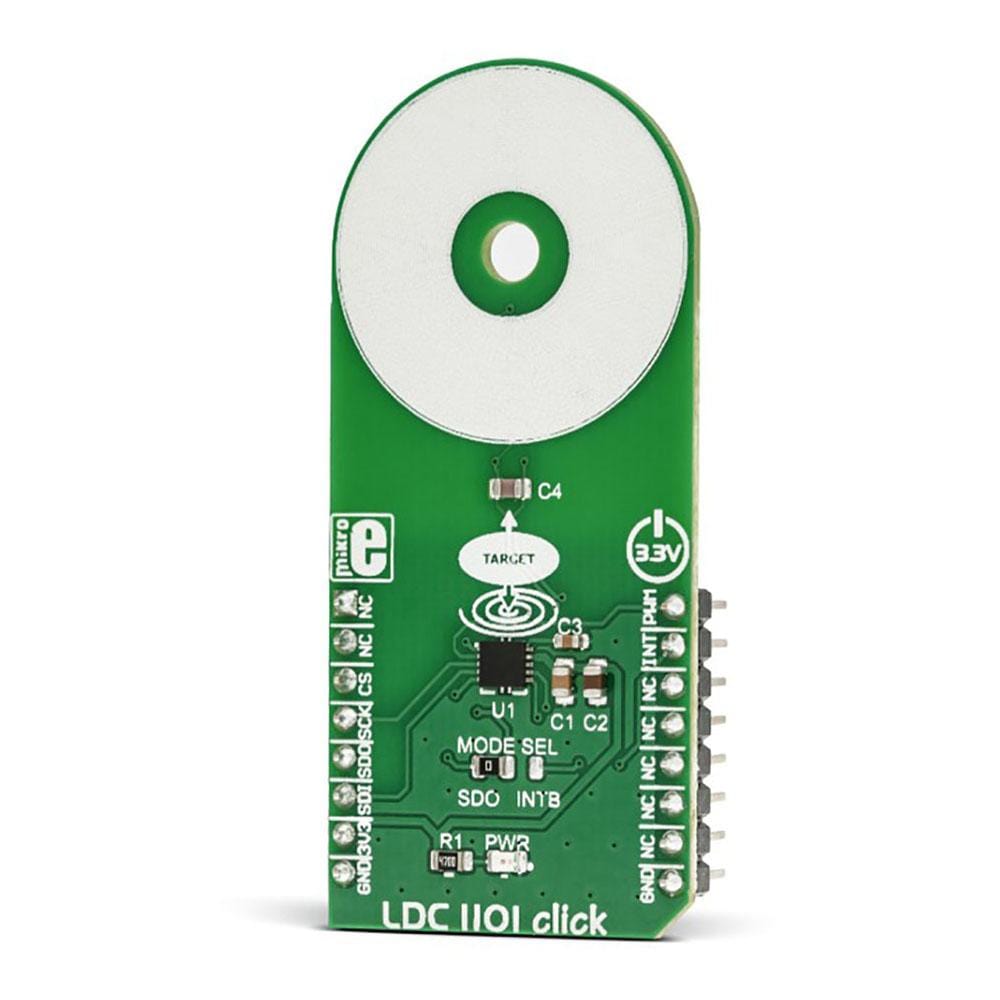

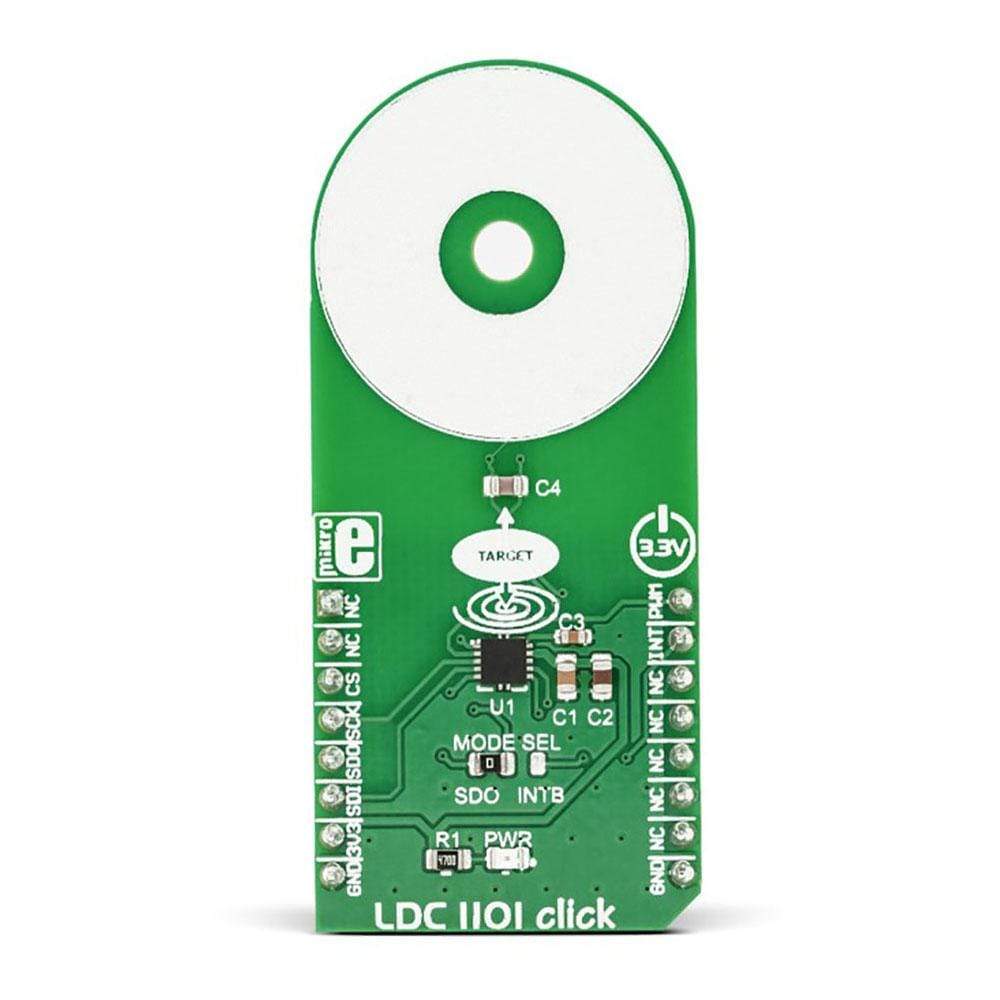

The LDC1101 Click Board™ is an inductance-to-digital converter It is designed for a range of different applications, based on inductive measurements. You can use it to detect the position, rotation, or motion of an object. LDC1101 carries the LDC1101, the integrated, high-resolution, high-speed, inductance-to-digital converter. The converter allows both the inductance and the impedance to be measured. The fast impedance + inductance (RP+L) mode offers separate 16-bit readings for both parameters, while the high-resolution inductance (LHR) mode offers a single reading with a resolution of 24 bits.

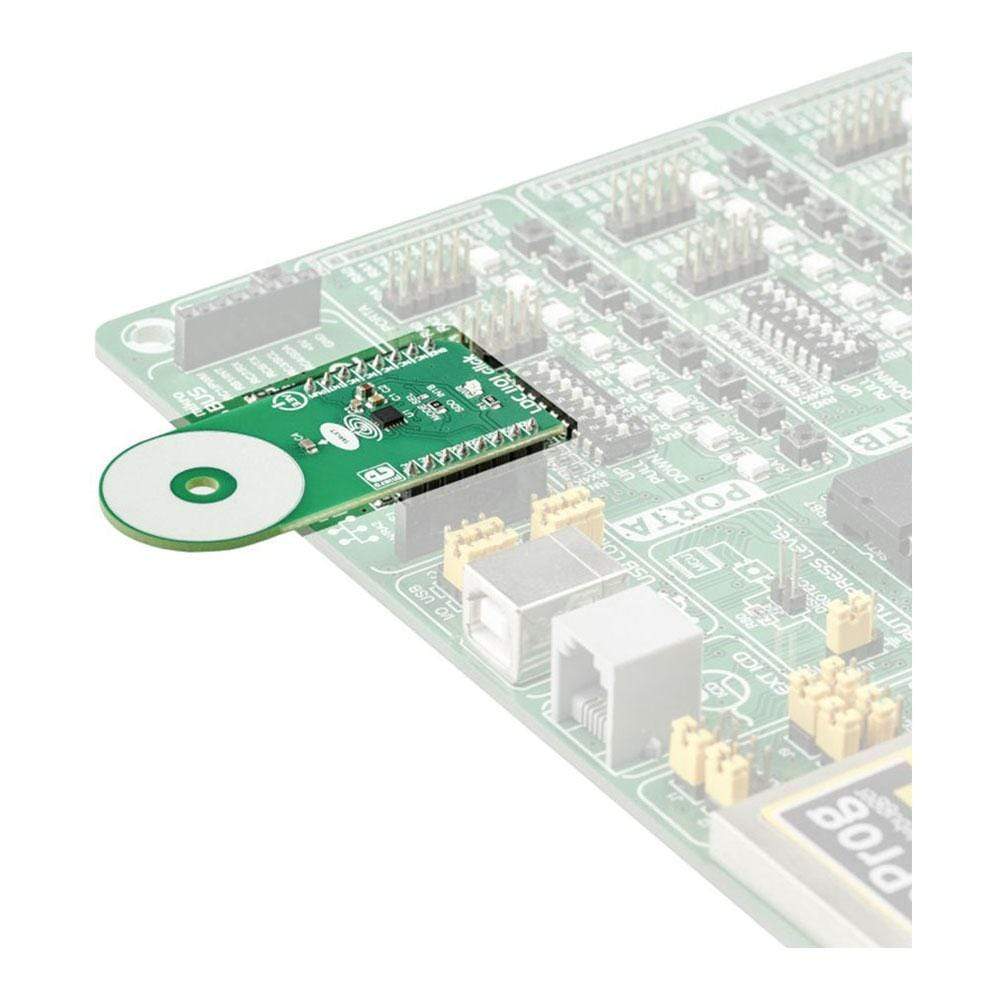

It comes in a package that also includes the mikroSDK software and a library with all the functions. The LDC1101 Click Board™ comes as a fully tested and approved prototype, making it a reliable device ready to use on the development board.
