Mikroelektronika d.o.o.

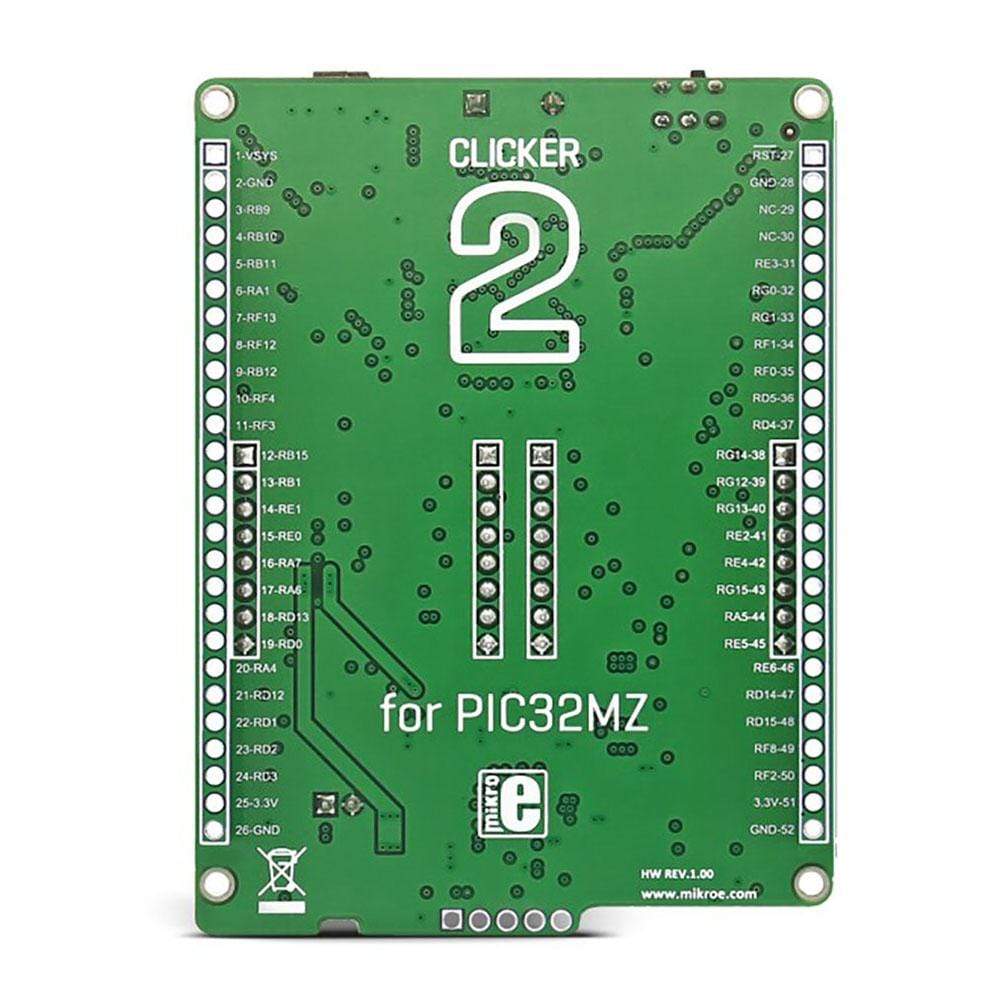

Clicker Board 2 for PIC32MZ

Clicker Board 2 for PIC32MZ

Development Board for PIC32MZ with 2 MikroBus Sockets

SKU: MIKROE-2800

Regular price
£71.00 exc VAT
£85.20 inc VAT
Regular price £71.00 GBP Sale price
£71.00 exc VAT
£85.20 inc VAT
Sale Sold out
Shipping calculated at checkout.
If no stock shown above, check availability

Payment methods

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Bank transfer
View full details

Overview

The Clicker 2 Board™ for PIC32MZ is a compact PIC32 development kit with two mikroBUS sockets for Click Board™ connectivity. It carries the PIC32MZ 32-bit microcontroller (1 MB Live-Update Flash and 512 KB SRAM) with FPU from Microchip. With a built-in USB-HID bootloader the Clicker 2 Board™ for PIC32MZ it easy to program.

TECHNICAL SPECIFICATIONS

Clicker 2 Board™ for PIC32MZ is a compact PIC32 development kit with two mikroBUS sockets for Click Board™ connectivity. It carries the PIC32MZ 32-bit microcontroller (1 MB Live-Update Flash and 512 KB SRAM) with FPU from Microchip. With a built-in USB-HID bootloader the Clicker 2 Board™ for PIC32MZ it easy to program.

Thousands of possibilities with Click Board™s. With two mikroBUS sockets on Clicker 2 Board™, you can take advantage of the huge potential of Click Board™s, the constantly expanding range of over 852 add-on boards. Blend different functionalities together and come up with new and original inventions. That's just two Click Board™s and your project is half-way done. Go ahead and play with a few ideas right away. Click Board combinations

Programming. To make your prototyping experience as convenient as possible, Clicker 2 Board™ for PIC32MZ is preprogrammed with a USB-HID bootloader. Just download our mikroBootloader application and you're ready to upload your firmware. The on-board mikroProg connector enables programming through external programmer/debugger. You can supply power to the board with a micro USB cable provided in the package. Onboard voltage regulators provide the appropriate voltage levels to each component on the board.

Power Management. Clicker 2 Board™ for PIC32MZ features LTC®3586, a highly integrated power management and battery charger IC that includes a current limited switching PowerPath manager. LTC®3586 also enables battery charging over a USB connection. You can supply power to the board with a micro USB cable provided in the package. On-board voltage regulators provide the appropriate voltage levels to each component on the board.

Overview
DescriptionApplications This compact development board brings the flexibility of click boards to your favorite microcontroller, making it a perfect starter kit for implementing your ideas., MCU PIC32MZ 32-bit, MCU Memory Up to 2 MB Live-Update Flash and 512 KB SRAM, On-board modules 1 x USB MINI-B connector, 2 x LEDs, 2 x push buttons, 1 x reset button, Expandability mikroBUS™ socket
Key components
Main ICLTC3586EUFE#PBF, PIC32MZ1024EFH064-I/MR (Linear Technology/Analog Devices, Microchip Technology)
Compliance
Country of originSerbia
RoHSCompliant
Ordering information
Part number (SKU)MIKROE-2800
ManufacturerMikroelektronika d.o.o.
EAN8606018711710
Warranty12 months
Shipping weight0.04 kg
  • 1 × Clicker Board 2 for PIC32MZ

Contact us to confirm the full contents of the box.
