ADAC Click Board

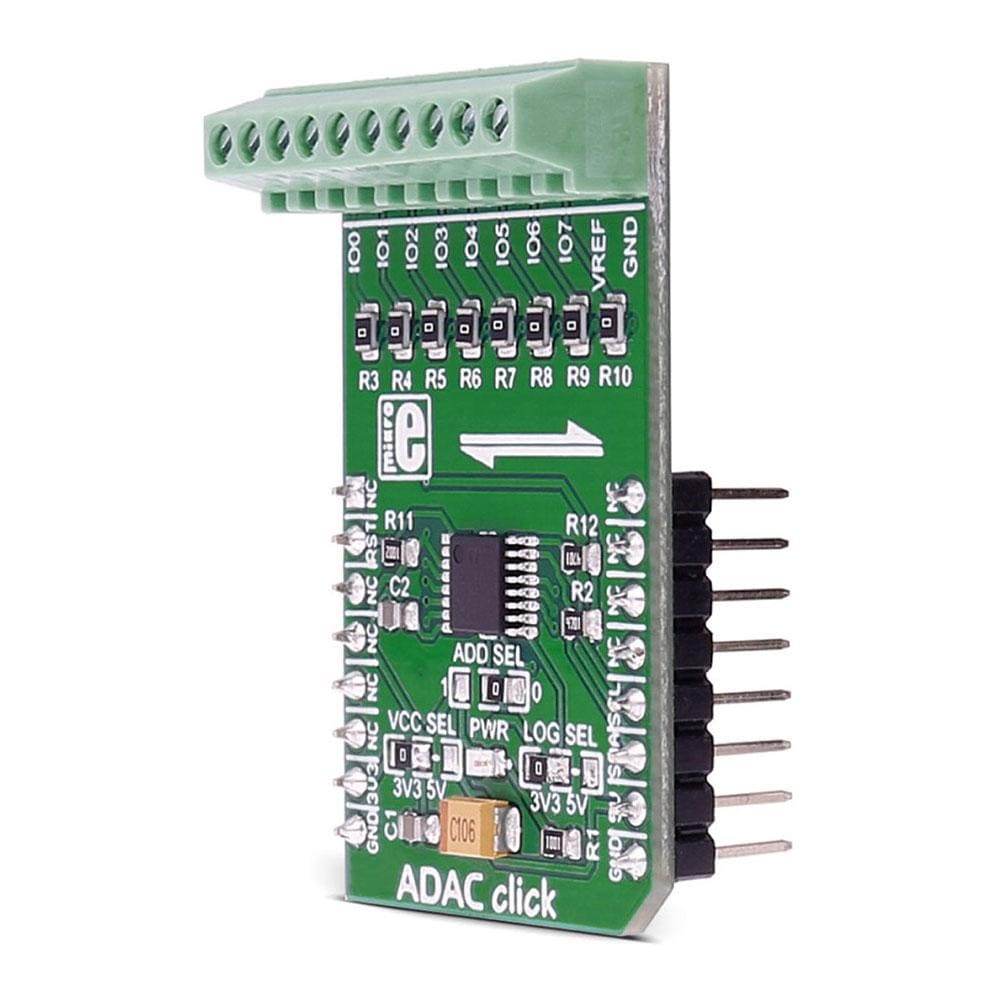

The ADAC Click Board™ is an 8-channel 12-bit ADC, DAC and GPIO. It carries the AD5593R configurable ADC/DAC, from Analog Devices. The click is designed to run on either 3.3V or 5V power supply. The ADAC Click Board™ communicates with the target microcontroller over I2C interface, with additional functionality provided by the RST pin on the mikroBUS™ line.

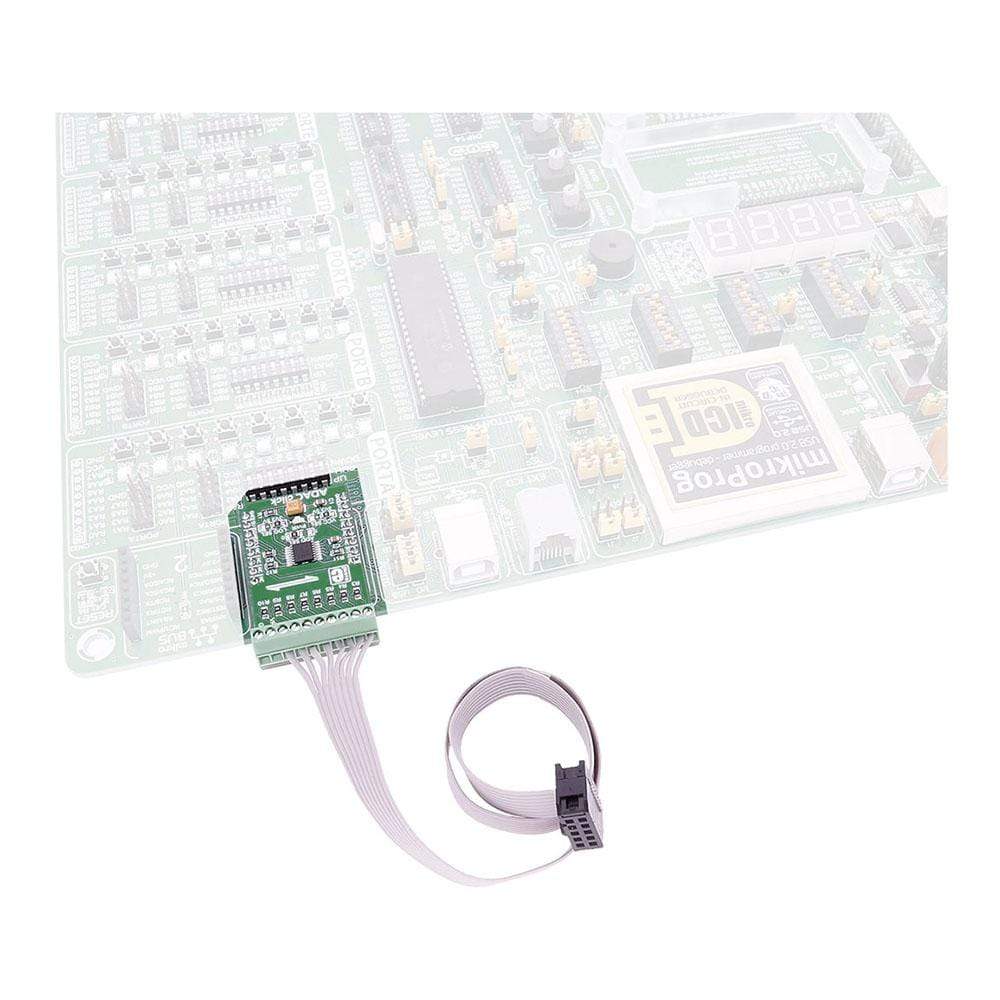

How Does The ADAC Click Board™ Work?

Every channel can be set individually as ADC, DAC, or GPIO. The 12-bit conversion values are readable through I2C.

For resetting the IC, use the Reset pin (RST).

AD5593R IC FEATURES

The AD5593R has eight input/output (I/O) pins, which can be independently configured as digital-to-analog converter (DAC) outputs, analog-to-digital converter (ADC) inputs, digital outputs, or digital inputs. When an I/O pin is configured as an analog output, it is driven by a 12-bit DAC. The output range of the DAC is 0 V to VREF or 0 V to 2×V REF.

When an I/O pin is configured as an analog input, it is connected to a 12-bit ADC via an analog multiplexer. The input range of the ADC is 0 V to VREF or 0 V to 2 × VREF. The I/O pins can also be configured to be general-purpose, digital input or output (GPIO) pins.

SPECIFICATIONS

KEY FEATURES

• AD5593R configurable ADC/DAC
  • 8 12-bit DAC channels
  • 8 12-bit ADC channels
  • 8 general-purpose I/O pins
• I2C interface
• 3.3V or 5V power supply

PINOUT DIAGRAM

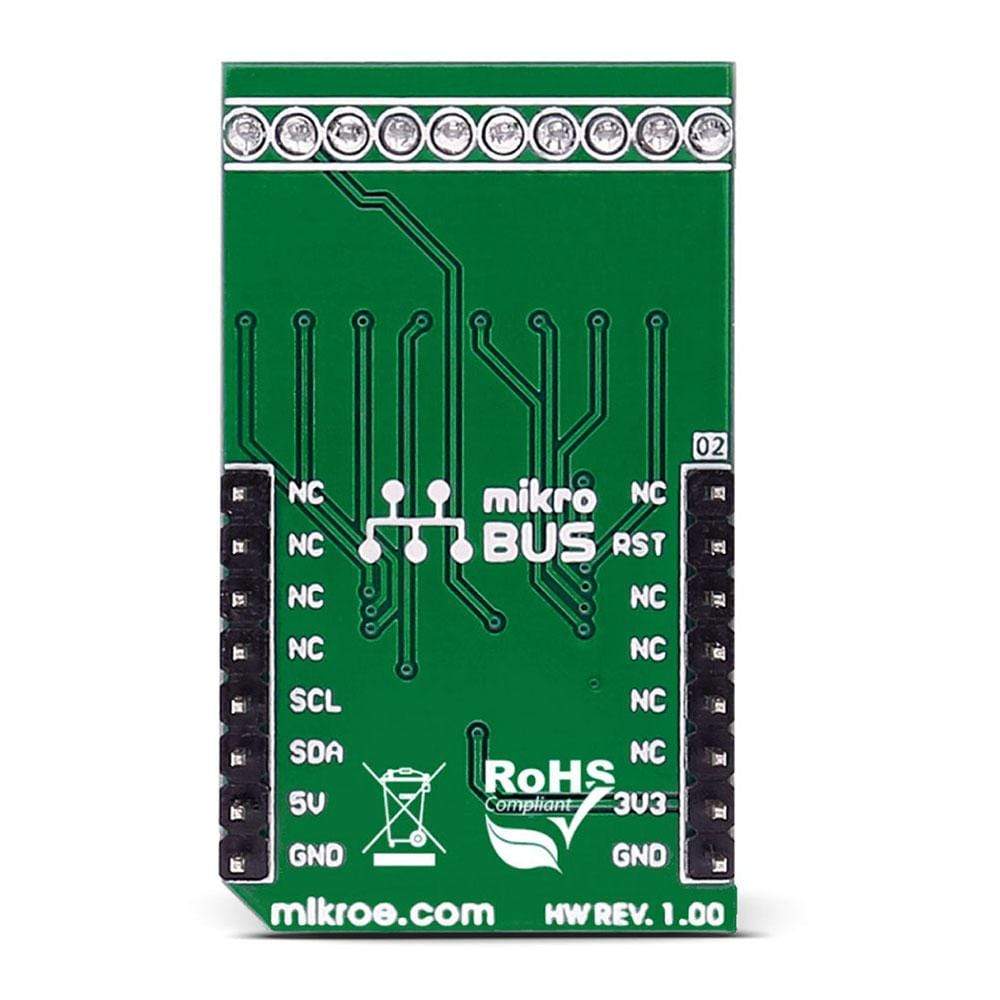

This table shows how the pinout on the ADAC Click Board™ corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).

Notes	Pin					Pin	Notes
NC	1	AN	PWM	16	NC
Active low IC reset	RST	2	RST	INT	15	NC
NC	3	CS	TX	14	NC
NC	4	SCK	RX	13	NC
NC	5	MISO	SCL	12	SCL	I2C serial clock
NC	6	MOSI	SDA	11	SDA	I2C serial data
Power supply	+3.3V	7	3.3V	5V	10	+5V	Power supply
Ground	GND	8	GND	GND	9	GND	Ground
