Mikroelektronika d.o.o.

MINI-M4 for MSP432 MCU Board

MINI-M4 for MSP432 MCU Board

SKU: MIKROE-2682

Regular price
£35.00 exc VAT
£42.00 inc VAT
Regular price £35.00 GBP Sale price
£35.00 exc VAT
£42.00 inc VAT
Sale Sold out
Shipping calculated at checkout.
If no stock shown above, check availability

Payment methods

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Bank transfer
View full details

Overview

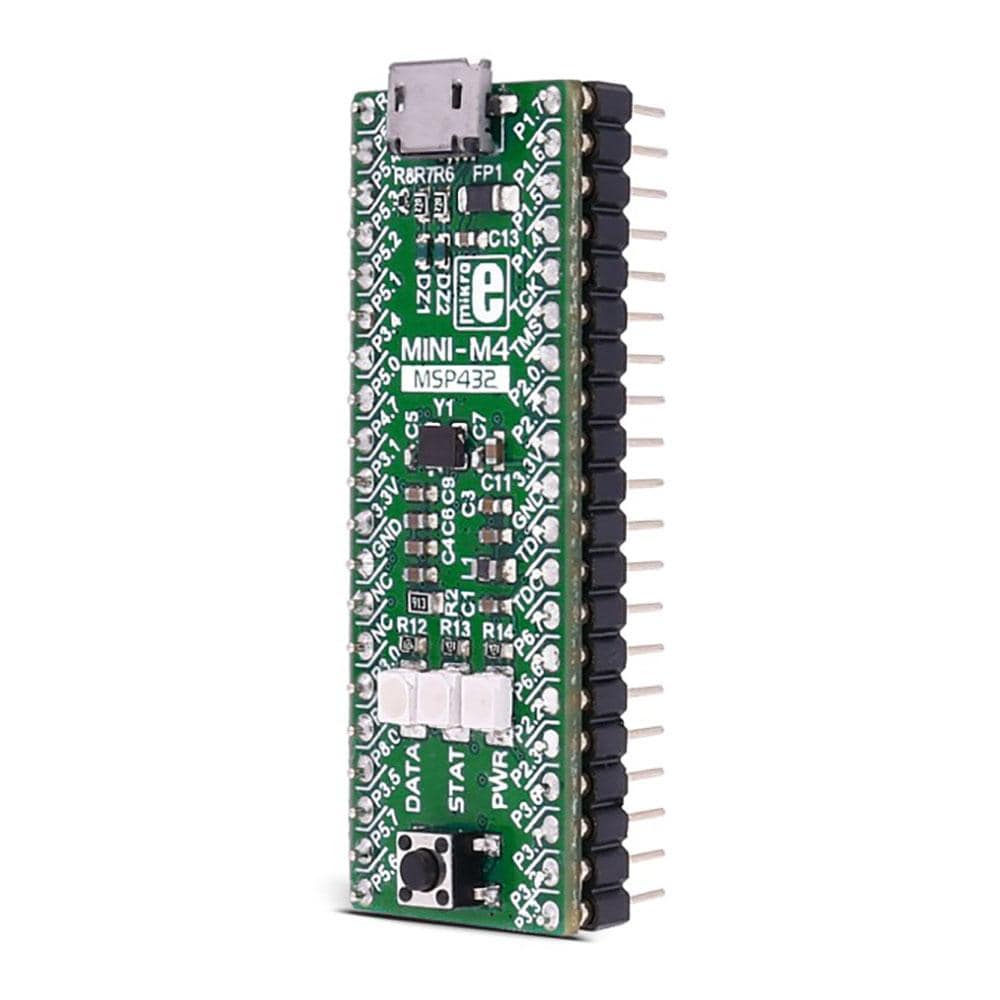

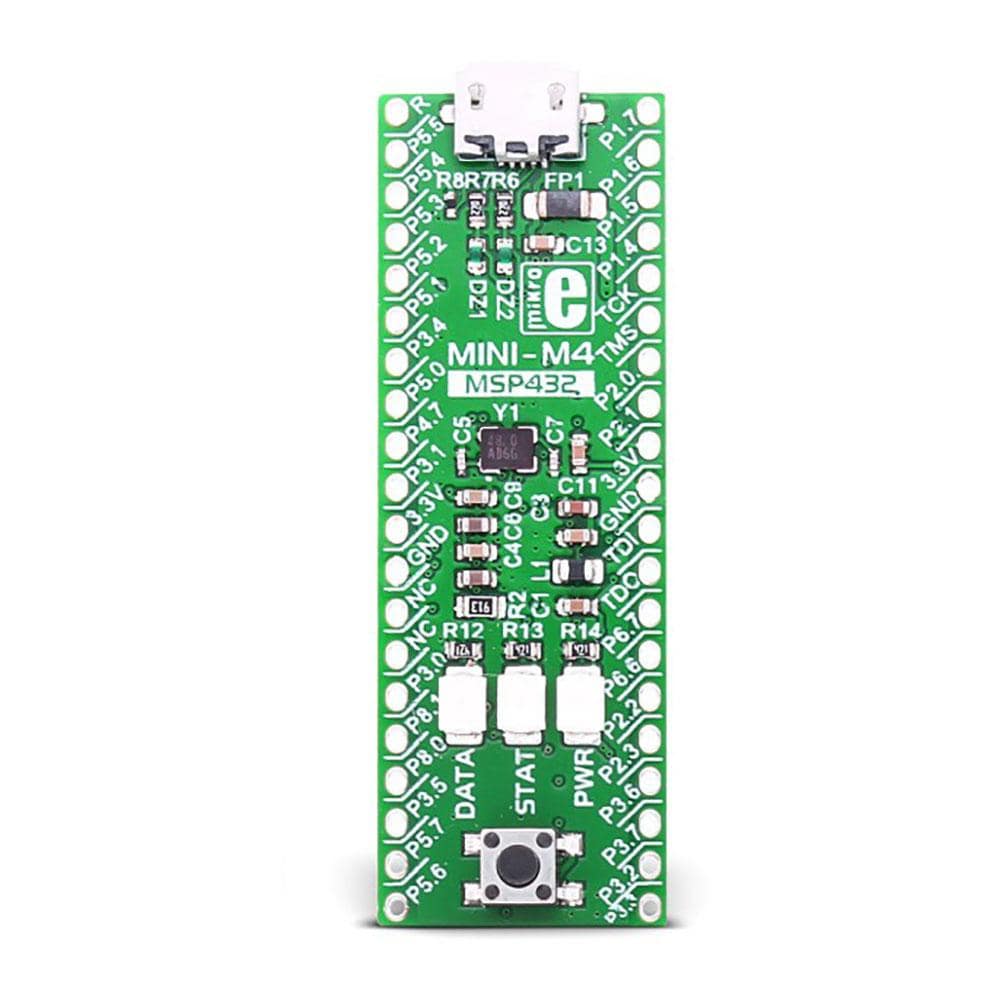

The MINI-M4 for MSP432 is a small ARM Cortex-M4 development board containing the MSP432P401RIRGC microcontroller from Texas Instruments. This compact and powerful development board is designed to work as a standalone device or as an MCU card in the DIP40 socket.

The MINI-M4 for MSP432 operates on a 3.3V power supply. The onboard voltage regulator allows the board to be powered directly from the USB cable.

MINI-M4 for MSP432 Technical Specifications

Key Features

  • MSP432P401RIRGC MCU
  • ARM® 32-Bit Cortex® -M4F CPU
  • Up to 256KB of Flash Main Memory
  • Up to 64KB of SRAM
  • Pre-programmed with Bootloader
  • 3.3V power supply

Key Benefits

  • Comes preprogrammed with USB HID Bootloader
  • Powered directly from the USB cable

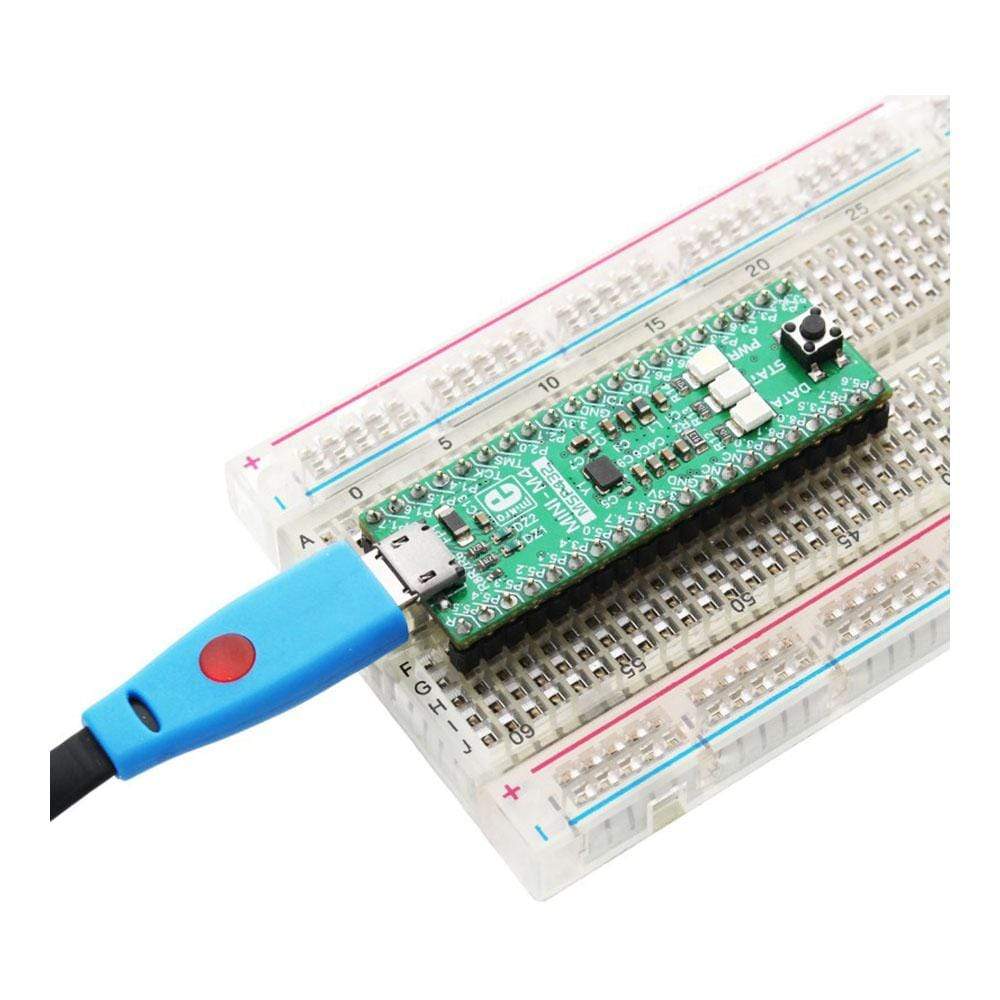

  • Can be used as a standalone device or as an MCU card in DIP40 socket

What's on Board?

All these features make the MINI-M4 for MSP432 a small and efficient development system:

USB HID Bootloader

The MINI-M4 for MSP432 is pre-programmed with USB UART Bootloader so it is not necessary to have an external programmer.

Microcontroller Features

The SimpleLink MSP432P401x microcontrollers are optimized wireless host MCUs with an integrated 14-bit analogue-to-digital converter (ADC) capable of up to 16 ENOB delivering ultra-low-power performance including 80µA/MHz in active power and 660 nA in standby power with FPU and DSP extensions.

Onboard Oscillators

The board is equipped with a 48MHz crystal oscillator and 32.768kHz crystal which can be used for internal RTCC module.

Type MINI
Architecture ARM (32-bit)
Programming Bootloader
Silicon Vendor Texas Instruments
Supply Voltage USB
Overview
DescriptionType ARM, Architecture ARM (32-bit), MCU MSP432P401RIRGC MCU speed up to 48 MHz MCU, Memory 256KB of Flash Main Memory, 64KB of SRAM, On-board modules 3 x LEDs, 1 x Reset Button, USB connector, Key Features Small development board, Key Benefits Comes preprogrammed with USB HID Bootloader, Power Supply 5V (via USB) or 3.3V (via external source)
Key components

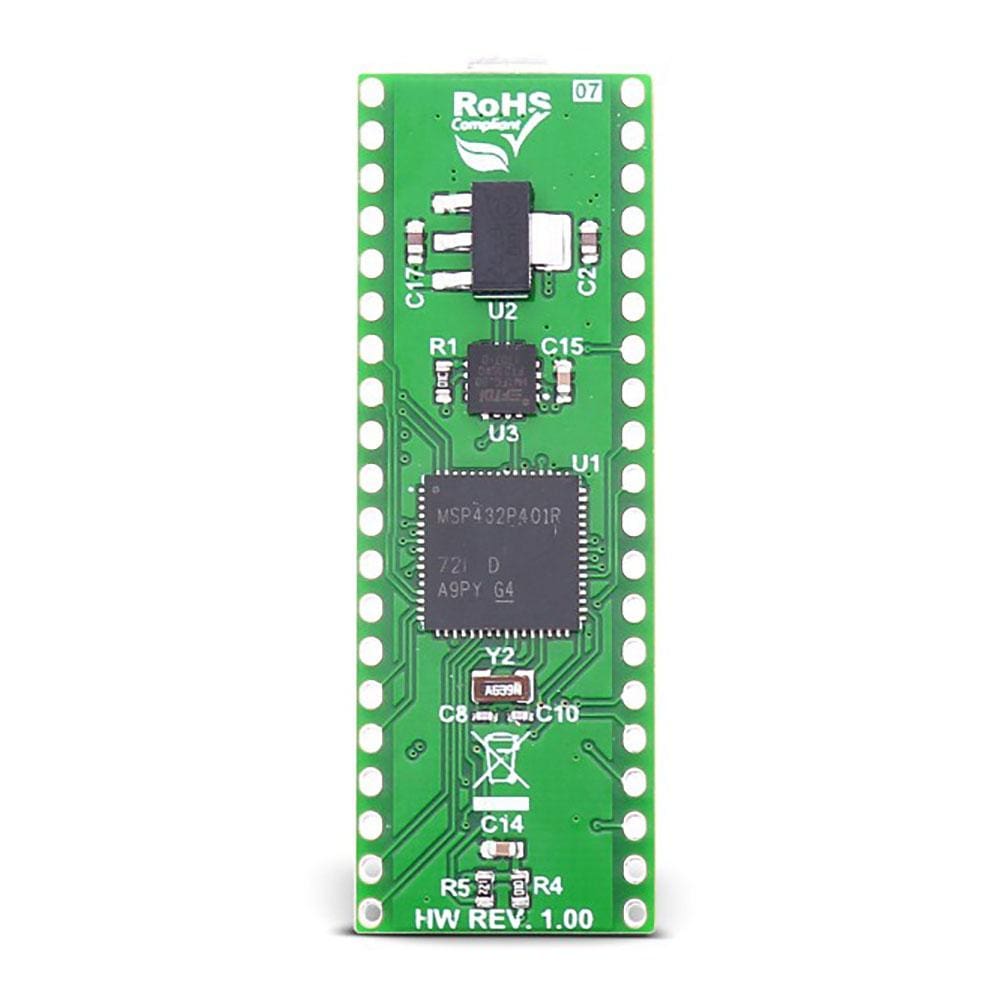

Main ICMSP432P401RIPZR (Texas Instruments)
Compliance
Country of originSerbia
RoHSCompliant
Ordering information
Part number (SKU)MIKROE-2682
ManufacturerMikroelektronika d.o.o.
EAN8606018710836
Warranty12 months
Shipping weight0.006 kg
  • 1 × MINI-M4 for MSP432 MCU Board

Contact us to confirm the full contents of the box.
